8p30

Structure of human SIT1:ACE2 complex (open PD conformation) bound to L-pipecolate

Method: ELECTRON MICROSCOPY D_max: 200.6 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8p30
沉积日期 deposition_date	2023-05-16
结构标题 title	Structure of human SIT1:ACE2 complex (open PD conformation) bound to L-pipecolate
关键词 keywords	amino acid transporter, proline, SLC6A20, ACE2, MEMBRANE PROTEIN; MEMBRANE PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	59.17 Å
回转半径 Rg (电子) rg_electron	59.46 Å
零角强度 I(0) i0	1174650000.00
分子量 molecular_weight	298780.0 kDa
排除体积 excluded_volume	377590 Å³
包络体积 envelope_volume	554030 Å³
水化壳体积 shell_volume	80984 Å³
包络直径 envelope_diameter	196.1 Å
壳层 Rg shell_rg	56.64 Å
包络 Rg envelope_rg	58.16 Å
形状 Rg shape_rg	59.46 Å
总 Rg total_rg	59.41 Å
总原子数 total_atoms	21074
残基数 n_residues	2642
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

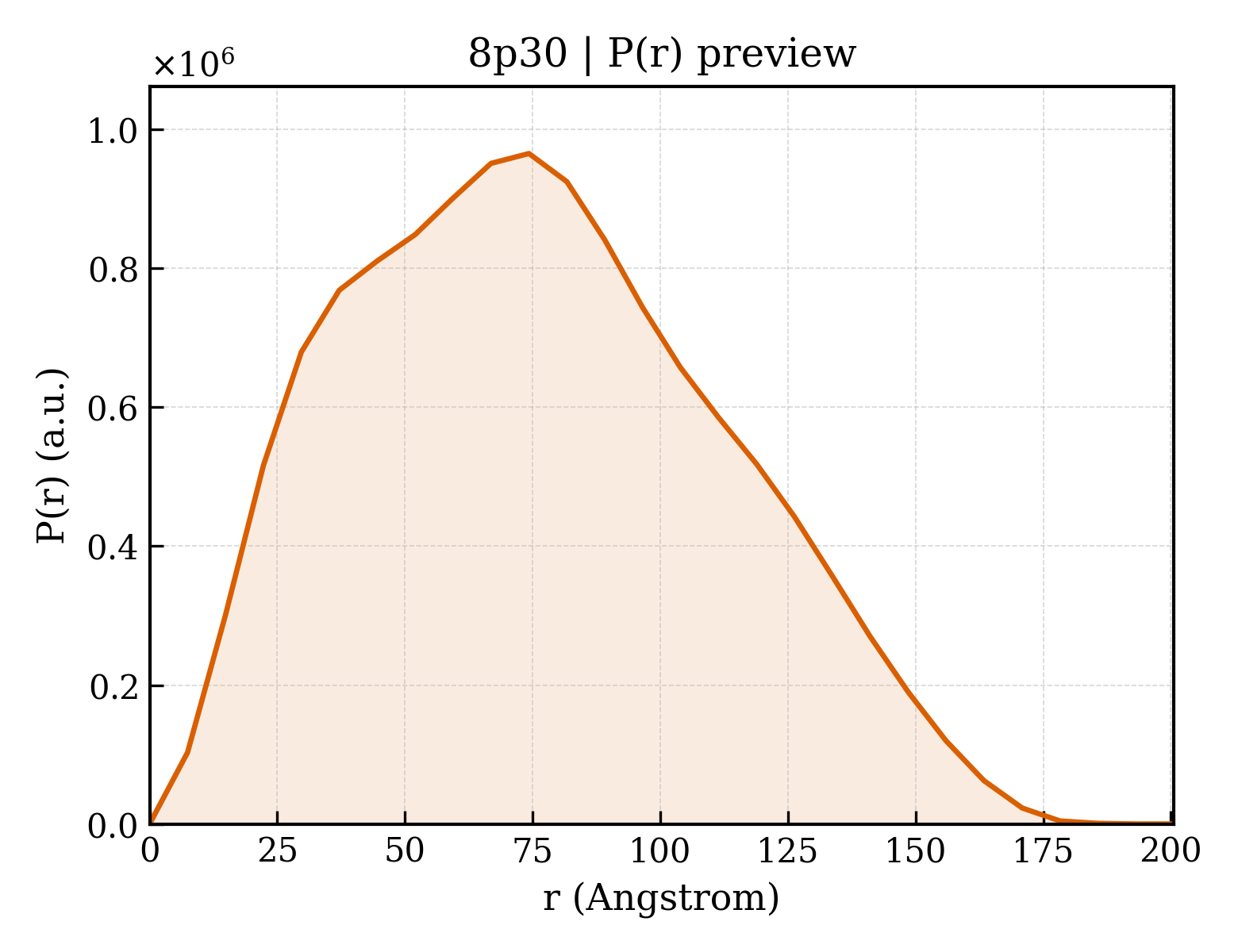

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	200.6 Å
Rg (实空间) rg_real	59.31 Å
Rg 误差 (实空间) rg_real_error	2.19 Å
I(0) (实空间) i0_real	1.1750e+09
I(0) 误差 (实空间) i0_real_error	2.7400e+07
Rg (倒空间) rg_reciprocal	59.00 Å
I(0) (倒空间) i0_reciprocal	1174000000.0000
解质量估计 total_estimate	0.8614
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	74.3 Å
偏度 Skewness skewness	0.275
峰度 Kurtosis kurtosis	-0.636
角度范围 angular_range	— – 0.1350 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	69860000.0000
实空间数据点数 n_real_points	28
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.880; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.928; Smooth: 0.626

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (9)

Entity 1 polymer

描述 description	Processed angiotensin-converting enzyme 2
分子量 formula_weight	93425.6 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	21074

MSSSSWLLLSLVAVTAADYKDDDDKSTIEEQAKTFLDKFNHEAEDLFYQSSLASWNYNTNITEENVQNMNNAGDKWSAFLKEQSTLAQMYPLQEIQNLTVKLQLQALQQNGSSVLSEDKSKRLNTILNTMSTIYSTGKVCNPDNPQECLLLEPGLNEIMANSLDYNERLWAWESWRSEVGKQLRPLYEEYVVLKNEMARANHYEDYGDYWRGDYEVNGVDGYDYSRGQLIEDVEHTFEEIKPLYEHLHAYVRAKLMNAYPSYISPIGCLPAHLLGDMWGRFWTNLYSLTVPFGQKPNIDVTDAMVDQAWDAQRIFKEAEKFFVSVGLPNMTQGFWENSMLTDPGNVQKAVCHPTAWDLGKGDFRILMCTKVTMDDFLTAHHEMGHIQYDMAYAAQPFLLRNGANEGFHEAVGEIMSLSAATPKHLKSIGLLSPDFQEDNETEINFLLKQALTIVGTLPFTYMLEKWRWMVFKGEIPKDQWMKKWWEMKREIVGVVEPVPHDETYCDPASLFHVSNDYSFIRYYTRTLYQFQFQEALCQAAKHEGPLHKCDISNSTEAGQKLFNMLRLGKSEPWTLALENVVGAKNMNVRPLLNYFEPLFTWLKDQNKNSFVGWSTDWSPYADQSIKVRISLKSALGDKAYEWNDNEMYLFRSSVAYAMRQYFLKVKNQMILFGEEDVRVANLKPRISFNFFVTAPKNVSDIIPRTEVEKAIRMSRSRINDAFRLNDNSLEFLGIQPTLGPPNQPPVSIWLIVFGVVMGVIVVGIVILIFTGIRDRKKKNKARSGENPYASIDISKGENNPGFQNTDDVQTSF

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 2 polymer

描述 description	Sodium- and chloride-dependent transporter XTRP3
分子量 formula_weight	71376.3 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,D

MEKARPLWANSLQFVFACISYAVGLGNVWRFPYLCQMYGGGSFLVPYIIMLIVEGMPLLYLELAVGQRMRQGSIGAWRTISPYLSGVGVASVVVSFFLSMYYNVINAWAFWYLFHSFQDPLPWSVCPLNGNHTGYDEECEKASSTQYFWYRKTLNISPSLQENGGVQWEPALCLLLAWLVVYLCILRGTESTGKVVYFTASLPYCVLIIYLIRGLTLHGATNGLMYMFTPKIEQLANPKAWINAATQIFFSLGLGFGSLIAFASYNEPSNNCQKHAIIVSLINSFTSIFASIVTFSIYGFKATFNYENCLKKVSLLLTNTFDLEDGFLTASNLEQVKGYLASAYPSKYSEMFPQIKNCSLESELDTAVQGTGLAFIVYTEAIKNMEVSQLWSVLYFFMLLMLGIGSMLGNTAAILTPLTDSKIISSHLPKEAISGLVCLVNCAIGMVFTMEAGNYWFDIFNDYAATLSLLLIVLVETIAVCYVYGLRRFESDLKAMTGRAVSWYWKVMWAGVSPLLIVSLFVFYLSDYILTGTLKYQAWDASQGQLVTKDYPAYALAVIGLLVASSTMCIPLAALGTFVQRRLKRGDADPVAAENLYFQSHHHHHHHHHHGSAWSHPQFEKGGGSGGGSGGSAWSHPQFEK

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 3 branched

描述 description	;alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]alpha-D-mannopyranose-(1-6)-[alpha-D-mannopyranose-(1-3)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	1235.1 kDa
来源方法 src_method	man
拷贝数 entity_count	2

Entity 4 branched

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	424.4 kDa
来源方法 src_method	man
拷贝数 entity_count	2

Entity 5 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 6 non-polymer

描述 description	2-acetamido-2-deoxy-alpha-D-glucopyranose
分子量 formula_weight	221.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 7 non-polymer

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	221.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	12

Entity 8 non-polymer

描述 description	(2S)-piperidine-2-carboxylic acid
分子量 formula_weight	129.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 9 non-polymer

描述 description	CHLORIDE ION
分子量 formula_weight	35.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.29 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	206023
