SAXSdb — 8ulj

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Fusion glycoprotein F2

Respiratory syncytial virus A2

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 12	2E08 Fab Light Chain × 3 2E08 Fab Heavy Chain × 3 Fusion glycoprotein F0,Fibritin × 3 （A0A088S9A7,P10104）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	FUS_HRSVA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–79； UniProt 26–104

Fusion glycoprotein F0,Fibritin

Respiratory syncytial virus A2

UniProt A0A088S9A7

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 12	Fusion glycoprotein F2 × 3 （P03420） 2E08 Fab Light Chain × 3 2E08 Fab Heavy Chain × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A088S9A7_HRSV
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain B； PDBConstruct 1–377； UniProt 137–513

Fusion glycoprotein F0,Fibritin

Respiratory syncytial virus A2

UniProt P10104

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 12	Fusion glycoprotein F2 × 3 （P03420） 2E08 Fab Light Chain × 3 2E08 Fab Heavy Chain × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	WAC_BPT4
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain B； PDBConstruct 382–408； UniProt 458–484

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8ulj
Deposition date deposition_date	2023-10-16
Last revision last_revision	2024-11-06
Structure title title	Prefusion RSV F bound by neutralizing antibody 2E08
Keywords keywords	RSV, antibody, neutralizing, prefusion, antiviral, VIRAL PROTEIN-IMMUNE SYSTEM complex; VIRAL PROTEIN/IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8ulj__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8ulj__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

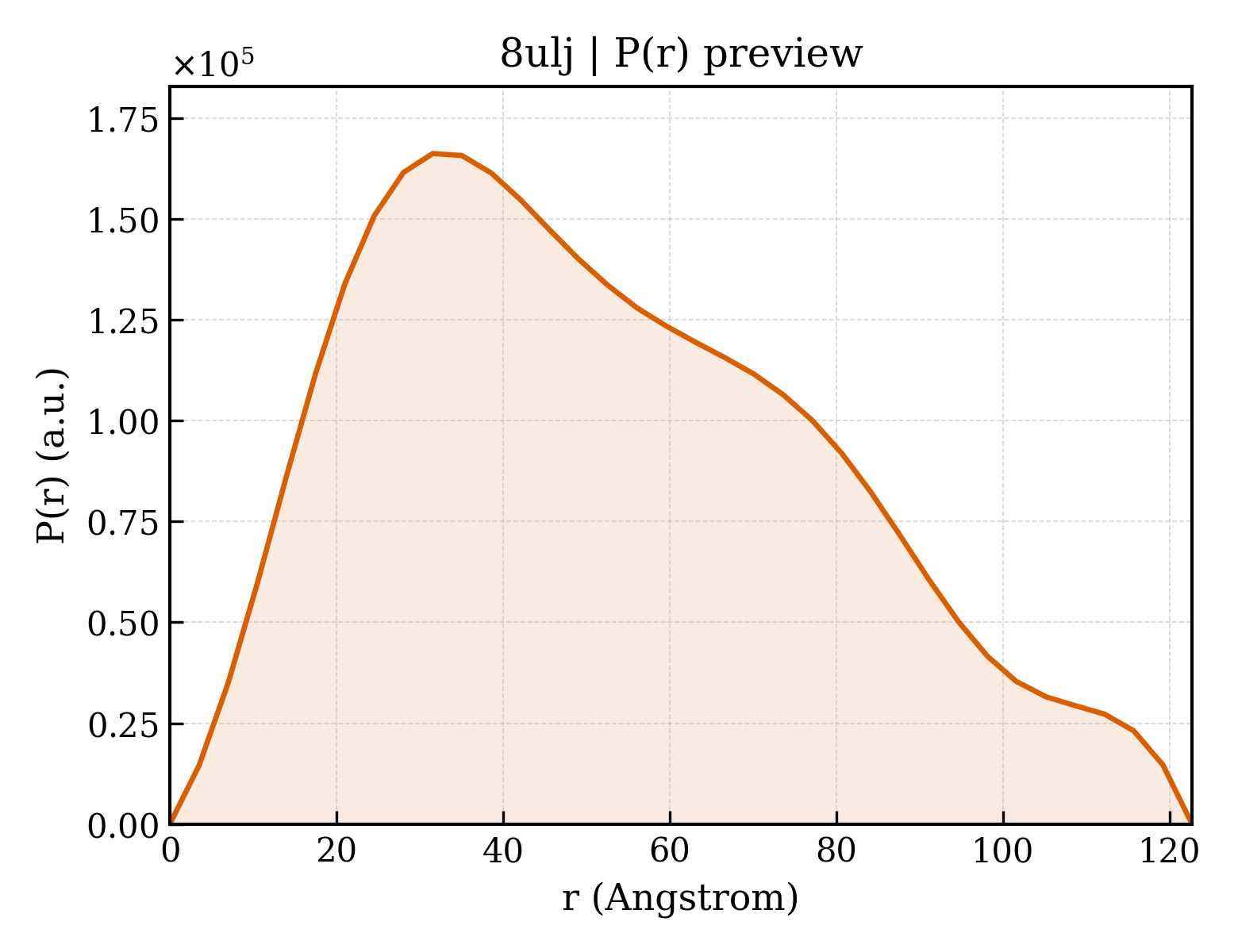

8ulj__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	54.64 Å
Rg (electron density)	54.55 Å
Total Rg	54.11 Å
Atom count	20682
Residues	2736
Excluded volume	368400 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8ulj__assembly_1__model_1`	dodecameric （12）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Fusion glycoprotein F2
Molecular weight formula_weight	8873.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	6896

QNITEEFYQSTCSAVSKGYLSALRTGWYTSVITIELSNIKENKCNGTDAKVKLIKQELDKYKNAVTELQLLMQSTPATN

Source Source

Source organism organism	Respiratory syncytial virus A2
NCBI taxonomy ID ncbi_taxonomy_id	1972429
Host organism host_organism	Cricetulus griseus

Entity 2 Entity 2 polymer

Description description	2E08 Fab Light Chain
Molecular weight formula_weight	23336.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L

EIVTQSPGTLSLSPGERATLSCRASQNVGSNLLAWYQQKPGQAPRLLIYGASNRATGIPDRFSGSGSGTDFTLTISRLEPEDFVVYHCQQYGSSPRTFGQGTKVEIRRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

Source Source

Source organism organism	Homo sapiens
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	2E08 Fab Heavy Chain
Molecular weight formula_weight	25919.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

QVQLVESGAEAKKPGSSVKVSCKISGGTLNDYPIRWVRQAPGQGLEWMGGIIPILGTSYETQKFQGRLTLTADELTSTVYMELRYLTSEDAAVYFCATMTSPVFIDALDVWGQGTRVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKRVEPKSCDKGSENLYFQGSHHHHHH

Source Source

Source organism organism	Homo sapiens
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 4 Entity 4 polymer

Description description	Fusion glycoprotein F0,Fibritin
Molecular weight formula_weight	45609.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

FLGFLLGVGSAIASGVAVCKVLHLEGEVNKIKSALLSTNKAVVSLSNGVSVLTFKVLDLKNYIDKQLLPILNKQSCSISNIETVIEFQQKNNRLLEITREFSVNAGVTTPVSTYMLTNSELLSLINDMPITNDQKKLMSNNVQIVRQQSYSIMCIIKEEVLAYVVQLPLYGVIDTPCWKLHTSPLCTTNTKEGSNICLTRTDRGWYCDNAGSVSFFPQAETCKVQSNRVFCDTMNSLTLPSEVNLCNVDIFNPKYDCKIMTSKTDVSSSVITSLGAIVSCYGKTKCTASNKNRGIIKTFSNGCDYVSNKGVDTVSVGNTLYYVNKQEGKSLYVKGEPIINFYDPLVFPSDEFDASISQVNEKINQSLAFIRKSDELLSAIGGYIPEAPRDGQAYVRKDGEWVLLSTFLGGLVPR

Source Source

Source organism organism	Respiratory syncytial virus A2
NCBI taxonomy ID ncbi_taxonomy_id	1972429
Host organism host_organism	Cricetulus griseus

▶

Unit-cell length a length_a	164.715 Å
Unit-cell length b length_b	164.715 Å
Unit-cell length c length_c	146.157 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 3 2 1
Space-group number int_tables_number	150
Crystal system crystal_system	trigonal

Resolution resolution	3.000 Å
Low-resolution limit resolution_low	43.390 Å
R factor r_factor	0.2382
R_work r_work	0.2370
R_free r_free	0.2635
