1aa0
FIBRITIN DELETION MUTANT E (BACTERIOPHAGE T4)

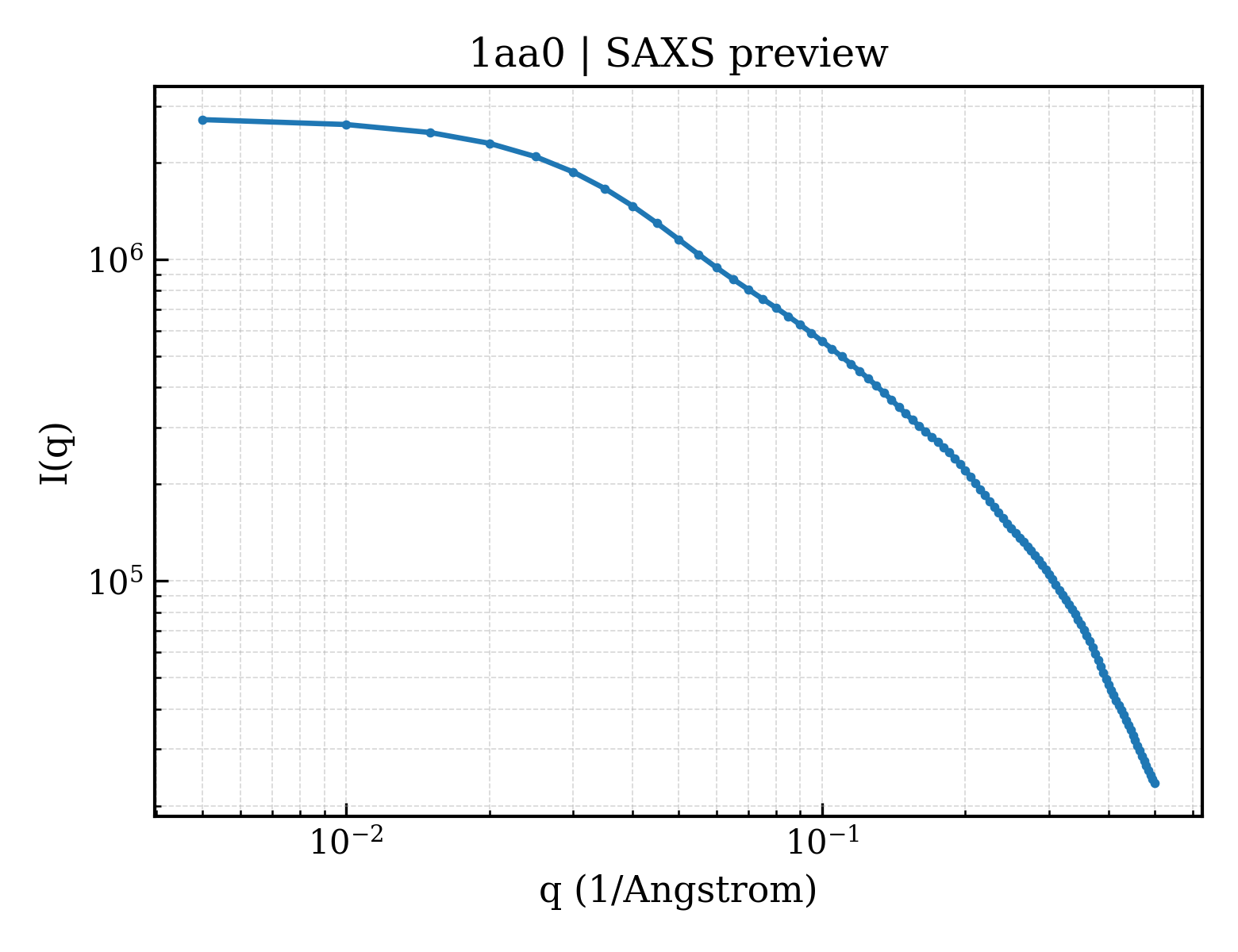

SAXS Profile

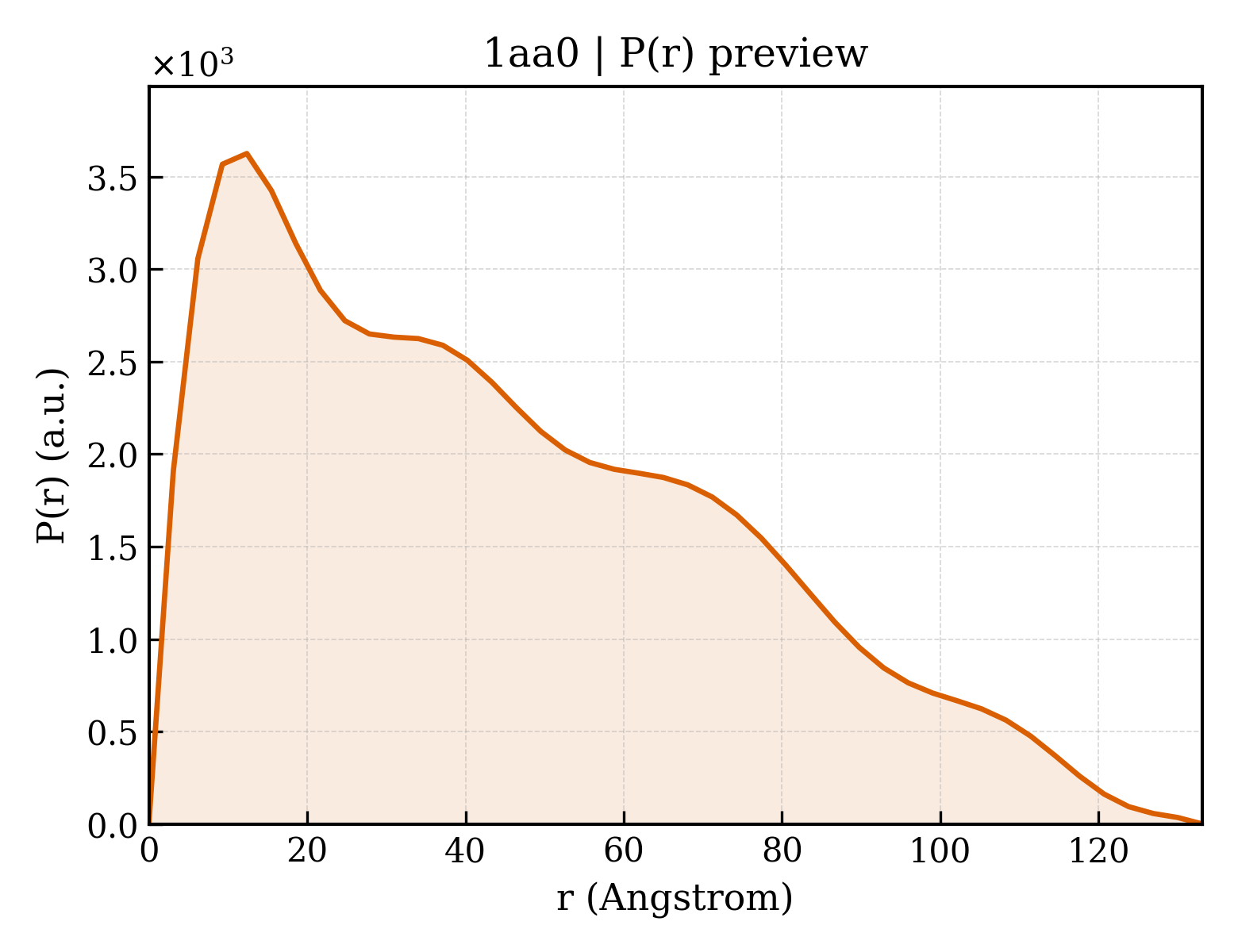

P(r) Distribution
1. Structure Basics
| entry_id | 1aa0 |
| deposition_date | 1997-01-18 |
| title | FIBRITIN DELETION MUTANT E (BACTERIOPHAGE T4) |
| keywords | BACTERIOPHAGE T4, FIBRITIN, STRUCTURAL PROTEIN, BACTERIOPHAGE ASSEMBLY, ATTACHMENT PROTEIN; ATTACHMENT PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 36.44 Å |
| rg_electron | 39.06 Å |
| i0 | 2757450.00 |
| molecular_weight | 11949.0 kDa |
| excluded_volume | 14666 ų |
| envelope_volume | 26772 ų |
| shell_volume | 7525 ų |
| envelope_diameter | 136.5 Å |
| shell_rg | 32.14 Å |
| envelope_rg | 38.83 Å |
| shape_rg | 39.04 Å |
| total_rg | 38.42 Å |
| total_atoms | 1038 |
| n_residues | 113 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 133.1 Å |
| rg_real | 37.57 Å |
| rg_real_error | 1.82 Å |
| i0_real | 2.7570e+06 |
| i0_real_error | 4.8730e+04 |
| rg_reciprocal | 36.87 Å |
| i0_reciprocal | 2756000.0000 |
| total_estimate | 0.5637 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 1 |
| r_peak_primary | 12.4 Å |
| skewness | 0.563 |
| kurtosis | -0.578 |
| angular_range | — – 0.2150 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 133500.0000 |
| n_real_points | 44 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.003; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.011; Smooth: 0.304 |
