SAXSdb — 1avy

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

FIBRITIN

Enterobacteria phage T4

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 3	water × 3	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 3	water × 3	Consistent with protein count
3	Protein homooligomer	Homooligomer	Protein 3	water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	WAC_BPT4
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–74； UniProt 413–486 Author chain B； PDBConstruct 1–74； UniProt 413–486 Author chain C； PDBConstruct 1–74； UniProt 413–486

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1avy
Deposition date deposition_date	1997-09-22
Structure title title	FIBRITIN DELETION MUTANT M (BACTERIOPHAGE T4)
Keywords keywords	COILED COIL, BACTERIOPHAGE T4, STRUCTURAL PROTEIN, CHAPERONE, BACTERIOPHAGE ASSEMBLY, PROTEIN FOLDING; COILED COIL
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1avy__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

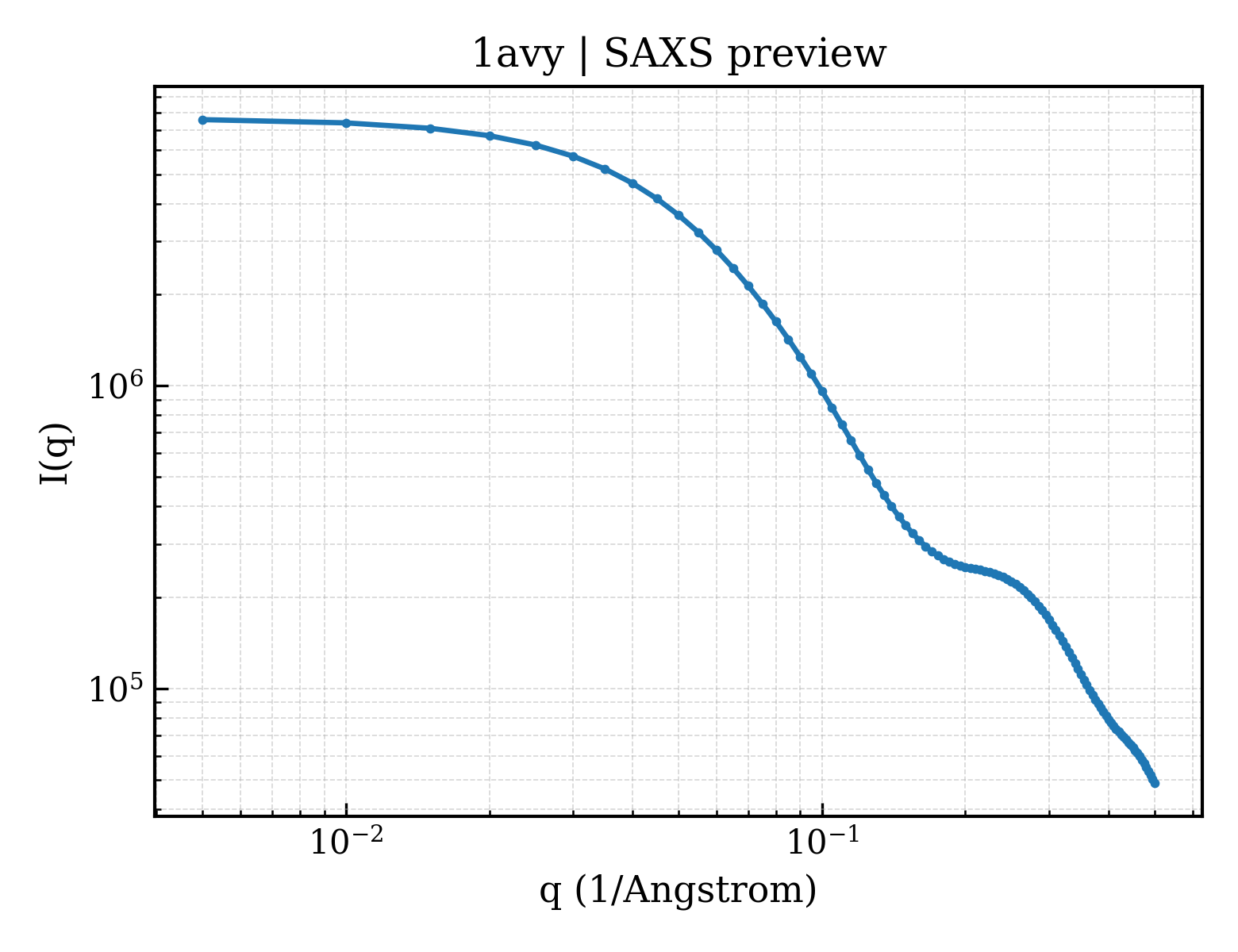

1avy__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

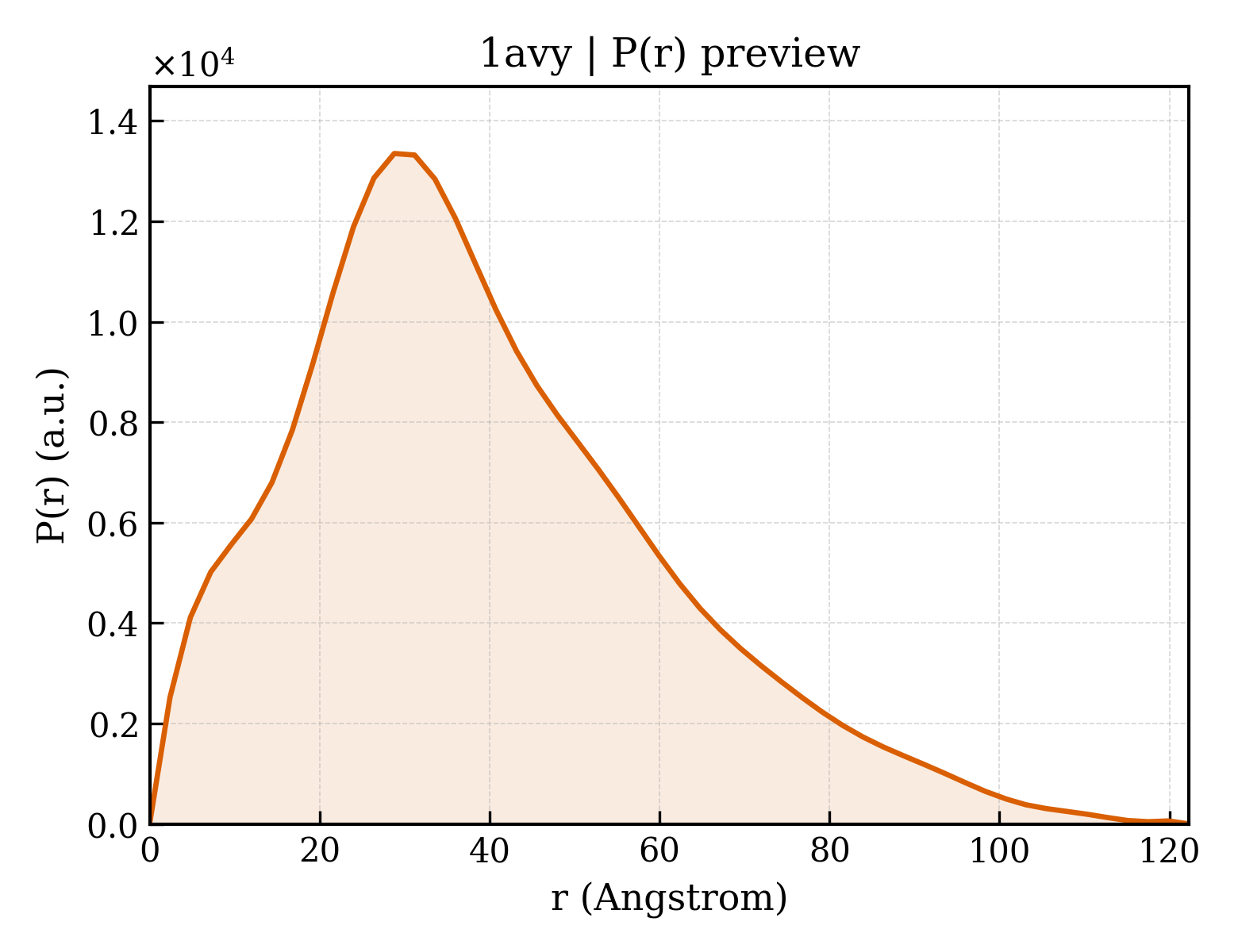

1avy__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	26.07 Å
Rg (electron density)	27.07 Å
Total Rg	27.49 Å
Atom count	1545
Residues	204
Excluded volume	27237 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1avy__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1avy__assembly_2__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`1avy__assembly_3__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d1avya_
Class class	h — Coiled coil proteins
Fold Fold fold	h.1 — Parallel coiled-coil
Superfamily Superfamily superfamily	h.1.17 — Fibritin
Family Family family	h.1.17.1 — Fibritin

Domain ID domain_id	d1avyb_
Class class	h — Coiled coil proteins
Fold Fold fold	h.1 — Parallel coiled-coil
Superfamily Superfamily superfamily	h.1.17 — Fibritin
Family Family family	h.1.17.1 — Fibritin

Domain ID domain_id	d1avyc_
Class class	h — Coiled coil proteins
Fold Fold fold	h.1 — Parallel coiled-coil
Superfamily Superfamily superfamily	h.1.17 — Fibritin
Family Family family	h.1.17.1 — Fibritin

CATH v4.4 (3 domains)

Domain ID domain_id	1avyA00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	320 — 6-Phosphogluconate Dehydrogenase, domain 3

Domain ID domain_id	1avyB00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	320 — 6-Phosphogluconate Dehydrogenase, domain 3

Domain ID domain_id	1avyC00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	320 — 6-Phosphogluconate Dehydrogenase, domain 3

▶

Unit-cell length a length_a	43.680 Å
Unit-cell length b length_b	43.680 Å
Unit-cell length c length_c	90.610 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	9

Space group space_group	P 3
Space-group number int_tables_number	143
Crystal system crystal_system	—

Resolution resolution	1.850 Å
Low-resolution limit resolution_low	23.000 Å
R factor r_factor	0.2200
R_work r_work	0.2200
R_free r_free	0.2530

Description description	FIBRITIN
Molecular weight formula_weight	7981.8 kDa
Mutation mutation	R416S, S421K, N425I, N428D, T433R
Source method src_method	man
Copy count entity_count	3

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	1716

FIBRITIN DELETION MUTANT M (BACTERIOPHAGE T4)

1. Protein Identity and Related Structures Protein Identity & Related Structures

FIBRITIN

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1avy__assembly_1__model_1

1avy__assembly_1__model_1 | I(q)

1avy__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 water

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (3 domains)

CATH v4.4 (3 domains)

7. Citations (4)

Source organism organism	Enterobacteria phage T4
NCBI taxonomy ID ncbi_taxonomy_id	10665
Host organism host_organism	Escherichia coli BL21(DE3)

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	277
