SAXSdb — 9jmp

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Spike glycoprotein,Fibritin

Tequatrovirus T4

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Homooligomer	Protein 3 其他Polymer 12	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 9 beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 3 2-acetamido-2-deoxy-beta-D-glucopyranose × 21 LINOLEIC ACID × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A2R4KP93_MERS
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–1294； UniProt 1–1294 Author chain B； PDBConstruct 1–1294； UniProt 1–1294 Author chain C； PDBConstruct 1–1294； UniProt 1–1294

Spike glycoprotein,Fibritin

Tequatrovirus T4

UniProt P10104

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Homooligomer	Protein 3 其他Polymer 12	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 9 beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 3 2-acetamido-2-deoxy-beta-D-glucopyranose × 21 LINOLEIC ACID × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	WAC_BPT4
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1297–1323； UniProt 458–484 Author chain B； PDBConstruct 1297–1323； UniProt 458–484 Author chain C； PDBConstruct 1297–1323； UniProt 458–484

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9jmp
Deposition date deposition_date	2024-09-20
Structure title title	Cryo-EM structure of GD-BatCoV (BtCoV/Ii/GD/2014-422) S-trimer
Keywords keywords	spike protein, VIRAL PROTEIN; VIRAL PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9jmp__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

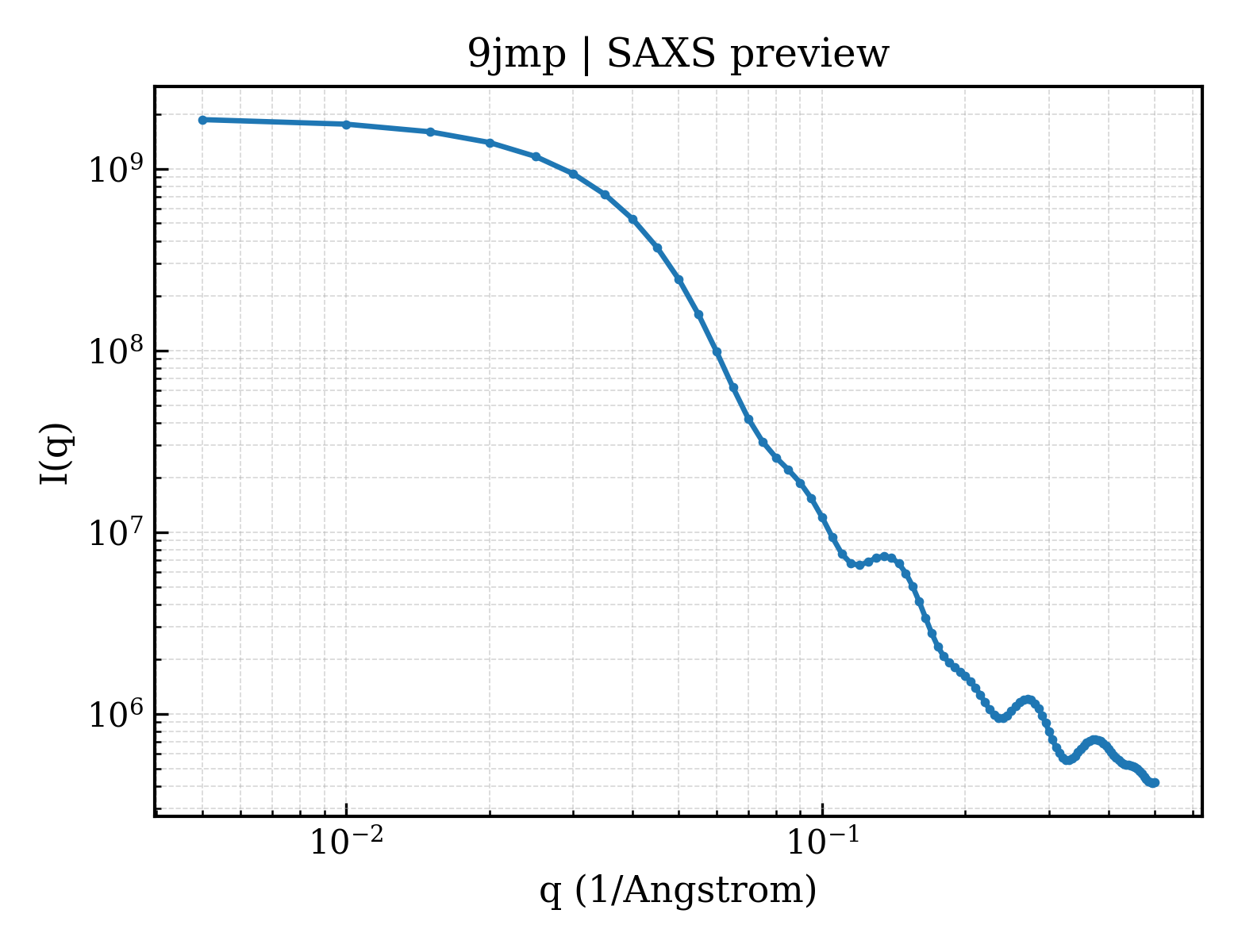

9jmp__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

9jmp__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	48.08 Å
Rg (electron density)	47.35 Å
Total Rg	47.55 Å
Atom count	25407
Residues	3195
Excluded volume	451110 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9jmp__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Spike glycoprotein,Fibritin
Molecular weight formula_weight	151327.0 kDa
Mutation mutation	A885P,S962P,A969P,N1012P,A1056P,V1057P
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	25407

MRLSVCLLMFLLTPIKGDVDSGPPSSATSCKEADMRNSSSEFFNKQWPMPINASKADGIIYPTGKSYSNISLTLQGLFPKHGDLGEQYIYSVGHSDSNYDYLGKLFVSDYATKVVPFNNGFVVRIGAAANATGSVIISTVQKTIKKIYPAFMLGSSVGNFSNGVSGRYFNHTLLLLPDGCGTRLWALYCVIEPRNGSYCPGNSNYNTFAVFDTPHTDCTSAGYNTNATLNSFKEYFDLQNCSFIYSFNITEDENAEWFGITQNTQGVHLYSSRKGDLYGSNMFLFATLPVYDGIKYYTVIPRSIRSKYSERQAWAAFYIYSLHKLTYLLDFSVDGYIRRAVDCGHDDLSQLYCSYESFDVGSGVYSVSSFEVHSRGQFIEQPNSVECDFTKLLSGTPPQVYNFNRLVFTNCNYNLTKLLSLFMVNEFSCDGISPDAIARGCYSSLTVDYFAYPLSMKSYMQPGSAGVISQYNYKQSFANPTCRIFATAPANLTITKPSSYSFISKCSRLTGDNSHIETPIVINPGEYSICKNFAPNGFSQDGDYFTRQLSQLEGGGILVGVGSVTPMTDTLQMGFIISVQYGTDTNSVCPMMDLGNSTTITDKLGVCVEYNLYGVSGRGVFINCTAVGVKQQRFVYDGFDNLIGYYSDDGNYYCVRPCVSVPLSVVYDKTTNSHATIFGSVACEHITTMLHQFSRTTQASLRMRDVSNSGPLQTAVGCVIGLVNSSMVVDNCQLPLGQSLCAVPSTTRSSSQLQLATINYTQPQLLSPLNSSGFVVQVPTNFSFGITQEYIQTTIQKVTVDCKQYVCNGFQKCEQLLREYGQFCAKINQALHGANLMQDESVANLFSDIKTHKSQPLNAGLNGDFNLTLLQVPQVSTSQYSHRSPIEDLLFNKVTIADPGYMQGYDDCMKQGPPSARDLICAQYVAGYKVLPPLYDPNMEGAYTSSLLGSIAGAGWTAGLSPFAAIPFPQSIFYRMNGIGITQQVLSENQKLIANKFNQALGAMQTGFTTTPLAFSKVQDAVNANAQALSKLASELSNTFGAISSSISDILKRLDPPEQEAQIDRLINGRLTSLNAFVAQQLVRSETAARSAQLASDKVNECVKSQSKRNGFCGSGTHIVSFVINAPNGFYFFHVGYVPTNHVNVTAAYGLCNTDTPPRCIAPIDGYFVLNNTTTRDVVDQWYYTGSSFFNPEPITMANARYVSQDVKFENLTNQLPPPLLNNQTDLDFKEELEEFFKNVSSQGPNFQEISKINTTLLDLSTEMKVLNEVVKQLNESYIDLKELGNYSYYQKWPGSGYIPEAPRDGQAYVRKDGEWVLLSTFLLEVLFQGPGHHHHHHHHSAWSHPQFEKGGGSGGGGSGGSAWSHPQFEKSA

Source Source

Source organism organism	Tequatrovirus T4
NCBI taxonomy ID ncbi_taxonomy_id	10665
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	man
Copy count entity_count	9

Entity 3 Entity 3 branched

Description description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	586.5 kDa
Source method src_method	man
Copy count entity_count	3

Entity 4 Entity 4 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	syn
Copy count entity_count	21

Entity 5 Entity 5 non-polymer

Description description	LINOLEIC ACID
Molecular weight formula_weight	280.4 kDa
Source method src_method	syn
Copy count entity_count	3

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.100 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	—
R_work r_work	—
R_free r_free	—

Resolution resolution	3.10 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	111480
