9wla

Local refinement region of SARS-CoV-2 spike RBD in complex with antibodies CT1-5.

Method: ELECTRON MICROSCOPY D_max: 113.1 Å Quality: GOOD

SAXS Profile

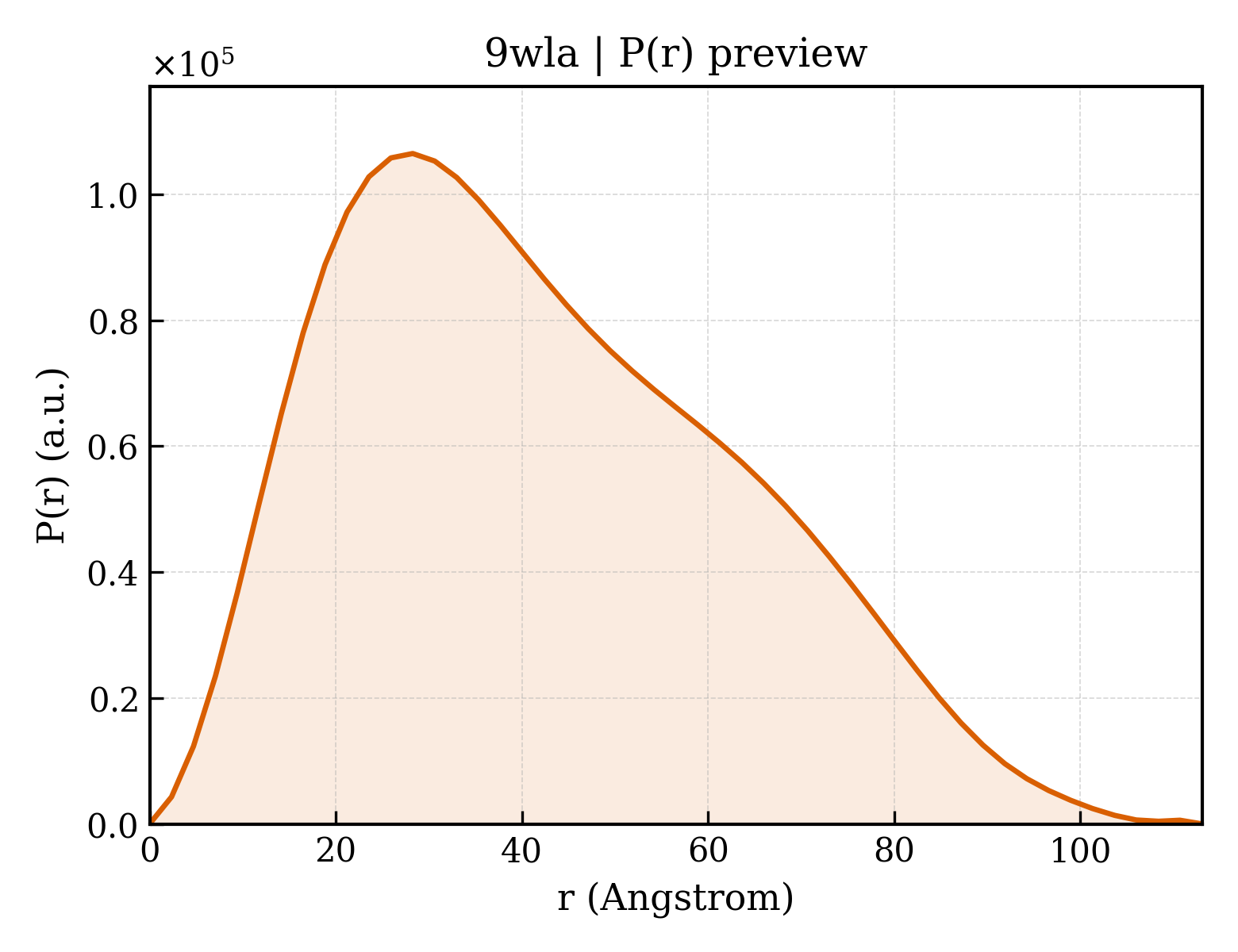

P(r) Distribution

▼

1. Structure Basics

entry_id	9wla
deposition_date	2025-09-02
title	Local refinement region of SARS-CoV-2 spike RBD in complex with antibodies CT1-5.
keywords	SARS-CoV-2, RBD, Fab, VIRAL PROTEIN/IMMUNE SYSTEM, VIRAL PROTEIN-IMMUNE SYSTEM complex; VIRAL PROTEIN/IMMUNE SYSTEM
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	32.99 Å
rg_electron	32.99 Å
i0	70321000.00
molecular_weight	66011.0 kDa
excluded_volume	82126 Å³
envelope_volume	109250 Å³
shell_volume	29366 Å³
envelope_diameter	119.5 Å
shell_rg	37.36 Å
envelope_rg	33.03 Å
shape_rg	32.97 Å
total_rg	33.42 Å
total_atoms	4669
n_residues	643
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	113.1 Å
rg_real	33.32 Å
rg_real_error	1.08 Å
i0_real	7.0320e+07
i0_real_error	1.2350e+06
rg_reciprocal	33.19 Å
i0_reciprocal	70310000.0000
total_estimate	0.8291
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	28.3 Å
skewness	0.453
kurtosis	-0.536
angular_range	— – 0.2400 Å⁻¹
current_alpha	0.0000
highest_alpha	13580000.0000
n_real_points	49
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.750; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.638; Smooth: 0.885

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (6)

Entity 1 polymer

description	S309 Fab light chain
formula_weight	23204.7 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	B
atom_count	4669

EIVLTQSPGTLSLSPGERATLSCRASQTVSSTSLAWYQQKPGQAPRLLIYGASSRATGIPDRFSGSGSGTDFTLTISRLEPEDFAVYYCQQHDTSLTFGGGTKVEIKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

Source

organism	Homo sapiens
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 2 polymer

description	S309 Fab heavy chain
formula_weight	14005.5 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	D

QVQLVQSGAEVKKPGASVKVSCKASGYPFTSYGISWVRQAPGQGLEWMGWISTYNGNTNYAQKFQGRVTMTTDTSTTTGYMELRRLRSDDTAVYYCARDYTRGAWFGESLIGGFDNWGQGTLVTVSS

Source

organism	Homo sapiens
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 3 polymer

description	Spike protein S1
formula_weight	25122.3 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	R

RVQPTESIVRFPNITNLCPFGEVFNATRFASVYAWNRKRISNCVADYSVLYNSASFSTFKCYGVSPTKLNDLCFTNVYADSFVIRGDEVRQIAPGQTGKIADYNYKLPDDFTGCVIAWNSNNLDSKVGGNYNYLYRLFRKSNLKPFERDISTEIYQAGSTPCNGVEGFNCYFPLQSYGFQPTNGVGYQPYRVVVLSFELLHAPATVCGPKKSTNLVKNKCVNF

Source

organism	Severe acute respiratory syndrome coronavirus 2
ncbi_taxonomy_id	2697049
host_organism	Homo sapiens

Entity 4 polymer

description	CT1-5 Fab heavy chain
formula_weight	13478.1 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	H

QMQLVQSGPEVKKPGTSVKVSCKASGFTFTSSAVQWVRQARGQRLEWIGWIVVGSGNTNYAQKFQERVTITRDMSTSTAYMELSSLRSEDTAVYYCAAPYCSGGSCHDAFDIWGQGTMVTVSS

Source

organism	Homo sapiens
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 5 polymer

description	CT1-5 Fab light chain
formula_weight	11786.1 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	L

DIVLTQTPGTLSLSPGERATLSCRASQSVSSSYLAWYQQKPGQAPRLLIYGASSRATGIPDRFSGSGSGTDFTLTISRLEPEDFAVYYCQQYVGLTGWTFGQGTKVEIK

Source

organism	Homo sapiens
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 6 non-polymer

description	CHLORIDE ION
formula_weight	35.5 kDa
src_method	syn
entity_count	1

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.600 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	3.60 Å
resolution_method	—
num_particles	49476

fit	/app/data/saxs_computation/wl/9wla/9wla.fit
pddf	/app/data/pr_computation/wl/9wla/9wla.pr.out
profile	/app/data/saxs_computation/wl/9wla/9wla.dat
