SAXSdb — 8q94

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Spike protein S1

Severe acute respiratory syndrome coronavirus 2

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Nanobody Ma3B12 × 1 Nanobody Re32D03 × 1 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SPIKE_SARS2
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–187； UniProt 334–517

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8q94
Deposition date deposition_date	2023-08-19
Structure title title	Crystal structure of The SARS-COV-2 BA.2.75 RBD with neutralizing-VHHs Re32D03 and Ma3B12
Keywords keywords	Neutralizing VHH, Fold-promoter, VIRAL PROTEIN; VIRAL PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8q94__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8q94__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

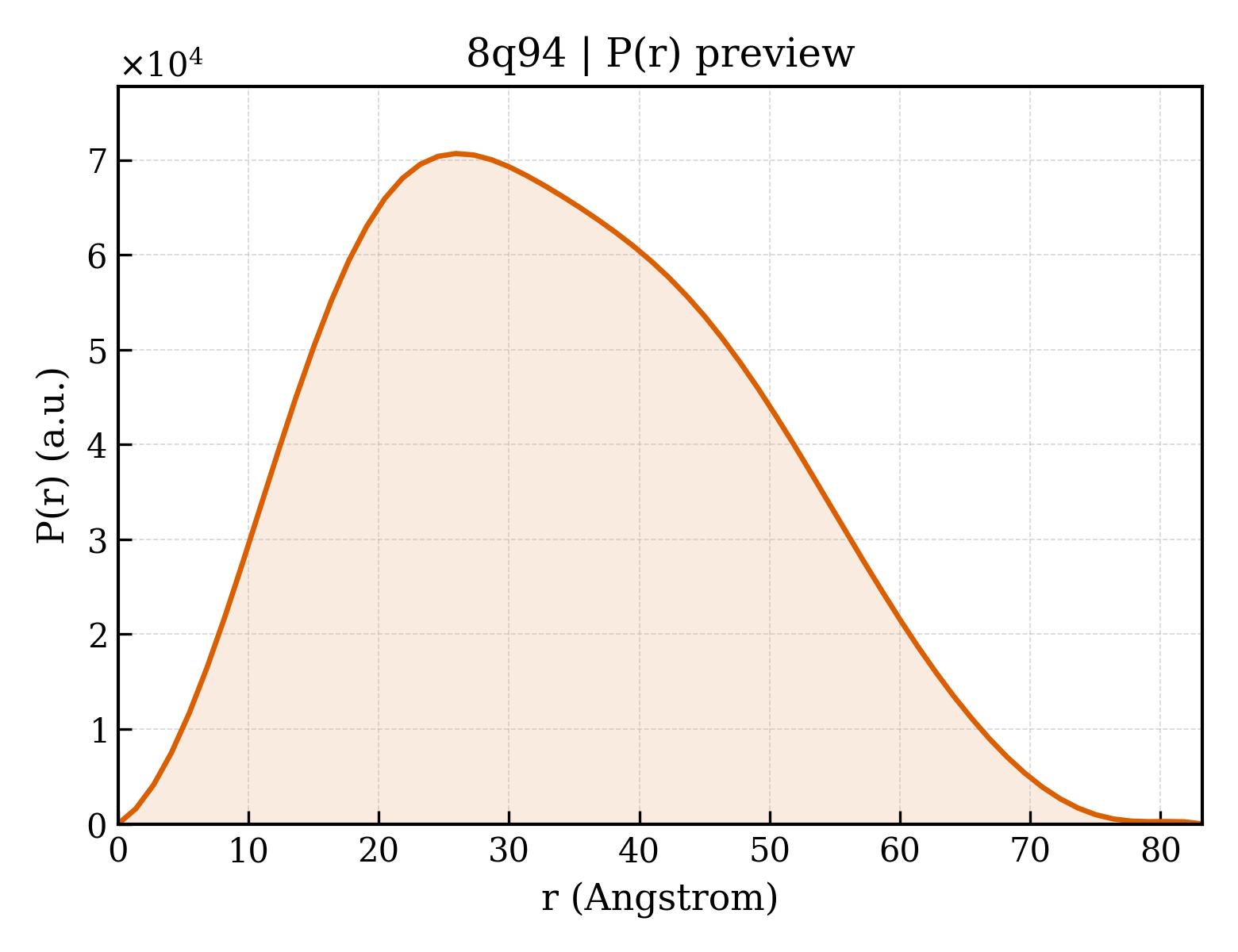

8q94__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	26.03 Å
Rg (electron density)	25.09 Å
Total Rg	26.06 Å
Atom count	3305
Residues	429
Excluded volume	58291 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8q94__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Spike protein S1
Molecular weight formula_weight	21316.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	3336

EGSNLCPFDEVFDATRFASVYAWNRKRISNCVADYSVLYNLAPFFTFKCYGVSPTKLNDLSFTNVYADSFVIRGDEVRQIAPGQTGNIADYNYKLPDDFTGCVIAWNSNKLDSKVSGNYNYLYRLFRKSNLKPFERDISTEIYQAGNKPCNGVAGFNCYFPLQSYGFRPTYGVGHQPYRVVVLSFEL

Source Source

Source organism organism	Severe acute respiratory syndrome coronavirus 2
NCBI taxonomy ID ncbi_taxonomy_id	2697049
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Nanobody Ma3B12
Molecular weight formula_weight	14308.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

GSQVQLVETGGDLVQSGGSLRLACVLSGVTLDSYSIGWFRQAPGKEREGISYSEKSSGPTYYVDSVKGRFTVSRDNAKNTAYLQMNSLKPEDSGIYYCAADEAYYHEKGWQSPLGWPYWGQGTQVTVSSTS

Source Source

Source organism organism	Vicugna pacos
NCBI taxonomy ID ncbi_taxonomy_id	30538
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Nanobody Re32D03
Molecular weight formula_weight	14101.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

GSQVQLVESGGGLVQPGGSLRLSCAISGITLDYYAVGWFLQAPGKEREGISCMRNWDGRTVYAPSVKGRFTISSDNAKKMVYLEMDNLKSEDTGVYYCAAGPLPPGISCRIPTPLGYDDWGQGTQVTVSSTS

Source Source

Source organism organism	Vicugna pacos
NCBI taxonomy ID ncbi_taxonomy_id	30538
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	28

▶

Unit-cell length a length_a	67.159 Å
Unit-cell length b length_b	67.159 Å
Unit-cell length c length_c	224.897 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 43 21 2
Space-group number int_tables_number	96
Crystal system crystal_system	—

Resolution resolution	2.500 Å
Low-resolution limit resolution_low	47.490 Å
R factor r_factor	0.2224
R_work r_work	0.2195
R_free r_free	0.2770

Crystal structure of The SARS-COV-2 BA.2.75 RBD with neutralizing-VHHs Re32D03 and Ma3B12
