SAXSdb — 9ypr

▼

1. Structure Basics

entry_id	9ypr
deposition_date	2025-10-14
title	Fab-14/SARS-CoV-2 D614G spike complex, Mode IV, subgroup I conformation
keywords	SARS-CoV-2, neutralizing antibody, VIRAL PROTEIN; VIRAL PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	68.68 Å
rg_electron	69.11 Å
i0	2187090000.00
molecular_weight	396300.0 kDa
excluded_volume	496740 Å³
envelope_volume	803600 Å³
shell_volume	105730 Å³
envelope_diameter	251.6 Å
shell_rg	61.47 Å
envelope_rg	67.17 Å
shape_rg	69.11 Å
total_rg	68.95 Å
total_atoms	27926
n_residues	3546
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	223.2 Å
rg_real	69.00 Å
rg_real_error	2.17 Å
i0_real	2.1850e+09
i0_real_error	5.2230e+07
rg_reciprocal	66.93 Å
i0_reciprocal	2178000000.0000
total_estimate	0.8115
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	67.9 Å
skewness	0.601
kurtosis	-0.232
angular_range	— – 0.1150 Å⁻¹
current_alpha	0.0016
highest_alpha	132000000.0000
n_real_points	24
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.828; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.922; Smooth: 0.143

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (5)

Entity 1 polymer

description	Spike glycoprotein
formula_weight	142341.3 kDa
src_method	man
entity_count	3

Polymer

type	polypeptide(L)
strand_id	A,B,C
atom_count	27926

MFVFLVLLPLVSSQCVNLTTRTQLPPAYTNSFTRGVYYPDKVFRSSVLHSTQDLFLPFFSNVTWFHAIHVSGTNGTKRFDNPVLPFNDGVYFASTEKSNIIRGWIFGTTLDSKTQSLLIVNNATNVVIKVCEFQFCNDPFLGVYYHKNNKSWMESEFRVYSSANNCTFEYVSQPFLMDLEGKQGNFKNLREFVFKNIDGYFKIYSKHTPINLVRDLPQGFSALEPLVDLPIGINITRFQTLLALHRSYLTPGDSSSGWTAGAAAYYVGYLQPRTFLLKYNENGTITDAVDCALDPLSETKCTLKSFTVEKGIYQTSNFRVQPTESIVRFPNITNLCPFGEVFNATRFASVYAWNRKRISNCVADYSVLYNSASFSTFKCYGVSPTKLNDLCFTNVYADSFVIRGDEVRQIAPGQTGKIADYNYKLPDDFTGCVIAWNSNNLDSKVGGNYNYLYRLFRKSNLKPFERDISTEIYQAGSTPCNGVEGFNCYFPLQSYGFQPTNGVGYQPYRVVVLSFELLHAPATVCGPKKSTNLVKNKCVNFNFNGLTGTGVLTESNKKFLPFQQFGRDIADTTDAVRDPQTLEILDITPCSFGGVSVITPGTNTSNQVAVLYQGVNCTEVPVAIHADQLTPTWRVYSTGSNVFQTRAGCLIGAEHVNNSYECDIPIGAGICASYQTQTNSPGSASSVASQSIIAYTMSLGAENSVAYSNNSIAIPTNFTISVTTEILPVSMTKTSVDCTMYICGDSTECSNLLLQYGSFCTQLNRALTGIAVEQDKNTQEVFAQVKQIYKTPPIKDFGGFNFSQILPDPSKPSKRSFIEDLLFNKVTLADAGFIKQYGDCLGDIAARDLICAQKFNGLTVLPPLLTDEMIAQYTSALLAGTITSGWTFGAGAALQIPFAMQMAYRFNGIGVTQNVLYENQKLIANQFNSAIGKIQDSLSSTASALGKLQDVVNQNAQALNTLVKQLSSNFGAISSVLNDILSRLDPPEAEVQIDRLITGRLQSLQTYVTQQLIRAAEIRASANLAATKMSECVLGQSKRVDFCGKGYHLMSFPQSAPHGVVFLHVTYVPAQEKNFTTAPAICHDGKAHFPREGVFVSNGTHWFVTQRNFYEPQIITTDNTFVSGNCDVVIGIVNNTVYDPLQPELDSFKEELDKYFKNHTSPDVDLGDISGINASVVNIQKEIDRLNEVAKNLNESLIDLQELGKYEQGSGYIPEAPRDGQAYVRKDGEWVLLSTFLGRSLEVLFQGPGHHHHHHHHSAWSHPQFEKGGGSGGGGSGGSAWSHPQFEK

Source

organism	Severe acute respiratory syndrome coronavirus 2
common_name	2019-nCoV, SARS-CoV-2
ncbi_taxonomy_id	2697049
host_organism	Homo sapiens

Entity 2 polymer

description	Fab-14 heavy chain
formula_weight	25583.4 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	D,G

EVQLQQSGPGLVKPSQTLSLTCAISGDSVSSNSAAWNWIRQSPSRGLEWLGRTYYRSKWYNDYAVSVKSRITINPDTSKNQFSLQLNSVTPEDTAVYYCAREEQQLVHDYYYYGMDVWGQGTMVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKRVEPKSCDKTH

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 3 polymer

description	Fab-14 light chain
formula_weight	22518.9 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	E,F

QAVVTQPASVSGSPGQSITISCTGTSSDIGAYNYISWYQQHPGKAPKLIIYEVSNRPSGISYRFSGSKSGNTASLTISGLQAEDEANYYCSSYAGSISFGGGTKVTVLQPKANPTVTLFPPSSEELQANKATLVCLISDFYPGAVTVAWKADGSPVKAGVETTKPSKQSNNKYAASSYLSLTPEQWKSHRSYSCQVTHEGSTVEKTVAPTECS

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 4 branched

description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
formula_weight	424.4 kDa
src_method	syn
entity_count	3

Entity 5 non-polymer

description	2-acetamido-2-deoxy-beta-D-glucopyranose
formula_weight	221.2 kDa
src_method	syn
entity_count	25

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.460 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	3.46 Å
resolution_method	—
num_particles	66143

fit	/app/data/saxs_computation/yp/9ypr/9ypr.fit
pddf	/app/data/pr_computation/yp/9ypr/9ypr.pr.out
profile	/app/data/saxs_computation/yp/9ypr/9ypr.dat

Fab-14/SARS-CoV-2 D614G spike complex, Mode IV, subgroup I conformation

SAXS Profile

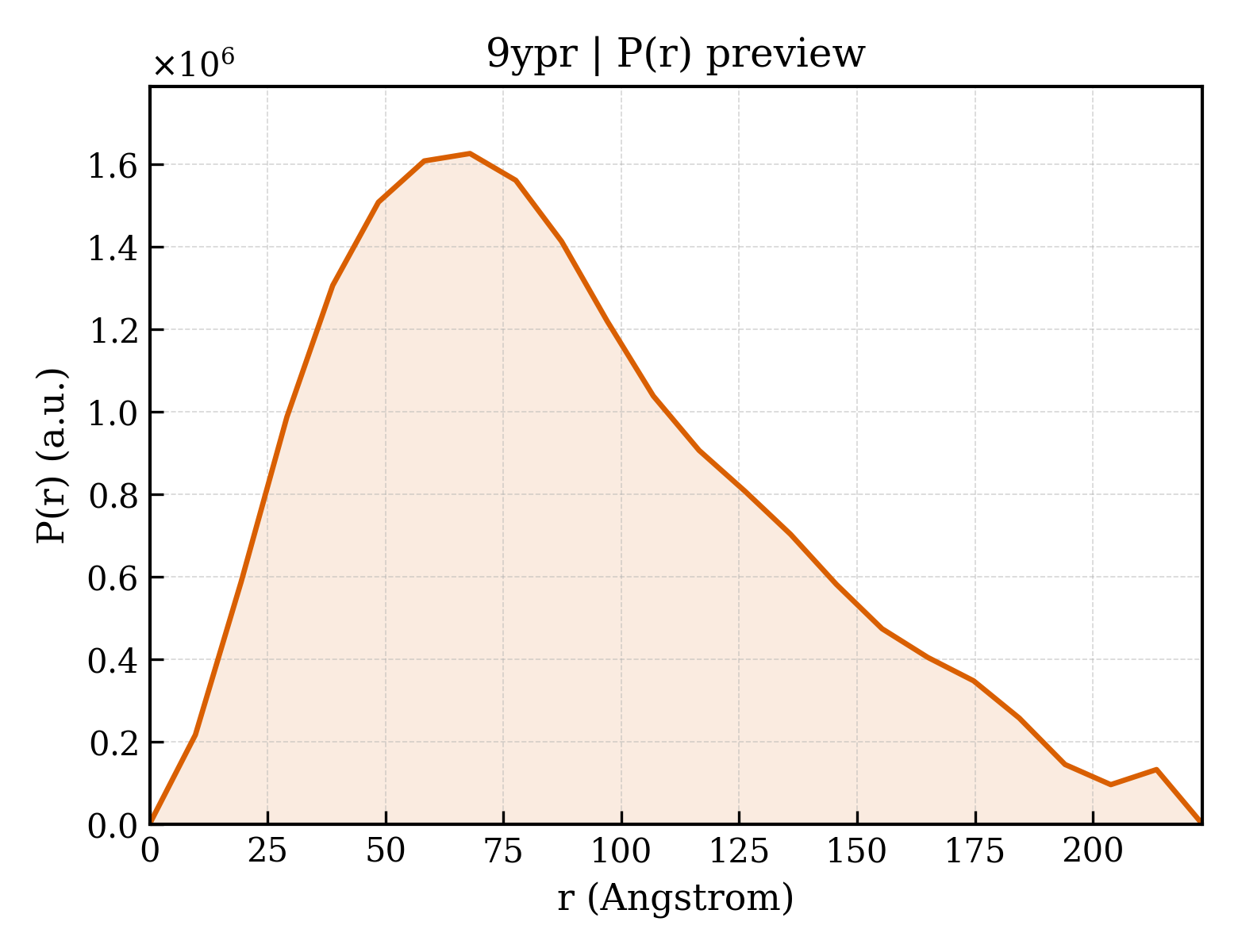

P(r) Distribution
