SAXSdb — 8xz9

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Processed angiotensin-converting enzyme 2

Bos taurus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 5 其他Polymer 13	Spike glycoprotein × 3 （P0DTC2） beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 12 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ACE2_BOVIN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–596； UniProt 19–614 Author chain E； PDBConstruct 1–596； UniProt 19–614

Spike glycoprotein

Severe acute respiratory syndrome coronavirus 2

UniProt P0DTC2

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 5 其他Polymer 13	Processed angiotensin-converting enzyme 2 × 2 （Q58DD0） beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 12 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SPIKE_SARS2
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 6–1120； UniProt 28–1144 Author chain C； PDBConstruct 6–1120； UniProt 28–1144 Author chain D； PDBConstruct 6–1120； UniProt 28–1144

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8xz9
Deposition date deposition_date	2024-01-21
Structure title title	BA.2.86 Spike in complex with bovine ACE2 (bound 2 ACE2)
Keywords keywords	SARS-CoV-2, complex, Spike, VIRAL PROTEIN; VIRAL PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8xz9__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8xz9__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

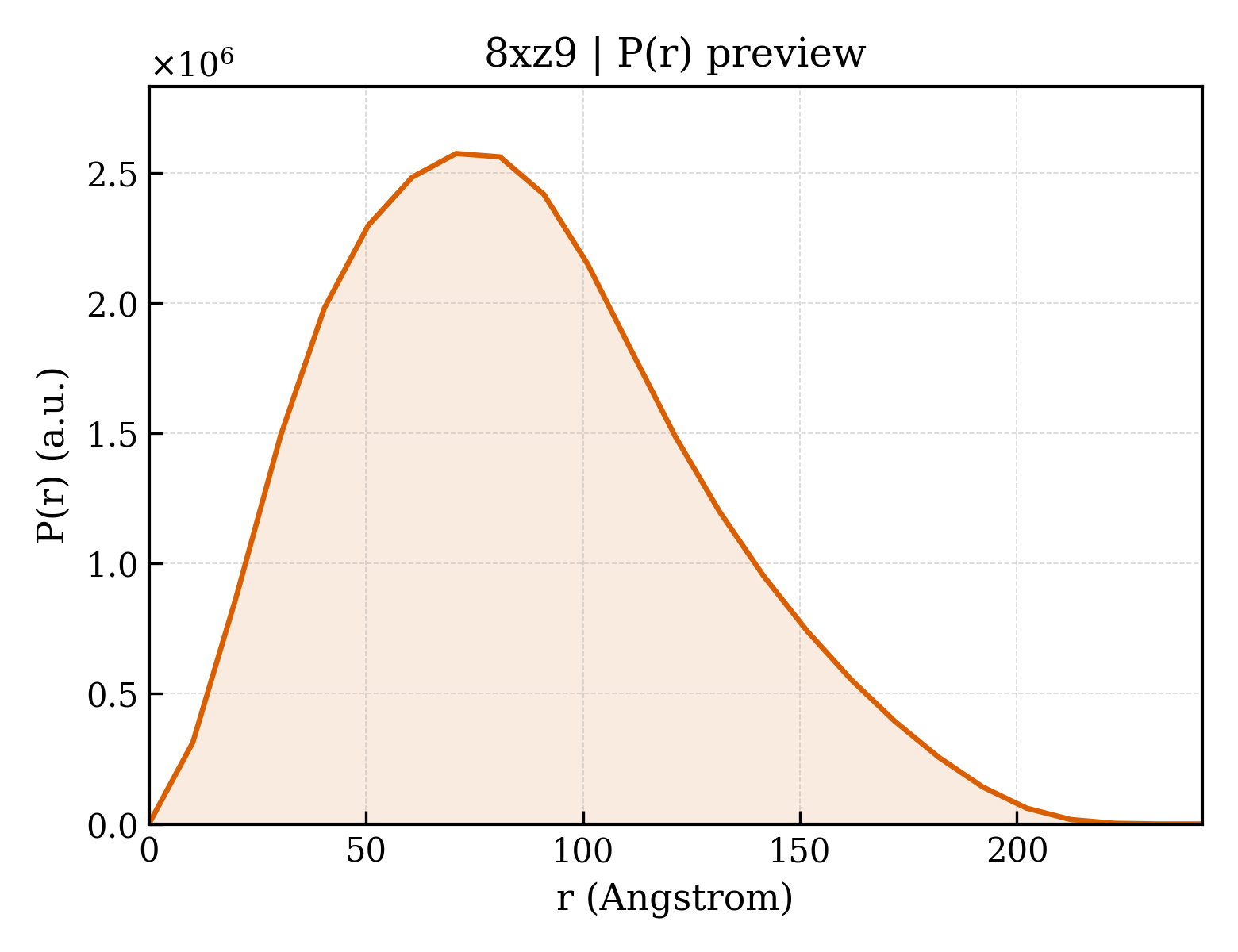

8xz9__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	65.98 Å
Rg (electron density)	66.32 Å
Total Rg	66.14 Å
Atom count	35083
Residues	4380
Excluded volume	624270 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8xz9__assembly_1__model_1`	pentameric （5）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Processed angiotensin-converting enzyme 2
Molecular weight formula_weight	69701.5 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,E
Atom count atom_count	35083

STTEEQAKTFLEKFNHEAEDLSYQSSLASWNYNTNITDENVQKMNEARAKWSAFYEEQSRMAKTYSLEEIQNLTLKRQLKALQHSGTSALSAEKSKRLNTILNKMSTIYSTGKVLDPNTQECLALEPGLDDIMENSRDYNRRLWAWEGWRAEVGKQLRPLYEEYVVLENEMARANNYEDYGDYWRGDYEVTGAGDYDYSRDQLMKDVERTFAEIKPLYEQLHAYVRAKLMHTYPSYISPTGCLPAHLLGDMWGRFWTNLYSLTVPFEHKPSIDVTEKMENQSWDAERIFKEAEKFFVSISLPYMTQGFWDNSMLTEPGDGRKVVCHPTAWDLGKGDFRIKMCTKVTMDDFLTAHHEMGHIQYDMAYAAQPYLLRNGANEGFHEAVGEIMSLSAATPHYLKALGLLAPDFHEDNETEINFLLKQALTIVGTLPFTYMLEKWRWMVFKGEIPKQQWMEKWWEMKREIVGVVEPLPHDETYCDPACLFHVAEDYSFIRYYTRTIYQFQFHEALCKTAKHEGALFKCDISNSTEAGQRLLQMLRLGKSEPWTLALENIVGIKTMDVKPLLNYFEPLFTWLKEQNRNSFVGWSTEWTPYSD

Source Source

Source organism organism	Bos taurus
Common name common_name	Bovine
NCBI taxonomy ID ncbi_taxonomy_id	9913
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Spike glycoprotein
Molecular weight formula_weight	124478.3 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,C,D

TTTQSYTNSFTRGVYYPDKVFRSSVLHLTQDLFLPFFSNVTWFHAIHVSGTNGTKRFDNPVLPFNDGVYFASTEKSNIIRGWIFGTTLDSKTQSLLIVNNATNVFIKVCEFQFCNDPFLGVYYHKNNKSWMESEFGVYSSANNCTFEYVSQPFLMDLEGKQGNFKNLREFVFKNIDGYFKIYSKHTPIIGRDFPQGFSALEPLVDLPIGINITRFQTLLALNRSYLTPGDSSSGWTAGAADYYVGYLQPRTFLLKYNENGTITDAVDCALDPLSETKCTLKSFTVEKGIYQTSNFRVQPTESIVRFPNVTNLCPFHEVFNATRFASVYAWNRTRISNCVADYSVLYNFAPFFAFKCYGVSPTKLNDLCFTNVYADSFVIKGNEVSQIAPGQTGNIADYNYKLPDDFTGCVIAWNSNKLDSKHSGNYDYWYRLFRKSKLKPFERDISTEIYQAGNKPCKGKGPNCYFPLQSYGFRPTYGVGHQPYRVVVLSFELLHAPATVCGPKKSTNLVKNKCVNFNFNGLTGTGVLTKSNKKFLPFQQFGRDIVDTTDAVRDPQTLEILDITPCSFGGVSVITPGTNTSNQVAVLYQGVNCTEVSVAIHADQLTPTWRVYSTGSNVFQTRAGCLIGAEYVNNSYECDIPIGAGICASYQTQTNSPRRARSVASQSIIAYTMSLGAENSVAYSNNSIAIPTNFTISVTTEILPVSMTKTSVDCTMYICGDSTECSNLLLQYGSFCTQLKRALTGIAVEQDKNTQEVFAQVKQIYKTPPIKYFGGFNFSQILPDPSKPSKRSPIEDLLFNKVTLADAGFIKQYGDCLGDIAARDLICAQKFNGLTVLPPLLTDEMIAQYTSALLAGTITSGWTFGAGPALQIPFPMQMAYRFNGIGVTQNVLYENQKLIANQFNSAIGKIQDSLFSTPSALGKLQDVVNHNAQALNTLVKQLSSKFGAISSVLNDILSRLDPPEAEVQIDRLITGRLQSLQTYVTQQLIRAAEIRASANLAATKMSECVLGQSKRVDFCGKGYHLMSFPQSAPHGVVFLHVTYVPAQEKNFTTAPAICHDGKAHFPREGVFVSNGTHWFVTQRNFYEPQIITTDNTFVSGNCDVVIGIVNNTVYDPLQLE

Source Source

Source organism organism	Severe acute respiratory syndrome coronavirus 2
Common name common_name	2019-nCoV, SARS-CoV-2
NCBI taxonomy ID ncbi_taxonomy_id	2697049
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 branched

Description description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	383.3 kDa
Source method src_method	man
Copy count entity_count	12

Entity 4 Entity 4 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	man
Copy count entity_count	1

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.37 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	5828
