9yyu

SARS-CoV-2 spike trimer in the early fusion intermediate conformation bound to the VN01H1 Fab (Fab local refinement)

Method: ELECTRON MICROSCOPY D_max: 128.3 Å Quality: REASONABLE

SAXS Profile

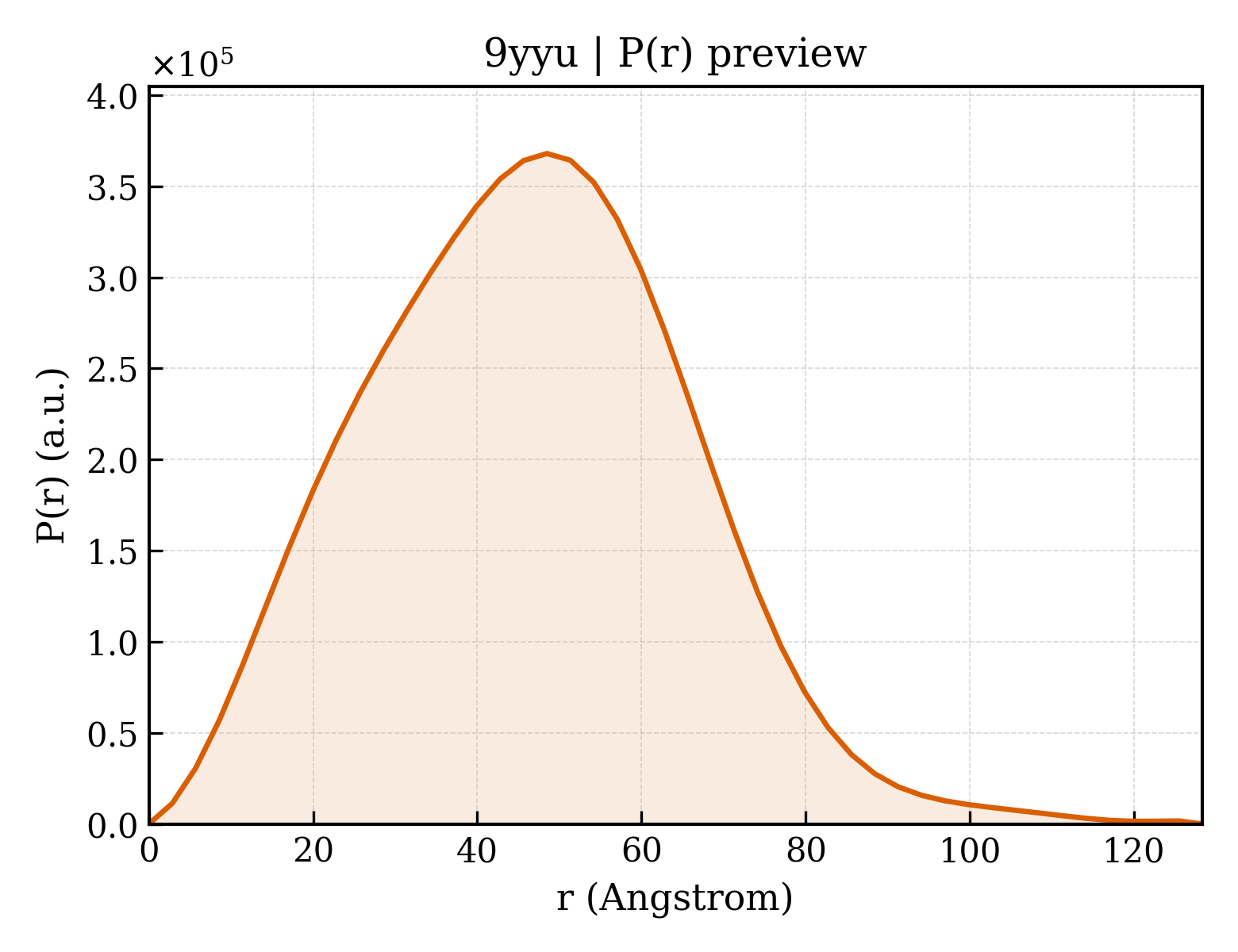

P(r) Distribution

▼

1. Structure Basics

entry_id	9yyu
deposition_date	2025-10-29
title	SARS-CoV-2 spike trimer in the early fusion intermediate conformation bound to the VN01H1 Fab (Fab local refinement)
keywords	;Virus, coronaviruses, E-FIC, ACE2, Glycoprotein, Receptor, Structural Genomics, Seattle Structural Genomics Center for Infectious Disease, SSGCID, VIRAL PROTEIN-IMMUNE SYSTEM complex ;; VIRAL PROTEIN/IMMUNE SYSTEM
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	35.55 Å
rg_electron	34.99 Å
i0	229616000.00
molecular_weight	123420.0 kDa
excluded_volume	154960 Å³
envelope_volume	202340 Å³
shell_volume	48550 Å³
envelope_diameter	134.3 Å
shell_rg	40.71 Å
envelope_rg	35.08 Å
shape_rg	35.01 Å
total_rg	35.37 Å
total_atoms	8739
n_residues	1215
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	128.3 Å
rg_real	35.43 Å
rg_real_error	1.04 Å
i0_real	2.2960e+08
i0_real_error	3.6560e+06
rg_reciprocal	35.50 Å
i0_reciprocal	229600000.0000
total_estimate	0.6221
solution_quality	REASONABLE a REASONABLE solution
n_peaks	2
r_peak_primary	48.5 Å
skewness	0.258
kurtosis	0.009
angular_range	— – 0.2250 Å⁻¹
current_alpha	0.0000
highest_alpha	32770000.0000
n_real_points	46
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.634; Stabil: 1.000; Sysdev: 0.062; Positv: 1.000; Valcen: 0.998; Smooth: 0.995

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	Spike glycoprotein
formula_weight	141609.0 kDa
mutation	D614G variant, R682S, R683G
src_method	man
entity_count	3

Polymer

type	polypeptide(L)
strand_id	A,B,C
atom_count	8739

MGILPSPGMPALLSLVSLLSVLLMGCVAETGTQCVNLTTRTQLPPAYTNSFTRGVYYPDKVFRSSVLHSTQDLFLPFFSNVTWFHAIHVSGTNGTKRFDNPVLPFNDGVYFASTEKSNIIRGWIFGTTLDSKTQSLLIVNNATNVVIKVCEFQFCNDPFLGVYYHKNNKSWMESEFRVYSSANNCTFEYVSQPFLMDLEGKQGNFKNLREFVFKNIDGYFKIYSKHTPINLVRDLPQGFSALEPLVDLPIGINITRFQTLLALHRSYLTPGDSSSGWTAGAAAYYVGYLQPRTFLLKYNENGTITDAVDCALDPLSETKCTLKSFTVEKGIYQTSNFRVQPTESIVRFPNITNLCPFGEVFNATRFASVYAWNRKRISNCVADYSVLYNSASFSTFKCYGVSPTKLNDLCFTNVYADSFVIRGDEVRQIAPGQTGKIADYNYKLPDDFTGCVIAWNSNNLDSKVGGNYNYLYRLFRKSNLKPFERDISTEIYQAGSTPCNGVEGFNCYFPLQSYGFQPTNGVGYQPYRVVVLSFELLHAPATVCGPKKSTNLVKNKCVNFNFNGLTGTGVLTESNKKFLPFQQFGRDIADTTDAVRDPQTLEILDITPCSFGGVSVITPGTNTSNQVAVLYQGVNCTEVPVAIHADQLTPTWRVYSTGSNVFQTRAGCLIGAEHVNNSYECDIPIGAGICASYQTQTNSPSGARSVASQSIIAYTMSLGAENSVAYSNNSIAIPTNFTISVTTEILPVSMTKTSVDCTMYICGDSTECSNLLLQYGSFCTQLNRALTGIAVEQDKNTQEVFAQVKQIYKTPPIKDFGGFNFSQILPDPSKPSKRSFIEDLLFNKVTLADAGFIKQYGDCLGDIAARDLICAQKFNGLTVLPPLLTDEMIAQYTSALLAGTITSGWTFGAGAALQIPFAMQMAYRFNGIGVTQNVLYENQKLIANQFNSAIGKIQDSLSSTASALGKLQDVVNQNAQALNTLVKQLSSNFGAISSVLNDILSRLDKVEAEVQIDRLITGRLQSLQTYVTQQLIRAAEIRASANLAATKMSECVLGQSKRVDFCGKGYHLMSFPQSAPHGVVFLHVTYVPAQEKNFTTAPAICHDGKAHFPREGVFVSNGTHWFVTQRNFYEPQIITTDNTFVSGNCDVVIGIVNNTVYDPLQPELDSFKEELDKYFKNHTSPDVDLGDISGINASVVNIQKEIDRLNEVAKNLNESLIDLQELGKYEQYIKGSGRENLYFQGGGGSGYIPEAPRDGQAYVRKDGEWVLLSTFLGHHHHHHHH

Source

organism	Severe acute respiratory syndrome coronavirus 2
ncbi_taxonomy_id	2697049
host_organism	Homo sapiens

Entity 2 polymer

description	VN01H1 Fab heavy chain
formula_weight	24131.1 kDa
src_method	man
entity_count	3

Polymer

type	polypeptide(L)
strand_id	H,I,J

EVQLVESGGGLVLPGGSLRLSCSASGFTFSDFSMHWVRQSPGKGLEYVSAITSSGSSTYYPDSVKGRFTISRDNSKNTLYLQMGSLRVEDTAVYWCVKNSDVFRFPHLYFDVWGRGTLVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKRVEPKSC

Source

organism	Homo sapiens
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 3 polymer

description	VN01H1 Fab light chain
formula_weight	23413.9 kDa
src_method	man
entity_count	3

Polymer

type	polypeptide(L)
strand_id	L,M,N

DIVMTQSPATLSVSPGDRATLSCRASQSVSSNLAWYQQKPGQAPRLLIYGASTRAAGIPARFSGSGSGTEFTLTISSLQSEDFAVYYCQQYDNWPSITFGQGTRLEIKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

Source

organism	Homo sapiens
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 4 non-polymer

description	2-acetamido-2-deoxy-beta-D-glucopyranose
formula_weight	221.2 kDa
src_method	man
entity_count	3

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.30 Å
resolution_method	—
num_particles	389200

fit	/app/data/saxs_computation/yy/9yyu/9yyu.fit
pddf	/app/data/pr_computation/yy/9yyu/9yyu.pr.out
profile	/app/data/saxs_computation/yy/9yyu/9yyu.dat
