SAXSdb — 8rrn

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Spike protein S1

Severe acute respiratory syndrome coronavirus 2

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	pT1616 Fab heavy chain × 1 pT1616 Fab light chain × 1	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 3	pT1616 Fab heavy chain × 1 pT1616 Fab light chain × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SPIKE_SARS2
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–194； UniProt 334–527 Author chain B； PDBConstruct 1–194； UniProt 334–527

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8rrn
Deposition date deposition_date	2024-01-23
Structure title title	Crystal structure of the SARS-CoV-2 S RBD in complex with pT1616 Fab
Keywords keywords	PROTEIN BINDING/IMMUNE SYSTEM, PROTEIN BINDING; PROTEIN BINDING
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8rrn__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8rrn__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

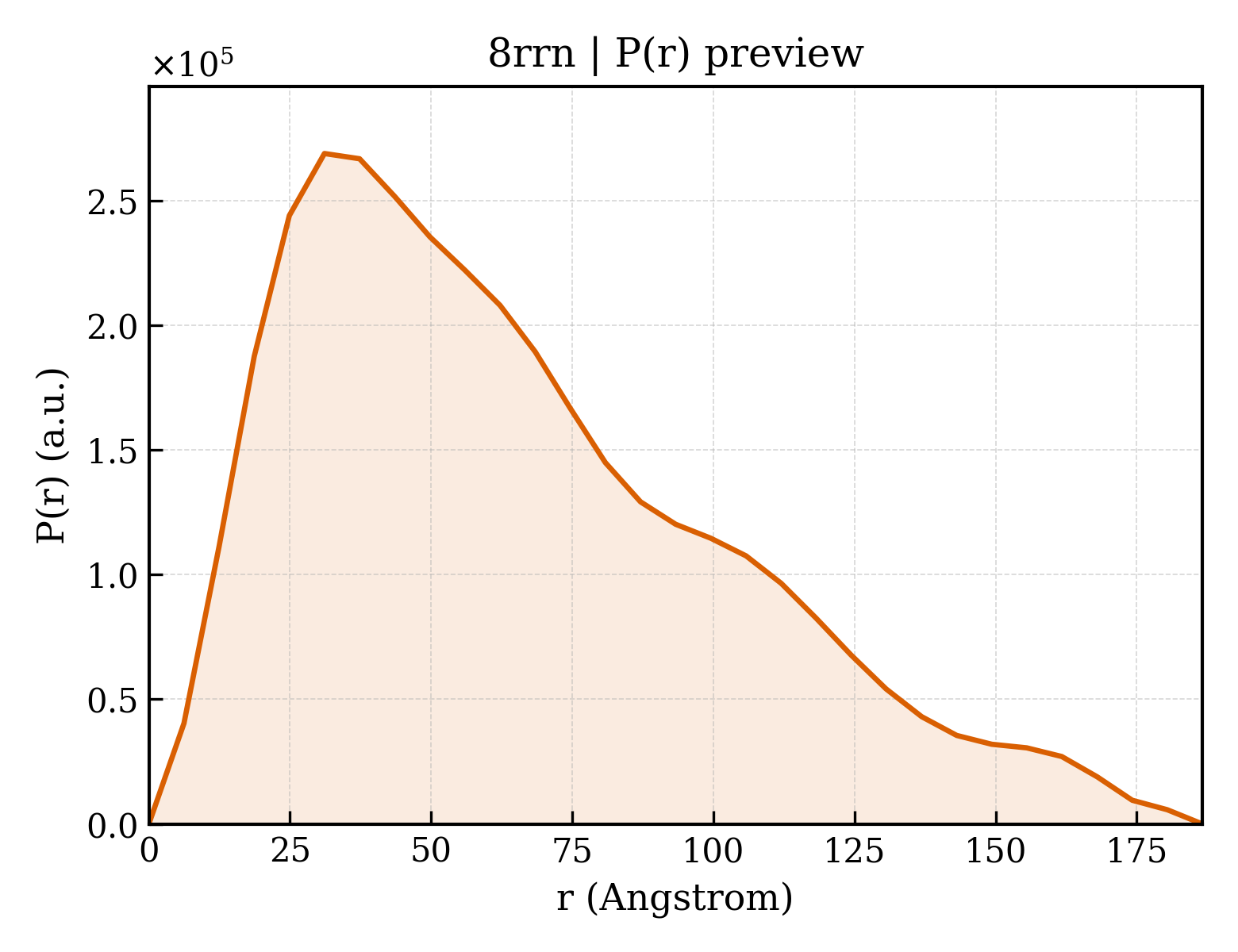

8rrn__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	30.99 Å
Rg (electron density)	30.79 Å
Total Rg	31.34 Å
Atom count	9353
Residues	630
Excluded volume	84134 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8rrn__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`8rrn__assembly_2__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Spike protein S1
Molecular weight formula_weight	22361.9 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	18717

NLCPFGEVFNATRFASVYAWNRKRISNCVADYSVLYNSASFSTFKCYGVSPTKLNDLCFTNVYADSFVIRGDEVRQIAPGQTGKIADYNYKLPDDFTGCVIAWNSNNLDSKVGGNYNYLYRLFRKSNLKPFERDISTEIYQAGSTPCNGVEGFNCYFPLQSYGFQPTNGVGYQPYRVVVLSFELLHAPATVCGPDDDDK

Source Source

Source organism organism	Severe acute respiratory syndrome coronavirus 2
NCBI taxonomy ID ncbi_taxonomy_id	2697049
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	pT1616 Fab heavy chain
Molecular weight formula_weight	24762.7 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H,C

QVQLVQSGAEVKKPGSSVKVSCKASGGTFSSYTISWVRQAPGQGLECMGRIIPILGIANYAQKFQGRVTITADKSTSIAYMEVSSLRSEDTAVYYCATEVGYSGYGSAEYFNHWGQGTPVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKRVEPKSCDKTDDDDK

Source Source

Source organism organism	Homo sapiens
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	pT1616 Fab light chain
Molecular weight formula_weight	22840.2 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L,D

QSVLTQPPSVSGAPGQRVTISCTGSNSNIGAGYDVHWYQQLPGTAPKLLIYANNNRPSGVPDRFSGSRSGTSASLVITGLQADDEADYYCQSYDSSLTGSLFGGGTKLTVLGQPKAAPSVTLFPPSSEELQANKATLVCLISDFYPGAVTVAWKADSSPVKAGVETTTPSKQSNNKYAASSYLSLTPEQWKSHRSYSCQVTHEGSTVEKTVAPTECS

Source Source

Source organism organism	Severe acute respiratory syndrome coronavirus 2
NCBI taxonomy ID ncbi_taxonomy_id	2697049
Host organism host_organism	Homo sapiens

▶

Unit-cell length a length_a	173.100 Å
Unit-cell length b length_b	59.060 Å
Unit-cell length c length_c	152.030 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	95.45 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	monoclinic

Resolution resolution	3.110 Å
Low-resolution limit resolution_low	45.620 Å
R factor r_factor	0.2456
R_work r_work	0.2432
R_free r_free	0.2913
