SAXSdb — 1nqx

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

6,7-dimethyl-8-ribityllumazine synthase

Aquifex aeolicus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 60	PHOSPHATE ION × 60 3-(7-HYDROXY-8-RIBITYLLUMAZINE-6-YL) PROPIONIC ACID × 60 water × 60	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RISB_AQUAE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–154； UniProt 1–154 Author chain B； PDBConstruct 1–154； UniProt 1–154 Author chain C； PDBConstruct 1–154； UniProt 1–154 Author chain D； PDBConstruct 1–154； UniProt 1–154 Author chain E； PDBConstruct 1–154； UniProt 1–154

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1nqx
Deposition date deposition_date	2003-01-23
Structure title title	Crystal Structure of Lumazine Synthase from Aquifex aeolicus in Complex with Inhibitor: 3-(7-hydroxy-8-ribityllumazine-6-yl)propionic acid
Keywords keywords	Lumazine synthase, Aquifex aeolicus, inhibitor complex, vitamin biosynthesis, catalytic mechanism, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1nqx__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1nqx__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

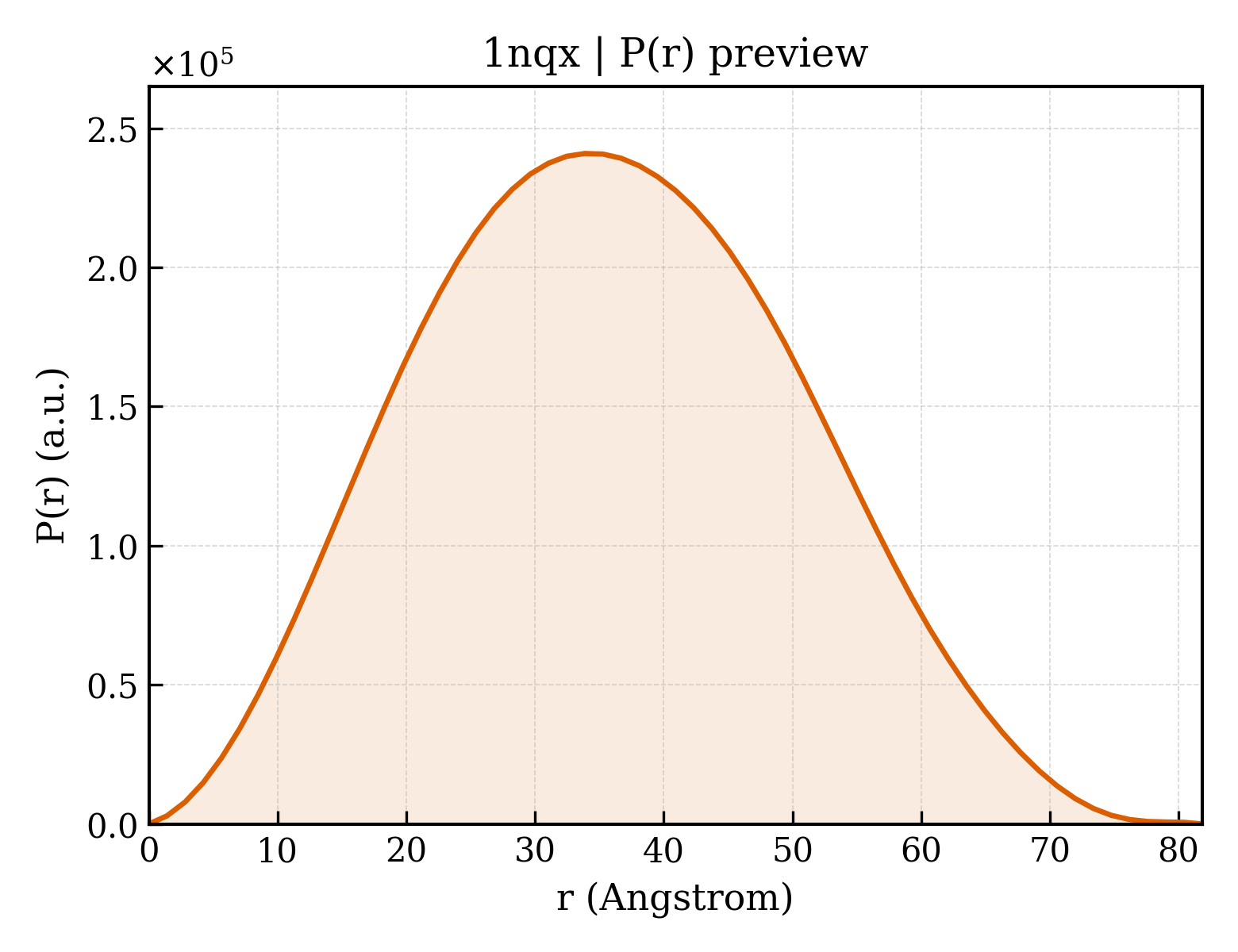

1nqx__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	63.84 Å
Rg (electron density)	62.81 Å
Total Rg	63.12 Å
Atom count	72540
Residues	9240
Excluded volume	1290100 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1nqx__assembly_1__model_1`	60-meric （60）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	6,7-dimethyl-8-ribityllumazine synthase
Molecular weight formula_weight	16727.2 kDa
EC 编号 ec_number	2.5.1.78
Source method src_method	man
Copy count entity_count	5

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E
Atom count atom_count	6655

MQIYEGKLTAEGLRFGIVASRFNHALVDRLVEGAIDCIVRHGGREEDITLVRVPGSWEIPVAAGELARKEDIDAVIAIGVLIRGATPHFDYIASEVSKGLANLSLELRKPITFGVITADTLEQAIERAGTKHGNKGWEAALSAIEMANLFKSLR

Source Source

Source organism organism	Aquifex aeolicus
NCBI taxonomy ID ncbi_taxonomy_id	63363
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	PHOSPHATE ION
Molecular weight formula_weight	95.0 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 3 Entity 3 non-polymer

Description description	3-(7-HYDROXY-8-RIBITYLLUMAZINE-6-YL) PROPIONIC ACID
Molecular weight formula_weight	386.3 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	585

▼

6. Fold Classification (SCOP + CATH) 10 domains

SCOP 2.08 (5 domains)

Domain ID domain_id	d1nqxa_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.16 — Lumazine synthase
Superfamily Superfamily superfamily	c.16.1 — Lumazine synthase
Family Family family	c.16.1.1 — Lumazine synthase

Domain ID domain_id	d1nqxb_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.16 — Lumazine synthase
Superfamily Superfamily superfamily	c.16.1 — Lumazine synthase
Family Family family	c.16.1.1 — Lumazine synthase

Domain ID domain_id	d1nqxc_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.16 — Lumazine synthase
Superfamily Superfamily superfamily	c.16.1 — Lumazine synthase
Family Family family	c.16.1.1 — Lumazine synthase

Domain ID domain_id	d1nqxd_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.16 — Lumazine synthase
Superfamily Superfamily superfamily	c.16.1 — Lumazine synthase
Family Family family	c.16.1.1 — Lumazine synthase

Domain ID domain_id	d1nqxe_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.16 — Lumazine synthase
Superfamily Superfamily superfamily	c.16.1 — Lumazine synthase
Family Family family	c.16.1.1 — Lumazine synthase

CATH v4.4 (5 domains)

Domain ID domain_id	1nqxA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	960 — Lumazine/riboflavin synthase

Domain ID domain_id	1nqxB00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	960 — Lumazine/riboflavin synthase

Domain ID domain_id	1nqxC00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	960 — Lumazine/riboflavin synthase

Domain ID domain_id	1nqxD00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	960 — Lumazine/riboflavin synthase

Domain ID domain_id	1nqxE00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	960 — Lumazine/riboflavin synthase

▶

Unit-cell length a length_a	180.113 Å
Unit-cell length b length_b	180.113 Å
Unit-cell length c length_c	180.113 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	120

Space group space_group	I 2 3
Space-group number int_tables_number	197
Crystal system crystal_system	—

Resolution resolution	1.820 Å
Low-resolution limit resolution_low	48.140 Å
R factor r_factor	0.1740
R_work r_work	0.1740
R_free r_free	0.1890
