SAXSdb — 28ro

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

6,7-dimethyl-8-ribityllumazine synthase

Aquifex aeolicus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 480	No other associated polymer	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RISB_AQUAE
Isoform	—
PDB entities	1, 2
Chains and sequence ranges	Author chain 0A； PDBConstruct 32–101； UniProt 85–154 Author chain 0B； PDBConstruct 32–101； UniProt 85–154 Author chain 0C； PDBConstruct 32–101； UniProt 85–154 Author chain 0D； PDBConstruct 32–101； UniProt 85–154 Author chain 1A； PDBConstruct 32–101； UniProt 85–154 Author chain 1B； PDBConstruct 32–101； UniProt 85–154 Author chain 1C； PDBConstruct 32–101； UniProt 85–154 Author chain 1D； PDBConstruct 32–101； UniProt 85–154 Author chain 2A； PDBConstruct 32–101； UniProt 85–154 Author chain 2B； PDBConstruct 32–101； UniProt 85–154 Author chain 2C； PDBConstruct 32–101； UniProt 85–154 Author chain 2D； PDBConstruct 32–101； UniProt 85–154 Author chain 3A； PDBConstruct 32–101； UniProt 85–154 Author chain 3B； PDBConstruct 32–101； UniProt 85–154 Author chain 3C； PDBConstruct 32–101； UniProt 85–154 Author chain 3D； PDBConstruct 32–101； UniProt 85–154 Author chain 4A； PDBConstruct 32–101； UniProt 85–154 Author chain 4B； PDBConstruct 32–101； UniProt 85–154 Author chain 4C； PDBConstruct 32–101； UniProt 85–154 Author chain 4D； PDBConstruct 32–101； UniProt 85–154 Author chain 5A； PDBConstruct 32–101； UniProt 85–154 Author chain 5B； PDBConstruct 32–101； UniProt 85–154 Author chain 5C； PDBConstruct 32–101； UniProt 85–154 Author chain 5D； PDBConstruct 32–101； UniProt 85–154 Author chain 6A； PDBConstruct 32–101； UniProt 85–154 Author chain 6B； PDBConstruct 32–101； UniProt 85–154 Author chain 6C； PDBConstruct 32–101； UniProt 85–154 Author chain 6D； PDBConstruct 32–101； UniProt 85–154 Author chain 7A； PDBConstruct 32–101； UniProt 85–154 Author chain 7B； PDBConstruct 32–101； UniProt 85–154 Author chain 7C； PDBConstruct 32–101； UniProt 85–154 Author chain 7D； PDBConstruct 32–101； UniProt 85–154 Author chain AA； PDBConstruct 32–101； UniProt 85–154 Author chain AB； PDBConstruct 32–101； UniProt 85–154 Author chain AC； PDBConstruct 32–101； UniProt 85–154 Author chain AD； PDBConstruct 32–101； UniProt 85–154 Author chain BA； PDBConstruct 32–101； UniProt 85–154 Author chain BB； PDBConstruct 32–101； UniProt 85–154 Author chain BC； PDBConstruct 32–101； UniProt 85–154 Author chain BD； PDBConstruct 32–101； UniProt 85–154 Author chain CA； PDBConstruct 32–101； UniProt 85–154 Author chain CB； PDBConstruct 32–101； UniProt 85–154 Author chain CC； PDBConstruct 32–101； UniProt 85–154 Author chain CD； PDBConstruct 32–101； UniProt 85–154 Author chain DA； PDBConstruct 32–101； UniProt 85–154 Author chain DB； PDBConstruct 32–101； UniProt 85–154 Author chain DC； PDBConstruct 32–101； UniProt 85–154 Author chain DD； PDBConstruct 32–101； UniProt 85–154 Author chain EA； PDBConstruct 32–101； UniProt 85–154 Author chain EB； PDBConstruct 32–101； UniProt 85–154 Author chain EC； PDBConstruct 32–101； UniProt 85–154 Author chain ED； PDBConstruct 32–101； UniProt 85–154 Author chain FA； PDBConstruct 32–101； UniProt 85–154 Author chain FB； PDBConstruct 32–101； UniProt 85–154 Author chain FC； PDBConstruct 32–101； UniProt 85–154 Author chain FD； PDBConstruct 32–101； UniProt 85–154 Author chain GA； PDBConstruct 32–101； UniProt 85–154 Author chain GB； PDBConstruct 32–101； UniProt 85–154 Author chain GC； PDBConstruct 32–101； UniProt 85–154 Author chain GD； PDBConstruct 32–101； UniProt 85–154 Author chain HA； PDBConstruct 32–101； UniProt 85–154 Author chain HB； PDBConstruct 32–101； UniProt 85–154 Author chain HC； PDBConstruct 32–101； UniProt 85–154 Author chain HD； PDBConstruct 32–101； UniProt 85–154 Author chain IA； PDBConstruct 32–101； UniProt 85–154 Author chain IB； PDBConstruct 32–101； UniProt 85–154 Author chain IC； PDBConstruct 32–101； UniProt 85–154 Author chain ID； PDBConstruct 32–101； UniProt 85–154 Author chain JA； PDBConstruct 32–101； UniProt 85–154 Author chain JB； PDBConstruct 32–101； UniProt 85–154 Author chain JC； PDBConstruct 32–101； UniProt 85–154 Author chain JD； PDBConstruct 32–101； UniProt 85–154 Author chain KA； PDBConstruct 32–101； UniProt 85–154 Author chain KB； PDBConstruct 32–101； UniProt 85–154 Author chain KC； PDBConstruct 32–101； UniProt 85–154 Author chain KD； PDBConstruct 32–101； UniProt 85–154 Author chain LA； PDBConstruct 32–101； UniProt 85–154 Author chain LB； PDBConstruct 32–101； UniProt 85–154 Author chain LC； PDBConstruct 32–101； UniProt 85–154 Author chain LD； PDBConstruct 32–101； UniProt 85–154 Author chain MA； PDBConstruct 32–101； UniProt 85–154 Author chain MB； PDBConstruct 32–101； UniProt 85–154 Author chain MC； PDBConstruct 32–101； UniProt 85–154 Author chain MD； PDBConstruct 32–101； UniProt 85–154 Author chain NA； PDBConstruct 32–101； UniProt 85–154 Author chain NB； PDBConstruct 32–101； UniProt 85–154 Author chain NC； PDBConstruct 32–101； UniProt 85–154 Author chain ND； PDBConstruct 32–101； UniProt 85–154 Author chain OA； PDBConstruct 32–101； UniProt 85–154 Author chain OB； PDBConstruct 32–101； UniProt 85–154 Author chain OC； PDBConstruct 32–101； UniProt 85–154 Author chain OD； PDBConstruct 32–101； UniProt 85–154 Author chain PA； PDBConstruct 32–101； UniProt 85–154 Author chain PB； PDBConstruct 32–101； UniProt 85–154 Author chain PC； PDBConstruct 32–101； UniProt 85–154 Author chain PD； PDBConstruct 32–101； UniProt 85–154 Author chain QA； PDBConstruct 32–101； UniProt 85–154 Author chain QB； PDBConstruct 32–101； UniProt 85–154 Author chain QC； PDBConstruct 32–101； UniProt 85–154 Author chain QD； PDBConstruct 32–101； UniProt 85–154 Author chain RA； PDBConstruct 32–101； UniProt 85–154 Author chain RB； PDBConstruct 32–101； UniProt 85–154 Author chain RC； PDBConstruct 32–101； UniProt 85–154 Author chain RD； PDBConstruct 32–101； UniProt 85–154 Author chain SA； PDBConstruct 32–101； UniProt 85–154 Author chain SB； PDBConstruct 32–101； UniProt 85–154 Author chain SC； PDBConstruct 32–101； UniProt 85–154 Author chain SD； PDBConstruct 32–101； UniProt 85–154 Author chain TA； PDBConstruct 32–101； UniProt 85–154 Author chain TB； PDBConstruct 32–101； UniProt 85–154 Author chain TC； PDBConstruct 32–101； UniProt 85–154 Author chain TD； PDBConstruct 32–101； UniProt 85–154 Author chain UA； PDBConstruct 32–101； UniProt 85–154 Author chain UB； PDBConstruct 32–101； UniProt 85–154 Author chain UC； PDBConstruct 32–101； UniProt 85–154 Author chain UD； PDBConstruct 32–101； UniProt 85–154 Author chain VA； PDBConstruct 32–101； UniProt 85–154 Author chain VB； PDBConstruct 32–101； UniProt 85–154 Author chain VC； PDBConstruct 32–101； UniProt 85–154 Author chain VD； PDBConstruct 32–101； UniProt 85–154 Author chain WA； PDBConstruct 32–101； UniProt 85–154 Author chain WB； PDBConstruct 32–101； UniProt 85–154 Author chain WC； PDBConstruct 32–101； UniProt 85–154 Author chain WD； PDBConstruct 32–101； UniProt 85–154 Author chain XA； PDBConstruct 32–101； UniProt 85–154 Author chain XB； PDBConstruct 32–101； UniProt 85–154 Author chain XC； PDBConstruct 32–101； UniProt 85–154 Author chain XD； PDBConstruct 32–101； UniProt 85–154 Author chain YA； PDBConstruct 32–101； UniProt 85–154 Author chain YB； PDBConstruct 32–101； UniProt 85–154 Author chain YC； PDBConstruct 32–101； UniProt 85–154 Author chain YD； PDBConstruct 32–101； UniProt 85–154 Author chain ZA； PDBConstruct 32–101； UniProt 85–154 Author chain ZB； PDBConstruct 32–101； UniProt 85–154 Author chain ZC； PDBConstruct 32–101； UniProt 85–154 Author chain ZD； PDBConstruct 32–101； UniProt 85–154 Author chain aA； PDBConstruct 32–101； UniProt 85–154 Author chain aB； PDBConstruct 32–101； UniProt 85–154 Author chain aC； PDBConstruct 32–101； UniProt 85–154 Author chain aD； PDBConstruct 32–101； UniProt 85–154 Author chain bA； PDBConstruct 32–101； UniProt 85–154 Author chain bB； PDBConstruct 32–101； UniProt 85–154 Author chain bC； PDBConstruct 32–101； UniProt 85–154 Author chain bD； PDBConstruct 32–101； UniProt 85–154 Author chain cA； PDBConstruct 32–101； UniProt 85–154 Author chain cB； PDBConstruct 32–101； UniProt 85–154 Author chain cC； PDBConstruct 32–101； UniProt 85–154 Author chain cD； PDBConstruct 32–101； UniProt 85–154 Author chain dA； PDBConstruct 32–101； UniProt 85–154 Author chain dB； PDBConstruct 32–101； UniProt 85–154 Author chain dC； PDBConstruct 32–101； UniProt 85–154 Author chain dD； PDBConstruct 32–101； UniProt 85–154 Author chain eA； PDBConstruct 32–101； UniProt 85–154 Author chain eB； PDBConstruct 32–101； UniProt 85–154 Author chain eC； PDBConstruct 32–101； UniProt 85–154 Author chain eD； PDBConstruct 32–101； UniProt 85–154 Author chain fA； PDBConstruct 32–101； UniProt 85–154 Author chain fB； PDBConstruct 32–101； UniProt 85–154 Author chain fC； PDBConstruct 32–101； UniProt 85–154 Author chain fD； PDBConstruct 32–101； UniProt 85–154 Author chain gA； PDBConstruct 32–101； UniProt 85–154 Author chain gB； PDBConstruct 32–101； UniProt 85–154 Author chain gC； PDBConstruct 32–101； UniProt 85–154 Author chain gD； PDBConstruct 32–101； UniProt 85–154 Author chain hA； PDBConstruct 32–101； UniProt 85–154 Author chain hB； PDBConstruct 32–101； UniProt 85–154 Author chain hC； PDBConstruct 32–101； UniProt 85–154 Author chain hD； PDBConstruct 32–101； UniProt 85–154 Author chain iA； PDBConstruct 32–101； UniProt 85–154 Author chain iB； PDBConstruct 32–101； UniProt 85–154 Author chain iC； PDBConstruct 32–101； UniProt 85–154 Author chain iD； PDBConstruct 32–101； UniProt 85–154 Author chain jA； PDBConstruct 32–101； UniProt 85–154 Author chain jB； PDBConstruct 32–101； UniProt 85–154 Author chain jC； PDBConstruct 32–101； UniProt 85–154 Author chain jD； PDBConstruct 32–101； UniProt 85–154 Author chain kA； PDBConstruct 32–101； UniProt 85–154 Author chain kB； PDBConstruct 32–101； UniProt 85–154 Author chain kC； PDBConstruct 32–101； UniProt 85–154 Author chain kD； PDBConstruct 32–101； UniProt 85–154 Author chain lA； PDBConstruct 32–101； UniProt 85–154 Author chain lB； PDBConstruct 32–101； UniProt 85–154 Author chain lC； PDBConstruct 32–101； UniProt 85–154 Author chain lD； PDBConstruct 32–101； UniProt 85–154 Author chain mA； PDBConstruct 32–101； UniProt 85–154 Author chain mB； PDBConstruct 32–101； UniProt 85–154 Author chain mC； PDBConstruct 32–101； UniProt 85–154 Author chain mD； PDBConstruct 32–101； UniProt 85–154 Author chain nA； PDBConstruct 32–101； UniProt 85–154 Author chain nB； PDBConstruct 32–101； UniProt 85–154 Author chain nC； PDBConstruct 32–101； UniProt 85–154 Author chain nD； PDBConstruct 32–101； UniProt 85–154 Author chain oA； PDBConstruct 32–101； UniProt 85–154 Author chain oB； PDBConstruct 32–101； UniProt 85–154 Author chain oC； PDBConstruct 32–101； UniProt 85–154 Author chain oD； PDBConstruct 32–101； UniProt 85–154 Author chain pA； PDBConstruct 32–101； UniProt 85–154 Author chain pB； PDBConstruct 32–101； UniProt 85–154 Author chain pC； PDBConstruct 32–101； UniProt 85–154 Author chain pD； PDBConstruct 32–101； UniProt 85–154 Author chain qA； PDBConstruct 32–101； UniProt 85–154 Author chain qB； PDBConstruct 32–101； UniProt 85–154 Author chain qC； PDBConstruct 32–101； UniProt 85–154 Author chain qD； PDBConstruct 32–101； UniProt 85–154 Author chain rA； PDBConstruct 32–101； UniProt 85–154 Author chain rB； PDBConstruct 32–101； UniProt 85–154 Author chain rC； PDBConstruct 32–101； UniProt 85–154 Author chain rD； PDBConstruct 32–101； UniProt 85–154 Author chain sA； PDBConstruct 32–101； UniProt 85–154 Author chain sB； PDBConstruct 32–101； UniProt 85–154 Author chain sC； PDBConstruct 32–101； UniProt 85–154 Author chain sD； PDBConstruct 32–101； UniProt 85–154 Author chain tA； PDBConstruct 32–101； UniProt 85–154 Author chain tB； PDBConstruct 32–101； UniProt 85–154 Author chain tC； PDBConstruct 32–101； UniProt 85–154 Author chain tD； PDBConstruct 32–101； UniProt 85–154 Author chain uA； PDBConstruct 32–101； UniProt 85–154 Author chain uB； PDBConstruct 32–101； UniProt 85–154 Author chain uC； PDBConstruct 32–101； UniProt 85–154 Author chain uD； PDBConstruct 32–101； UniProt 85–154 Author chain vA； PDBConstruct 32–101； UniProt 85–154 Author chain vB； PDBConstruct 32–101； UniProt 85–154 Author chain vC； PDBConstruct 32–101； UniProt 85–154 Author chain vD； PDBConstruct 32–101； UniProt 85–154 Author chain wA； PDBConstruct 32–101； UniProt 85–154 Author chain wB； PDBConstruct 32–101； UniProt 85–154 Author chain wC； PDBConstruct 32–101； UniProt 85–154 Author chain wD； PDBConstruct 32–101； UniProt 85–154 Author chain xA； PDBConstruct 32–101； UniProt 85–154 Author chain xB； PDBConstruct 32–101； UniProt 85–154 Author chain xC； PDBConstruct 32–101； UniProt 85–154 Author chain xD； PDBConstruct 32–101； UniProt 85–154 Author chain yA； PDBConstruct 32–101； UniProt 85–154 Author chain yB； PDBConstruct 32–101； UniProt 85–154 Author chain yC； PDBConstruct 32–101； UniProt 85–154 Author chain yD； PDBConstruct 32–101； UniProt 85–154 Author chain zA； PDBConstruct 32–101； UniProt 85–154 Author chain zB； PDBConstruct 32–101； UniProt 85–154 Author chain zC； PDBConstruct 32–101； UniProt 85–154 Author chain zD； PDBConstruct 32–101； UniProt 85–154 Author chain 0a； PDBConstruct 3–86； UniProt 1–84 Author chain 0b； PDBConstruct 3–86； UniProt 1–84 Author chain 0c； PDBConstruct 3–86； UniProt 1–84 Author chain 0d； PDBConstruct 3–86； UniProt 1–84 Author chain 1a； PDBConstruct 3–86； UniProt 1–84 Author chain 1b； PDBConstruct 3–86； UniProt 1–84 Author chain 1c； PDBConstruct 3–86； UniProt 1–84 Author chain 1d； PDBConstruct 3–86； UniProt 1–84 Author chain 2a； PDBConstruct 3–86； UniProt 1–84 Author chain 2b； PDBConstruct 3–86； UniProt 1–84 Author chain 2c； PDBConstruct 3–86； UniProt 1–84 Author chain 2d； PDBConstruct 3–86； UniProt 1–84 Author chain 3a； PDBConstruct 3–86； UniProt 1–84 Author chain 3b； PDBConstruct 3–86； UniProt 1–84 Author chain 3c； PDBConstruct 3–86； UniProt 1–84 Author chain 3d； PDBConstruct 3–86； UniProt 1–84 Author chain 4a； PDBConstruct 3–86； UniProt 1–84 Author chain 4b； PDBConstruct 3–86； UniProt 1–84 Author chain 4c； PDBConstruct 3–86； UniProt 1–84 Author chain 4d； PDBConstruct 3–86； UniProt 1–84 Author chain 5a； PDBConstruct 3–86； UniProt 1–84 Author chain 5b； PDBConstruct 3–86； UniProt 1–84 Author chain 5c； PDBConstruct 3–86； UniProt 1–84 Author chain 5d； PDBConstruct 3–86； UniProt 1–84 Author chain 6a； PDBConstruct 3–86； UniProt 1–84 Author chain 6b； PDBConstruct 3–86； UniProt 1–84 Author chain 6c； PDBConstruct 3–86； UniProt 1–84 Author chain 6d； PDBConstruct 3–86； UniProt 1–84 Author chain 7a； PDBConstruct 3–86； UniProt 1–84 Author chain 7b； PDBConstruct 3–86； UniProt 1–84 Author chain 7c； PDBConstruct 3–86； UniProt 1–84 Author chain 7d； PDBConstruct 3–86； UniProt 1–84 Author chain Aa； PDBConstruct 3–86； UniProt 1–84 Author chain Ab； PDBConstruct 3–86； UniProt 1–84 Author chain Ac； PDBConstruct 3–86； UniProt 1–84 Author chain Ad； PDBConstruct 3–86； UniProt 1–84 Author chain Ba； PDBConstruct 3–86； UniProt 1–84 Author chain Bb； PDBConstruct 3–86； UniProt 1–84 Author chain Bc； PDBConstruct 3–86； UniProt 1–84 Author chain Bd； PDBConstruct 3–86； UniProt 1–84 Author chain Ca； PDBConstruct 3–86； UniProt 1–84 Author chain Cb； PDBConstruct 3–86； UniProt 1–84 Author chain Cc； PDBConstruct 3–86； UniProt 1–84 Author chain Cd； PDBConstruct 3–86； UniProt 1–84 Author chain Da； PDBConstruct 3–86； UniProt 1–84 Author chain Db； PDBConstruct 3–86； UniProt 1–84 Author chain Dc； PDBConstruct 3–86； UniProt 1–84 Author chain Dd； PDBConstruct 3–86； UniProt 1–84 Author chain Ea； PDBConstruct 3–86； UniProt 1–84 Author chain Eb； PDBConstruct 3–86； UniProt 1–84 Author chain Ec； PDBConstruct 3–86； UniProt 1–84 Author chain Ed； PDBConstruct 3–86； UniProt 1–84 Author chain Fa； PDBConstruct 3–86； UniProt 1–84 Author chain Fb； PDBConstruct 3–86； UniProt 1–84 Author chain Fc； PDBConstruct 3–86； UniProt 1–84 Author chain Fd； PDBConstruct 3–86； UniProt 1–84 Author chain Ga； PDBConstruct 3–86； UniProt 1–84 Author chain Gb； PDBConstruct 3–86； UniProt 1–84 Author chain Gc； PDBConstruct 3–86； UniProt 1–84 Author chain Gd； PDBConstruct 3–86； UniProt 1–84 Author chain Ha； PDBConstruct 3–86； UniProt 1–84 Author chain Hb； PDBConstruct 3–86； UniProt 1–84 Author chain Hc； PDBConstruct 3–86； UniProt 1–84 Author chain Hd； PDBConstruct 3–86； UniProt 1–84 Author chain Ia； PDBConstruct 3–86； UniProt 1–84 Author chain Ib； PDBConstruct 3–86； UniProt 1–84 Author chain Ic； PDBConstruct 3–86； UniProt 1–84 Author chain Id； PDBConstruct 3–86； UniProt 1–84 Author chain Ja； PDBConstruct 3–86； UniProt 1–84 Author chain Jb； PDBConstruct 3–86； UniProt 1–84 Author chain Jc； PDBConstruct 3–86； UniProt 1–84 Author chain Jd； PDBConstruct 3–86； UniProt 1–84 Author chain Ka； PDBConstruct 3–86； UniProt 1–84 Author chain Kb； PDBConstruct 3–86； UniProt 1–84 Author chain Kc； PDBConstruct 3–86； UniProt 1–84 Author chain Kd； PDBConstruct 3–86； UniProt 1–84 Author chain La； PDBConstruct 3–86； UniProt 1–84 Author chain Lb； PDBConstruct 3–86； UniProt 1–84 Author chain Lc； PDBConstruct 3–86； UniProt 1–84 Author chain Ld； PDBConstruct 3–86； UniProt 1–84 Author chain Ma； PDBConstruct 3–86； UniProt 1–84 Author chain Mb； PDBConstruct 3–86； UniProt 1–84 Author chain Mc； PDBConstruct 3–86； UniProt 1–84 Author chain Md； PDBConstruct 3–86； UniProt 1–84 Author chain Na； PDBConstruct 3–86； UniProt 1–84 Author chain Nb； PDBConstruct 3–86； UniProt 1–84 Author chain Nc； PDBConstruct 3–86； UniProt 1–84 Author chain Nd； PDBConstruct 3–86； UniProt 1–84 Author chain Oa； PDBConstruct 3–86； UniProt 1–84 Author chain Ob； PDBConstruct 3–86； UniProt 1–84 Author chain Oc； PDBConstruct 3–86； UniProt 1–84 Author chain Od； PDBConstruct 3–86； UniProt 1–84 Author chain Pa； PDBConstruct 3–86； UniProt 1–84 Author chain Pb； PDBConstruct 3–86； UniProt 1–84 Author chain Pc； PDBConstruct 3–86； UniProt 1–84 Author chain Pd； PDBConstruct 3–86； UniProt 1–84 Author chain Qa； PDBConstruct 3–86； UniProt 1–84 Author chain Qb； PDBConstruct 3–86； UniProt 1–84 Author chain Qc； PDBConstruct 3–86； UniProt 1–84 Author chain Qd； PDBConstruct 3–86； UniProt 1–84 Author chain Ra； PDBConstruct 3–86； UniProt 1–84 Author chain Rb； PDBConstruct 3–86； UniProt 1–84 Author chain Rc； PDBConstruct 3–86； UniProt 1–84 Author chain Rd； PDBConstruct 3–86； UniProt 1–84 Author chain Sa； PDBConstruct 3–86； UniProt 1–84 Author chain Sb； PDBConstruct 3–86； UniProt 1–84 Author chain Sc； PDBConstruct 3–86； UniProt 1–84 Author chain Sd； PDBConstruct 3–86； UniProt 1–84 Author chain Ta； PDBConstruct 3–86； UniProt 1–84 Author chain Tb； PDBConstruct 3–86； UniProt 1–84 Author chain Tc； PDBConstruct 3–86； UniProt 1–84 Author chain Td； PDBConstruct 3–86； UniProt 1–84 Author chain Ua； PDBConstruct 3–86； UniProt 1–84 Author chain Ub； PDBConstruct 3–86； UniProt 1–84 Author chain Uc； PDBConstruct 3–86； UniProt 1–84 Author chain Ud； PDBConstruct 3–86； UniProt 1–84 Author chain Va； PDBConstruct 3–86； UniProt 1–84 Author chain Vb； PDBConstruct 3–86； UniProt 1–84 Author chain Vc； PDBConstruct 3–86； UniProt 1–84 Author chain Vd； PDBConstruct 3–86； UniProt 1–84 Author chain Wa； PDBConstruct 3–86； UniProt 1–84 Author chain Wb； PDBConstruct 3–86； UniProt 1–84 Author chain Wc； PDBConstruct 3–86； UniProt 1–84 Author chain Wd； PDBConstruct 3–86； UniProt 1–84 Author chain Xa； PDBConstruct 3–86； UniProt 1–84 Author chain Xb； PDBConstruct 3–86； UniProt 1–84 Author chain Xc； PDBConstruct 3–86； UniProt 1–84 Author chain Xd； PDBConstruct 3–86； UniProt 1–84 Author chain Ya； PDBConstruct 3–86； UniProt 1–84 Author chain Yb； PDBConstruct 3–86； UniProt 1–84 Author chain Yc； PDBConstruct 3–86； UniProt 1–84 Author chain Yd； PDBConstruct 3–86； UniProt 1–84 Author chain Za； PDBConstruct 3–86； UniProt 1–84 Author chain Zb； PDBConstruct 3–86； UniProt 1–84 Author chain Zc； PDBConstruct 3–86； UniProt 1–84 Author chain Zd； PDBConstruct 3–86； UniProt 1–84 Author chain aa； PDBConstruct 3–86； UniProt 1–84 Author chain ab； PDBConstruct 3–86； UniProt 1–84 Author chain ac； PDBConstruct 3–86； UniProt 1–84 Author chain ad； PDBConstruct 3–86； UniProt 1–84 Author chain ba； PDBConstruct 3–86； UniProt 1–84 Author chain bb； PDBConstruct 3–86； UniProt 1–84 Author chain bc； PDBConstruct 3–86； UniProt 1–84 Author chain bd； PDBConstruct 3–86； UniProt 1–84 Author chain ca； PDBConstruct 3–86； UniProt 1–84 Author chain cb； PDBConstruct 3–86； UniProt 1–84 Author chain cc； PDBConstruct 3–86； UniProt 1–84 Author chain cd； PDBConstruct 3–86； UniProt 1–84 Author chain da； PDBConstruct 3–86； UniProt 1–84 Author chain db； PDBConstruct 3–86； UniProt 1–84 Author chain dc； PDBConstruct 3–86； UniProt 1–84 Author chain dd； PDBConstruct 3–86； UniProt 1–84 Author chain ea； PDBConstruct 3–86； UniProt 1–84 Author chain eb； PDBConstruct 3–86； UniProt 1–84 Author chain ec； PDBConstruct 3–86； UniProt 1–84 Author chain ed； PDBConstruct 3–86； UniProt 1–84 Author chain fa； PDBConstruct 3–86； UniProt 1–84 Author chain fb； PDBConstruct 3–86； UniProt 1–84 Author chain fc； PDBConstruct 3–86； UniProt 1–84 Author chain fd； PDBConstruct 3–86； UniProt 1–84 Author chain ga； PDBConstruct 3–86； UniProt 1–84 Author chain gb； PDBConstruct 3–86； UniProt 1–84 Author chain gc； PDBConstruct 3–86； UniProt 1–84 Author chain gd； PDBConstruct 3–86； UniProt 1–84 Author chain ha； PDBConstruct 3–86； UniProt 1–84 Author chain hb； PDBConstruct 3–86； UniProt 1–84 Author chain hc； PDBConstruct 3–86； UniProt 1–84 Author chain hd； PDBConstruct 3–86； UniProt 1–84 Author chain ia； PDBConstruct 3–86； UniProt 1–84 Author chain ib； PDBConstruct 3–86； UniProt 1–84 Author chain ic； PDBConstruct 3–86； UniProt 1–84 Author chain id； PDBConstruct 3–86； UniProt 1–84 Author chain ja； PDBConstruct 3–86； UniProt 1–84 Author chain jb； PDBConstruct 3–86； UniProt 1–84 Author chain jc； PDBConstruct 3–86； UniProt 1–84 Author chain jd； PDBConstruct 3–86； UniProt 1–84 Author chain ka； PDBConstruct 3–86； UniProt 1–84 Author chain kb； PDBConstruct 3–86； UniProt 1–84 Author chain kc； PDBConstruct 3–86； UniProt 1–84 Author chain kd； PDBConstruct 3–86； UniProt 1–84 Author chain la； PDBConstruct 3–86； UniProt 1–84 Author chain lb； PDBConstruct 3–86； UniProt 1–84 Author chain lc； PDBConstruct 3–86； UniProt 1–84 Author chain ld； PDBConstruct 3–86； UniProt 1–84 Author chain ma； PDBConstruct 3–86； UniProt 1–84 Author chain mb； PDBConstruct 3–86； UniProt 1–84 Author chain mc； PDBConstruct 3–86； UniProt 1–84 Author chain md； PDBConstruct 3–86； UniProt 1–84 Author chain na； PDBConstruct 3–86； UniProt 1–84 Author chain nb； PDBConstruct 3–86； UniProt 1–84 Author chain nc； PDBConstruct 3–86； UniProt 1–84 Author chain nd； PDBConstruct 3–86； UniProt 1–84 Author chain oa； PDBConstruct 3–86； UniProt 1–84 Author chain ob； PDBConstruct 3–86； UniProt 1–84 Author chain oc； PDBConstruct 3–86； UniProt 1–84 Author chain od； PDBConstruct 3–86； UniProt 1–84 Author chain pa； PDBConstruct 3–86； UniProt 1–84 Author chain pb； PDBConstruct 3–86； UniProt 1–84 Author chain pc； PDBConstruct 3–86； UniProt 1–84 Author chain pd； PDBConstruct 3–86； UniProt 1–84 Author chain qa； PDBConstruct 3–86； UniProt 1–84 Author chain qb； PDBConstruct 3–86； UniProt 1–84 Author chain qc； PDBConstruct 3–86； UniProt 1–84 Author chain qd； PDBConstruct 3–86； UniProt 1–84 Author chain ra； PDBConstruct 3–86； UniProt 1–84 Author chain rb； PDBConstruct 3–86； UniProt 1–84 Author chain rc； PDBConstruct 3–86； UniProt 1–84 Author chain rd； PDBConstruct 3–86； UniProt 1–84 Author chain sa； PDBConstruct 3–86； UniProt 1–84 Author chain sb； PDBConstruct 3–86； UniProt 1–84 Author chain sc； PDBConstruct 3–86； UniProt 1–84 Author chain sd； PDBConstruct 3–86； UniProt 1–84 Author chain ta； PDBConstruct 3–86； UniProt 1–84 Author chain tb； PDBConstruct 3–86； UniProt 1–84 Author chain tc； PDBConstruct 3–86； UniProt 1–84 Author chain td； PDBConstruct 3–86； UniProt 1–84 Author chain ua； PDBConstruct 3–86； UniProt 1–84 Author chain ub； PDBConstruct 3–86； UniProt 1–84 Author chain uc； PDBConstruct 3–86； UniProt 1–84 Author chain ud； PDBConstruct 3–86； UniProt 1–84 Author chain va； PDBConstruct 3–86； UniProt 1–84 Author chain vb； PDBConstruct 3–86； UniProt 1–84 Author chain vc； PDBConstruct 3–86； UniProt 1–84 Author chain vd； PDBConstruct 3–86； UniProt 1–84 Author chain wa； PDBConstruct 3–86； UniProt 1–84 Author chain wb； PDBConstruct 3–86； UniProt 1–84 Author chain wc； PDBConstruct 3–86； UniProt 1–84 Author chain wd； PDBConstruct 3–86； UniProt 1–84 Author chain xa； PDBConstruct 3–86； UniProt 1–84 Author chain xb； PDBConstruct 3–86； UniProt 1–84 Author chain xc； PDBConstruct 3–86； UniProt 1–84 Author chain xd； PDBConstruct 3–86； UniProt 1–84 Author chain ya； PDBConstruct 3–86； UniProt 1–84 Author chain yb； PDBConstruct 3–86； UniProt 1–84 Author chain yc； PDBConstruct 3–86； UniProt 1–84 Author chain yd； PDBConstruct 3–86； UniProt 1–84 Author chain za； PDBConstruct 3–86； UniProt 1–84 Author chain zb； PDBConstruct 3–86； UniProt 1–84 Author chain zc； PDBConstruct 3–86； UniProt 1–84 Author chain zd； PDBConstruct 3–86； UniProt 1–84

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	28ro
Deposition date deposition_date	2026-02-16
Structure title title	split variant of Aquifex aeolicus lumazine synthase-derived nucleocapsid variant NC-4
Keywords keywords	capsid, design, virus mimic, VIRUS LIKE PARTICLE; VIRUS LIKE PARTICLE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

28ro__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

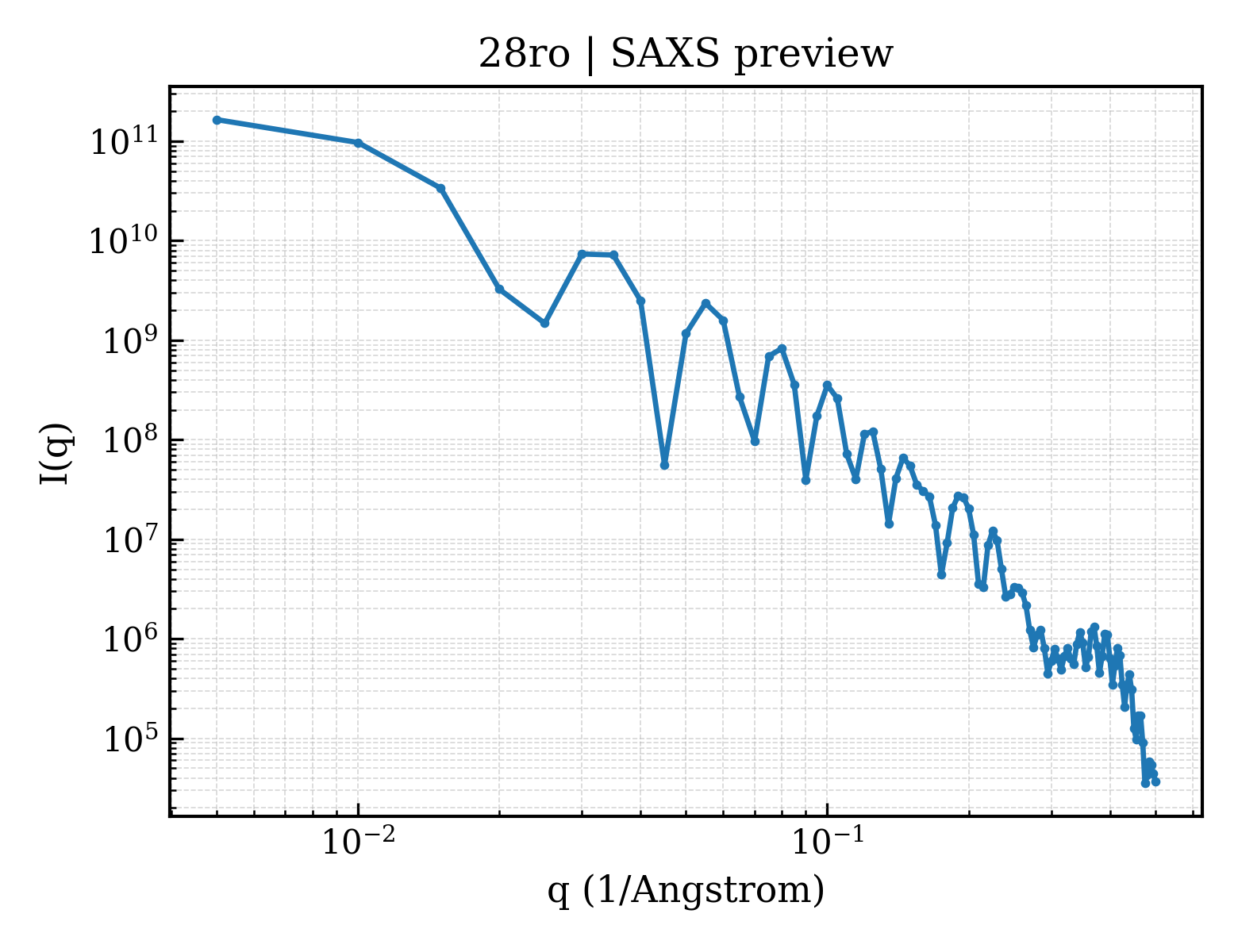

28ro__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

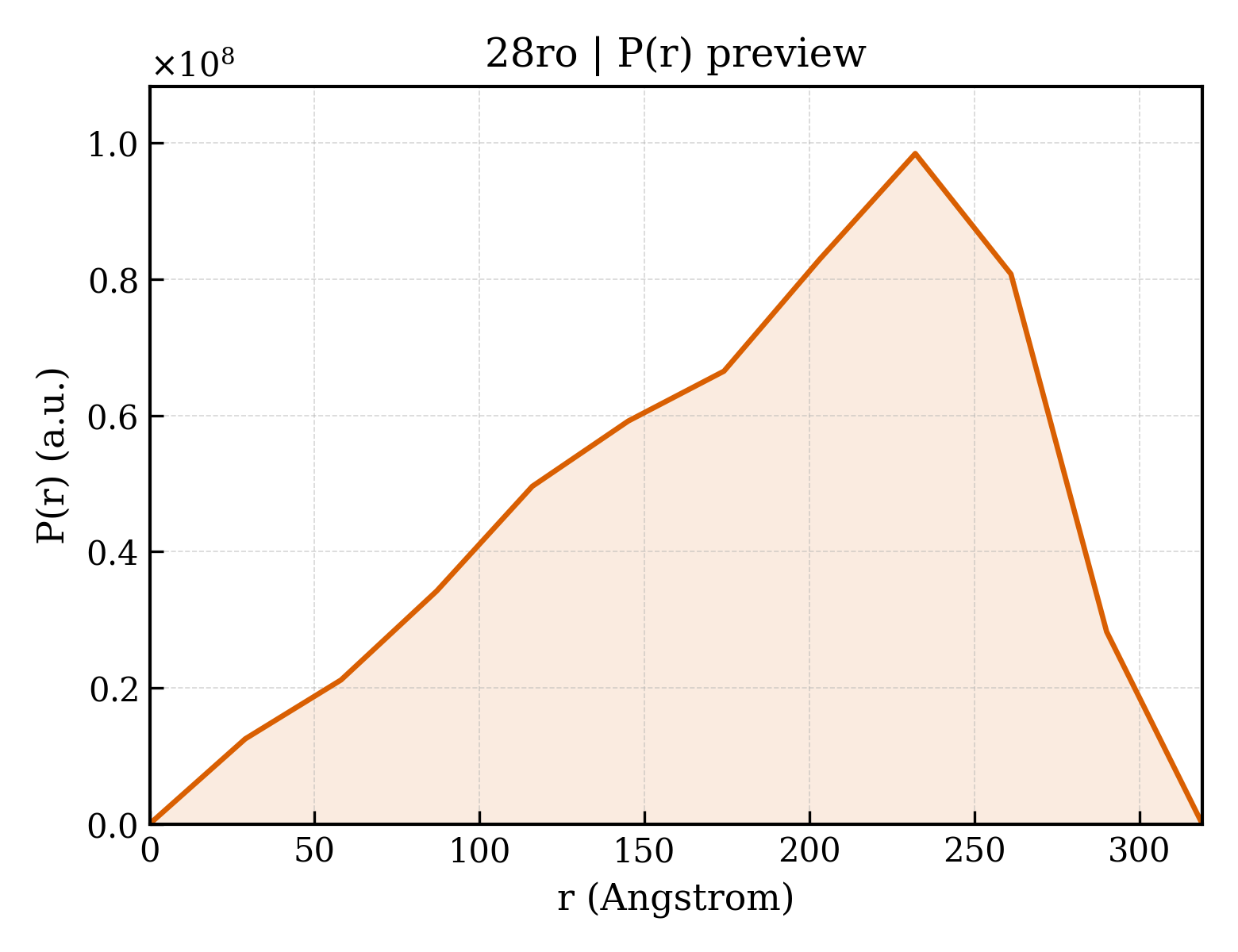

28ro__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	0.00 Å
Rg (electron density)	139.10 Å
Total Rg	139.10 Å
Atom count	268440
Residues	35340
Excluded volume	4786200 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`28ro__assembly_1__model_1`	480-meric （480）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	6,7-dimethyl-8-ribityllumazine synthase
Molecular weight formula_weight	12324.8 kDa
EC 编号 ec_number	2.5.1.78
Source method src_method	man
Copy count entity_count	240

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	;0A,0B,0C,0D,1A,1B,1C,1D,2A,2B,2C,2D,3A,3B,3C,3D,4A,4B,4C,4D,5A,5B,5C,5D,6A,6B,6C,6D,7A,7B,7C,7D,AA,AB,AC,AD,BA,BB,BC,BD,CA,CB,CC,CD,DA,DB,DC,DD,EA,EB,EC,ED,FA,FB,FC,FD,GA,GB,GC,GD,HA,HB,HC,HD,IA,IB,IC,ID,JA,JB,JC,JD,KA,KB,KC,KD,LA,LB,LC,LD,MA,MB,MC,MD,NA,NB,NC,ND,OA,OB,OC,OD,PA,PB,PC,PD,QA,QB,QC,QD,RA,RB,RC,RD,SA,SB,SC,SD,TA,TB,TC,TD,UA,UB,UC,UD,VA,VB,VC,VD,WA,WB,WC,WD,XA,XB,XC,XD,YA,YB,YC,YD,ZA,ZB,ZC,ZD,aA,aB,aC,aD,bA,bB,bC,bD,cA,cB,cC,cD,dA,dB,dC,dD,eA,eB,eC,eD,fA,fB,fC,fD,gA,gB,gC,gD,hA,hB,hC,hD,iA,iB,iC,iD,jA,jB,jC,jD,kA,kB,kC,kD,lA,lB,lC,lD,mA,mB,mC,mD,nA,nB,nC,nD,oA,oB,oC,oD,pA,pB,pC,pD,qA,qB,qC,qD,rA,rB,rC,rD,sA,sB,sC,sD,tA,tB,tC,tD,uA,uB,uC,uD,vA,vB,vC,vD,wA,wB,wC,wD,xA,xB,xC,xD,yA,yB,yC,yD,zA,zB,zC,zD ;
Atom count atom_count	268440

MGNARTRRRERRAEKQAQWKAANAGAGAGAMATPHFDYNASVVSKGLANLSLELRKPVSFDIITADTLEQAIERAGTKHGNKGWEAALSAIEMANLYKSLRGTEHHHHLHGSS

Source Source

Source organism organism	Aquifex aeolicus
NCBI taxonomy ID ncbi_taxonomy_id	63363
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	6,7-dimethyl-8-ribityllumazine synthase
Molecular weight formula_weight	9356.7 kDa
EC 编号 ec_number	2.5.1.78
Source method src_method	man
Copy count entity_count	240

Polymer Polymer

Polymer type type

polypeptide(L)

Chain IDs strand_id

;0a,0b,0c,0d,1a,1b,1c,1d,2a,2b,2c,2d,3a,3b,3c,3d,4a,4b,4c,4d,5a,5b,5c,5d,6a,6b,6c,6d,7a,7b,7c,7d,Aa,Ab,Ac,Ad,Ba,Bb,Bc,Bd,Ca,Cb,Cc,Cd,Da,Db,Dc,Dd,Ea,Eb,Ec,Ed,Fa,Fb,Fc,Fd,Ga,Gb,Gc,Gd,Ha,Hb,Hc,Hd,Ia,Ib,Ic,Id,Ja,Jb,Jc,Jd,Ka,Kb,Kc,Kd,La,Lb,Lc,Ld,Ma,Mb,Mc,Md,Na,Nb,Nc,Nd,Oa,Ob,Oc,Od,Pa,Pb,Pc,Pd,Qa,Qb,Qc,Qd,Ra,Rb,Rc,Rd,Sa,Sb,Sc,Sd,Ta,Tb,Tc,Td,Ua,Ub,Uc,Ud,Va,Vb,Vc,Vd,Wa,Wb,Wc,Wd,Xa,Xb,Xc,Xd,Ya,Yb,Yc,Yd,Za,Zb,Zc,Zd,aa,ab,ac,ad,ba,bb,bc,bd,ca,cb,cc,cd,da,db,dc,dd,ea,eb,ec,ed,fa,fb,fc,fd,ga,gb,gc,gd,ha,hb,hc,hd,ia,ib,ic,id,ja,jb,jc,jd,ka,kb,kc,kd,la,lb,lc,ld,ma,mb,mc,md,na,nb,nc,nd,oa,ob,oc,od,pa,pb,pc,pd,qa,qb,qc,qd,ra,rb,rc,rd,sa,sb,sc,sd,ta,tb,tc,td,ua,ub,uc,ud,va,vb,vc,vd,wa,wb,wc,wd,xa,xb,xc,xd,ya,yb,yc,yd,za,zb,zc,zd ;

MGIEIYEGKLTAEGLRFGIVASRFNHTLVDRLVEGAIDCIVRHGGRGEDITLVRVPGAWEIPVAADELARKEDIDAVIAFGDLIRG

Source Source

Source organism organism	Aquifex aeolicus
NCBI taxonomy ID ncbi_taxonomy_id	63363
Host organism host_organism	Escherichia coli BL21(DE3)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.10 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	20021
