SAXSdb — 1psk

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1psk
沉积日期 deposition_date	1997-03-03
结构标题 title	THE CRYSTAL STRUCTURE OF AN FAB FRAGMENT THAT BINDS TO THE MELANOMA-ASSOCIATED GD2 GANGLIOSIDE
关键词 keywords	FAB, GD2-GANGLIOSIDE, CARBOHYDRATE, MELANOMA, IMMUNOGLOBULIN; IMMUNOGLOBULIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	25.21 Å
回转半径 Rg (电子) rg_electron	24.16 Å
零角强度 I(0) i0	34222400.00
分子量 molecular_weight	44428.0 kDa
排除体积 excluded_volume	55192 Å³
包络体积 envelope_volume	68551 Å³
水化壳体积 shell_volume	23858 Å³
包络直径 envelope_diameter	80.4 Å
壳层 Rg shell_rg	31.17 Å
包络 Rg envelope_rg	23.79 Å
形状 Rg shape_rg	24.14 Å
总 Rg total_rg	25.04 Å
总原子数 total_atoms	3851
残基数 n_residues	411
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	78.2 Å
Rg (实空间) rg_real	25.17 Å
Rg 误差 (实空间) rg_real_error	0.51 Å
I(0) (实空间) i0_real	3.4220e+07
I(0) 误差 (实空间) i0_real_error	4.9590e+05
Rg (倒空间) rg_reciprocal	25.19 Å
I(0) (倒空间) i0_reciprocal	34220000.0000
解质量估计 total_estimate	0.9131
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	29.8 Å
偏度 Skewness skewness	0.236
峰度 Kurtosis kurtosis	-0.557
角度范围 angular_range	— – 0.3150 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	6366000.0000
实空间数据点数 n_real_points	64
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.971; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.983; Smooth: 0.970

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	ANTIBODY
分子量 formula_weight	23209.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L
原子数 atom_count	3885

QIVLTQSPAIMSASPGEKVTITCSASSSVSNIHWFQQKPGTFPKLWIYSTSTLASGVPGRFSGSGSGTSYSLTISRMGAEDAATYYCQQRSGYPFTFGSGTKLEIKRADAAPTVSIFPPSSEQLTSGGASVVCFLNNFYPKDINVKWKIDGSERQNGVLNSWTDQDSKDSTYSMSSTLTLTKDEYERHNSYTCEATHKTSTSPIVKSFNRNEC

Entity 2 polymer

描述 description	ANTIBODY
分子量 formula_weight	22368.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H

EVQLQQSGPELVKPGASVKISCKTSGYTFTKYTMHWVKQSHGKSLEWIGDINPNNGGTNYNQKFKGTATLTVHKSSTTAYMELRSLTSEDSAVYYCTSKSFDYWGQGTTLTVSSAKTTAPSVYPLAPVCGDTTGSAVTLGCLVKGYFPEPVTLTWNSGSLSSGVHTFPAVLQSDLYTLSSSVTVTSSTWPSQSITCNVAHPASSTKVDK

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	34

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1pskh1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.1 — V set domains (antibody variable domain-like)

结构域编号 domain_id	d1pskh2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

结构域编号 domain_id	d1pskl1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.1 — V set domains (antibody variable domain-like)

结构域编号 domain_id	d1pskl2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

CATH v4.4 (4 domains)

结构域编号 domain_id	1pskH01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1pskH02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1pskL01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1pskL02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

▶

7. 引用文献 (2)

▶

晶胞边长 a length_a	37.600 Å
晶胞边长 b length_b	94.100 Å
晶胞边长 c length_c	67.400 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	101.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	2

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	2.800 Å
最低分辨率 resolution_low	8.000 Å
R 因子 r_factor	0.2040
R_work r_work	0.2040
R_free r_free	0.3260

fit	/app/data/saxs_computation/ps/1psk/1psk.fit
pddf	/app/data/pr_computation/ps/1psk/1psk.pr.out
profile	/app/data/saxs_computation/ps/1psk/1psk.dat

THE CRYSTAL STRUCTURE OF AN FAB FRAGMENT THAT BINDS TO THE MELANOMA-ASSOCIATED GD2 GANGLIOSIDE

SAXS 散射曲线 SAXS Profile

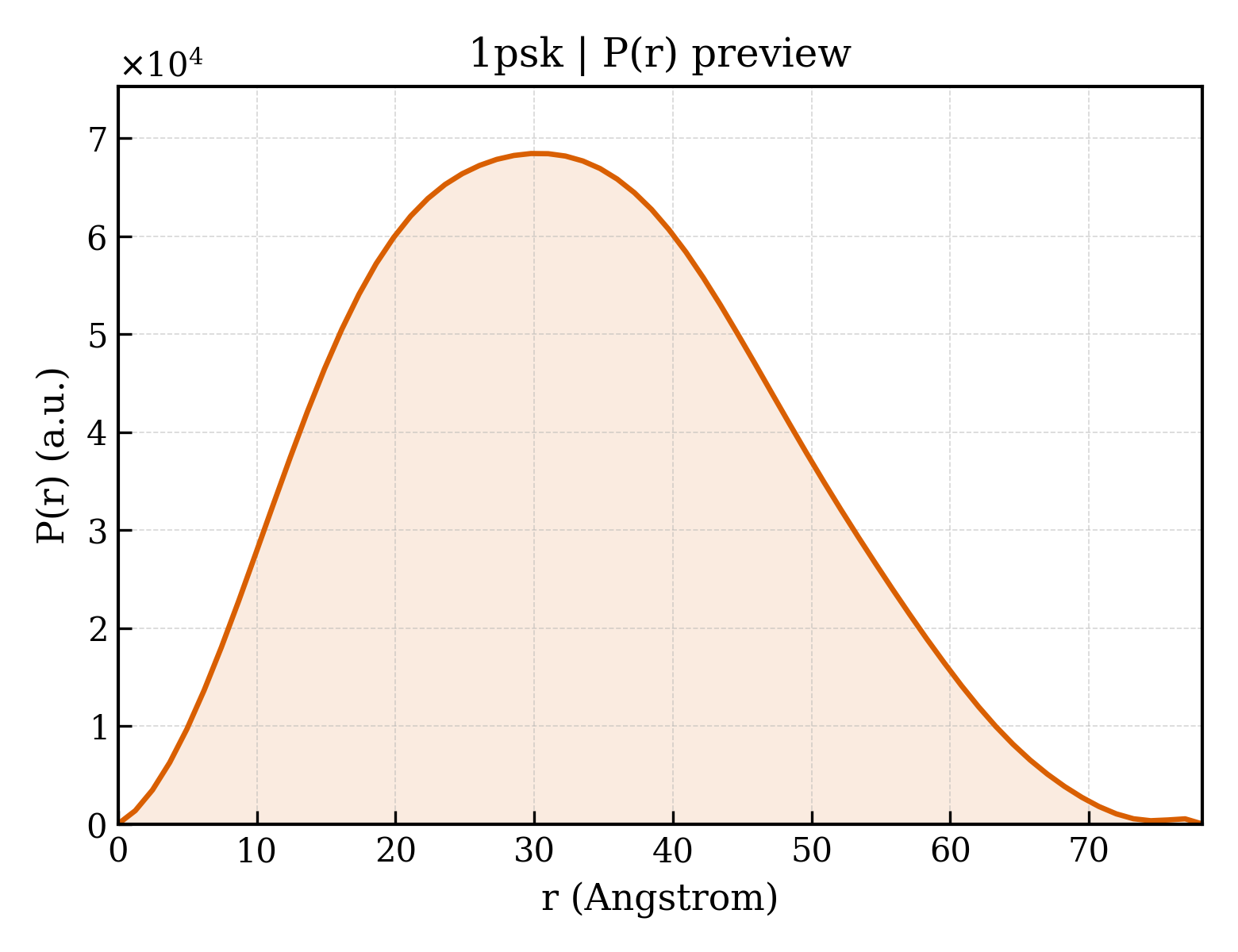

P(r) 距离分布 P(r) Distribution
