SAXSdb — 1qex

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PROTEIN (BACTERIOPHAGE T4 GENE PRODUCT 9 (GP9))

Enterobacteria phage T4

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 6	4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 6 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	VG09_BPT4
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–288； UniProt 1–288 Author chain B； PDBConstruct 1–288； UniProt 1–288

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1qex
Deposition date deposition_date	1999-03-30
Structure title title	BACTERIOPHAGE T4 GENE PRODUCT 9 (GP9), THE TRIGGER OF TAIL CONTRACTION AND THE LONG TAIL FIBERS CONNECTOR
Keywords keywords	BACTERIOPHAGE T4, BASEPLATE, GENE PRODUCT 9, OLIGOMERIZATION, Viral protein; VIRAL PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1qex__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

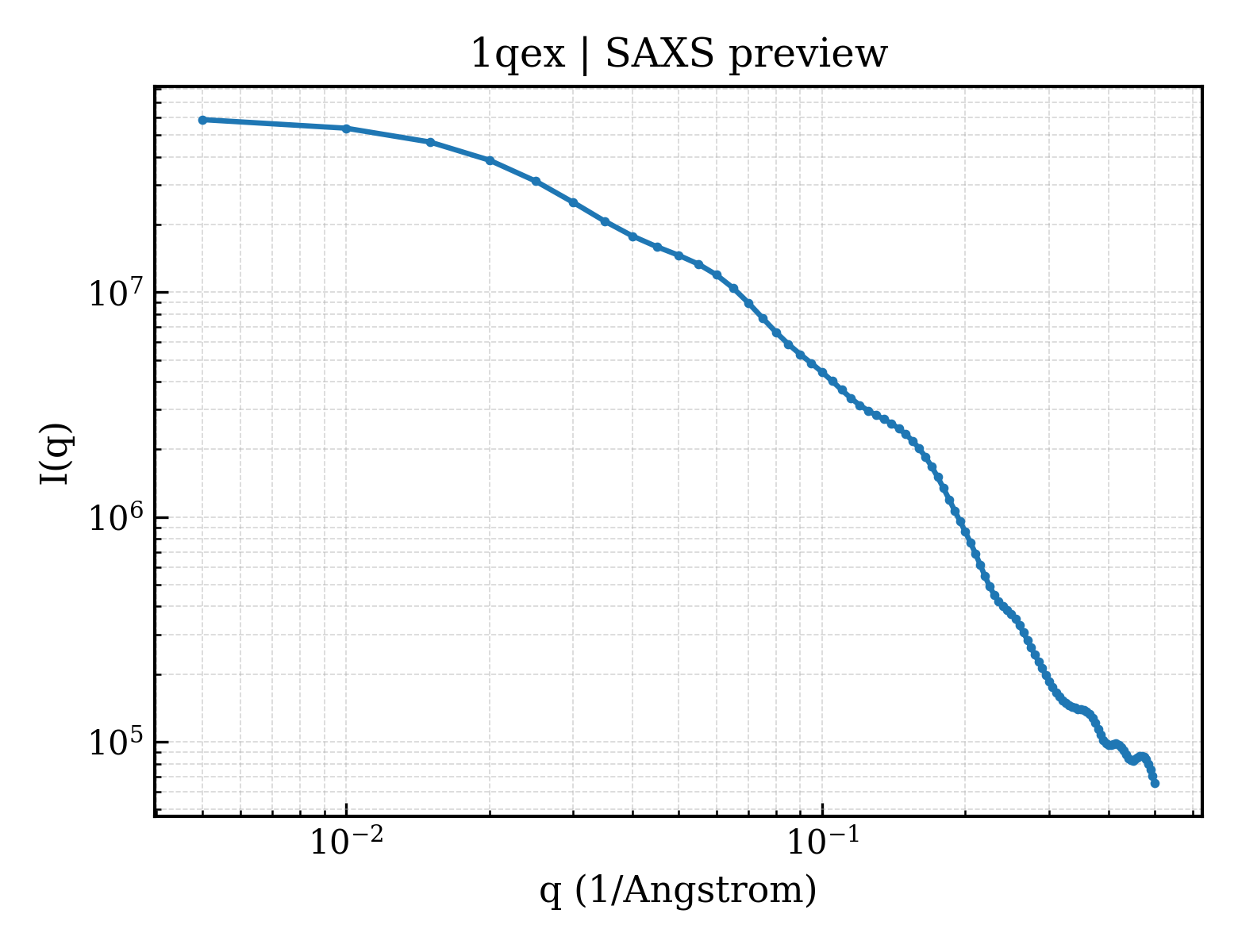

1qex__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

1qex__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	58.91 Å
Rg (electron density)	60.01 Å
Total Rg	60.14 Å
Atom count	13140
Residues	1728
Excluded volume	233100 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1qex__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	PROTEIN (BACTERIOPHAGE T4 GENE PRODUCT 9 (GP9))
Molecular weight formula_weight	31024.7 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	4672

MFIQEPKKLIDTGEIGNASTGDILFDGGNKINSDFNAIYNAFGDQRKMAVANGTGADGQIIHATGYYQKHSITEYATPVKVGTRHDIDTSTVGVKVIIERGELGDCVEFINSNGSISVTNPLTIQAIDSIKGVSGNLVVTSPYSKVTLRCISSDNSTSVWNYSIESMFGQKESPAEGTWNISTSGSVDIPLFHRTEYNMAKLLVTCQSVDGRKIKTAEINILVDTVNSEVISSEYAVMRVGNETEEDEIANIAFSIKENYVTATISSSTVGMRAAVKVIATQKIGVAQ

Source Source

Source organism organism	Enterobacteria phage T4
NCBI taxonomy ID ncbi_taxonomy_id	10665
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID
Molecular weight formula_weight	238.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	292

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1qexa_
Class class	b — All beta proteins
Fold Fold fold	b.32 — gp9
Superfamily Superfamily superfamily	b.32.1 — gp9
Family Family family	b.32.1.1 — gp9

Domain ID domain_id	d1qexb_
Class class	b — All beta proteins
Fold Fold fold	b.32 — gp9
Superfamily Superfamily superfamily	b.32.1 — gp9
Family Family family	b.32.1.1 — gp9

CATH v4.4 (6 domains)

Domain ID domain_id	1qexA01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	960 — Bacteriophage t4 gene product 9 (gp9)

Domain ID domain_id	1qexA02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	640 — gp9

Domain ID domain_id	1qexA03
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	1680 — 4-oxalocrotonate tautomerase-like

Domain ID domain_id	1qexB01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	960 — Bacteriophage t4 gene product 9 (gp9)

Domain ID domain_id	1qexB02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	640 — gp9

Domain ID domain_id	1qexB03
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	1680 — 4-oxalocrotonate tautomerase-like

▶

Unit-cell length a length_a	94.330 Å
Unit-cell length b length_b	94.330 Å
Unit-cell length c length_c	440.940 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	36

Space group space_group	H 3 2
Space-group number int_tables_number	155
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	—
R_work r_work	0.2390
R_free r_free	0.2770
