SAXSdb — 1qoi

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

SNUCYP-20

HOMO SAPIENS

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–177	Not recorded	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：pH 8.5；25% PEG6000, 200 MM MGCL2, 100 MM TRISHCL, PH 8.5	Resolution 2.00 Å R-free 0.224

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1QOI	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1MZW Crystal structure of a U4/U6 snRNP complex between human spliceosomal cyclophilin H and a U4/U6-60K peptide Deposited 2002-10-10	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–177（177 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；294 K；PEG 8000, magnesium acetate, HEPES, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 294.0K	Resolution 2.00 Å R-free 0.212
5O9Z Cryo-EM structure of a pre-catalytic human spliceosome primed for activation (B complex) Deposited 2017-06-20	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 57-meric	Chain M 1–177（177 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.50 Å
6AHD The Cryo-EM Structure of Human Pre-catalytic Spliceosome (B complex) at 3.8 angstrom resolution Deposited 2018-08-17	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 58 PDB declaration: 63-meric	Chain W 1–177（177 aa）	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
8H6K Cryo-EM structure of human exon-defined spliceosome in the mature B state. Deposited 2022-10-18	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 58 PDB declaration: 63-meric	Chain 4H 1–177（177 aa）	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.70 Å
8H6L Cryo-EM structure of human exon-defined spliceosome in the early B state. Deposited 2022-10-18	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 54 PDB declaration: 59-meric	Chain 4H 1–177（177 aa）	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.60 Å
8QO9 Cryo-EM structure of a human spliceosomal B complex protomer Deposited 2023-09-28	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 66 PDB declaration: 71-meric	Chain W 1–177（177 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.29 Å
8QZS Cryo-EM structure of the cross-exon B-like complex Deposited 2023-10-29	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 61 PDB declaration: 68-meric	Chain W 1–177（177 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.10 Å
8R09 Cryo-EM structure of the cross-exon pre-B+5'ss+ATPgammaS complex Deposited 2023-10-31	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 54 PDB declaration: 60-meric	Chain W 1–177（177 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.30 Å
8R0B Cryo-EM structure of the cross-exon pre-B+ATP complex Deposited 2023-10-31	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 54 PDB declaration: 60-meric	Chain W 1–177（177 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.40 Å
8RM5 Cryo-EM structure of the cross-exon pre-B+5'ssLNG+ATPyS complex Deposited 2024-01-05	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 54 PDB declaration: 60-meric	Chain W 1–177（177 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.90 Å

10 other PDB entries and 10 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	O43447
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–177； UniProt 1–177

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1qoi
Deposition date deposition_date	1999-11-09
Structure title title	U4/U6 snRNP-specific cyclophilin SnuCyp-20
Keywords keywords	ISOMERASE, SNUCYP-20, CYCLOPHILIN, SNRNP, SPLICEOSOMAL; ISOMERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	16.27 Å
Radius of gyration Rg (electron density) rg_electron	14.99 Å
Forward intensity I(0) i0	6721060.00
Molecular weight molecular_weight	18838.0 kDa
Excluded volume excluded_volume	23597 Å³
Envelope volume envelope_volume	26146 Å³
Hydration-shell volume shell_volume	14513 Å³
Envelope diameter envelope_diameter	55.5 Å
Shell Rg shell_rg	21.18 Å
Envelope Rg envelope_rg	15.45 Å
Shape Rg shape_rg	14.97 Å
Total Rg total_rg	16.19 Å
Total atoms total_atoms	1323
Residues n_residues	173
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	54.5 Å
Rg (real space) rg_real	16.15 Å
Rg uncertainty (real space) rg_real_error	0.35 Å
I(0) (real space) i0_real	6.7210e+06
I(0) uncertainty (real space) i0_real_error	8.6040e+04
Rg (reciprocal space) rg_reciprocal	16.16 Å
I(0) (reciprocal space) i0_reciprocal	6721000.0000
Solution quality estimate total_estimate	0.7867
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	21.7 Å
Skewness Skewness skewness	0.142
Kurtosis Kurtosis kurtosis	-0.274
Angular range angular_range	— – 0.4900 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1414000.0000
Real-space data points n_real_points	79
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.744; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.995; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1qoia_
Class class	b — All beta proteins
Fold Fold fold	b.62 — Cyclophilin-like
Superfamily Superfamily superfamily	b.62.1 — Cyclophilin-like
Family Family family	b.62.1.1 — Cyclophilin (peptidylprolyl isomerase)

CATH v4.4 (1 domains)

Domain ID domain_id	1qoiA00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	100 — Cyclophilin
Homologous superfamily homologous superfamily	10 — Cyclophilin-like

▶

8. Citations (1)

▶

Unit-cell length a length_a	47.300 Å
Unit-cell length b length_b	59.900 Å
Unit-cell length c length_c	60.700 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	0.1700
R_work r_work	0.1700
R_free r_free	0.2240

Description description	SNUCYP-20
Molecular weight formula_weight	19230.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1504

U4/U6 snRNP-specific cyclophilin SnuCyp-20

1. Protein Identity and Related Structures Protein Identity & Related Structures

SNUCYP-20

State in the Current Structure

Other States of the Same Protein in the Database

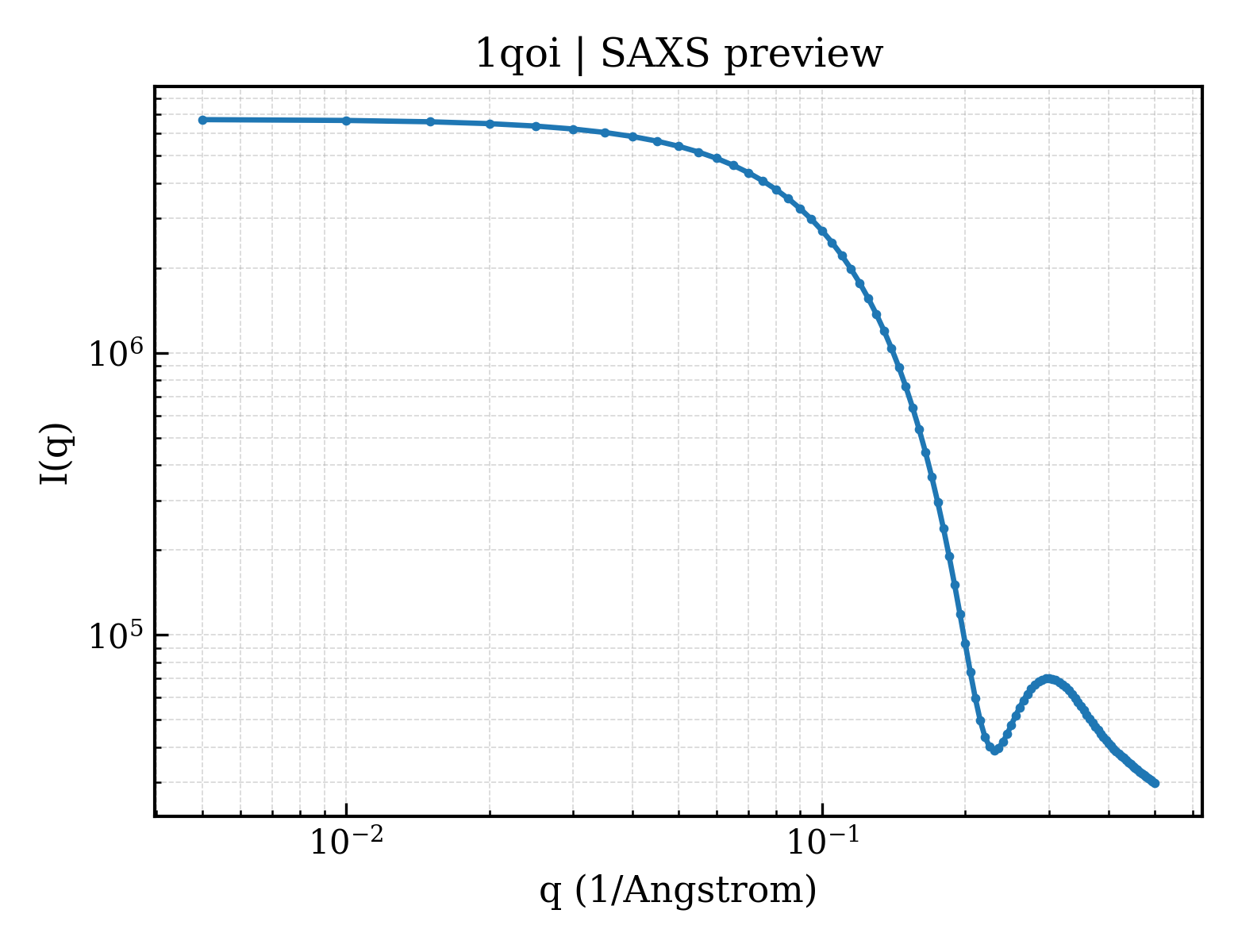

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 water

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

CATH v4.4 (1 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)

来源生物 organism	HOMO SAPIENS
通用名 common_name	HUMAN
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	ESCHERICHIA COLI

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	181

fit	/app/data/saxs_computation/qo/1qoi/1qoi.fit
pddf	/app/data/pr_computation/qo/1qoi/1qoi.pr.out
profile	/app/data/saxs_computation/qo/1qoi/1qoi.dat
