1ra7
Poliovirus Polymerase with GTP
SAXS 散射曲线 SAXS Profile

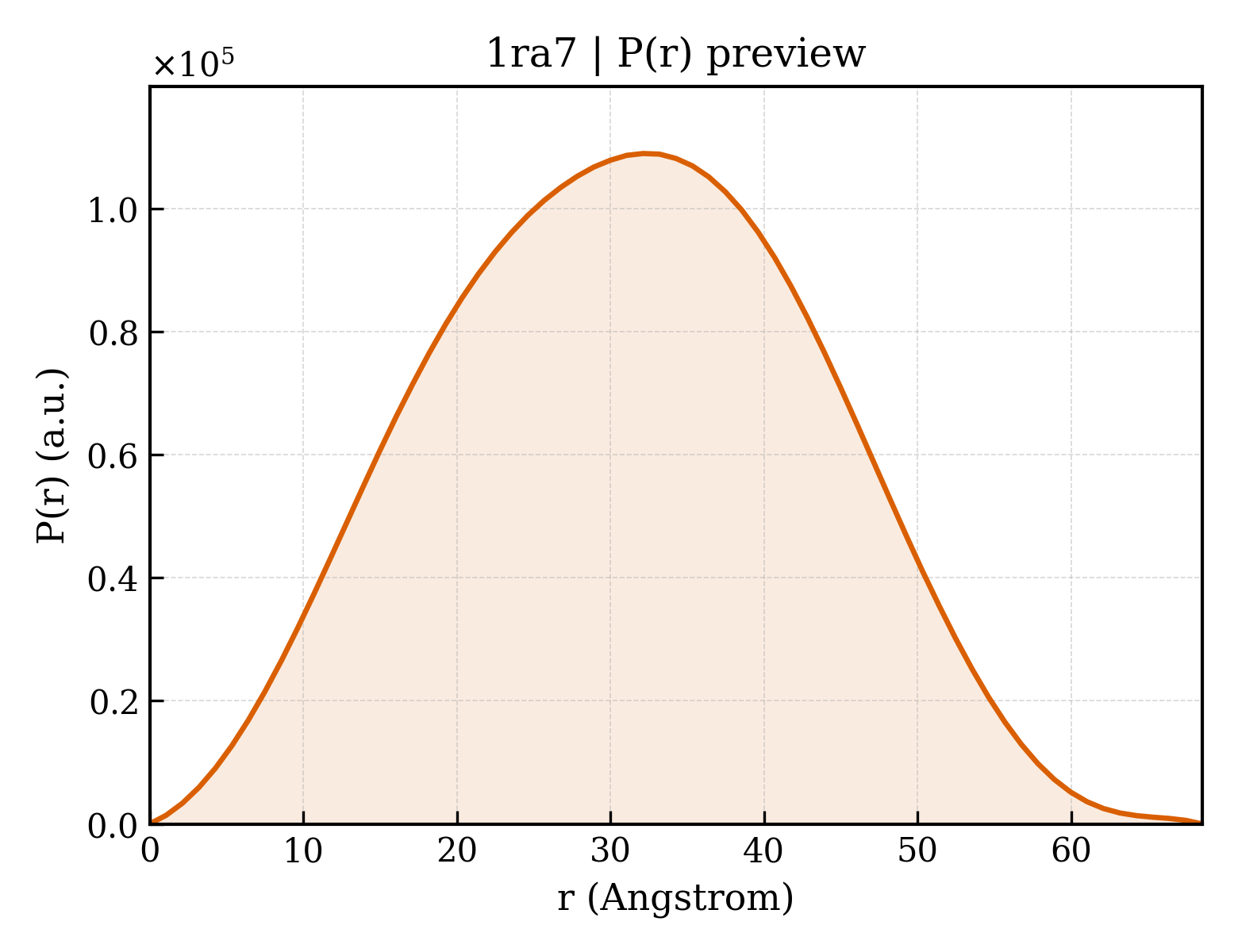

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 1ra7 |
| 沉积日期 deposition_date | 2003-10-31 |
| 结构标题 title | Poliovirus Polymerase with GTP |
| 关键词 keywords | NUCLEOTIDYLTRANSFERASE, POLIOVIRUS, 3D, RNA-DEPENDENT, POLYMERASE, N-TERMINUS, GTP, transferase; TRANSFERASE |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 23.84 Å |
| 回转半径 Rg (电子) rg_electron | 22.88 Å |
| 零角强度 I(0) i0 | 48109200.00 |
| 分子量 molecular_weight | 53860.0 kDa |
| 排除体积 excluded_volume | 67363 ų |
| 包络体积 envelope_volume | 81566 ų |
| 水化壳体积 shell_volume | 28999 ų |
| 包络直径 envelope_diameter | 75.5 Å |
| 壳层 Rg shell_rg | 30.46 Å |
| 包络 Rg envelope_rg | 22.66 Å |
| 形状 Rg shape_rg | 22.90 Å |
| 总 Rg total_rg | 23.71 Å |
| 总原子数 total_atoms | 3767 |
| 残基数 n_residues | 457 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 68.5 Å |
| Rg (实空间) rg_real | 23.63 Å |
| Rg 误差 (实空间) rg_real_error | 0.09 Å |
| I(0) (实空间) i0_real | 4.6430e+07 |
| I(0) 误差 (实空间) i0_real_error | 4.2620e+05 |
| Rg (倒空间) rg_reciprocal | 23.69 Å |
| I(0) (倒空间) i0_reciprocal | 48110000.0000 |
| 解质量估计 total_estimate | 0.7350 |
| 解质量评级 solution_quality | REASONABLE a REASONABLE solution |
| P(r) 峰数 n_peaks | 1 |
| 主峰位置 r_peak_primary | 32.1 Å |
| 偏度 Skewness skewness | 0.032 |
| 峰度 Kurtosis kurtosis | -0.584 |
| 角度范围 angular_range | — – 0.3350 Å−1 |
| 当前正则化参数 α current_alpha | 8.3210 |
| 最高正则化参数 α highest_alpha | 12790000.0000 |
| 实空间数据点数 n_real_points | 65 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.976; Stabil: 0.916; Sysdev: 0.000; Positv: 1.000; Valcen: 0.982; Smooth: 0.911 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (4)
6. 折叠分类 (SCOP + CATH) 3 domains
SCOP 2.08 (1 domains)
| 结构域编号 domain_id | d1ra7a_ |
| 类 Class class | e — Multi-domain proteins (alpha and beta) |
| 折叠类型 Fold fold | e.8 — DNA/RNA polymerases |
| 超家族 Superfamily superfamily | e.8.1 — DNA/RNA polymerases |
| 家族 Family family | e.8.1.4 — RNA-dependent RNA-polymerase |
CATH v4.4 (2 domains)
| 结构域编号 domain_id | 1ra7A02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 70 — Alpha-Beta Plaits |
| 同源超家族 H-superfamily homologous superfamily | 270 — Reverse transcriptase/Diguanylate cyclase domain |
| 结构域编号 domain_id | 1ra7A03 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 20 — Up-down Bundle |
| 拓扑 Topology topology | 960 — Mitochondrial Import Receptor Subunit Tom20; Chain A |
| 同源超家族 H-superfamily homologous superfamily | 20 — |
