SAXSdb — 2ijd

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Picornain 3C, RNA-directed RNA polymerase

Human poliovirus 1

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	ZINC ION × 2 SULFATE ION × 8 water × 2	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	ZINC ION × 2 SULFATE ION × 8 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	POLG_POL1M
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain 1； PDBConstruct 1–644； UniProt 1565–2208 Author chain 2； PDBConstruct 1–644； UniProt 1565–2208

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2ijd
Deposition date deposition_date	2006-09-29
Structure title title	Crystal Structure of the Poliovirus Precursor Protein 3CD
Keywords keywords	RNA polymerase, RNA-dependent RNA polymerase, poliovirus, picornavirus, protease, HYDROLASE, TRANSFERASE; HYDROLASE, TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2ijd__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2ijd__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

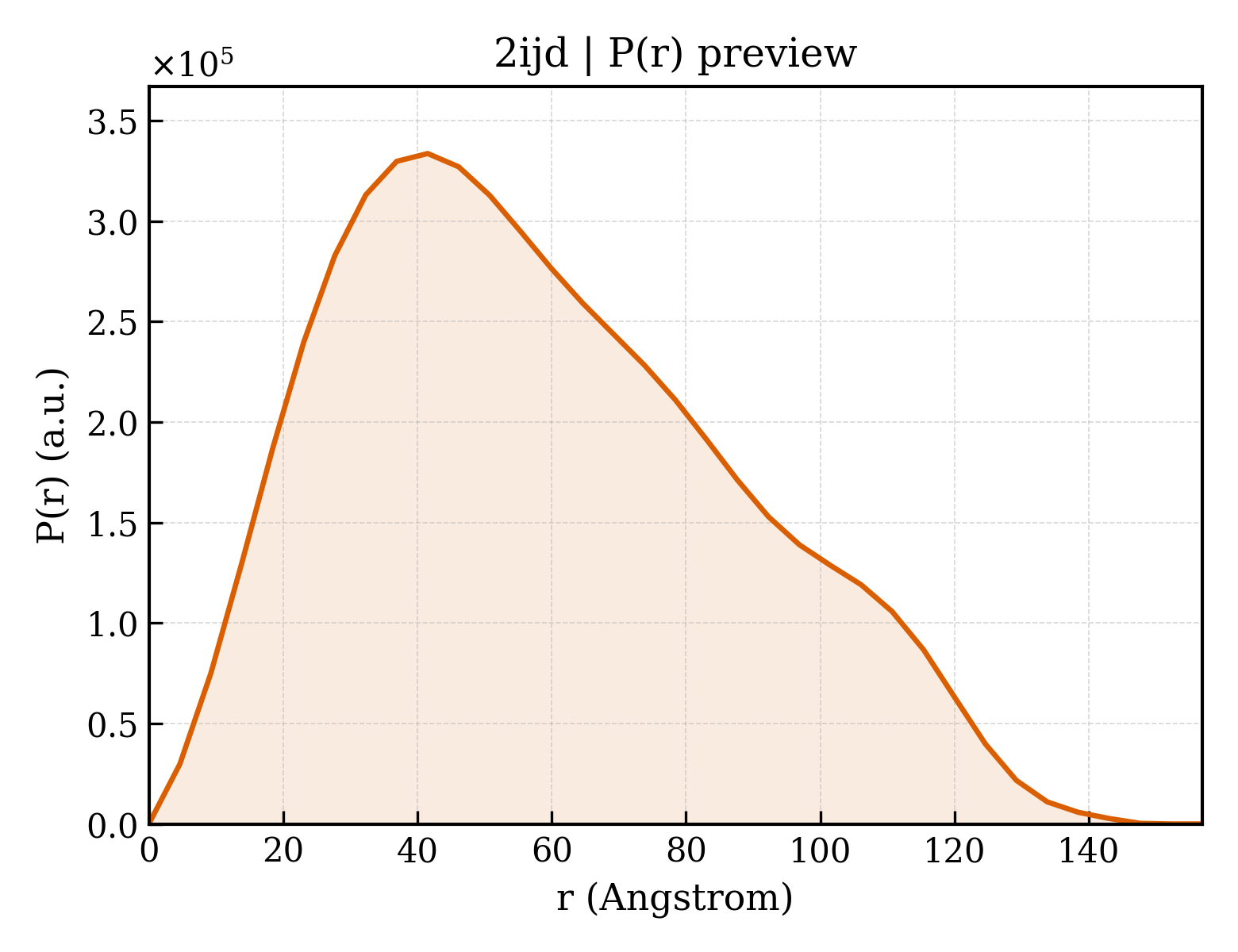

2ijd__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	36.17 Å
Rg (electron density)	35.54 Å
Total Rg	35.88 Å
Atom count	10162
Residues	1288
Excluded volume	181320 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2ijd__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2ijd__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Picornain 3C, RNA-directed RNA polymerase
Molecular weight formula_weight	72009.1 kDa
EC 编号 ec_number	3.4.22.28, 2.7.7.48
Mutation mutation	E55A, D58A, E63A, C147A, L629D, R638D
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	1,2
Atom count atom_count	10170

GPGFDYAVAMAKRNIVTATTSKGEFTMLGVHDNVAILPTHASPGESIVIDGKEVAILAAKALADQAGTNLEITIITLKRNEKFRDIRPHIPTQITETNDGVLIVNTSKYPNMYVPVGAVTEQGYLNLGGRQTARTLMYNFPTRAGQAGGVITCTGKVIGMHVGGNGSHGFAAALKRSYFTQSQGEIQWMRPSKEVGYPIINAPSKTKLEPSAFHYVFEGVKEPAVLTKNDPRLKTDFEEAIFSKYVGNKITEVDEYMKEAVDHYAGQLMSLDINTEQMCLEDAMYGTDGLEALDLSTSAGYPYVAMGKKKRDILNKQTRDTKEMQKLLDTYGINLPLVTYVKDELRSKTKVEQGKSRLIEASSLNDSVAMRMAFGNLYAAFHKNPGVITGSAVGCDPDLFWSKIPVLMEEKLFAFDYTGYDASLSPAWFEALKMVLEKIGFGDRVDYIDYLNHSHHLYKNKTYCVKGGMPSGCSGTSIFNSMINNLIIRTLLLKTYKGIDLDHLKMIAYGDDVIASYPHEVDASLLAQSGKDYGLTMTPADKSATFETVTWENVTFLKRFFRADEKYPFLIHPVMPMKEIHESIRWTKDPRNTQDHVRSLCLLAWHNGEEEYNKFLAKIRSVPIGRALDLPEYSTLYDRWLDSF

Source Source

Source organism organism	Human poliovirus 1
NCBI taxonomy ID ncbi_taxonomy_id	12081
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	8

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d2ijd11
Class class	b — All beta proteins
Fold Fold fold	b.47 — Trypsin-like serine proteases
Superfamily Superfamily superfamily	b.47.1 — Trypsin-like serine proteases
Family Family family	b.47.1.4 — Viral cysteine protease of trypsin fold

Domain ID domain_id	d2ijd12
Class class	e — Multi-domain proteins (alpha and beta)
Fold Fold fold	e.8 — DNA/RNA polymerases
Superfamily Superfamily superfamily	e.8.1 — DNA/RNA polymerases
Family Family family	e.8.1.4 — RNA-dependent RNA-polymerase

Domain ID domain_id	d2ijd21
Class class	b — All beta proteins
Fold Fold fold	b.47 — Trypsin-like serine proteases
Superfamily Superfamily superfamily	b.47.1 — Trypsin-like serine proteases
Family Family family	b.47.1.4 — Viral cysteine protease of trypsin fold

Domain ID domain_id	d2ijd22
Class class	e — Multi-domain proteins (alpha and beta)
Fold Fold fold	e.8 — DNA/RNA polymerases
Superfamily Superfamily superfamily	e.8.1 — DNA/RNA polymerases
Family Family family	e.8.1.4 — RNA-dependent RNA-polymerase

CATH v4.4 (2 domains)

Domain ID domain_id	2ijd101
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	120 —

Domain ID domain_id	2ijd201
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	120 —

▶

Unit-cell length a length_a	208.537 Å
Unit-cell length b length_b	230.436 Å
Unit-cell length c length_c	151.035 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	C 2 2 21
Space-group number int_tables_number	20
Crystal system crystal_system	—

Resolution resolution	3.400 Å
Low-resolution limit resolution_low	19.900 Å
R factor r_factor	0.2007
R_work r_work	0.1991
R_free r_free	0.2306
