1rer

Crystal structure of the homotrimer of fusion glycoprotein E1 from Semliki Forest Virus.

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Structural polyprotein

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Homooligomer	Protein 3 其他Polymer 3	;2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-beta-D-mannopyranose-(1-3)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[beta-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 ;2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 BROMIDE ION × 3 HOLMIUM ATOM × 4 PHOSPHATE ION × 1 water × 3	Consistent with protein count
2	Other combination	Homooligomer	Protein 6 其他Polymer 6	;2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-beta-D-mannopyranose-(1-3)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[beta-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ; × 2 ;2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ; × 2 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 2 BROMIDE ION × 6 HOLMIUM ATOM × 8 PHOSPHATE ION × 2 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	POLS_SFV
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–391； UniProt 816–1206 Author chain B； PDBConstruct 1–391； UniProt 816–1206 Author chain C； PDBConstruct 1–391； UniProt 816–1206

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1rer
Deposition date deposition_date	2003-11-07
Structure title title	Crystal structure of the homotrimer of fusion glycoprotein E1 from Semliki Forest Virus.
Keywords keywords	Envelope glycoprotein, Membrane fusion, virus., Viral protein; VIRAL PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1rer__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1rer__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

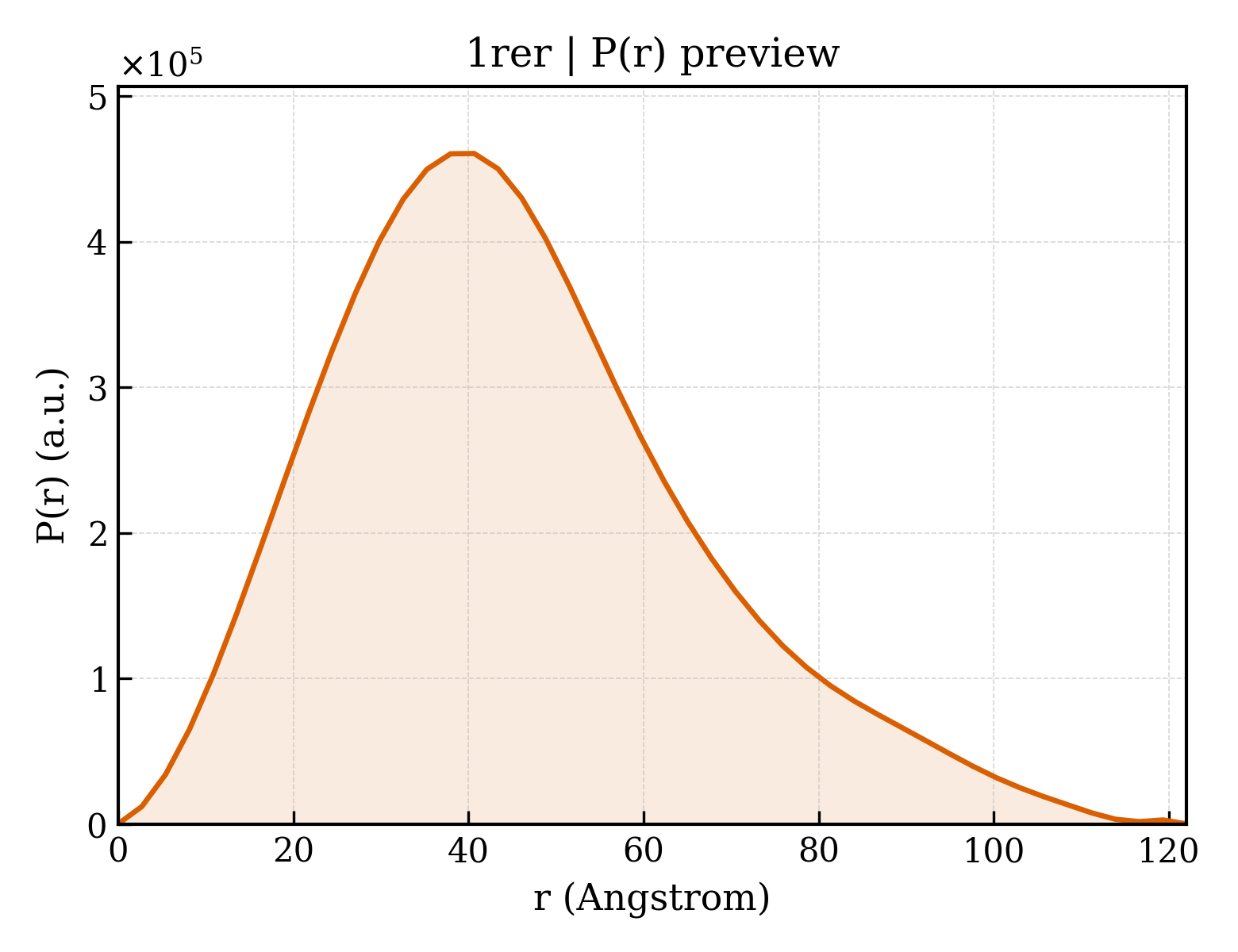

1rer__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	35.10 Å
Rg (electron density)	34.99 Å
Total Rg	35.44 Å
Atom count	9178
Residues	1173
Excluded volume	162970 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1rer__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1rer__assembly_2__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Description description	Structural polyprotein
Molecular weight formula_weight	42690.1 kDa
Source method src_method	nat
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	9317

YEHSTVMPNVVGFPYKAHIERPGYSPLTLQMQVVETSLEPTLNLEYITCEYKTVVPSPYVKCCGASECSTKEKPDYQCKVYTGVYPFMWGGAYCFCDSENTQLSEAYVDRSDVCRHDHASAYKAHTASLKAKVRVMYGNVNQTVDVYVNGDHAVTIGGTQFIFGPLSSAWTPFDNKIVVYKDEVFNQDFPPYGSGQPGRFGDIQSRTVESNDLYANTALKLARPSPGMVHVPYTQTPSGFKYWLKEKGTALNTKAPFGCQIKTNPVRAMNCAVGNIPVSMNLPDSAFTRIVEAPTIIDLTCTVATCTHSSDFGGVLTLTYKTNKNGDCSVHSHSNVATLQEATAKVKTAGKVTLHFSTASASPSFVVSLCSARATCSASCEPPKDHIVPYA

Entity 2 Entity 2 branched

Description description	;2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-beta-D-mannopyranose-(1-3)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[beta-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ;
Molecular weight formula_weight	1098.0 kDa
Source method src_method	man
Copy count entity_count	1

Entity 3 Entity 3 branched

Description description	;2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ;
Molecular weight formula_weight	1260.2 kDa
Source method src_method	man
Copy count entity_count	1

Entity 4 Entity 4 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	man
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	BROMIDE ION
Molecular weight formula_weight	79.9 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 6 Entity 6 non-polymer

Description description	HOLMIUM ATOM
Molecular weight formula_weight	164.9 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 7 Entity 7 non-polymer

Description description	PHOSPHATE ION
Molecular weight formula_weight	95.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 8 Entity 8 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	139

▼

6. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d1rera1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.18 — E set domains
Family Family family	b.1.18.4 — Class II viral fusion proteins C-terminal domain

Domain ID domain_id	d1rera2
Class class	f — Membrane and cell surface proteins and peptides
Fold Fold fold	f.10 — Viral glycoprotein, central and dimerisation domains
Superfamily Superfamily superfamily	f.10.1 — Viral glycoprotein, central and dimerisation domains
Family Family family	f.10.1.1 — Viral glycoprotein, central and dimerisation domains

Domain ID domain_id	d1rerb1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.18 — E set domains
Family Family family	b.1.18.4 — Class II viral fusion proteins C-terminal domain

Domain ID domain_id	d1rerb2
Class class	f — Membrane and cell surface proteins and peptides
Fold Fold fold	f.10 — Viral glycoprotein, central and dimerisation domains
Superfamily Superfamily superfamily	f.10.1 — Viral glycoprotein, central and dimerisation domains
Family Family family	f.10.1.1 — Viral glycoprotein, central and dimerisation domains

Domain ID domain_id	d1rerc1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.18 — E set domains
Family Family family	b.1.18.4 — Class II viral fusion proteins C-terminal domain

Domain ID domain_id	d1rerc2
Class class	f — Membrane and cell surface proteins and peptides
Fold Fold fold	f.10 — Viral glycoprotein, central and dimerisation domains
Superfamily Superfamily superfamily	f.10.1 — Viral glycoprotein, central and dimerisation domains
Family Family family	f.10.1.1 — Viral glycoprotein, central and dimerisation domains

CATH v4.4 (6 domains)

Domain ID domain_id	1rerA01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	98 — Tick-borne Encephalitis virus Glycoprotein; domain 1
Homologous superfamily homologous superfamily	10 — Tick-borne Encephalitis virus Glycoprotein, domain 1

Domain ID domain_id	1rerA03
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	350 —

Domain ID domain_id	1rerB01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	98 — Tick-borne Encephalitis virus Glycoprotein; domain 1
Homologous superfamily homologous superfamily	10 — Tick-borne Encephalitis virus Glycoprotein, domain 1

Domain ID domain_id	1rerB03
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	350 —

Domain ID domain_id	1rerC01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	98 — Tick-borne Encephalitis virus Glycoprotein; domain 1
Homologous superfamily homologous superfamily	10 — Tick-borne Encephalitis virus Glycoprotein, domain 1

Domain ID domain_id	1rerC03
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	350 —

▶

Unit-cell length a length_a	198.197 Å
Unit-cell length b length_b	198.197 Å
Unit-cell length c length_c	116.250 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	18

Space group space_group	P 31 2 1
Space-group number int_tables_number	152
Crystal system crystal_system	—

Resolution resolution	3.200 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2660
R_work r_work	0.2650
R_free r_free	0.2850
