SAXSdb — 1rk8

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CG8781-PA protein

Drosophila melanogaster

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Mago nashi protein × 1 （P49028） Within the bgcn gene intron protein × 1 （P82804） CALCIUM ION × 3 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RBM8A_DROME
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–165； UniProt 1–165

Mago nashi protein

Drosophila melanogaster

UniProt P49028

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	CG8781-PA protein × 1 （Q9V535） Within the bgcn gene intron protein × 1 （P82804） CALCIUM ION × 3 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MGN_DROME
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–147； UniProt 1–147

Within the bgcn gene intron protein

Drosophila melanogaster

UniProt P82804

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	CG8781-PA protein × 1 （Q9V535） Mago nashi protein × 1 （P49028） CALCIUM ION × 3 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	WIBG_DROME
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–58； UniProt 1–58

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1rk8
Deposition date deposition_date	2003-11-21
Structure title title	Structure of the cytosolic protein PYM bound to the Mago-Y14 core of the exon junction complex
Keywords keywords	mRNA processing; RRM; RBD; NMD; oskar mRNA localization, TRANSLATION; TRANSLATION
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1rk8__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1rk8__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

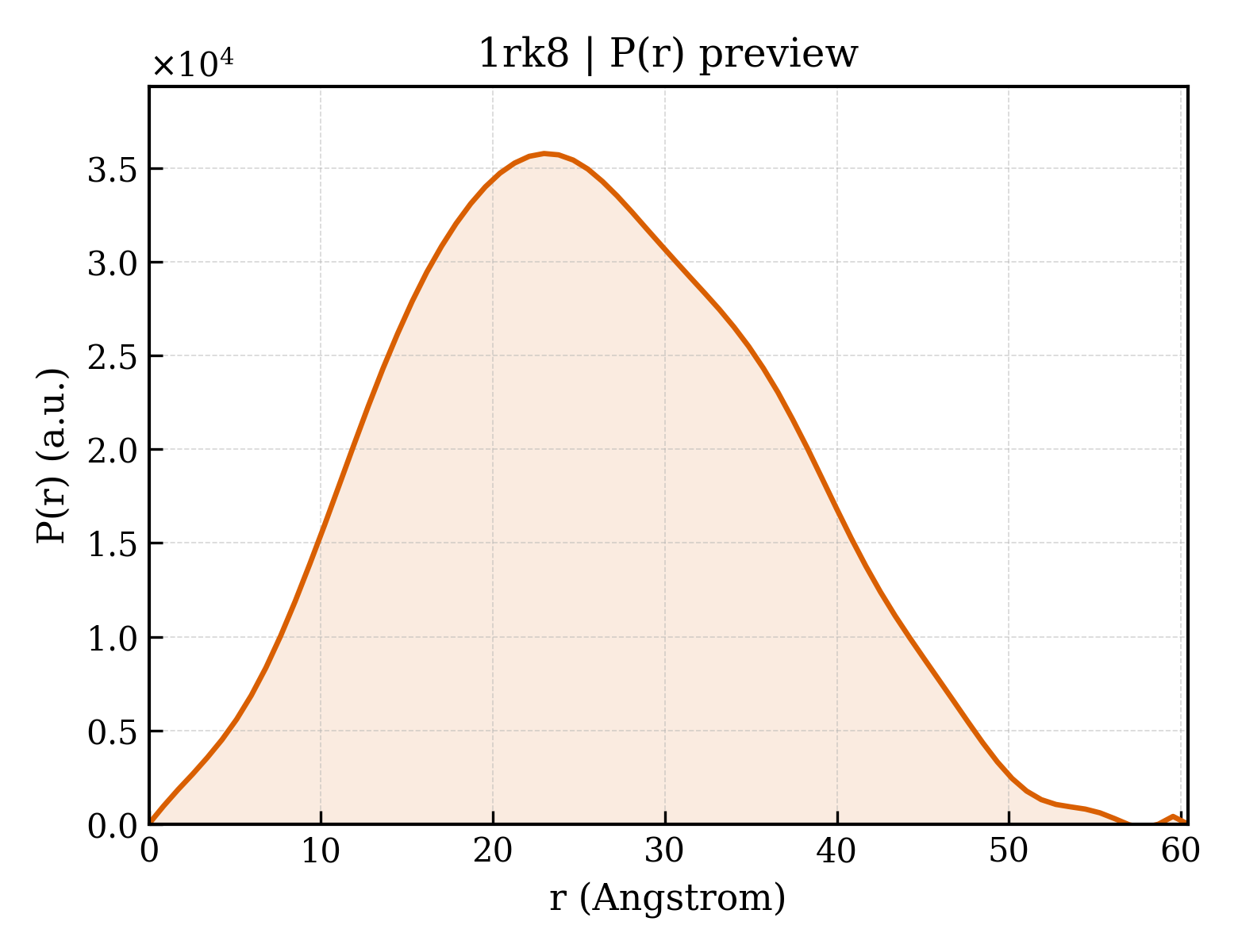

1rk8__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	19.66 Å
Rg (electron density)	18.50 Å
Total Rg	19.43 Å
Atom count	1931
Residues	247
Excluded volume	34426 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1rk8__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	CG8781-PA protein
Molecular weight formula_weight	19042.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2073

MADVLDIDNAEEFEVDEDGDQGIVRLKEKAKHRKGRGFGSDSNTREAIHSYERVRNEDDDELEPGPQRSVEGWILFVTSIHEEAQEDEIQEKFCDYGEIKNIHLNLDRRTGFSKGYALVEYETHKQALAAKEALNGAEIMGQTIQVDWCFVKGPKRVKKSEKRRR

Source Source

Source organism organism	Drosophila melanogaster
Common name common_name	fruit fly
NCBI taxonomy ID ncbi_taxonomy_id	7227
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Mago nashi protein
Molecular weight formula_weight	17335.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MSTEDFYLRYYVGHKGKFGHEFLEFEFRPDGKLRYANNSNYKNDTMIRKEAFVHQSVMEELKRIIIDSEIMQEDDLPWPPPDRVGRQELEIVIGDEHISFTTSKTGSLVDVNRSKDPEGLRCFYYLVQDLKCLVFSLIGLHFKIKPI

Source Source

Source organism organism	Drosophila melanogaster
Common name common_name	fruit fly
NCBI taxonomy ID ncbi_taxonomy_id	7227
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Within the bgcn gene intron protein
Molecular weight formula_weight	6609.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MSTYLQSSEGKFIPATKRPDGTWRKARRVKDGYVPQEEVPLYESKGKQFVAQRQAGVP

Source Source

Source organism organism	Drosophila melanogaster
Common name common_name	fruit fly
NCBI taxonomy ID ncbi_taxonomy_id	7227
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	142

▼

6. Fold Classification (SCOP + CATH) 5 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d1rk8a_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.7 — RNA-binding domain, RBD, aka RNA recognition motif (RRM)
Family Family family	d.58.7.1 — Canonical RBD

Domain ID domain_id	d1rk8b_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.232 — Mago nashi protein
Superfamily Superfamily superfamily	d.232.1 — Mago nashi protein
Family Family family	d.232.1.1 — Mago nashi protein

Domain ID domain_id	d1rk8c_
Class class	b — All beta proteins
Fold Fold fold	b.72 — WW domain-like
Superfamily Superfamily superfamily	b.72.3 — Pym (Within the bgcn gene intron protein, WIBG), N-terminal domain
Family Family family	b.72.3.1 — Pym (Within the bgcn gene intron protein, WIBG), N-terminal domain

CATH v4.4 (2 domains)

Domain ID domain_id	1rk8A00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	330 — RRM (RNA recognition motif) domain

Domain ID domain_id	1rk8B00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1560 — Mago nashi protein
Homologous superfamily homologous superfamily	10 — Mago nashi

▶

Unit-cell length a length_a	106.357 Å
Unit-cell length b length_b	106.357 Å
Unit-cell length c length_c	58.139 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 43 21 2
Space-group number int_tables_number	96
Crystal system crystal_system	—

Resolution resolution	1.900 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	0.2350
R_work r_work	0.2350
R_free r_free	0.2490
