1ry1

Structure of the signal recognition particle interacting with the elongation-arrested ribosome

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

SRP14

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–RNA	Heteromer	Protein 6 RNA 8	SRP Alu domain × 1 SRP S domain × 1 SRP RNA × 1 SRP RNA × 1 SRP RNA × 1 SRP RNA × 1 SRP RNA × 1 SRP RNA × 1 SRP9 × 1 SRP19 × 1 SRP54NG × 1 SRP54M × 1 signal sequence peptide × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SRP14_HUMAN
Isoform	—
PDB entities	10
Chains and sequence ranges	Author chain D； PDBConstruct 1–106； UniProt 2–107

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1ry1
Deposition date deposition_date	2003-12-19
Structure title title	Structure of the signal recognition particle interacting with the elongation-arrested ribosome
Keywords keywords	signal recognition particle, RNA binding, TRANSLATION; TRANSLATION
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1ry1__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

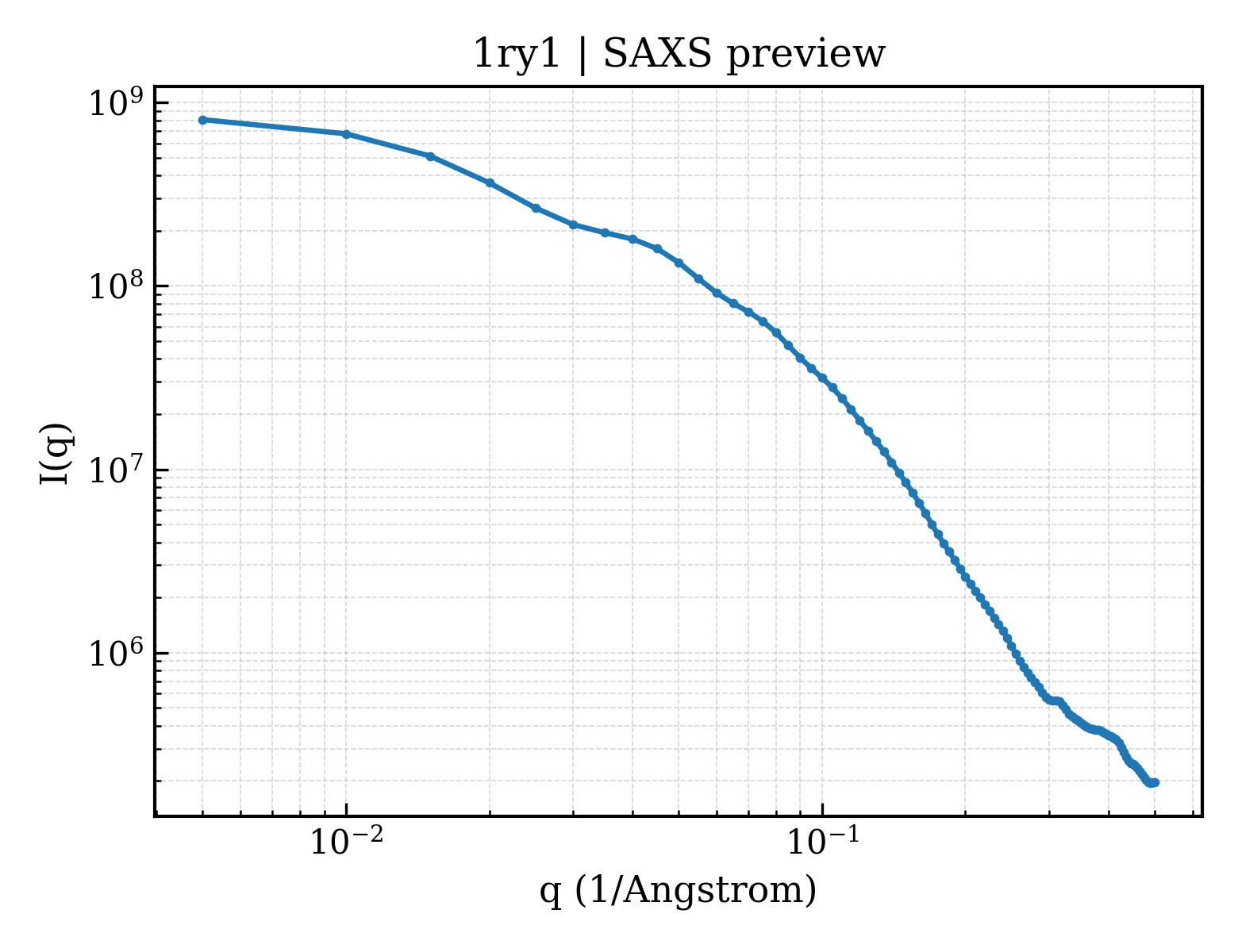

1ry1__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

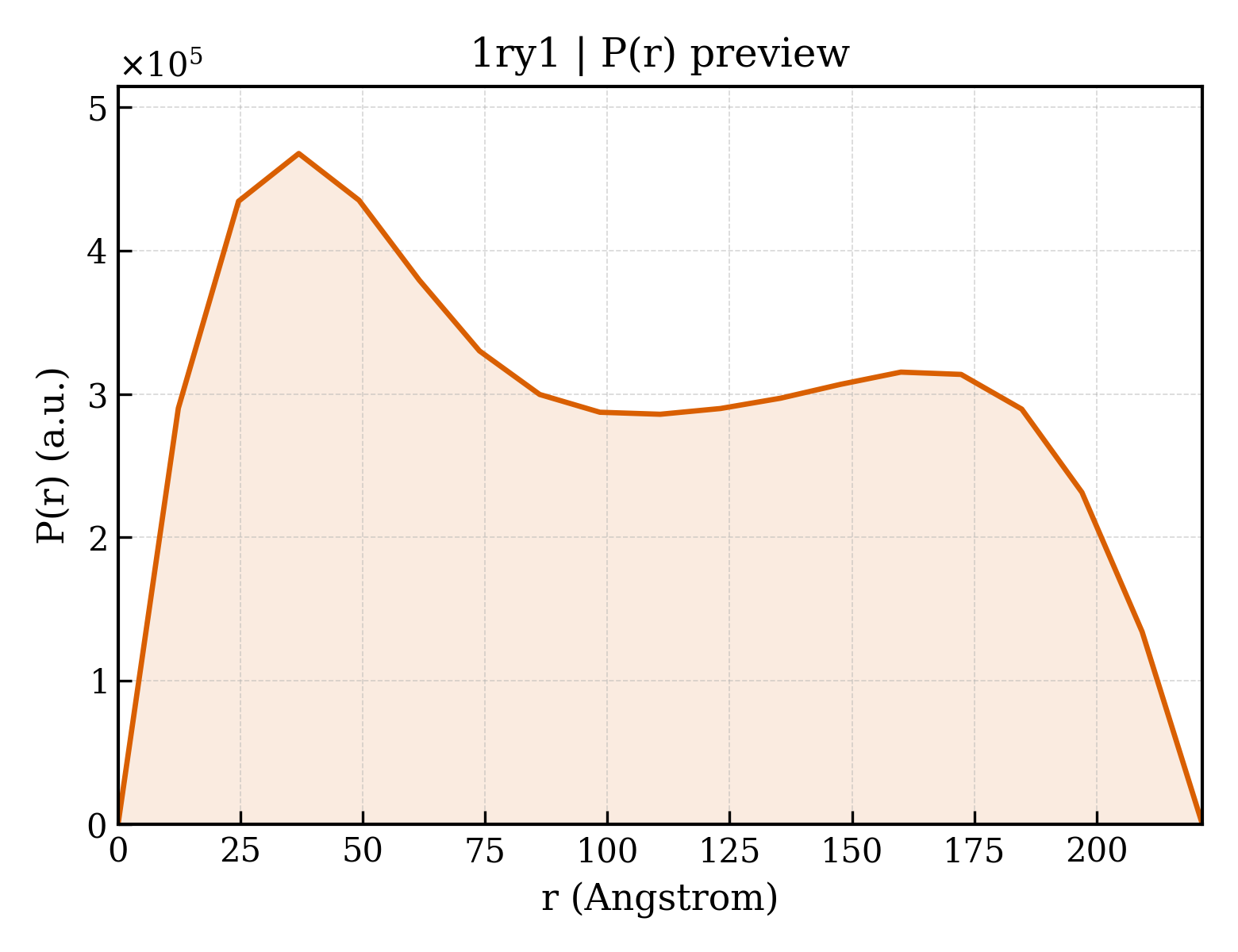

1ry1__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	84.48 Å
Rg (electron density)	86.97 Å
Total Rg	86.89 Å
Atom count	11794
Residues	976
Excluded volume	187200 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1ry1__assembly_1__model_1`	tetradecameric （14）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (14)

Entity 1 Entity 1 polymer

Description description	SRP Alu domain
Molecular weight formula_weight	16277.6 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polyribonucleotide
Chain IDs strand_id	E
Atom count atom_count	11794

GGGCCGGGCGCGGUGGCGCGCGCCUGUAGUCCCAGCUACUCGGGAGGCUC

Entity 2 Entity 2 polymer

Description description	SRP S domain
Molecular weight formula_weight	41566.7 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polyribonucleotide
Chain IDs strand_id	A

GACACUAAGUUCGGCAUCAAUAUGGUGACCUCCCGGGAGCGGGGGACCACCAGGUUGCCUAAGGAGGGGUGAACCGGCCCAGGUCGGAAACGGAGCAGGUCAAAACUCCCGUGCUGAUCAGUAGUGUC

Entity 3 Entity 3 polymer

Description description	SRP RNA
Molecular weight formula_weight	8784.3 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polyribonucleotide
Chain IDs strand_id	M

AGGCUGGAGGAUCGCUUGAGUCCAGGA

Entity 4 Entity 4 polymer

Description description	SRP RNA
Molecular weight formula_weight	9807.8 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polyribonucleotide
Chain IDs strand_id	N

CCUGUGCAACAUAGCGAGACCCCGUCUCUUU

Entity 5 Entity 5 polymer

Description description	SRP RNA
Molecular weight formula_weight	7695.5 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polyribonucleotide
Chain IDs strand_id	O

GUUCUGGGCUGUAGUGCGCUAUGC

Entity 6 Entity 6 polymer

Description description	SRP RNA
Molecular weight formula_weight	6325.8 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polyribonucleotide
Chain IDs strand_id	P

CAAUAGCCACUGCACUCCAG

Entity 7 Entity 7 polymer

Description description	SRP RNA
Molecular weight formula_weight	3844.3 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polyribonucleotide
Chain IDs strand_id	Q

CGAUCGGGUGUC

Entity 8 Entity 8 polymer

Description description	SRP RNA
Molecular weight formula_weight	3804.3 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polyribonucleotide
Chain IDs strand_id	R

AUCGCGCCUGUG

Entity 9 Entity 9 polymer

Description description	SRP9
Molecular weight formula_weight	9996.6 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

PQYQTWEEFSRAAEKLYLADPMKARVVLKYRHSDGNLCVKVTDDLVCLVYKTDQAQDVKKIEKFHSQLMRLMVAKEARNVTMETE

Entity 10 Entity 10 polymer

Description description	SRP14
Molecular weight formula_weight	12114.2 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

VLLESEQFLTELTRLFQKCRTSGSVYITLKKYDGRTKPIPKKGTVEGFEPADNKCLLRATDGKKKISTVVSSKEVNKFQMAYSNLLRANMDGLKKRDKKNKTKKTK

Entity 11 Entity 11 polymer

Description description	SRP19
Molecular weight formula_weight	12561.7 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MRFICIYPAYLNNKKTIAEGRRIPISKAVENPTATEIQDVCSAVGLNVFLEKNKMYSREWNRDVQYRGRVRVQLKQEDGSLCLVQFPSRKSVMLYAAEMIPKLKTRTQ

Entity 12 Entity 12 polymer

Description description	SRP54NG
Molecular weight formula_weight	32472.5 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	U

MFQQLSARLQEAIGRLRGRGRITEEDLKATLREIRRALMDADVNLEVARDFVERVREEALGKQVLESLTPAEVILATVYEALKEALGGEARLPVLKDRNLWFLVGLQGSGKTTTAAKLALYYKGKGRRPLLVAADTQRPAAREQLRLLGEKVGVPVLEVMDGESPESIRRRVEEKARLEARDLILVDTAGRLQIDEPLMGELARLKEVLGPDEVLLVLDAMTGQEALSVARAFDEKVGVTGLVLTKLDGDARGGAALSARHVTGKPIYFAGVSEKPEGLEPFYPERLAGRILGMGD

Entity 13 Entity 13 polymer

Description description	SRP54M
Molecular weight formula_weight	12473.4 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	W

QFTLRDMYEQFQNIMKMGPFSQILGMIPGFGTDFMSKGNEQESMARLKKLMTIMDSMNDQELDSTDGAKVFSKQPGRIQRVARGSGVSTRDVQELLTQYTKFAQMVKKM

Entity 14 Entity 14 polymer

Description description	signal sequence peptide
Molecular weight formula_weight	2121.5 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	S

LGFPINFLTLYVTVQHKK

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d1ry1b_
Class class	i — Low resolution protein structures
Fold Fold fold	i.22 — Signal recognition particle (SRP) complex
Superfamily Superfamily superfamily	i.22.1 — Signal recognition particle (SRP) complex
Family Family family	i.22.1.1 — Signal recognition particle (SRP) complex

Domain ID domain_id	d1ry1c_
Class class	i — Low resolution protein structures
Fold Fold fold	i.22 — Signal recognition particle (SRP) complex
Superfamily Superfamily superfamily	i.22.1 — Signal recognition particle (SRP) complex
Family Family family	i.22.1.1 — Signal recognition particle (SRP) complex

Domain ID domain_id	d1ry1d_
Class class	i — Low resolution protein structures
Fold Fold fold	i.22 — Signal recognition particle (SRP) complex
Superfamily Superfamily superfamily	i.22.1 — Signal recognition particle (SRP) complex
Family Family family	i.22.1.1 — Signal recognition particle (SRP) complex

Domain ID domain_id	d1ry1s_
Class class	i — Low resolution protein structures
Fold Fold fold	i.22 — Signal recognition particle (SRP) complex
Superfamily Superfamily superfamily	i.22.1 — Signal recognition particle (SRP) complex
Family Family family	i.22.1.1 — Signal recognition particle (SRP) complex

Domain ID domain_id	d1ry1u_
Class class	i — Low resolution protein structures
Fold Fold fold	i.22 — Signal recognition particle (SRP) complex
Superfamily Superfamily superfamily	i.22.1 — Signal recognition particle (SRP) complex
Family Family family	i.22.1.1 — Signal recognition particle (SRP) complex

Domain ID domain_id	d1ry1w_
Class class	i — Low resolution protein structures
Fold Fold fold	i.22 — Signal recognition particle (SRP) complex
Superfamily Superfamily superfamily	i.22.1 — Signal recognition particle (SRP) complex
Family Family family	i.22.1.1 — Signal recognition particle (SRP) complex

▶

Resolution resolution	12.000 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	—
R_work r_work	—
R_free r_free	—

Resolution resolution	12.00 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	—
