1sx3

GroEL14-(ATPgammaS)14

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

groEL protein

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 14	MAGNESIUM ION × 14 POTASSIUM ION × 16 PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 14 water × 14	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CH60_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–525； UniProt 1–525 Author chain B； PDBConstruct 1–525； UniProt 1–525 Author chain C； PDBConstruct 1–525； UniProt 1–525 Author chain D； PDBConstruct 1–525； UniProt 1–525 Author chain E； PDBConstruct 1–525； UniProt 1–525 Author chain F； PDBConstruct 1–525； UniProt 1–525 Author chain G； PDBConstruct 1–525； UniProt 1–525 Author chain H； PDBConstruct 1–525； UniProt 1–525 Author chain I； PDBConstruct 1–525； UniProt 1–525 Author chain J； PDBConstruct 1–525； UniProt 1–525 Author chain K； PDBConstruct 1–525； UniProt 1–525 Author chain L； PDBConstruct 1–525； UniProt 1–525 Author chain M； PDBConstruct 1–525； UniProt 1–525 Author chain N； PDBConstruct 1–525； UniProt 1–525

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1sx3
Deposition date deposition_date	2004-03-30
Structure title title	GroEL14-(ATPgammaS)14
Keywords keywords	GroEL, protein folding, molecular chaperone, CHAPERONE; CHAPERONE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1sx3__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

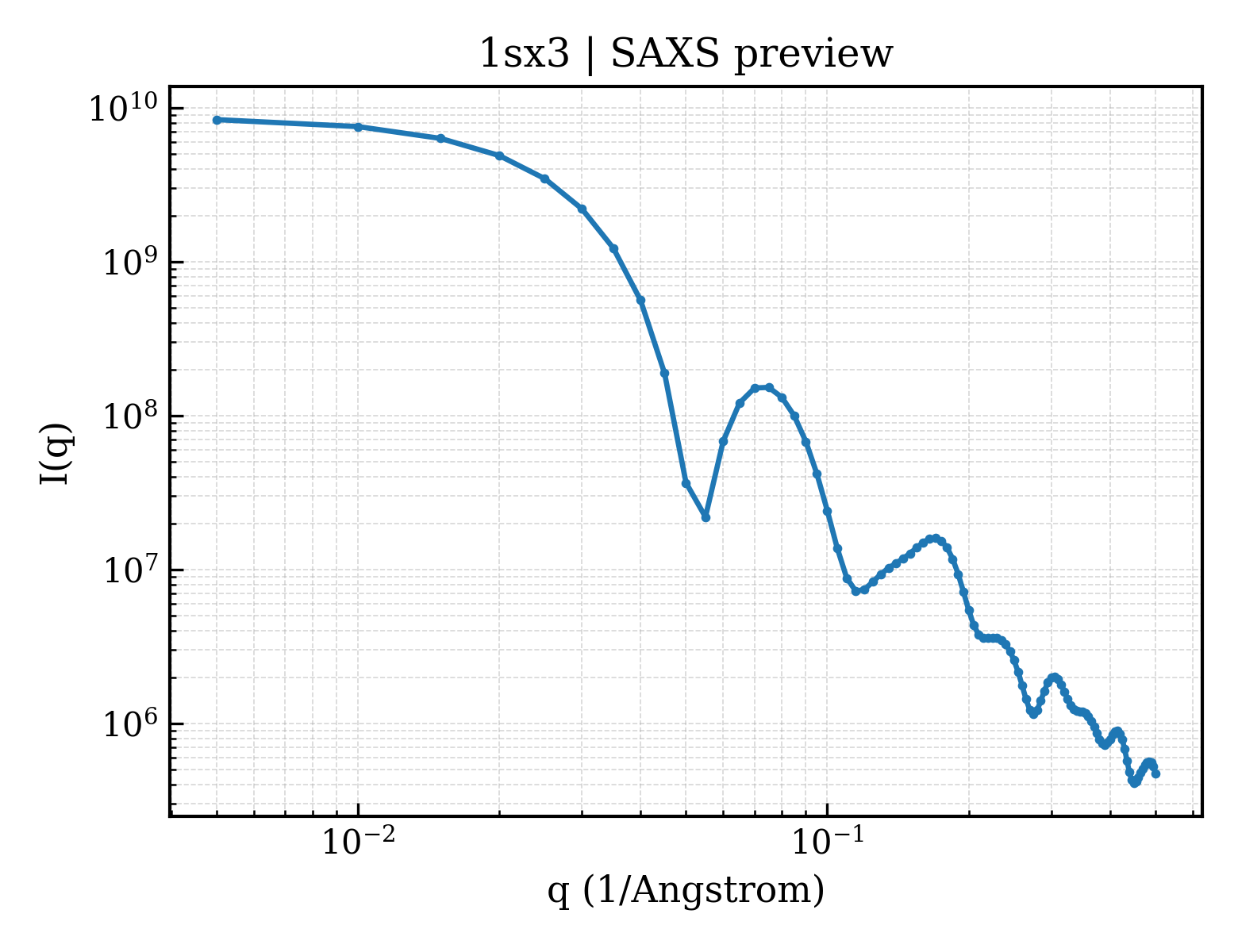

1sx3__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

1sx3__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	64.87 Å
Rg (electron density)	63.77 Å
Total Rg	63.82 Å
Atom count	54434
Residues	7350
Excluded volume	974900 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1sx3__assembly_1__model_1`	tetradecameric （14）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	groEL protein
Molecular weight formula_weight	55277.2 kDa
Source method src_method	man
Copy count entity_count	14

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H,I,J,K,L,M,N
Atom count atom_count	55380

AAKDVKFGNDAGVKMLRGVNVLADAVKVTLGPKGRNVVLDKSFGAPTITKDGVSVAREIELEDKFENMGAQMVKEVASKANDAAGDGTTTATVLAQAIITEGLKAVAAGMNPMDLKRGIDKAVTVAVEELKALSVPCSDSKAIAQVGTISANSDETVGKLIAEAMDKVGKEGVITVEDGTGLQDELDVVEGMQFDRGYLSPYFINKPETGAVELESPFILLADKKISNIREMLPVLEAVAKAGKPLLIIAEDVEGEALATLVVNTMRGIVKVAAVKAPGFGDRRKAMLQDIATLTGGTVISEEIGMELEKATLEDLGQAKRVVINKDTTTIIDGVGEEAAIQGRVAQIRQQIEEATSDYDREKLQERVAKLAGGVAVIKVGAATEVEMKEKKARVEDALHATRAAVEEGVVAGGGVALIRVASKLADLRGQNEDQNVGIKVALRAMEAPLRQIVLNCGEEPSVVANTVKGGDGNYGYNAATEEYGNMIDMGILDPTKVTRSALQYAASVAGLMITTECMVTDLPK

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	14

Entity 3 Entity 3 non-polymer

Description description	POTASSIUM ION
Molecular weight formula_weight	39.1 kDa
Source method src_method	syn
Copy count entity_count	16

Entity 4 Entity 4 non-polymer

Description description	PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER
Molecular weight formula_weight	523.2 kDa
Source method src_method	syn
Copy count entity_count	14

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	946

▼

6. Fold Classification (SCOP + CATH) 42 domains

CATH v4.4 (42 domains)

Domain ID domain_id	1sx3A01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	560 — GROEL; domain 1
Homologous superfamily homologous superfamily	10 — GroEL-like equatorial domain

Domain ID domain_id	1sx3A02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	260 — GROEL; domain 2
Homologous superfamily homologous superfamily	10 — TCP-1-like chaperonin intermediate domain

Domain ID domain_id	1sx3A03
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	7 — GroEL
Homologous superfamily homologous superfamily	10 — GroEL

Domain ID domain_id	1sx3B01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	560 — GROEL; domain 1
Homologous superfamily homologous superfamily	10 — GroEL-like equatorial domain

Domain ID domain_id	1sx3B02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	260 — GROEL; domain 2
Homologous superfamily homologous superfamily	10 — TCP-1-like chaperonin intermediate domain

Domain ID domain_id	1sx3B03
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	7 — GroEL
Homologous superfamily homologous superfamily	10 — GroEL

Domain ID domain_id	1sx3C01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	560 — GROEL; domain 1
Homologous superfamily homologous superfamily	10 — GroEL-like equatorial domain

Domain ID domain_id	1sx3C02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	260 — GROEL; domain 2
Homologous superfamily homologous superfamily	10 — TCP-1-like chaperonin intermediate domain

Domain ID domain_id	1sx3C03
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	7 — GroEL
Homologous superfamily homologous superfamily	10 — GroEL

Domain ID domain_id	1sx3D01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	560 — GROEL; domain 1
Homologous superfamily homologous superfamily	10 — GroEL-like equatorial domain

Domain ID domain_id	1sx3D02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	260 — GROEL; domain 2
Homologous superfamily homologous superfamily	10 — TCP-1-like chaperonin intermediate domain

Domain ID domain_id	1sx3D03
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	7 — GroEL
Homologous superfamily homologous superfamily	10 — GroEL

Domain ID domain_id	1sx3E01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	560 — GROEL; domain 1
Homologous superfamily homologous superfamily	10 — GroEL-like equatorial domain

Domain ID domain_id	1sx3E02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	260 — GROEL; domain 2
Homologous superfamily homologous superfamily	10 — TCP-1-like chaperonin intermediate domain

Domain ID domain_id	1sx3E03
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	7 — GroEL
Homologous superfamily homologous superfamily	10 — GroEL

Domain ID domain_id	1sx3F01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	560 — GROEL; domain 1
Homologous superfamily homologous superfamily	10 — GroEL-like equatorial domain

Domain ID domain_id	1sx3F02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	260 — GROEL; domain 2
Homologous superfamily homologous superfamily	10 — TCP-1-like chaperonin intermediate domain

Domain ID domain_id	1sx3F03
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	7 — GroEL
Homologous superfamily homologous superfamily	10 — GroEL

Domain ID domain_id	1sx3G01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	560 — GROEL; domain 1
Homologous superfamily homologous superfamily	10 — GroEL-like equatorial domain

Domain ID domain_id	1sx3G02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	260 — GROEL; domain 2
Homologous superfamily homologous superfamily	10 — TCP-1-like chaperonin intermediate domain

Domain ID domain_id	1sx3G03
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	7 — GroEL
Homologous superfamily homologous superfamily	10 — GroEL

Domain ID domain_id	1sx3H01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	560 — GROEL; domain 1
Homologous superfamily homologous superfamily	10 — GroEL-like equatorial domain

Domain ID domain_id	1sx3H02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	260 — GROEL; domain 2
Homologous superfamily homologous superfamily	10 — TCP-1-like chaperonin intermediate domain

Domain ID domain_id	1sx3H03
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	7 — GroEL
Homologous superfamily homologous superfamily	10 — GroEL

Domain ID domain_id	1sx3I01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	560 — GROEL; domain 1
Homologous superfamily homologous superfamily	10 — GroEL-like equatorial domain

Domain ID domain_id	1sx3I02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	260 — GROEL; domain 2
Homologous superfamily homologous superfamily	10 — TCP-1-like chaperonin intermediate domain

Domain ID domain_id	1sx3I03
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	7 — GroEL
Homologous superfamily homologous superfamily	10 — GroEL

Domain ID domain_id	1sx3J01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	560 — GROEL; domain 1
Homologous superfamily homologous superfamily	10 — GroEL-like equatorial domain

Domain ID domain_id	1sx3J02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	260 — GROEL; domain 2
Homologous superfamily homologous superfamily	10 — TCP-1-like chaperonin intermediate domain

Domain ID domain_id	1sx3J03
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	7 — GroEL
Homologous superfamily homologous superfamily	10 — GroEL

Domain ID domain_id	1sx3K01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	560 — GROEL; domain 1
Homologous superfamily homologous superfamily	10 — GroEL-like equatorial domain

Domain ID domain_id	1sx3K02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	260 — GROEL; domain 2
Homologous superfamily homologous superfamily	10 — TCP-1-like chaperonin intermediate domain

Domain ID domain_id	1sx3K03
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	7 — GroEL
Homologous superfamily homologous superfamily	10 — GroEL

Domain ID domain_id	1sx3L01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	560 — GROEL; domain 1
Homologous superfamily homologous superfamily	10 — GroEL-like equatorial domain

Domain ID domain_id	1sx3L02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	260 — GROEL; domain 2
Homologous superfamily homologous superfamily	10 — TCP-1-like chaperonin intermediate domain

Domain ID domain_id	1sx3L03
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	7 — GroEL
Homologous superfamily homologous superfamily	10 — GroEL

Domain ID domain_id	1sx3M01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	560 — GROEL; domain 1
Homologous superfamily homologous superfamily	10 — GroEL-like equatorial domain

Domain ID domain_id	1sx3M02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	260 — GROEL; domain 2
Homologous superfamily homologous superfamily	10 — TCP-1-like chaperonin intermediate domain

Domain ID domain_id	1sx3M03
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	7 — GroEL
Homologous superfamily homologous superfamily	10 — GroEL

Domain ID domain_id	1sx3N01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	560 — GROEL; domain 1
Homologous superfamily homologous superfamily	10 — GroEL-like equatorial domain

Domain ID domain_id	1sx3N02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	260 — GROEL; domain 2
Homologous superfamily homologous superfamily	10 — TCP-1-like chaperonin intermediate domain

Domain ID domain_id	1sx3N03
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	7 — GroEL
Homologous superfamily homologous superfamily	10 — GroEL

▶

Unit-cell length a length_a	135.571 Å
Unit-cell length b length_b	260.112 Å
Unit-cell length c length_c	150.200 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	101.14 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	28

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	39.841 Å
R factor r_factor	0.2460
R_work r_work	0.2455
R_free r_free	0.2647

GroEL14-(ATPgammaS)14

1. Protein Identity and Related Structures Protein Identity & Related Structures

groEL protein

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1sx3__assembly_1__model_1

1sx3__assembly_1__model_1 | I(q)

1sx3__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 non-polymer

Entity 3 Entity 3 non-polymer

Entity 4 Entity 4 non-polymer

Entity 5 Entity 5 water

6. Fold Classification (SCOP + CATH) 42 domains

CATH v4.4 (42 domains)

7. Citations (3)

GroEL14-(ATPgammaS)14

1. Protein Identity and Related Structures Protein Identity & Related Structures

groEL protein

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1sx3__assembly_1__model_1

1sx3__assembly_1__model_1 | I(q)

1sx3__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 non-polymer

Entity 3 Entity 3 non-polymer

Entity 4 Entity 4 non-polymer

Entity 5 Entity 5 water

6. Fold Classification (SCOP + CATH) 42 domains

CATH v4.4 (42 domains)

7. Citations (3)
