1sx4

GroEL-GroES-ADP7

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

groEL protein

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 21	groES protein × 7 （P0A6F9） MAGNESIUM ION × 7 ADENOSINE-5'-DIPHOSPHATE × 7 water × 14	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CH60_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–524； UniProt 1–524 Author chain B； PDBConstruct 1–524； UniProt 1–524 Author chain C； PDBConstruct 1–524； UniProt 1–524 Author chain D； PDBConstruct 1–524； UniProt 1–524 Author chain E； PDBConstruct 1–524； UniProt 1–524 Author chain F； PDBConstruct 1–524； UniProt 1–524 Author chain G； PDBConstruct 1–524； UniProt 1–524 Author chain H； PDBConstruct 1–524； UniProt 1–524 Author chain I； PDBConstruct 1–524； UniProt 1–524 Author chain J； PDBConstruct 1–524； UniProt 1–524 Author chain K； PDBConstruct 1–524； UniProt 1–524 Author chain L； PDBConstruct 1–524； UniProt 1–524 Author chain M； PDBConstruct 1–524； UniProt 1–524 Author chain N； PDBConstruct 1–524； UniProt 1–524

groES protein

Escherichia coli

UniProt P0A6F9

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 21	groEL protein × 14 （P0A6F5） MAGNESIUM ION × 7 ADENOSINE-5'-DIPHOSPHATE × 7 water × 14	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CH10_ECOLI
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain O； PDBConstruct 1–97； UniProt 1–97 Author chain P； PDBConstruct 1–97； UniProt 1–97 Author chain Q； PDBConstruct 1–97； UniProt 1–97 Author chain R； PDBConstruct 1–97； UniProt 1–97 Author chain S； PDBConstruct 1–97； UniProt 1–97 Author chain T； PDBConstruct 1–97； UniProt 1–97 Author chain U； PDBConstruct 1–97； UniProt 1–97

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1sx4
Deposition date deposition_date	2004-03-30
Structure title title	GroEL-GroES-ADP7
Keywords keywords	molecular chaperone, protein folding, chaperone; CHAPERONE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1sx4__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1sx4__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

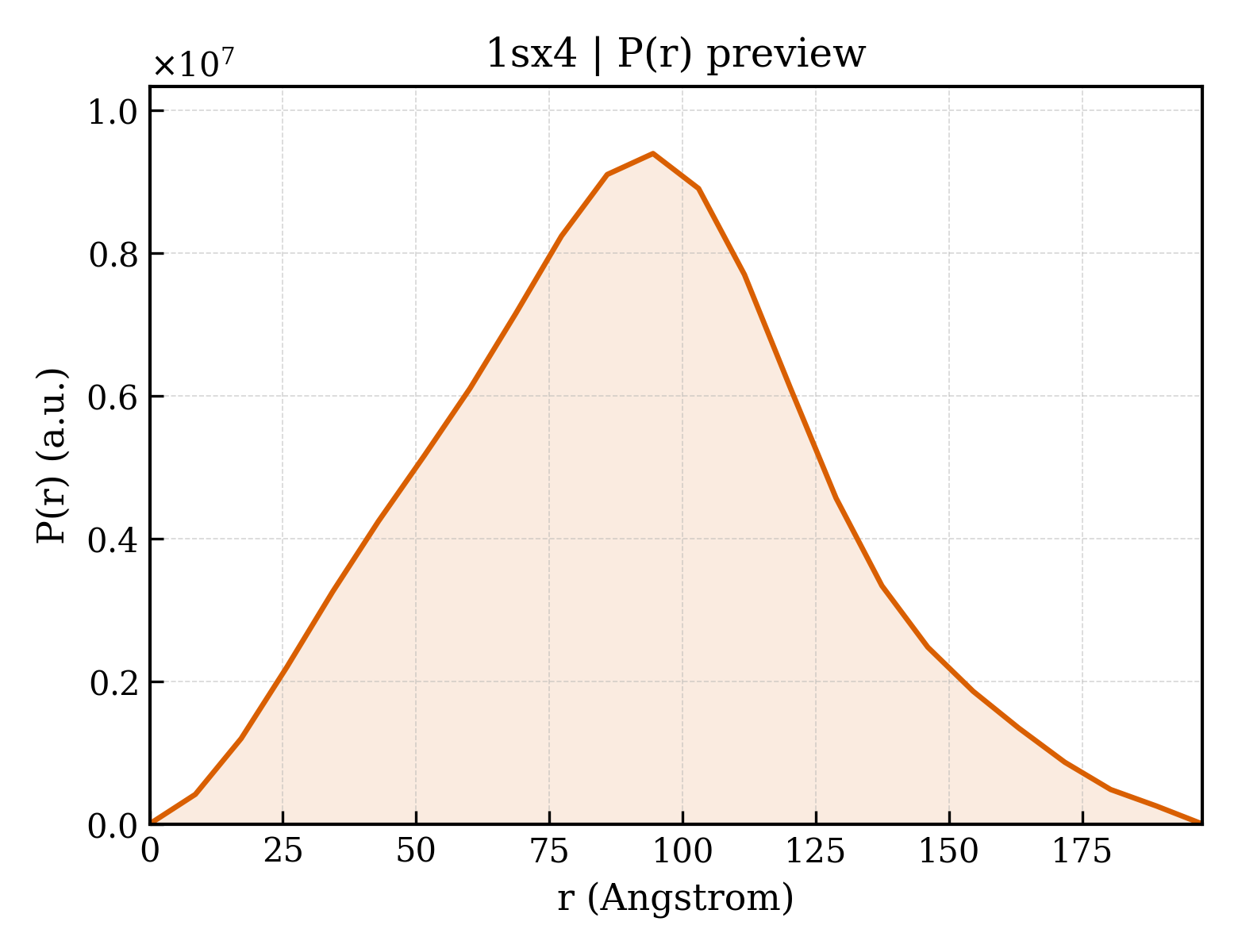

1sx4__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	68.69 Å
Rg (electron density)	68.44 Å
Total Rg	68.48 Å
Atom count	59276
Residues	8015
Excluded volume	1061200 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1sx4__assembly_1__model_1`	21-meric （21）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	groEL protein
Molecular weight formula_weight	55220.1 kDa
Source method src_method	man
Copy count entity_count	14

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H,I,J,K,L,M,N
Atom count atom_count	59457

AAKDVKFGNDARVKMLRGVNVLADAVKVTLGPKGRNVVLDKSFGAPTITKDGVSVAREIELEDKFENMGAQMVKEVASKANDAAGDGTTTATVLAQAIITEGLKAVAAGMNPMDLKRGIDKAVTAAVEELKALSVPCSDSKAIAQVGTISANSDETVGKLIAEAMDKVGKEGVITVEDGTGLQDELDVVEGMQFDRGYLSPYFINKPETGAVELESPFILLADKKISNIREMLPVLEAVAKAGKPLLIIAEDVEGEALATLVVNTMRGIVKVAAVKAPGFGDRRKAMLQDIATLTGGTVISEEIGMELEKATLEDLGQAKRVVINKDTTTIIDGVGEEAAIQGRVAQIRQQIEEATSDYDREKLQERVAKLAGGVAVIKVGAATEVEMKEKKARVEDALHATRAAVEEGVVAGGGVALIRVASKLADLRGQNEDQNVGIKVALRAMEAPLRQIVLNCGEEPSVVANTVKGGDGNYGYNAATEEYGNMIDMGILDPTKVTRSALQYAASVAGLMITTECMVTDLP

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	groES protein
Molecular weight formula_weight	10400.9 kDa
Source method src_method	man
Copy count entity_count	7

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	O,P,Q,R,S,T,U

MNIRPLHDRVIVKRKEVETKSAGGIVLTGSAAAKSTRGEVLAVGNGRILENGEVKPLDVKVGDIVIFNDGYGVKSEKIDNEEVLIMSESDILAIVEA

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	7

Entity 4 Entity 4 non-polymer

Description description	ADENOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	427.2 kDa
Source method src_method	syn
Copy count entity_count	7

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	181

▼

6. Fold Classification (SCOP + CATH) 56 domains

SCOP 2.08 (7 domains)

Domain ID domain_id	d1sx4o_
Class class	b — All beta proteins
Fold Fold fold	b.35 — GroES-like
Superfamily Superfamily superfamily	b.35.1 — GroES-like
Family Family family	b.35.1.1 — GroES

Domain ID domain_id	d1sx4p_
Class class	b — All beta proteins
Fold Fold fold	b.35 — GroES-like
Superfamily Superfamily superfamily	b.35.1 — GroES-like
Family Family family	b.35.1.1 — GroES

Domain ID domain_id	d1sx4q_
Class class	b — All beta proteins
Fold Fold fold	b.35 — GroES-like
Superfamily Superfamily superfamily	b.35.1 — GroES-like
Family Family family	b.35.1.1 — GroES

Domain ID domain_id	d1sx4r_
Class class	b — All beta proteins
Fold Fold fold	b.35 — GroES-like
Superfamily Superfamily superfamily	b.35.1 — GroES-like
Family Family family	b.35.1.1 — GroES

Domain ID domain_id	d1sx4s_
Class class	b — All beta proteins
Fold Fold fold	b.35 — GroES-like
Superfamily Superfamily superfamily	b.35.1 — GroES-like
Family Family family	b.35.1.1 — GroES

Domain ID domain_id	d1sx4t_
Class class	b — All beta proteins
Fold Fold fold	b.35 — GroES-like
Superfamily Superfamily superfamily	b.35.1 — GroES-like
Family Family family	b.35.1.1 — GroES

Domain ID domain_id	d1sx4u_
Class class	b — All beta proteins
Fold Fold fold	b.35 — GroES-like
Superfamily Superfamily superfamily	b.35.1 — GroES-like
Family Family family	b.35.1.1 — GroES

CATH v4.4 (49 domains)

Domain ID domain_id	1sx4A01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	560 — GROEL; domain 1
Homologous superfamily homologous superfamily	10 — GroEL-like equatorial domain

Domain ID domain_id	1sx4A02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	260 — GROEL; domain 2
Homologous superfamily homologous superfamily	10 — TCP-1-like chaperonin intermediate domain

Domain ID domain_id	1sx4A03
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	7 — GroEL
Homologous superfamily homologous superfamily	10 — GroEL

Domain ID domain_id	1sx4B01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	560 — GROEL; domain 1
Homologous superfamily homologous superfamily	10 — GroEL-like equatorial domain

Domain ID domain_id	1sx4B02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	260 — GROEL; domain 2
Homologous superfamily homologous superfamily	10 — TCP-1-like chaperonin intermediate domain

Domain ID domain_id	1sx4B03
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	7 — GroEL
Homologous superfamily homologous superfamily	10 — GroEL

Domain ID domain_id	1sx4C01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	560 — GROEL; domain 1
Homologous superfamily homologous superfamily	10 — GroEL-like equatorial domain

Domain ID domain_id	1sx4C02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	260 — GROEL; domain 2
Homologous superfamily homologous superfamily	10 — TCP-1-like chaperonin intermediate domain

Domain ID domain_id	1sx4C03
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	7 — GroEL
Homologous superfamily homologous superfamily	10 — GroEL

Domain ID domain_id	1sx4D01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	560 — GROEL; domain 1
Homologous superfamily homologous superfamily	10 — GroEL-like equatorial domain

Domain ID domain_id	1sx4D02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	260 — GROEL; domain 2
Homologous superfamily homologous superfamily	10 — TCP-1-like chaperonin intermediate domain

Domain ID domain_id	1sx4D03
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	7 — GroEL
Homologous superfamily homologous superfamily	10 — GroEL

Domain ID domain_id	1sx4E01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	560 — GROEL; domain 1
Homologous superfamily homologous superfamily	10 — GroEL-like equatorial domain

Domain ID domain_id	1sx4E02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	260 — GROEL; domain 2
Homologous superfamily homologous superfamily	10 — TCP-1-like chaperonin intermediate domain

Domain ID domain_id	1sx4E03
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	7 — GroEL
Homologous superfamily homologous superfamily	10 — GroEL

Domain ID domain_id	1sx4F01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	560 — GROEL; domain 1
Homologous superfamily homologous superfamily	10 — GroEL-like equatorial domain

Domain ID domain_id	1sx4F02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	260 — GROEL; domain 2
Homologous superfamily homologous superfamily	10 — TCP-1-like chaperonin intermediate domain

Domain ID domain_id	1sx4F03
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	7 — GroEL
Homologous superfamily homologous superfamily	10 — GroEL

Domain ID domain_id	1sx4G01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	560 — GROEL; domain 1
Homologous superfamily homologous superfamily	10 — GroEL-like equatorial domain

Domain ID domain_id	1sx4G02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	260 — GROEL; domain 2
Homologous superfamily homologous superfamily	10 — TCP-1-like chaperonin intermediate domain

Domain ID domain_id	1sx4G03
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	7 — GroEL
Homologous superfamily homologous superfamily	10 — GroEL

Domain ID domain_id	1sx4H01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	560 — GROEL; domain 1
Homologous superfamily homologous superfamily	10 — GroEL-like equatorial domain

Domain ID domain_id	1sx4H02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	260 — GROEL; domain 2
Homologous superfamily homologous superfamily	10 — TCP-1-like chaperonin intermediate domain

Domain ID domain_id	1sx4H03
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	7 — GroEL
Homologous superfamily homologous superfamily	10 — GroEL

Domain ID domain_id	1sx4I01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	560 — GROEL; domain 1
Homologous superfamily homologous superfamily	10 — GroEL-like equatorial domain

Domain ID domain_id	1sx4I02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	260 — GROEL; domain 2
Homologous superfamily homologous superfamily	10 — TCP-1-like chaperonin intermediate domain

Domain ID domain_id	1sx4I03
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	7 — GroEL
Homologous superfamily homologous superfamily	10 — GroEL

Domain ID domain_id	1sx4J01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	560 — GROEL; domain 1
Homologous superfamily homologous superfamily	10 — GroEL-like equatorial domain

Domain ID domain_id	1sx4J02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	260 — GROEL; domain 2
Homologous superfamily homologous superfamily	10 — TCP-1-like chaperonin intermediate domain

Domain ID domain_id	1sx4J03
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	7 — GroEL
Homologous superfamily homologous superfamily	10 — GroEL

Domain ID domain_id	1sx4K01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	560 — GROEL; domain 1
Homologous superfamily homologous superfamily	10 — GroEL-like equatorial domain

Domain ID domain_id	1sx4K02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	260 — GROEL; domain 2
Homologous superfamily homologous superfamily	10 — TCP-1-like chaperonin intermediate domain

Domain ID domain_id	1sx4K03
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	7 — GroEL
Homologous superfamily homologous superfamily	10 — GroEL

Domain ID domain_id	1sx4L01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	560 — GROEL; domain 1
Homologous superfamily homologous superfamily	10 — GroEL-like equatorial domain

Domain ID domain_id	1sx4L02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	260 — GROEL; domain 2
Homologous superfamily homologous superfamily	10 — TCP-1-like chaperonin intermediate domain

Domain ID domain_id	1sx4L03
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	7 — GroEL
Homologous superfamily homologous superfamily	10 — GroEL

Domain ID domain_id	1sx4M01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	560 — GROEL; domain 1
Homologous superfamily homologous superfamily	10 — GroEL-like equatorial domain

Domain ID domain_id	1sx4M02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	260 — GROEL; domain 2
Homologous superfamily homologous superfamily	10 — TCP-1-like chaperonin intermediate domain

Domain ID domain_id	1sx4M03
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	7 — GroEL
Homologous superfamily homologous superfamily	10 — GroEL

Domain ID domain_id	1sx4N01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	560 — GROEL; domain 1
Homologous superfamily homologous superfamily	10 — GroEL-like equatorial domain

Domain ID domain_id	1sx4N02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	260 — GROEL; domain 2
Homologous superfamily homologous superfamily	10 — TCP-1-like chaperonin intermediate domain

Domain ID domain_id	1sx4N03
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	7 — GroEL
Homologous superfamily homologous superfamily	10 — GroEL

Domain ID domain_id	1sx4O00
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	33 — 10 Kd Chaperonin, Protein Cpn10; Chain O
Homologous superfamily homologous superfamily	40 — GroES chaperonin

Domain ID domain_id	1sx4P00
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	33 — 10 Kd Chaperonin, Protein Cpn10; Chain O
Homologous superfamily homologous superfamily	40 — GroES chaperonin

Domain ID domain_id	1sx4Q00
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	33 — 10 Kd Chaperonin, Protein Cpn10; Chain O
Homologous superfamily homologous superfamily	40 — GroES chaperonin

Domain ID domain_id	1sx4R00
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	33 — 10 Kd Chaperonin, Protein Cpn10; Chain O
Homologous superfamily homologous superfamily	40 — GroES chaperonin

Domain ID domain_id	1sx4S00
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	33 — 10 Kd Chaperonin, Protein Cpn10; Chain O
Homologous superfamily homologous superfamily	40 — GroES chaperonin

Domain ID domain_id	1sx4T00
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	33 — 10 Kd Chaperonin, Protein Cpn10; Chain O
Homologous superfamily homologous superfamily	40 — GroES chaperonin

Domain ID domain_id	1sx4U00
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	33 — 10 Kd Chaperonin, Protein Cpn10; Chain O
Homologous superfamily homologous superfamily	40 — GroES chaperonin

▶

Unit-cell length a length_a	255.260 Å
Unit-cell length b length_b	265.250 Å
Unit-cell length c length_c	184.400 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	56

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	3.000 Å
Low-resolution limit resolution_low	40.000 Å
R factor r_factor	0.2590
R_work r_work	0.2575
R_free r_free	0.2873

GroEL-GroES-ADP7

1. Protein Identity and Related Structures Protein Identity & Related Structures

groEL protein

State in the Current Structure

Other States of the Same Protein in the Database

groES protein

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1sx4__assembly_1__model_1

1sx4__assembly_1__model_1 | I(q)

1sx4__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 polymer

Polymer Polymer

Source Source

Entity 3 Entity 3 non-polymer

Entity 4 Entity 4 non-polymer

Entity 5 Entity 5 water

6. Fold Classification (SCOP + CATH) 56 domains

SCOP 2.08 (7 domains)

CATH v4.4 (49 domains)

7. Citations (2)

GroEL-GroES-ADP7

1. Protein Identity and Related Structures Protein Identity & Related Structures

groEL protein

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

groES protein

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1sx4__assembly_1__model_1

1sx4__assembly_1__model_1 | I(q)

1sx4__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 polymer

Polymer Polymer

Source Source

Entity 3 Entity 3 non-polymer

Entity 4 Entity 4 non-polymer

Entity 5 Entity 5 water

6. Fold Classification (SCOP + CATH) 56 domains

SCOP 2.08 (7 domains)

CATH v4.4 (49 domains)

7. Citations (2)
