SAXSdb — 1tgt

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

TRYPSINOGEN

Bos taurus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	CALCIUM ION × 1 METHANOL × 2 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TRY1_BOVIN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–229； UniProt 15–243

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1tgt
Deposition date deposition_date	1981-10-26
Structure title title	ON THE DISORDERED ACTIVATION DOMAIN IN TRYPSINOGEN. CHEMICAL LABELLING AND LOW-TEMPERATURE CRYSTALLOGRAPHY
Keywords keywords	HYDROLASE ZYMOGEN (SERINE PROTEINASE); HYDROLASE ZYMOGEN (SERINE PROTEINASE)
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1tgt__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1tgt__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

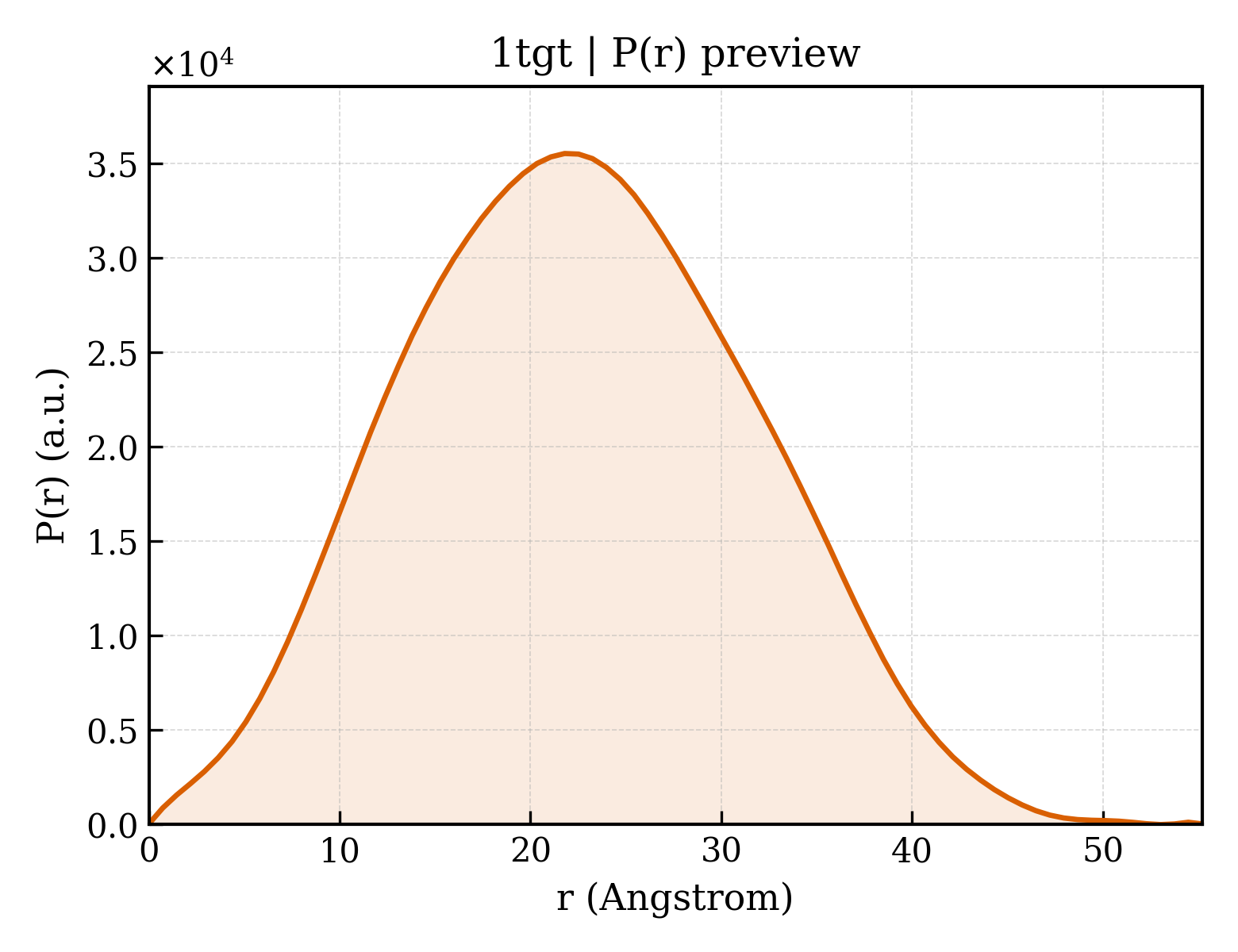

1tgt__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	17.27 Å
Rg (electron density)	16.18 Å
Total Rg	17.20 Å
Atom count	1634
Residues	223
Excluded volume	28984 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1tgt__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	TRYPSINOGEN
Molecular weight formula_weight	24013.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1757

VDDDDKIVGGYTCGANTVPYQVSLNSGYHFCGGSLINSQWVVSAAHCYKSGIQVRLGEDNINVVEGNEQFISASKSIVHPSYNSNTLNNDIMLIKLKSAASLNSRVASISLPTSCASAGTQCLISGWGNTKSSGTSYPDVLKCLKAPILSDSSCKSAYPGQITSNMFCAGYLEGGKDSCQGDSGGPVVCSGKLQGIVSWGSGCAQKNKPGVYTKVCNYVSWIKQTIASN

Source Source

Source organism organism	Bos taurus
Common name common_name	bovine
NCBI taxonomy ID ncbi_taxonomy_id	9913

Entity 2 Entity 2 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	METHANOL
Molecular weight formula_weight	32.0 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	123

▼

6. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1tgta_
Class class	b — All beta proteins
Fold Fold fold	b.47 — Trypsin-like serine proteases
Superfamily Superfamily superfamily	b.47.1 — Trypsin-like serine proteases
Family Family family	b.47.1.2 — Eukaryotic proteases

CATH v4.4 (2 domains)

Domain ID domain_id	1tgtA01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

Domain ID domain_id	1tgtA02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

▶

7. Citations (7)

On the Disordered Activation Domain in Trypsinogen. Chemical Labelling and Low-Temperature Crystallography

Acta Crystallogr.,Sect.B (1982)

PMID: -1 PRIMARY

The Geometry of the Reactive Site and of the Peptide Groups in Trypsin. Trypsinogen and its Complexes with Inhibitors

Acta Crystallogr.,Sect.B (1983)

;Low-Temperature Protein Crystallography. Effect on Flexibility, Temperature Factor, Mosaic Spread, Extinction, and Diffuse Scattering in Two Examples. Bovine Trypsinogen and Fc Fragment ;

Acta Crystallogr.,Sect.B (1980)

Structural Basis of the Activation and Action of Trypsin

Acc.Chem.Res. (1978)

Crystal Structure Analysis and Refinement of Two Variants of Trigonal Trypsinogen

FEBS Lett. (1978)

;Crystal Structure of Bovine Trypsinogen at 1.8 Angstroms Resolution. II. Crystallographic Refinement, Refined Crystal Structure and Comparison with Bovine Trypsin ;

J.Mol.Biol. (1977)

;Crystal Structure of Bovine Trypsinogen at 1.8 Angstroms Resolution. I. Data Collection, Application of Patterson Search Techniques and Preliminary Structural Interpretation ;

J.Mol.Biol. (1976)

Unit-cell length a length_a	55.400 Å
Unit-cell length b length_b	55.400 Å
Unit-cell length c length_c	108.500 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 31 2 1
Space-group number int_tables_number	152
Crystal system crystal_system	—

Resolution resolution	1.700 Å
Low-resolution limit resolution_low	6.500 Å
R factor r_factor	—
R_work r_work	0.1870
R_free r_free	—

ON THE DISORDERED ACTIVATION DOMAIN IN TRYPSINOGEN. CHEMICAL LABELLING AND LOW-TEMPERATURE CRYSTALLOGRAPHY
