SAXSdb — 1tq9

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Ribonuclease, seminal

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	2'-DEOXYCYTIDINE-2'-DEOXYADENOSINE-3',5'-MONOPHOSPHATE × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RNS_BOVIN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–124； UniProt 27–150 Author chain B； PDBConstruct 1–124； UniProt 27–150

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1tq9
Deposition date deposition_date	2004-06-17
Structure title title	Non-covalent swapped dimer of Bovine Seminal Ribonuclease in complex with 2'-DEOXYCYTIDINE-2'-DEOXYADENOSINE-3',5'-MONOPHOSPHATE
Keywords keywords	Protein-dinucleotide complex, Cytotoxic action, Hydrolase; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1tq9__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1tq9__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

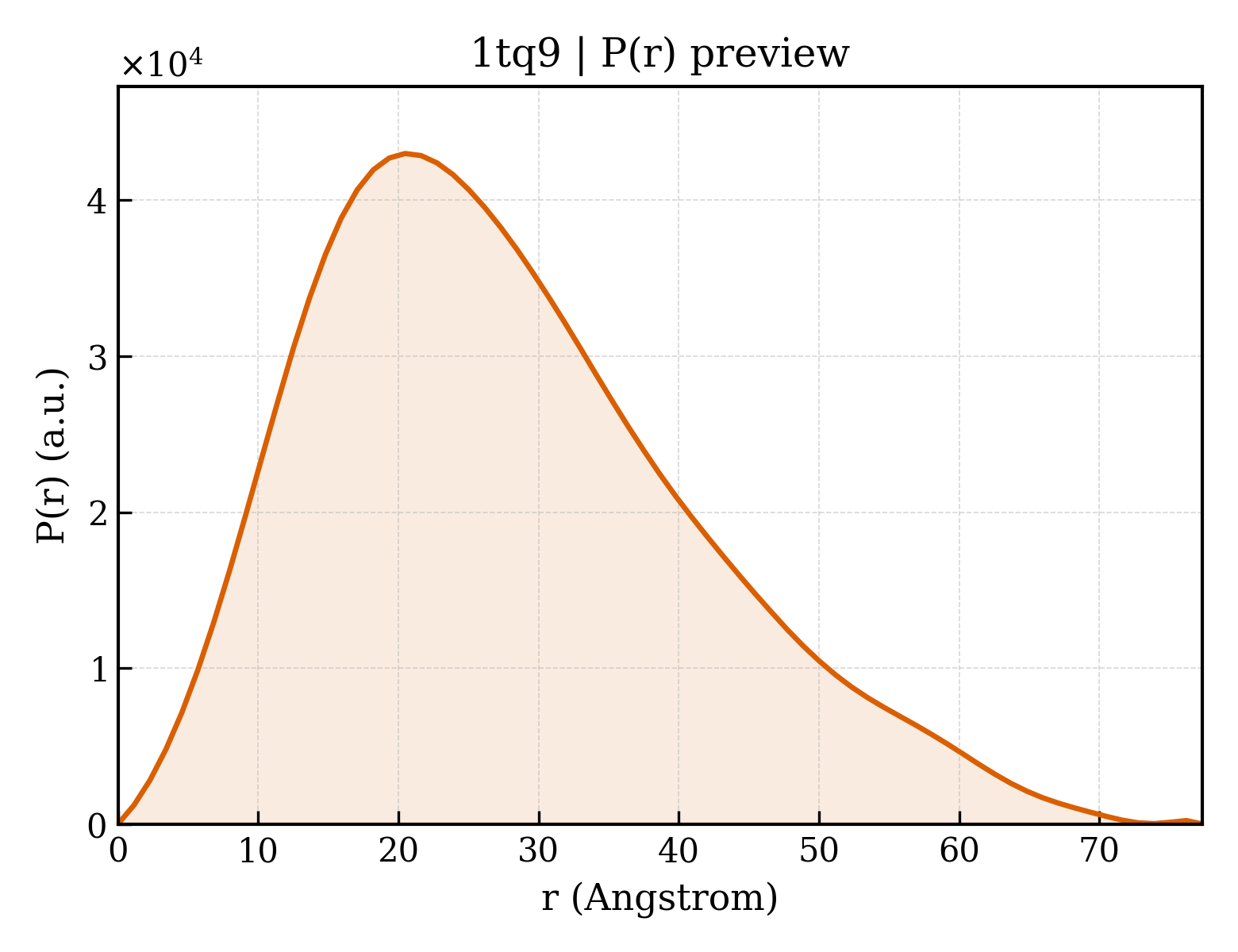

1tq9__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	21.48 Å
Rg (electron density)	21.44 Å
Total Rg	22.12 Å
Atom count	1972
Residues	244
Excluded volume	34560 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1tq9__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1tq9a_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.5 — RNase A-like
Superfamily Superfamily superfamily	d.5.1 — RNase A-like
Family Family family	d.5.1.1 — Ribonuclease A-like

Domain ID domain_id	d1tq9b_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.5 — RNase A-like
Superfamily Superfamily superfamily	d.5.1 — RNase A-like
Family Family family	d.5.1.1 — Ribonuclease A-like

CATH v4.4 (2 domains)

Domain ID domain_id	1tq9A00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	130 — P-30 Protein
Homologous superfamily homologous superfamily	10 — Ribonuclease A-like domain

Domain ID domain_id	1tq9B00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	130 — P-30 Protein
Homologous superfamily homologous superfamily	10 — Ribonuclease A-like domain

▶

7. Citations (8)

;Structure and Stability of the Non-covalent Swapped Dimer of Bovine Seminal Ribonuclease: AN ENZYME TAILORED TO EVADE RIBONUCLEASE PROTEIN INHIBITOR ;

J.Biol.Chem. (2004)

PMID: 15192098 · DOI: 10.1074/jbc.M405655200 PRIMARY

Population shift vs induced fit: the case of bovine seminal ribonuclease swapping dimer

Biopolymers (2004)

PMID: 15048772 · DOI: 10.1002/bip.20016

The unswapped chain of bovine seminal ribonuclease: Crystal structure of the free and liganded monomeric derivative

Proteins (2003)

PMID: 12833549 · DOI: 10.1002/prot.10407

Crystal structure of the dimeric unswapped form of bovine seminal ribonuclease

FEBS Lett. (2003)

PMID: 14596923 · DOI: 10.1016/S0014-5793(03)01114-1

A potential allosteric subsite generated by domain swapping in bovine seminal ribonuclease

J.Mol.Biol. (1999)

PMID: 10543951 · DOI: 10.1006/jmbi.1999.3158

;Binding of a substrate analog to a domain swapping protein: X-ray structure of the complex of bovine seminal ribonuclease with uridylyl(2',5')adenosine ;

Protein Sci. (1998)

PMID: 10082366

Swapping structural determinants of ribonucleases: an energetic analysis of the hinge peptide 16-22

Proc.Natl.Acad.Sci.USA (1995)

PMID: 7731986 · DOI: 10.1073/pnas.92.9.3799

Bovine seminal ribonuclease: structure at 1.9 A resolution

Acta Crystallogr.,Sect.D (1993)

DOI: 10.1107/S0907444993003403

Unit-cell length a length_a	41.471 Å
Unit-cell length b length_b	69.689 Å
Unit-cell length c length_c	110.804 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	10.000 Å
R factor r_factor	0.2120
R_work r_work	0.2060
R_free r_free	0.2690

Description description	Ribonuclease, seminal
Molecular weight formula_weight	13746.7 kDa
EC 编号 ec_number	3.1.27.5
Source method src_method	nat
Copy count entity_count	2

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	2093

Non-covalent swapped dimer of Bovine Seminal Ribonuclease in complex with 2'-DEOXYCYTIDINE-2'-DEOXYADENOSINE-3',5'-MONOPHOSPHATE
