SAXSdb — 1uea

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

MATRIX METALLOPROTEINASE-3

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	TISSUE INHIBITOR OF METALLOPROTEINASE-1 × 1 （P01033） ZINC ION × 2 CALCIUM ION × 3 water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	TISSUE INHIBITOR OF METALLOPROTEINASE-1 × 1 （P01033） ZINC ION × 2 CALCIUM ION × 3 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MMP3_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–173； UniProt 100–272 Author chain C； PDBConstruct 1–173； UniProt 100–272

TISSUE INHIBITOR OF METALLOPROTEINASE-1

Homo sapiens

UniProt P01033

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	MATRIX METALLOPROTEINASE-3 × 1 （P08254） ZINC ION × 2 CALCIUM ION × 3 water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	MATRIX METALLOPROTEINASE-3 × 1 （P08254） ZINC ION × 2 CALCIUM ION × 3 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TIMP1_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–184； UniProt 24–207 Author chain D； PDBConstruct 1–184； UniProt 24–207

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1uea
Deposition date deposition_date	1997-06-06
Structure title title	MMP-3/TIMP-1 COMPLEX
Keywords keywords	;PROTEINASE, ZINC-ENDOPEPTIDASE, PROTEINASE INHIBITOR, COMPLEX, MMPS (MATRIX METALLO PROTEINASES) TIMPS (TISSUE INHIBITOR OF METALLO PROTEINASES), METZINCINS, COMPLEX (METALLOPROTEASE-INHIBITOR), COMPLEX (METALLOPROTEASE-INHIBITOR) complex ;; COMPLEX (METALLOPROTEASE/INHIBITOR)
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1uea__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1uea__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

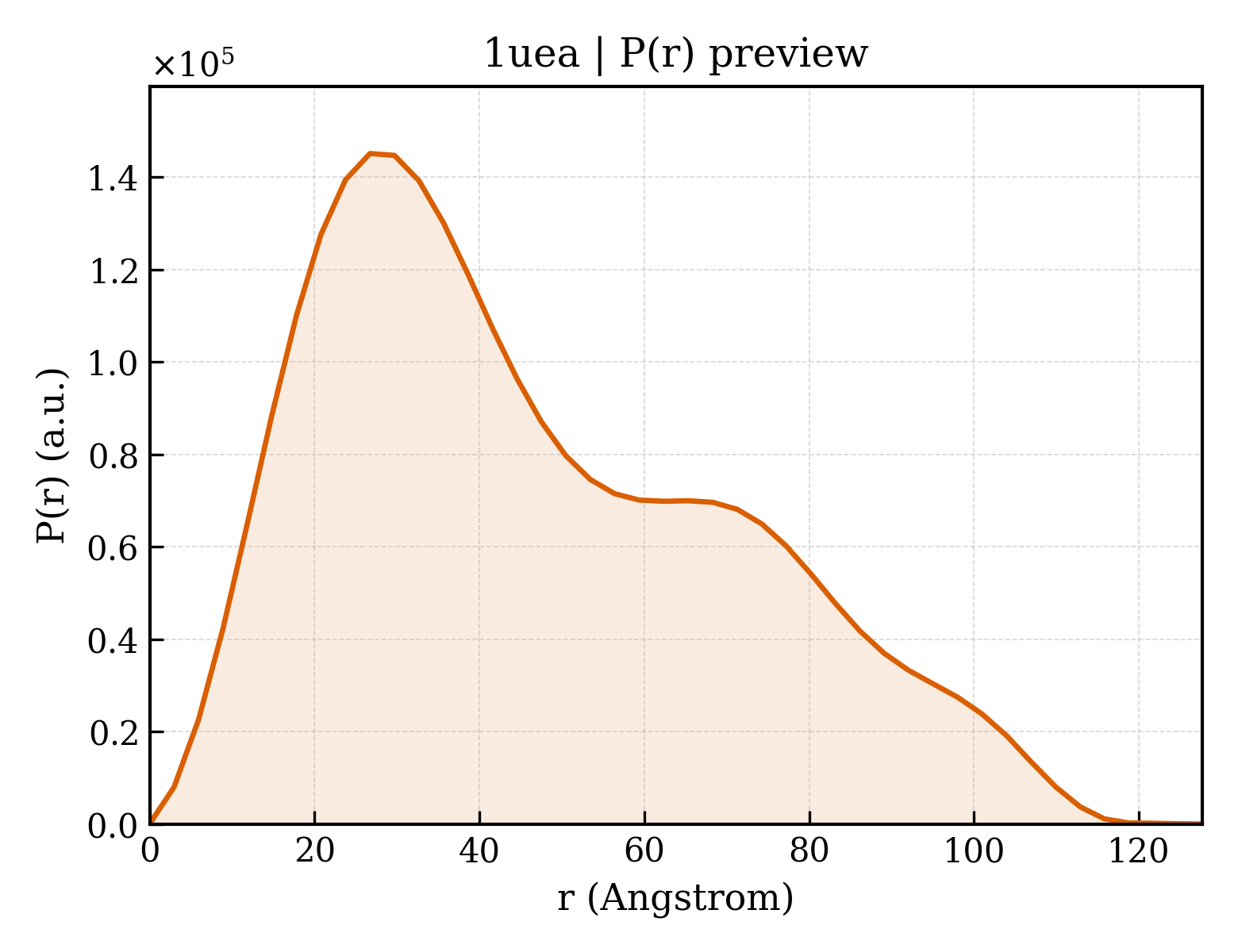

1uea__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	21.57 Å
Rg (electron density)	20.78 Å
Total Rg	21.65 Å
Atom count	2764
Residues	347
Excluded volume	49169 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1uea__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1uea__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	MATRIX METALLOPROTEINASE-3
Molecular weight formula_weight	19510.3 kDa
EC 编号 ec_number	3.4.24.17
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	6039

FRTFPGIPKWRKTHLTYRIVNYTPDLPKDAVDSAVEKALKVWEEVTPLTFSRLYEGEADIMISFAVREHGDFYPFDGPGNVLAHAYAPGPGINGDAHFDDDEQWTKDTTGTNLFLVAAHEIGHSLGLFHSANTEALMYPLYHSLTDLTRFRLSQDDINGIQSLYGPPPDSPET

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	TISSUE INHIBITOR OF METALLOPROTEINASE-1
Molecular weight formula_weight	20646.8 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D

CTCVPPHPQTAFCNSDLVIRAKFVGTPEVAQTTLYQRYEIKMTKMYKGFQALGDAADIRFVYTPAMESVCGYFHRSHARSEEFLIAGKLQDGLLHITTCSFVAPWNSLSLAQRRGFTKTYTVGCEECTVFPCLSIPCKLQSGTHCLWTDQLLQGSEKGFQSRHLACLPREPGLCTWQSLRSQIA

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Cricetulus griseus

Entity 3 Entity 3 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	511

▼

6. Fold Classification (SCOP + CATH) 10 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1ueaa_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.92 — Zincin-like
Superfamily Superfamily superfamily	d.92.1 — Metalloproteases ('zincins'), catalytic domain
Family Family family	d.92.1.11 — Matrix metalloproteases, catalytic domain

Domain ID domain_id	d1ueab_
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.3 — TIMP-like
Family Family family	b.40.3.1 — Tissue inhibitor of metalloproteinases, TIMP

Domain ID domain_id	d1ueac_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.92 — Zincin-like
Superfamily Superfamily superfamily	d.92.1 — Metalloproteases ('zincins'), catalytic domain
Family Family family	d.92.1.11 — Matrix metalloproteases, catalytic domain

Domain ID domain_id	d1uead_
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.3 — TIMP-like
Family Family family	b.40.3.1 — Tissue inhibitor of metalloproteinases, TIMP

CATH v4.4 (6 domains)

Domain ID domain_id	1ueaA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	390 — Collagenase (Catalytic Domain)
Homologous superfamily homologous superfamily	10 — Collagenase (Catalytic Domain)

Domain ID domain_id	1ueaB01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	370 — Tissue inhibitor of metalloproteinase-1. Chain B, domain 1
Homologous superfamily homologous superfamily	10 — Tissue inhibitor of metalloproteinase-1. Chain B, domain 1

Domain ID domain_id	1ueaB02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	120 —

Domain ID domain_id	1ueaC00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	390 — Collagenase (Catalytic Domain)
Homologous superfamily homologous superfamily	10 — Collagenase (Catalytic Domain)

Domain ID domain_id	1ueaD01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	370 — Tissue inhibitor of metalloproteinase-1. Chain B, domain 1
Homologous superfamily homologous superfamily	10 — Tissue inhibitor of metalloproteinase-1. Chain B, domain 1

Domain ID domain_id	1ueaD02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	120 —

▶

Unit-cell length a length_a	80.620 Å
Unit-cell length b length_b	80.620 Å
Unit-cell length c length_c	157.620 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 43
Space-group number int_tables_number	78
Crystal system crystal_system	—

Resolution resolution	2.800 Å
Low-resolution limit resolution_low	100.000 Å
R factor r_factor	0.1970
R_work r_work	0.1970
R_free r_free	—
