1uwa

L290F mutant rubisco from chlamydomonas

Method: X-RAY DIFFRACTION D_max: 136.8 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

RIBULOSE BISPHOSPHATE CARBOXYLASE LARGE CHAIN

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 16 PDB declaration: hexadecameric（16） Consistent with protein copy count	Chain A； UniProt 1–475 Chain B； UniProt 1–475 Chain E； UniProt 1–475 Chain H； UniProt 1–475 Chain K； UniProt 1–475 Chain O； UniProt 1–475 Chain R； UniProt 1–475 Chain V； UniProt 1–475	Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF)	RIBULOSE BISPHOSPHATE CARBOXYLASE SMALL CHAIN 1 × 8 （P00873） MG MAGNESIUM ION × 8 CAP 2-CARBOXYARABINITOL-1,5-DIPHOSPHATE × 8 EDO 1,2-ETHANEDIOL × 59	X-RAY DIFFRACTION X-ray crystallization conditions：pH 7.5；291 K；HEPES PH 7.5, 8-12% PEG 4 50 MM NAHCO3, 5 MM MGCL2, 50 UM 2-CABP, 18 DEG C, 10-15 MG PROTEIN	Resolution 2.30 Å R-free 0.205

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1UWA	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1GK8 Rubisco from Chlamydomonas reinhardtii Deposited 2001-08-09	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain A 1–475（475 aa） Chain C 1–475（475 aa） Chain E 1–475（475 aa） Chain G 1–475（475 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 8 CAP 2-CARBOXYARABINITOL-1,5-DIPHOSPHATE × 8 EDO 1,2-ETHANEDIOL × 66	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；291 K；50 MM HEPES PH 7.5, 8-12% PEG 4000, 50 MM NAHCO3, 5 MM MGCL2, 50 UM 2-CABP, 18 DEG C, 10-15 MG/ML PROTEIN	Resolution 1.40 Å R-free 0.162
1IR2 Crystal Structure of Activated Ribulose-1,5-bisphosphate Carboxylase/oxygenase (Rubisco) from Green alga, Chlamydomonas reinhardtii Complexed with 2-Carboxyarabinitol-1,5-bisphosphate (2-CABP) Deposited 2001-09-03	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain A 1–475（475 aa） Chain B 1–475（475 aa） Chain C 1–475（475 aa） Chain D 1–475（475 aa） Chain E 1–475（475 aa） Chain F 1–475（475 aa） Chain G 1–475（475 aa） Chain H 1–475（475 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 8 CAP 2-CARBOXYARABINITOL-1,5-DIPHOSPHATE × 8 GOL GLYCEROL × 20	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；PEG4000, HEPES-KOH, glycerol, NaHCO3, MgCl2, DTT, 2-carboxyarabinitol-1,5-bisphosphate (2-CABP), EDTA, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.84 Å R-free 0.181
1IR2 Crystal Structure of Activated Ribulose-1,5-bisphosphate Carboxylase/oxygenase (Rubisco) from Green alga, Chlamydomonas reinhardtii Complexed with 2-Carboxyarabinitol-1,5-bisphosphate (2-CABP) Deposited 2001-09-03	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain S 1–475（475 aa） Chain T 1–475（475 aa） Chain U 1–475（475 aa） Chain V 1–475（475 aa） Chain W 1–475（475 aa） Chain X 1–475（475 aa） Chain Y 1–475（475 aa） Chain Z 1–475（475 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 8 CAP 2-CARBOXYARABINITOL-1,5-DIPHOSPHATE × 8 GOL GLYCEROL × 20	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；PEG4000, HEPES-KOH, glycerol, NaHCO3, MgCl2, DTT, 2-carboxyarabinitol-1,5-bisphosphate (2-CABP), EDTA, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.84 Å R-free 0.181
1UW9 L290F-A222T chlamydomonas Rubisco mutant Deposited 2004-02-03	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain A 1–475（475 aa） Chain B 1–475（475 aa） Chain E 1–475（475 aa） Chain H 1–475（475 aa） Chain K 1–475（475 aa） Chain O 1–475（475 aa） Chain R 1–475（475 aa） Chain V 1–475（475 aa）	Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 8 CAP 2-CARBOXYARABINITOL-1,5-DIPHOSPHATE × 8 EDO 1,2-ETHANEDIOL × 55	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；291 K；0 MM HEPES PH 7.5, 8-12% PEG 4 50 MM NAHCO3, 5 MM MGCL2, 50 UM 2-CABP, 18 DEG C, 10-15 MG PROTEIN	Resolution 2.05 Å R-free 0.194
1UZH A CHIMERIC CHLAMYDOMONAS, SYNECHOCOCCUS RUBISCO ENZYME Deposited 2004-03-12	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain A 1–475（475 aa） Chain B 1–475（475 aa） Chain E 1–475（475 aa） Chain H 1–475（475 aa） Chain K 1–475（475 aa） Chain O 1–475（475 aa） Chain R 1–475（475 aa） Chain V 1–475（475 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 8 CAP 2-CARBOXYARABINITOL-1,5-DIPHOSPHATE × 8 EDO 1,2-ETHANEDIOL × 50	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；291 K；50 MM HEPES PH 7.5, 8-12% PEG 4 50 MM NAHCO3, 5 MM MGCL2, 50 UM 2-CABP, 18 DEG C, 10-15 MG PROTEIN	Resolution 2.20 Å R-free 0.193
2V63 Crystal structure of Rubisco from Chlamydomonas reinhardtii with a large-subunit V331A mutation Deposited 2007-07-13	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain A 1–475（475 aa） Chain B 1–475（475 aa） Chain C 1–475（475 aa） Chain D 1–475（475 aa） Chain E 1–475（475 aa） Chain F 1–475（475 aa） Chain G 1–475（475 aa） Chain H 1–475（475 aa）	Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF)	CAP 2-CARBOXYARABINITOL-1,5-DIPHOSPHATE × 8 MG MAGNESIUM ION × 8 EDO 1,2-ETHANEDIOL × 46	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；pH 7.5	Resolution 1.80 Å R-free 0.214
2V67 Crystal structure of Chlamydomonas reinhardtii Rubisco with a large- subunit supressor mutation T342I Deposited 2007-07-13	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain A 1–475（475 aa） Chain B 1–475（475 aa） Chain C 1–475（475 aa） Chain D 1–475（475 aa） Chain E 1–475（475 aa） Chain F 1–475（475 aa） Chain G 1–475（475 aa） Chain H 1–475（475 aa）	Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 8 CAP 2-CARBOXYARABINITOL-1,5-DIPHOSPHATE × 8 EDO 1,2-ETHANEDIOL × 58	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；pH 7.5	Resolution 2.00 Å R-free 0.208
2V68 Crystal structure of Chlamydomonas reinhardtii Rubisco with large- subunit mutations V331A, T342I Deposited 2007-07-13	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain A 1–475（475 aa） Chain B 1–475（475 aa） Chain C 1–475（475 aa） Chain D 1–475（475 aa） Chain E 1–475（475 aa） Chain F 1–475（475 aa） Chain G 1–475（475 aa） Chain H 1–475（475 aa）	Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 8 CAP 2-CARBOXYARABINITOL-1,5-DIPHOSPHATE × 8 EDO 1,2-ETHANEDIOL × 49	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；pH 7.5	Resolution 2.30 Å R-free 0.203
2V69 Crystal structure of Chlamydomonas reinhardtii Rubisco with a large- subunit mutation D473E Deposited 2007-07-14	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain A 1–475（475 aa） Chain B 1–475（475 aa） Chain C 1–475（475 aa） Chain D 1–475（475 aa） Chain E 1–475（475 aa） Chain F 1–475（475 aa） Chain G 1–475（475 aa） Chain H 1–475（475 aa）	Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 8 CAP 2-CARBOXYARABINITOL-1,5-DIPHOSPHATE × 8 EDO 1,2-ETHANEDIOL × 24	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；pH 7.5	Resolution 2.80 Å R-free 0.228
2V6A Crystal structure of Chlamydomonas reinhardtii Rubisco with large- subunit mutations V331A, G344S Deposited 2007-07-14	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain A 1–475（475 aa） Chain B 1–475（475 aa） Chain C 1–475（475 aa） Chain D 1–475（475 aa） Chain E 1–475（475 aa） Chain F 1–475（475 aa） Chain G 1–475（475 aa） Chain H 1–475（475 aa）	Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 8 CAP 2-CARBOXYARABINITOL-1,5-DIPHOSPHATE × 8 EDO 1,2-ETHANEDIOL × 59	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；pH 7.5	Resolution 1.50 Å R-free 0.192
2VDH Crystal structure of Chlamydomonas reinhardtii Rubisco with a large- subunit C172S mutation Deposited 2007-10-09	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain A 1–475（475 aa） Chain B 1–475（475 aa） Chain C 1–475（475 aa） Chain D 1–475（475 aa） Chain E 1–475（475 aa） Chain F 1–475（475 aa） Chain G 1–475（475 aa） Chain H 1–475（475 aa）	Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 8 CAP 2-CARBOXYARABINITOL-1,5-DIPHOSPHATE × 8 EDO 1,2-ETHANEDIOL × 57	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；pH 7.5	Resolution 2.30 Å R-free 0.203
2VDI Crystal structure of Chlamydomonas reinhardtii Rubisco with a large- subunit C192S mutation Deposited 2007-10-09	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain A 1–475（475 aa） Chain B 1–475（475 aa） Chain C 1–475（475 aa） Chain D 1–475（475 aa） Chain E 1–475（475 aa） Chain F 1–475（475 aa） Chain G 1–475（475 aa） Chain H 1–475（475 aa）	Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 8 CAP 2-CARBOXYARABINITOL-1,5-DIPHOSPHATE × 8 EDO 1,2-ETHANEDIOL × 43	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；pH 7.5	Resolution 2.65 Å R-free 0.234
5BS2 Crystal structure of RbcX-IIa from Chlamydomonas reinhardtii in complex with RbcL C-terminal tail Deposited 2015-06-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 462–473（12 aa） Fragment：UNP residues 462-473,UNP residues 44-156 Chain B 462–473（12 aa） Fragment：UNP residues 462-473,UNP residues 44-156 Chain R 462–467（6 aa） Fragment：UNP residues 462-467	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1M Tris-HCl pH 8.5, 25% PEG2000 MME	Resolution 1.97 Å R-free 0.222
7JFO EPYC1(49-72)-bound Rubisco Deposited 2020-07-17	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 24 PDB declaration: 24-meric	Chain A 1–475（475 aa） Chain C 1–475（475 aa） Chain E 1–475（475 aa） Chain G 1–475（475 aa） Chain I 1–475（475 aa） Chain K 1–475（475 aa） Chain M 1–475（475 aa） Chain O 1–475（475 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 6.8；200 mM sorbitol, 50 mM HEPES, 50 mM KOAc, 2 mM Mg(OAc)2.4H2O and 1 mM CaCl2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.13 Å
9HVM In-cell Structure of Pyrenoid Rubisco Deposited 2024-12-30	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: 16-meric	Chain A 7–475（469 aa） Chain C 7–475（469 aa） Chain E 7–475（469 aa） Chain G 7–475（469 aa） Chain I 7–475（469 aa） Chain K 7–475（469 aa） Chain M 7–475（469 aa） Chain O 7–475（469 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 8.10 Å

14 other PDB entries and 15 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	RBL_CHLRE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–475； UniProt 1–475 Author chain B； PDBConstruct 1–475； UniProt 1–475 Author chain E； PDBConstruct 1–475； UniProt 1–475 Author chain H； PDBConstruct 1–475； UniProt 1–475 Author chain K； PDBConstruct 1–475； UniProt 1–475 Author chain O； PDBConstruct 1–475； UniProt 1–475 Author chain R； PDBConstruct 1–475； UniProt 1–475 Author chain V； PDBConstruct 1–475； UniProt 1–475

RIBULOSE BISPHOSPHATE CARBOXYLASE SMALL CHAIN 1

OrganismNot specified

UniProt P00873

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 16 PDB declaration: hexadecameric（16） Consistent with protein copy count	Chain C； UniProt 46–185 Chain F； UniProt 46–185 Chain I； UniProt 46–185 Chain J； UniProt 46–185 Chain M； UniProt 46–185 Chain P； UniProt 46–185 Chain T； UniProt 46–185 Chain W； UniProt 46–185	Not recorded	RIBULOSE BISPHOSPHATE CARBOXYLASE LARGE CHAIN × 8 （P00877） MG MAGNESIUM ION × 8 CAP 2-CARBOXYARABINITOL-1,5-DIPHOSPHATE × 8 EDO 1,2-ETHANEDIOL × 59	X-RAY DIFFRACTION X-ray crystallization conditions：pH 7.5；291 K；HEPES PH 7.5, 8-12% PEG 4 50 MM NAHCO3, 5 MM MGCL2, 50 UM 2-CABP, 18 DEG C, 10-15 MG PROTEIN	Resolution 2.30 Å R-free 0.205

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 1UWA	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1GK8 Rubisco from Chlamydomonas reinhardtii Deposited 2001-08-09	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain I 46–185（140 aa） Chain K 46–185（140 aa） Chain M 46–185（140 aa） Chain O 46–185（140 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 8 CAP 2-CARBOXYARABINITOL-1,5-DIPHOSPHATE × 8 EDO 1,2-ETHANEDIOL × 66	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；291 K；50 MM HEPES PH 7.5, 8-12% PEG 4000, 50 MM NAHCO3, 5 MM MGCL2, 50 UM 2-CABP, 18 DEG C, 10-15 MG/ML PROTEIN	Resolution 1.40 Å R-free 0.162
1UW9 L290F-A222T chlamydomonas Rubisco mutant Deposited 2004-02-03	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain C 46–185（140 aa） Chain F 46–185（140 aa） Chain I 46–185（140 aa） Chain J 46–185（140 aa） Chain M 46–185（140 aa） Chain P 46–185（140 aa） Chain T 46–185（140 aa） Chain W 46–185（140 aa）	Not recorded	MG MAGNESIUM ION × 8 CAP 2-CARBOXYARABINITOL-1,5-DIPHOSPHATE × 8 EDO 1,2-ETHANEDIOL × 55	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；291 K；0 MM HEPES PH 7.5, 8-12% PEG 4 50 MM NAHCO3, 5 MM MGCL2, 50 UM 2-CABP, 18 DEG C, 10-15 MG PROTEIN	Resolution 2.05 Å R-free 0.194
1UZD Chlamydomonas,Spinach Chimeric Rubisco Deposited 2004-03-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain C 46–90（45 aa） Chain C 116–185（70 aa） Chain F 46–90（45 aa） Chain F 116–185（70 aa） Chain I 46–90（45 aa） Chain I 116–185（70 aa） Chain J 46–90（45 aa） Chain J 116–185（70 aa） Chain M 46–90（45 aa） Chain M 116–185（70 aa） Chain P 46–90（45 aa） Chain P 116–185（70 aa） Chain T 46–90（45 aa） Chain T 116–185（70 aa） Chain W 46–90（45 aa） Chain W 116–185（70 aa）	Not recorded	MG MAGNESIUM ION × 8 CAP 2-CARBOXYARABINITOL-1,5-DIPHOSPHATE × 8 EDO 1,2-ETHANEDIOL × 54	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；291 K；50 MM HEPES PH 7.5, 8-12% PEG 4 50 MM NAHCO3, 5 MM MGCL2, 50 UM 2-CABP, 18 DEG C, 10-15 MG PROTEIN	Resolution 2.40 Å R-free 0.230
1UZH A CHIMERIC CHLAMYDOMONAS, SYNECHOCOCCUS RUBISCO ENZYME Deposited 2004-03-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain C 46–91（46 aa） Chain C 117–185（69 aa） Chain F 46–91（46 aa） Chain F 117–185（69 aa） Chain I 46–91（46 aa） Chain I 117–185（69 aa） Chain J 46–91（46 aa） Chain J 117–185（69 aa） Chain M 46–91（46 aa） Chain M 117–185（69 aa） Chain P 46–91（46 aa） Chain P 117–185（69 aa） Chain T 46–91（46 aa） Chain T 117–185（69 aa） Chain W 46–91（46 aa） Chain W 117–185（69 aa）	Not recorded	MG MAGNESIUM ION × 8 CAP 2-CARBOXYARABINITOL-1,5-DIPHOSPHATE × 8 EDO 1,2-ETHANEDIOL × 50	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；291 K；50 MM HEPES PH 7.5, 8-12% PEG 4 50 MM NAHCO3, 5 MM MGCL2, 50 UM 2-CABP, 18 DEG C, 10-15 MG PROTEIN	Resolution 2.20 Å R-free 0.193
2V63 Crystal structure of Rubisco from Chlamydomonas reinhardtii with a large-subunit V331A mutation Deposited 2007-07-13	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain I 46–185（140 aa） Chain J 46–185（140 aa） Chain K 46–185（140 aa） Chain L 46–185（140 aa） Chain M 46–185（140 aa） Chain N 46–185（140 aa） Chain O 46–185（140 aa） Chain P 46–185（140 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	CAP 2-CARBOXYARABINITOL-1,5-DIPHOSPHATE × 8 MG MAGNESIUM ION × 8 EDO 1,2-ETHANEDIOL × 46	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；pH 7.5	Resolution 1.80 Å R-free 0.214
2V67 Crystal structure of Chlamydomonas reinhardtii Rubisco with a large- subunit supressor mutation T342I Deposited 2007-07-13	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain I 46–185（140 aa） Fragment：RESIDUES 46-185 Chain J 46–185（140 aa） Fragment：RESIDUES 46-185 Chain K 46–185（140 aa） Fragment：RESIDUES 46-185 Chain L 46–185（140 aa） Fragment：RESIDUES 46-185 Chain M 46–185（140 aa） Fragment：RESIDUES 46-185 Chain N 46–185（140 aa） Fragment：RESIDUES 46-185 Chain O 46–185（140 aa） Fragment：RESIDUES 46-185 Chain P 46–185（140 aa） Fragment：RESIDUES 46-185	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 8 CAP 2-CARBOXYARABINITOL-1,5-DIPHOSPHATE × 8 EDO 1,2-ETHANEDIOL × 58	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；pH 7.5	Resolution 2.00 Å R-free 0.208
2V68 Crystal structure of Chlamydomonas reinhardtii Rubisco with large- subunit mutations V331A, T342I Deposited 2007-07-13	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain I 46–185（140 aa） Fragment：RESIDUES 46-185 Chain J 46–185（140 aa） Fragment：RESIDUES 46-185 Chain K 46–185（140 aa） Fragment：RESIDUES 46-185 Chain L 46–185（140 aa） Fragment：RESIDUES 46-185 Chain M 46–185（140 aa） Fragment：RESIDUES 46-185 Chain N 46–185（140 aa） Fragment：RESIDUES 46-185 Chain O 46–185（140 aa） Fragment：RESIDUES 46-185 Chain P 46–185（140 aa） Fragment：RESIDUES 46-185	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 8 CAP 2-CARBOXYARABINITOL-1,5-DIPHOSPHATE × 8 EDO 1,2-ETHANEDIOL × 49	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；pH 7.5	Resolution 2.30 Å R-free 0.203
2V69 Crystal structure of Chlamydomonas reinhardtii Rubisco with a large- subunit mutation D473E Deposited 2007-07-14	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain I 46–185（140 aa） Chain J 46–185（140 aa） Chain K 46–185（140 aa） Chain L 46–185（140 aa） Chain M 46–185（140 aa） Chain N 46–185（140 aa） Chain O 46–185（140 aa） Chain P 46–185（140 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 8 CAP 2-CARBOXYARABINITOL-1,5-DIPHOSPHATE × 8 EDO 1,2-ETHANEDIOL × 24	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；pH 7.5	Resolution 2.80 Å R-free 0.228
2V6A Crystal structure of Chlamydomonas reinhardtii Rubisco with large- subunit mutations V331A, G344S Deposited 2007-07-14	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain I 46–185（140 aa） Chain J 46–185（140 aa） Chain K 46–185（140 aa） Chain L 46–185（140 aa） Chain M 46–185（140 aa） Chain N 46–185（140 aa） Chain O 46–185（140 aa） Chain P 46–185（140 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 8 CAP 2-CARBOXYARABINITOL-1,5-DIPHOSPHATE × 8 EDO 1,2-ETHANEDIOL × 59	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；pH 7.5	Resolution 1.50 Å R-free 0.192
2VDH Crystal structure of Chlamydomonas reinhardtii Rubisco with a large- subunit C172S mutation Deposited 2007-10-09	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain I 46–185（140 aa） Chain J 46–185（140 aa） Chain K 46–185（140 aa） Chain L 46–185（140 aa） Chain M 46–185（140 aa） Chain N 46–185（140 aa） Chain O 46–185（140 aa） Chain P 46–185（140 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 8 CAP 2-CARBOXYARABINITOL-1,5-DIPHOSPHATE × 8 EDO 1,2-ETHANEDIOL × 57	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；pH 7.5	Resolution 2.30 Å R-free 0.203
2VDI Crystal structure of Chlamydomonas reinhardtii Rubisco with a large- subunit C192S mutation Deposited 2007-10-09	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain I 46–185（140 aa） Chain J 46–185（140 aa） Chain K 46–185（140 aa） Chain L 46–185（140 aa） Chain M 46–185（140 aa） Chain N 46–185（140 aa） Chain O 46–185（140 aa） Chain P 46–185（140 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 8 CAP 2-CARBOXYARABINITOL-1,5-DIPHOSPHATE × 8 EDO 1,2-ETHANEDIOL × 43	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；pH 7.5	Resolution 2.65 Å R-free 0.234
9HVM In-cell Structure of Pyrenoid Rubisco Deposited 2024-12-30	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: 16-meric	Chain B 46–177（132 aa） Chain D 46–177（132 aa） Chain F 46–177（132 aa） Chain H 46–177（132 aa） Chain J 46–177（132 aa） Chain L 46–177（132 aa） Chain N 46–177（132 aa） Chain P 46–177（132 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 8.10 Å

12 other PDB entries and 12 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	RBS1_CHLRE
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–140； UniProt 46–185 Author chain F； PDBConstruct 1–140； UniProt 46–185 Author chain I； PDBConstruct 1–140； UniProt 46–185 Author chain J； PDBConstruct 1–140； UniProt 46–185 Author chain M； PDBConstruct 1–140； UniProt 46–185 Author chain P； PDBConstruct 1–140； UniProt 46–185 Author chain T； PDBConstruct 1–140； UniProt 46–185 Author chain W； PDBConstruct 1–140； UniProt 46–185

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

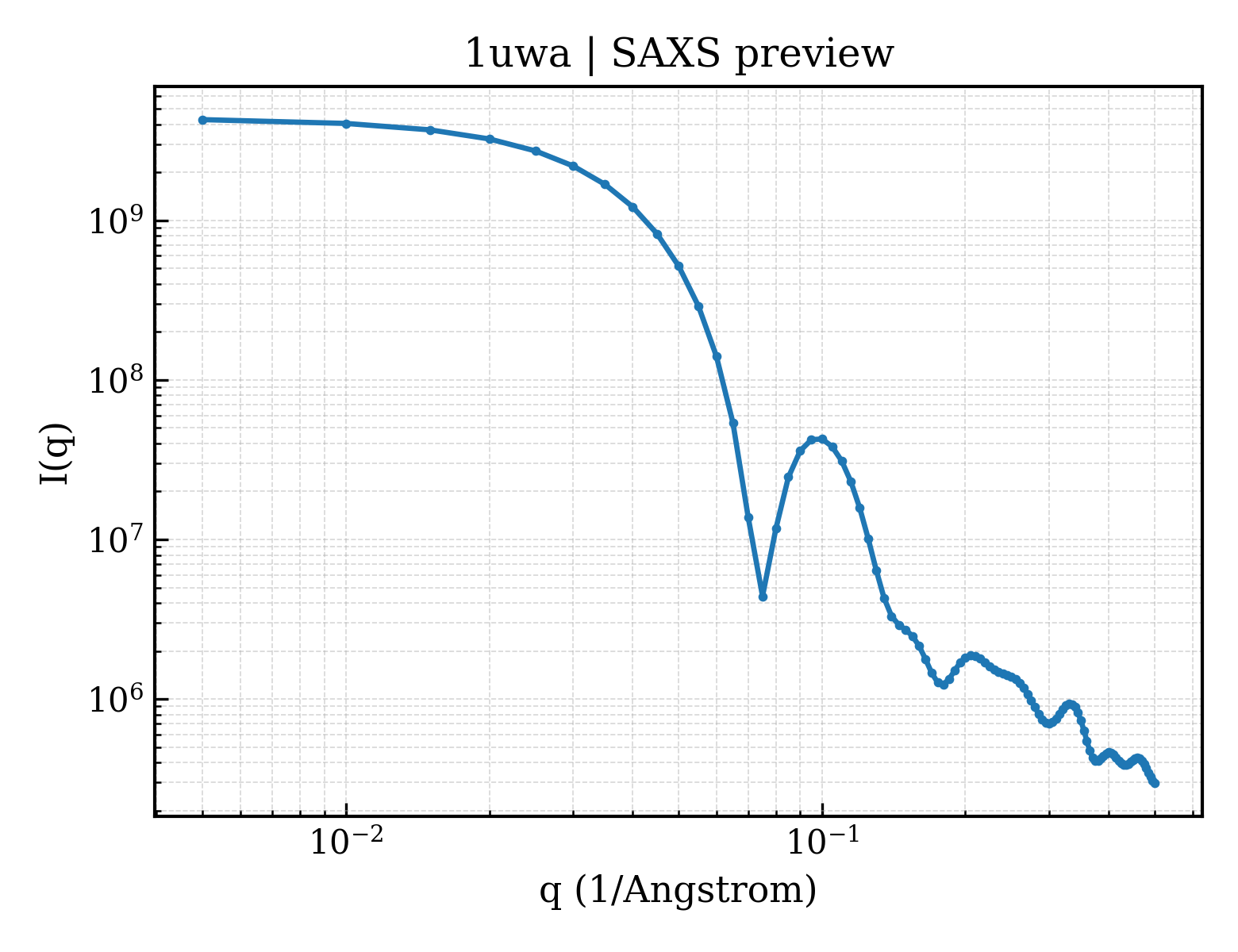

SAXS scattering curve SAXS Profile

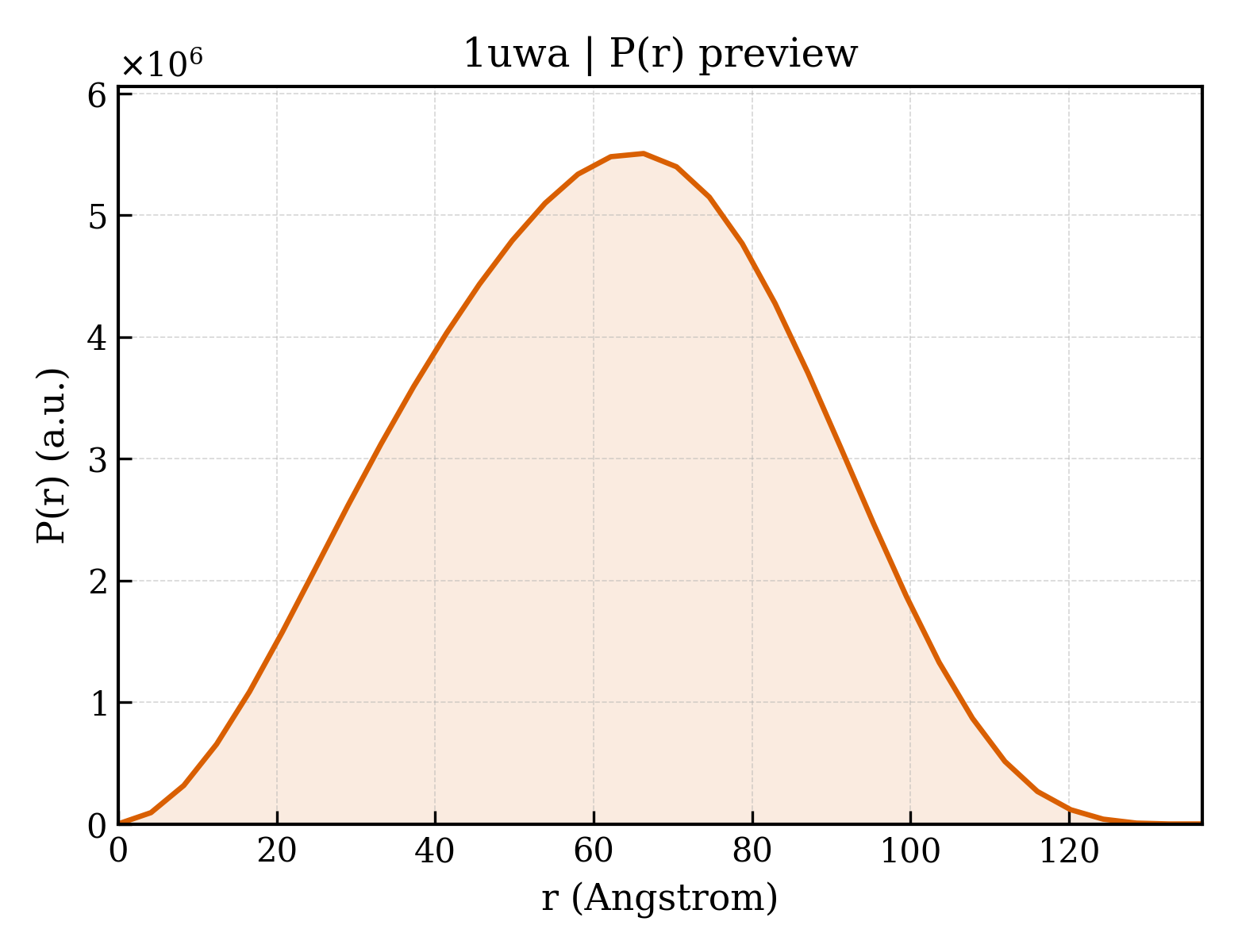

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1uwa
Deposition date deposition_date	2004-02-03
Structure title title	L290F mutant rubisco from chlamydomonas
Keywords keywords	LYASE, RUBISCO, PHOTOSYNTHESIS, PHOTORESPIRATION, OXIDOREDUCTASE, MONOOXYGENASE, CARBON DIOXIDE FIXATION; LYASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	47.18 Å
Radius of gyration Rg (electron density) rg_electron	46.35 Å
Forward intensity I(0) i0	4359560000.00
Molecular weight molecular_weight	550330.0 kDa
Excluded volume excluded_volume	685990 Å³
Envelope volume envelope_volume	816370 Å³
Hydration-shell volume shell_volume	131560 Å³
Envelope diameter envelope_diameter	139.1 Å
Shell Rg shell_rg	60.18 Å
Envelope Rg envelope_rg	46.23 Å
Shape Rg shape_rg	46.36 Å
Total Rg total_rg	46.70 Å
Total atoms total_atoms	38644
Residues n_residues	4816
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	136.8 Å
Rg (real space) rg_real	46.70 Å
Rg uncertainty (real space) rg_real_error	0.54 Å
I(0) (real space) i0_real	4.3600e+09
I(0) uncertainty (real space) i0_real_error	6.1150e+07
Rg (reciprocal space) rg_reciprocal	47.18 Å
I(0) (reciprocal space) i0_reciprocal	4362000000.0000
Solution quality estimate total_estimate	0.8786
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	66.3 Å
Skewness Skewness skewness	-0.029
Kurtosis Kurtosis kurtosis	-0.583
Angular range angular_range	— – 0.1650 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	3646000000.0000
Real-space data points n_real_points	34
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.936; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.947; Smooth: 0.662

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	RIBULOSE BISPHOSPHATE CARBOXYLASE LARGE CHAIN
Molecular weight formula_weight	52730.9 kDa
EC 编号 ec_number	4.1.1.39
Mutation mutation	YES
Source method src_method	nat
Copy count entity_count	8

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,E,H,K,O,R,V
Atom count atom_count	41073

MVPQTETKAGAGFKAGVKDYRLTYYTPDYVVRDTDILAAFRMTPQPGVPPEECGAAVAAESSTGTWTTVWTDGLTSLDRYKGRCYDIEPVPGEDNQYIAYVAYPIDLFEEGSVTNMFTSIVGNVFGFKALRALRLEDLRIPPAYVKTFVGPPHGIQVERDKLNKYGRGLLGCTIKPKLGLSAKNYGRAVYECLRGGLDFTKDDENVNSQPFMRWRDRFLFVAEAIYKAQAETGEVKGHYLNATAGTCEEMMKRAVCAKELGVPIIMHDYLTGGFTANTSLAIYCRDNGLFLHIHRAMHAVIDRQRNHGIHFRVLAKALRMSGGDHLHSGTVVGKLEGEREVTLGFVDLMRDDYVEKDRSRGIYFTQDWCSMPGVMPVASGGIHVWHMPALVEIFGDDACLQFGGGTLGHPWGNAPGAAANRVALEACTQARNEGRDLAREGGDVIRSACKWSPELAAACEVWKEIKFEFDTIDKL

Entity 2 Entity 2 polymer

Description description	RIBULOSE BISPHOSPHATE CARBOXYLASE SMALL CHAIN 1
Molecular weight formula_weight	16294.8 kDa
EC 编号 ec_number	4.1.1.39
Source method src_method	nat
Copy count entity_count	8

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,F,I,J,M,P,T,W

MMVWTPVNNKMFETFSYLPPLTDEQIAAQVDYIVANGWIPCLEFAEADKAYVSNESAIRFGSVSCLYYDNRYWTMWKLPMFGCRDPMQVLREIVACTKAFPDAYVRLVAFDNQKQVQIMGFLVQRPKSARDWQPANKRSV

Entity 3 Entity 3 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 4 Entity 4 non-polymer

Description description	2-CARBOXYARABINITOL-1,5-DIPHOSPHATE
Molecular weight formula_weight	356.1 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 5 Entity 5 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	59

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	2310

▼

7. Fold Classification (SCOP + CATH) 48 domains

SCOP 2.08 (24 domains)

Domain ID domain_id	d1uwaa1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.14 — RuBisCo, C-terminal domain
Family Family family	c.1.14.1 — RuBisCo, large subunit, C-terminal domain

Domain ID domain_id	d1uwaa2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.9 — RuBisCO, large subunit, small (N-terminal) domain
Family Family family	d.58.9.0 — automated matches

Domain ID domain_id	d1uwab1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.14 — RuBisCo, C-terminal domain
Family Family family	c.1.14.1 — RuBisCo, large subunit, C-terminal domain

Domain ID domain_id	d1uwab2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.9 — RuBisCO, large subunit, small (N-terminal) domain
Family Family family	d.58.9.0 — automated matches

Domain ID domain_id	d1uwac_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.73 — RuBisCO, small subunit
Superfamily Superfamily superfamily	d.73.1 — RuBisCO, small subunit
Family Family family	d.73.1.1 — RuBisCO, small subunit

Domain ID domain_id	d1uwae1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.14 — RuBisCo, C-terminal domain
Family Family family	c.1.14.1 — RuBisCo, large subunit, C-terminal domain

Domain ID domain_id	d1uwae2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.9 — RuBisCO, large subunit, small (N-terminal) domain
Family Family family	d.58.9.0 — automated matches

Domain ID domain_id	d1uwaf_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.73 — RuBisCO, small subunit
Superfamily Superfamily superfamily	d.73.1 — RuBisCO, small subunit
Family Family family	d.73.1.1 — RuBisCO, small subunit

Domain ID domain_id	d1uwah1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.14 — RuBisCo, C-terminal domain
Family Family family	c.1.14.1 — RuBisCo, large subunit, C-terminal domain

Domain ID domain_id	d1uwah2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.9 — RuBisCO, large subunit, small (N-terminal) domain
Family Family family	d.58.9.0 — automated matches

Domain ID domain_id	d1uwai_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.73 — RuBisCO, small subunit
Superfamily Superfamily superfamily	d.73.1 — RuBisCO, small subunit
Family Family family	d.73.1.1 — RuBisCO, small subunit

Domain ID domain_id	d1uwaj_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.73 — RuBisCO, small subunit
Superfamily Superfamily superfamily	d.73.1 — RuBisCO, small subunit
Family Family family	d.73.1.1 — RuBisCO, small subunit

Domain ID domain_id	d1uwak1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.14 — RuBisCo, C-terminal domain
Family Family family	c.1.14.1 — RuBisCo, large subunit, C-terminal domain

Domain ID domain_id	d1uwak2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.9 — RuBisCO, large subunit, small (N-terminal) domain
Family Family family	d.58.9.0 — automated matches

Domain ID domain_id	d1uwam_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.73 — RuBisCO, small subunit
Superfamily Superfamily superfamily	d.73.1 — RuBisCO, small subunit
Family Family family	d.73.1.1 — RuBisCO, small subunit

Domain ID domain_id	d1uwao1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.14 — RuBisCo, C-terminal domain
Family Family family	c.1.14.1 — RuBisCo, large subunit, C-terminal domain

Domain ID domain_id	d1uwao2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.9 — RuBisCO, large subunit, small (N-terminal) domain
Family Family family	d.58.9.0 — automated matches

Domain ID domain_id	d1uwap_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.73 — RuBisCO, small subunit
Superfamily Superfamily superfamily	d.73.1 — RuBisCO, small subunit
Family Family family	d.73.1.1 — RuBisCO, small subunit

Domain ID domain_id	d1uwar1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.14 — RuBisCo, C-terminal domain
Family Family family	c.1.14.1 — RuBisCo, large subunit, C-terminal domain

Domain ID domain_id	d1uwar2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.9 — RuBisCO, large subunit, small (N-terminal) domain
Family Family family	d.58.9.0 — automated matches

Domain ID domain_id	d1uwat_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.73 — RuBisCO, small subunit
Superfamily Superfamily superfamily	d.73.1 — RuBisCO, small subunit
Family Family family	d.73.1.1 — RuBisCO, small subunit

Domain ID domain_id	d1uwav1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.14 — RuBisCo, C-terminal domain
Family Family family	c.1.14.1 — RuBisCo, large subunit, C-terminal domain

Domain ID domain_id	d1uwav2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.9 — RuBisCO, large subunit, small (N-terminal) domain
Family Family family	d.58.9.0 — automated matches

Domain ID domain_id	d1uwaw_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.73 — RuBisCO, small subunit
Superfamily Superfamily superfamily	d.73.1 — RuBisCO, small subunit
Family Family family	d.73.1.1 — RuBisCO, small subunit

CATH v4.4 (24 domains)

Domain ID domain_id	1uwaA01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	150 — RuBisCO large subunit, N-terminal domain

Domain ID domain_id	1uwaA02
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	110 — Ribulose bisphosphate carboxylase, large subunit, C-terminal domain

Domain ID domain_id	1uwaB01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	150 — RuBisCO large subunit, N-terminal domain

Domain ID domain_id	1uwaB02
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	110 — Ribulose bisphosphate carboxylase, large subunit, C-terminal domain

Domain ID domain_id	1uwaC00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	190 — Ribulose 1,5 Bisphosphate Carboxylase/Oxygenase
Homologous superfamily homologous superfamily	10 — Ribulose bisphosphate carboxylase, small subunit

Domain ID domain_id	1uwaE01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	150 — RuBisCO large subunit, N-terminal domain

Domain ID domain_id	1uwaE02
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	110 — Ribulose bisphosphate carboxylase, large subunit, C-terminal domain

Domain ID domain_id	1uwaF00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	190 — Ribulose 1,5 Bisphosphate Carboxylase/Oxygenase
Homologous superfamily homologous superfamily	10 — Ribulose bisphosphate carboxylase, small subunit

Domain ID domain_id	1uwaH01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	150 — RuBisCO large subunit, N-terminal domain

Domain ID domain_id	1uwaH02
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	110 — Ribulose bisphosphate carboxylase, large subunit, C-terminal domain

Domain ID domain_id	1uwaI00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	190 — Ribulose 1,5 Bisphosphate Carboxylase/Oxygenase
Homologous superfamily homologous superfamily	10 — Ribulose bisphosphate carboxylase, small subunit

Domain ID domain_id	1uwaJ00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	190 — Ribulose 1,5 Bisphosphate Carboxylase/Oxygenase
Homologous superfamily homologous superfamily	10 — Ribulose bisphosphate carboxylase, small subunit

Domain ID domain_id	1uwaK01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	150 — RuBisCO large subunit, N-terminal domain

Domain ID domain_id	1uwaK02
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	110 — Ribulose bisphosphate carboxylase, large subunit, C-terminal domain

Domain ID domain_id	1uwaM00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	190 — Ribulose 1,5 Bisphosphate Carboxylase/Oxygenase
Homologous superfamily homologous superfamily	10 — Ribulose bisphosphate carboxylase, small subunit

Domain ID domain_id	1uwaO01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	150 — RuBisCO large subunit, N-terminal domain

Domain ID domain_id	1uwaO02
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	110 — Ribulose bisphosphate carboxylase, large subunit, C-terminal domain

Domain ID domain_id	1uwaP00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	190 — Ribulose 1,5 Bisphosphate Carboxylase/Oxygenase
Homologous superfamily homologous superfamily	10 — Ribulose bisphosphate carboxylase, small subunit

Domain ID domain_id	1uwaR01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	150 — RuBisCO large subunit, N-terminal domain

Domain ID domain_id	1uwaR02
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	110 — Ribulose bisphosphate carboxylase, large subunit, C-terminal domain

Domain ID domain_id	1uwaT00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	190 — Ribulose 1,5 Bisphosphate Carboxylase/Oxygenase
Homologous superfamily homologous superfamily	10 — Ribulose bisphosphate carboxylase, small subunit

Domain ID domain_id	1uwaV01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	150 — RuBisCO large subunit, N-terminal domain

Domain ID domain_id	1uwaV02
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	110 — Ribulose bisphosphate carboxylase, large subunit, C-terminal domain

Domain ID domain_id	1uwaW00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	190 — Ribulose 1,5 Bisphosphate Carboxylase/Oxygenase
Homologous superfamily homologous superfamily	10 — Ribulose bisphosphate carboxylase, small subunit

▶

8. Citations (1)

▶

Unit-cell length a length_a	120.983 Å
Unit-cell length b length_b	177.709 Å
Unit-cell length c length_c	122.663 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	117.70 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	0.1720
R_work r_work	0.1710
R_free r_free	0.2050

L290F mutant rubisco from chlamydomonas

1. Protein Identity and Related Structures Protein Identity & Related Structures

RIBULOSE BISPHOSPHATE CARBOXYLASE LARGE CHAIN

State in the Current Structure

Other States of the Same Protein in the Database

RIBULOSE BISPHOSPHATE CARBOXYLASE SMALL CHAIN 1

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Polymer Polymer

Entity 2 Entity 2 polymer

Polymer Polymer

Entity 3 Entity 3 non-polymer

Entity 4 Entity 4 non-polymer

Entity 5 Entity 5 non-polymer

Entity 6 Entity 6 water

7. Fold Classification (SCOP + CATH) 48 domains

SCOP 2.08 (24 domains)

CATH v4.4 (24 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)

fit	/app/data/saxs_computation/uw/1uwa/1uwa.fit
pddf	/app/data/pr_computation/uw/1uwa/1uwa.pr.out
profile	/app/data/saxs_computation/uw/1uwa/1uwa.dat
