1uzh

A CHIMERIC CHLAMYDOMONAS, SYNECHOCOCCUS RUBISCO ENZYME

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

RIBULOSE BISPHOSPHATE CARBOXYLASE LARGE CHAIN

SYNECHOCOCCUS SP

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 16	RIBULOSE BISPHOSPHATE CARBOXYLASE SMALL CHAIN 2, RIBULOSE BISPHOSPHATE CARBOXYLASE SMALL CHAIN × 8 （P00873,P04716） MAGNESIUM ION × 8 2-CARBOXYARABINITOL-1,5-DIPHOSPHATE × 8 1,2-ETHANEDIOL × 50 water × 16	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RBL_CHLRE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–475； UniProt 1–475 Author chain B； PDBConstruct 1–475； UniProt 1–475 Author chain E； PDBConstruct 1–475； UniProt 1–475 Author chain H； PDBConstruct 1–475； UniProt 1–475 Author chain K； PDBConstruct 1–475； UniProt 1–475 Author chain O； PDBConstruct 1–475； UniProt 1–475 Author chain R； PDBConstruct 1–475； UniProt 1–475 Author chain V； PDBConstruct 1–475； UniProt 1–475

RIBULOSE BISPHOSPHATE CARBOXYLASE SMALL CHAIN 2, RIBULOSE BISPHOSPHATE CARBOXYLASE SMALL CHAIN

CHLAMYDOMONAS REINHARDTII

UniProt P00873

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 16	RIBULOSE BISPHOSPHATE CARBOXYLASE LARGE CHAIN × 8 （P00877） MAGNESIUM ION × 8 2-CARBOXYARABINITOL-1,5-DIPHOSPHATE × 8 1,2-ETHANEDIOL × 50 water × 16	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RBS1_CHLRE
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–46； UniProt 46–91 Author chain C； PDBConstruct 54–122； UniProt 117–185 Author chain F； PDBConstruct 1–46； UniProt 46–91 Author chain F； PDBConstruct 54–122； UniProt 117–185 Author chain I； PDBConstruct 1–46； UniProt 46–91 Author chain I； PDBConstruct 54–122； UniProt 117–185 Author chain J； PDBConstruct 1–46； UniProt 46–91 Author chain J； PDBConstruct 54–122； UniProt 117–185 Author chain M； PDBConstruct 1–46； UniProt 46–91 Author chain M； PDBConstruct 54–122； UniProt 117–185 Author chain P； PDBConstruct 1–46； UniProt 46–91 Author chain P； PDBConstruct 54–122； UniProt 117–185 Author chain T； PDBConstruct 1–46； UniProt 46–91 Author chain T； PDBConstruct 54–122； UniProt 117–185 Author chain W； PDBConstruct 1–46； UniProt 46–91 Author chain W； PDBConstruct 54–122； UniProt 117–185

RIBULOSE BISPHOSPHATE CARBOXYLASE SMALL CHAIN 2, RIBULOSE BISPHOSPHATE CARBOXYLASE SMALL CHAIN

CHLAMYDOMONAS REINHARDTII

UniProt P04716

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 16	RIBULOSE BISPHOSPHATE CARBOXYLASE LARGE CHAIN × 8 （P00877） MAGNESIUM ION × 8 2-CARBOXYARABINITOL-1,5-DIPHOSPHATE × 8 1,2-ETHANEDIOL × 50 water × 16	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RBS2_SPIOL
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 47–53； UniProt 46–52 Author chain F； PDBConstruct 47–53； UniProt 47–53 Author chain I； PDBConstruct 47–53； UniProt 47–53 Author chain J； PDBConstruct 47–53； UniProt 47–53 Author chain M； PDBConstruct 47–53； UniProt 47–53 Author chain P； PDBConstruct 47–53； UniProt 47–53 Author chain T； PDBConstruct 47–53； UniProt 47–53 Author chain W； PDBConstruct 47–53； UniProt 47–53

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1uzh
Deposition date deposition_date	2004-03-12
Structure title title	A CHIMERIC CHLAMYDOMONAS, SYNECHOCOCCUS RUBISCO ENZYME
Keywords keywords	;LYASE, RUBISCO, PHOTOSYNTHESIS, CARBON DIOXIDE FIXATION, PHOTORESPIRATION, OXIDOREDUCTASE, MONOOXYGENASE, CHLOROPLAST, TRANSIT PEPTIDE, MULTIGENE FAMILY ;; LYASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1uzh__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

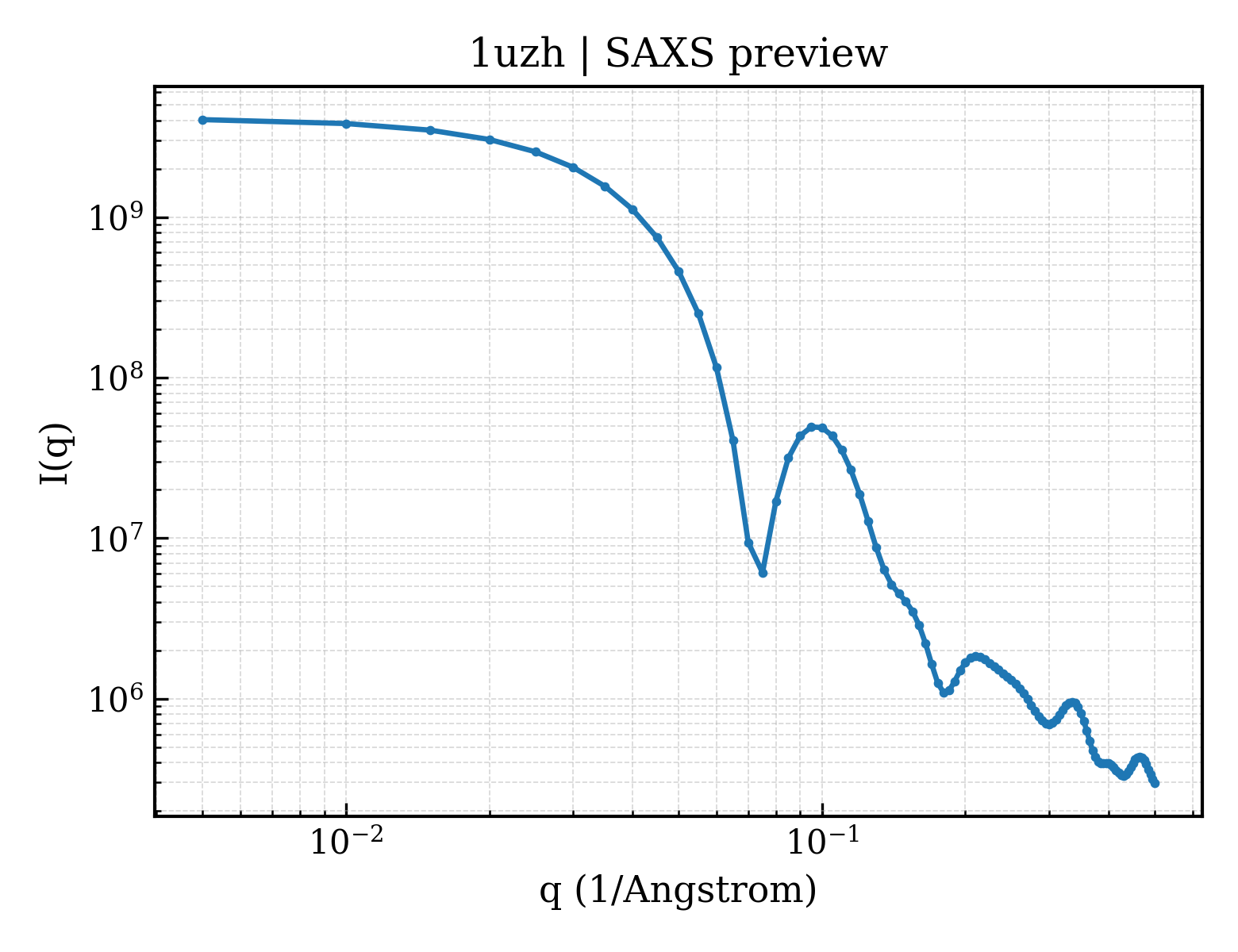

1uzh__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

1uzh__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	47.67 Å
Rg (electron density)	46.79 Å
Total Rg	47.15 Å
Atom count	37591
Residues	4682
Excluded volume	667660 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1uzh__assembly_1__model_1`	hexadecameric （16）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	RIBULOSE BISPHOSPHATE CARBOXYLASE LARGE CHAIN
Molecular weight formula_weight	52696.8 kDa
EC 编号 ec_number	4.1.1.39
Source method src_method	man
Copy count entity_count	8

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,E,H,K,O,R,V
Atom count atom_count	40557

MVPQTETKAGAGFKAGVKDYRLTYYTPDYVVRDTDILAAFRMTPQPGVPPEECGAAVAAESSTGTWTTVWTDGLTSLDRYKGRCYDIEPVPGEDNQYIAYVAYPIDLFEEGSVTNMFTSIVGNVFGFKALRALRLEDLRIPPAYVKTFVGPPHGIQVERDKLNKYGRGLLGCTIKPKLGLSAKNYGRAVYECLRGGLDFTKDDENVNSQPFMRWRDRFLFVAEAIYKAQAETGEVKGHYLNATAGTCEEMMKRAVCAKELGVPIIMHDYLTGGFTANTSLAIYCRDNGLLLHIHRAMHAVIDRQRNHGIHFRVLAKALRMSGGDHLHSGTVVGKLEGEREVTLGFVDLMRDDYVEKDRSRGIYFTQDWCSMPGVMPVASGGIHVWHMPALVEIFGDDACLQFGGGTLGHPWGNAPGAAANRVALEACTQARNEGRDLAREGGDVIRSACKWSPELAAACEVWKEIKFEFDTIDKL

Source Source

Source organism organism	SYNECHOCOCCUS SP
NCBI taxonomy ID ncbi_taxonomy_id	1131
Host organism host_organism	SYNECHOCOCCUS SP

Entity 2 Entity 2 polymer

Description description	RIBULOSE BISPHOSPHATE CARBOXYLASE SMALL CHAIN 2, RIBULOSE BISPHOSPHATE CARBOXYLASE SMALL CHAIN
Molecular weight formula_weight	14297.5 kDa
EC 编号 ec_number	4.1.1.39
Source method src_method	man
Copy count entity_count	8

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,F,I,J,M,P,T,W

MMVWTPVNNKMFETFSYLPPLTDEQIAAQVDYIVANGWIPCLEFAEHSNPEEFYWTMWKLPMFGCRDPMQVLREIVACTKAFPDAYVRLVAFDNQKQVQIMGFLVQRPKTARDFQPANKRSV

Source Source

Source organism organism	CHLAMYDOMONAS REINHARDTII
NCBI taxonomy ID ncbi_taxonomy_id	3055
Host organism host_organism	CHLAMYDOMONAS REINHARDTII

Entity 3 Entity 3 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	8

Source Source

Source organism organism	SYNECHOCOCCUS SP
NCBI taxonomy ID ncbi_taxonomy_id	1131
Host organism host_organism	SYNECHOCOCCUS SP

Entity 4 Entity 4 non-polymer

Description description	2-CARBOXYARABINITOL-1,5-DIPHOSPHATE
Molecular weight formula_weight	356.1 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 5 Entity 5 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	50

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	2831

▼

6. Fold Classification (SCOP + CATH) 48 domains

SCOP 2.08 (24 domains)

Domain ID domain_id	d1uzha1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.14 — RuBisCo, C-terminal domain
Family Family family	c.1.14.1 — RuBisCo, large subunit, C-terminal domain

Domain ID domain_id	d1uzha2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.9 — RuBisCO, large subunit, small (N-terminal) domain
Family Family family	d.58.9.1 — Ribulose 1,5-bisphosphate carboxylase-oxygenase

Domain ID domain_id	d1uzhb1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.14 — RuBisCo, C-terminal domain
Family Family family	c.1.14.1 — RuBisCo, large subunit, C-terminal domain

Domain ID domain_id	d1uzhb2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.9 — RuBisCO, large subunit, small (N-terminal) domain
Family Family family	d.58.9.1 — Ribulose 1,5-bisphosphate carboxylase-oxygenase

Domain ID domain_id	d1uzhc1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.73 — RuBisCO, small subunit
Superfamily Superfamily superfamily	d.73.1 — RuBisCO, small subunit
Family Family family	d.73.1.1 — RuBisCO, small subunit

Domain ID domain_id	d1uzhe1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.14 — RuBisCo, C-terminal domain
Family Family family	c.1.14.1 — RuBisCo, large subunit, C-terminal domain

Domain ID domain_id	d1uzhe2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.9 — RuBisCO, large subunit, small (N-terminal) domain
Family Family family	d.58.9.1 — Ribulose 1,5-bisphosphate carboxylase-oxygenase

Domain ID domain_id	d1uzhf_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.73 — RuBisCO, small subunit
Superfamily Superfamily superfamily	d.73.1 — RuBisCO, small subunit
Family Family family	d.73.1.1 — RuBisCO, small subunit

Domain ID domain_id	d1uzhh1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.14 — RuBisCo, C-terminal domain
Family Family family	c.1.14.1 — RuBisCo, large subunit, C-terminal domain

Domain ID domain_id	d1uzhh2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.9 — RuBisCO, large subunit, small (N-terminal) domain
Family Family family	d.58.9.1 — Ribulose 1,5-bisphosphate carboxylase-oxygenase

Domain ID domain_id	d1uzhi_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.73 — RuBisCO, small subunit
Superfamily Superfamily superfamily	d.73.1 — RuBisCO, small subunit
Family Family family	d.73.1.1 — RuBisCO, small subunit

Domain ID domain_id	d1uzhj_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.73 — RuBisCO, small subunit
Superfamily Superfamily superfamily	d.73.1 — RuBisCO, small subunit
Family Family family	d.73.1.1 — RuBisCO, small subunit

Domain ID domain_id	d1uzhk1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.14 — RuBisCo, C-terminal domain
Family Family family	c.1.14.1 — RuBisCo, large subunit, C-terminal domain

Domain ID domain_id	d1uzhk2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.9 — RuBisCO, large subunit, small (N-terminal) domain
Family Family family	d.58.9.1 — Ribulose 1,5-bisphosphate carboxylase-oxygenase

Domain ID domain_id	d1uzhm_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.73 — RuBisCO, small subunit
Superfamily Superfamily superfamily	d.73.1 — RuBisCO, small subunit
Family Family family	d.73.1.1 — RuBisCO, small subunit

Domain ID domain_id	d1uzho1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.14 — RuBisCo, C-terminal domain
Family Family family	c.1.14.1 — RuBisCo, large subunit, C-terminal domain

Domain ID domain_id	d1uzho2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.9 — RuBisCO, large subunit, small (N-terminal) domain
Family Family family	d.58.9.1 — Ribulose 1,5-bisphosphate carboxylase-oxygenase

Domain ID domain_id	d1uzhp_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.73 — RuBisCO, small subunit
Superfamily Superfamily superfamily	d.73.1 — RuBisCO, small subunit
Family Family family	d.73.1.1 — RuBisCO, small subunit

Domain ID domain_id	d1uzhr1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.14 — RuBisCo, C-terminal domain
Family Family family	c.1.14.1 — RuBisCo, large subunit, C-terminal domain

Domain ID domain_id	d1uzhr2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.9 — RuBisCO, large subunit, small (N-terminal) domain
Family Family family	d.58.9.1 — Ribulose 1,5-bisphosphate carboxylase-oxygenase

Domain ID domain_id	d1uzht_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.73 — RuBisCO, small subunit
Superfamily Superfamily superfamily	d.73.1 — RuBisCO, small subunit
Family Family family	d.73.1.1 — RuBisCO, small subunit

Domain ID domain_id	d1uzhv1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.14 — RuBisCo, C-terminal domain
Family Family family	c.1.14.1 — RuBisCo, large subunit, C-terminal domain

Domain ID domain_id	d1uzhv2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.9 — RuBisCO, large subunit, small (N-terminal) domain
Family Family family	d.58.9.1 — Ribulose 1,5-bisphosphate carboxylase-oxygenase

Domain ID domain_id	d1uzhw_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.73 — RuBisCO, small subunit
Superfamily Superfamily superfamily	d.73.1 — RuBisCO, small subunit
Family Family family	d.73.1.1 — RuBisCO, small subunit

CATH v4.4 (24 domains)

Domain ID domain_id	1uzhA01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	150 — RuBisCO large subunit, N-terminal domain

Domain ID domain_id	1uzhA02
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	110 — Ribulose bisphosphate carboxylase, large subunit, C-terminal domain

Domain ID domain_id	1uzhB01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	150 — RuBisCO large subunit, N-terminal domain

Domain ID domain_id	1uzhB02
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	110 — Ribulose bisphosphate carboxylase, large subunit, C-terminal domain

Domain ID domain_id	1uzhC00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	190 — Ribulose 1,5 Bisphosphate Carboxylase/Oxygenase
Homologous superfamily homologous superfamily	10 — Ribulose bisphosphate carboxylase, small subunit

Domain ID domain_id	1uzhE01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	150 — RuBisCO large subunit, N-terminal domain

Domain ID domain_id	1uzhE02
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	110 — Ribulose bisphosphate carboxylase, large subunit, C-terminal domain

Domain ID domain_id	1uzhF00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	190 — Ribulose 1,5 Bisphosphate Carboxylase/Oxygenase
Homologous superfamily homologous superfamily	10 — Ribulose bisphosphate carboxylase, small subunit

Domain ID domain_id	1uzhH01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	150 — RuBisCO large subunit, N-terminal domain

Domain ID domain_id	1uzhH02
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	110 — Ribulose bisphosphate carboxylase, large subunit, C-terminal domain

Domain ID domain_id	1uzhI00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	190 — Ribulose 1,5 Bisphosphate Carboxylase/Oxygenase
Homologous superfamily homologous superfamily	10 — Ribulose bisphosphate carboxylase, small subunit

Domain ID domain_id	1uzhJ00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	190 — Ribulose 1,5 Bisphosphate Carboxylase/Oxygenase
Homologous superfamily homologous superfamily	10 — Ribulose bisphosphate carboxylase, small subunit

Domain ID domain_id	1uzhK01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	150 — RuBisCO large subunit, N-terminal domain

Domain ID domain_id	1uzhK02
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	110 — Ribulose bisphosphate carboxylase, large subunit, C-terminal domain

Domain ID domain_id	1uzhM00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	190 — Ribulose 1,5 Bisphosphate Carboxylase/Oxygenase
Homologous superfamily homologous superfamily	10 — Ribulose bisphosphate carboxylase, small subunit

Domain ID domain_id	1uzhO01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	150 — RuBisCO large subunit, N-terminal domain

Domain ID domain_id	1uzhO02
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	110 — Ribulose bisphosphate carboxylase, large subunit, C-terminal domain

Domain ID domain_id	1uzhP00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	190 — Ribulose 1,5 Bisphosphate Carboxylase/Oxygenase
Homologous superfamily homologous superfamily	10 — Ribulose bisphosphate carboxylase, small subunit

Domain ID domain_id	1uzhR01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	150 — RuBisCO large subunit, N-terminal domain

Domain ID domain_id	1uzhR02
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	110 — Ribulose bisphosphate carboxylase, large subunit, C-terminal domain

Domain ID domain_id	1uzhT00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	190 — Ribulose 1,5 Bisphosphate Carboxylase/Oxygenase
Homologous superfamily homologous superfamily	10 — Ribulose bisphosphate carboxylase, small subunit

Domain ID domain_id	1uzhV01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	150 — RuBisCO large subunit, N-terminal domain

Domain ID domain_id	1uzhV02
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	110 — Ribulose bisphosphate carboxylase, large subunit, C-terminal domain

Domain ID domain_id	1uzhW00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	190 — Ribulose 1,5 Bisphosphate Carboxylase/Oxygenase
Homologous superfamily homologous superfamily	10 — Ribulose bisphosphate carboxylase, small subunit

▶

Unit-cell length a length_a	220.820 Å
Unit-cell length b length_b	223.969 Å
Unit-cell length c length_c	111.752 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	32

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	2.200 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	0.1620
R_work r_work	0.1600
R_free r_free	0.1930

A CHIMERIC CHLAMYDOMONAS, SYNECHOCOCCUS RUBISCO ENZYME

1. Protein Identity and Related Structures Protein Identity & Related Structures

RIBULOSE BISPHOSPHATE CARBOXYLASE LARGE CHAIN

State in the Current Structure

Other States of the Same Protein in the Database

RIBULOSE BISPHOSPHATE CARBOXYLASE SMALL CHAIN 2, RIBULOSE BISPHOSPHATE CARBOXYLASE SMALL CHAIN

State in the Current Structure

Other States of the Same Protein in the Database

RIBULOSE BISPHOSPHATE CARBOXYLASE SMALL CHAIN 2, RIBULOSE BISPHOSPHATE CARBOXYLASE SMALL CHAIN

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1uzh__assembly_1__model_1

1uzh__assembly_1__model_1 | I(q)

1uzh__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 polymer

Polymer Polymer

Source Source

Entity 3 Entity 3 non-polymer

Source Source

Entity 4 Entity 4 non-polymer

Entity 5 Entity 5 non-polymer

Entity 6 Entity 6 water

6. Fold Classification (SCOP + CATH) 48 domains

SCOP 2.08 (24 domains)

CATH v4.4 (24 domains)

7. Citations (1)

A CHIMERIC CHLAMYDOMONAS, SYNECHOCOCCUS RUBISCO ENZYME

1. Protein Identity and Related Structures Protein Identity & Related Structures

RIBULOSE BISPHOSPHATE CARBOXYLASE LARGE CHAIN

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

RIBULOSE BISPHOSPHATE CARBOXYLASE SMALL CHAIN 2, RIBULOSE BISPHOSPHATE CARBOXYLASE SMALL CHAIN

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

RIBULOSE BISPHOSPHATE CARBOXYLASE SMALL CHAIN 2, RIBULOSE BISPHOSPHATE CARBOXYLASE SMALL CHAIN

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1uzh__assembly_1__model_1

1uzh__assembly_1__model_1 | I(q)

1uzh__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 polymer

Polymer Polymer

Source Source

Entity 3 Entity 3 non-polymer

Source Source

Entity 4 Entity 4 non-polymer

Entity 5 Entity 5 non-polymer

Entity 6 Entity 6 water

6. Fold Classification (SCOP + CATH) 48 domains

SCOP 2.08 (24 domains)

CATH v4.4 (24 domains)

7. Citations (1)
