1rsc

STRUCTURE OF AN EFFECTOR INDUCED INACTIVATED STATE OF RIBULOSE BISPHOSPHATE CARBOXYLASE(SLASH)OXYGENASE: THE BINARY COMPLEX BETWEEN ENZYME AND XYLULOSE BISPHOSPHATE

Method: X-RAY DIFFRACTION D_max: 141.5 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

RIBULOSE 1,5 BISPHOSPHATE CARBOXYLASE/OXYGENASE (LARGE CHAIN)

Synechococcus elongatus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 16 PDB declaration: hexadecameric（16） Consistent with protein copy count	Chain A； UniProt 1–472 Chain B； UniProt 1–472 Chain C； UniProt 1–472 Chain D； UniProt 1–472 Chain E； UniProt 1–472 Chain F； UniProt 1–472 Chain G； UniProt 1–472 Chain H； UniProt 1–472	Not recorded	RIBULOSE 1,5 BISPHOSPHATE CARBOXYLASE/OXYGENASE (SMALL CHAIN) × 8 （P04716） XBP XYLULOSE-1,5-BISPHOSPHATE × 8	X-RAY DIFFRACTION mmCIF provides none of the parsed experimental conditions	Resolution 2.30 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1RSC	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1RBL STRUCTURE DETERMINATION AND REFINEMENT OF RIBULOSE 1,5 BISPHOSPHATE CARBOXYLASE(SLASH)OXYGENASE FROM SYNECHOCOCCUS PCC6301 Deposited 1993-05-12	Different construct Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain A 6–472（467 aa） Chain B 6–472（467 aa） Chain C 6–472（467 aa） Chain D 6–472（467 aa） Chain E 6–472（467 aa） Chain F 6–472（467 aa） Chain G 6–472（467 aa） Chain H 6–472（467 aa）	Not recorded	MG MAGNESIUM ION × 8 CAP 2-CARBOXYARABINITOL-1,5-DIPHOSPHATE × 8 FMT FORMIC ACID × 8	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.20 Å
2WVW Cryo-EM structure of the RbcL-RbcX complex Deposited 2009-10-20	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 24 PDB declaration: 24-meric	Chain A 1–472（472 aa） Chain B 1–472（472 aa） Chain C 1–472（472 aa） Chain D 1–472（472 aa） Chain E 1–472（472 aa） Chain F 1–472（472 aa） Chain G 1–472（472 aa） Chain H 1–472（472 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 20 MM TRIS-HCL, PH 8.7；pH 8.7；20 MM TRIS-HCL, PH 8.7 cryo-EM vitrification conditions Cryogen ETHANE；VITROBOT USED, LIQUID ETHANE	Resolution 9.00 Å
3RG6 Crystal structure of a chaperone-bound assembly intermediate of form I Rubisco Deposited 2011-04-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 24 PDB declaration: 24-meric	Chain A 1–472（472 aa） Chain B 1–472（472 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8.7；277 K；15-17 % 2-methyl-2,4-pentanediol, 0.1 M KCl, 0.1 M Tris-HCl, pH 8.7, vapor diffusion, temperature 277K	Resolution 3.20 Å R-free 0.245
8ILB The complexes of RbcL, AtRaf1 and AtBSD2 (LFB) Deposited 2023-03-03	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric	Chain A 1–472（472 aa） Chain B 1–472（472 aa） Chain C 1–472（472 aa） Chain D 1–472（472 aa） Chain J 1–472（472 aa） Chain K 1–472（472 aa） Chain L 1–472（472 aa） Chain M 1–472（472 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
8ILM The cryo-EM structure of eight Rubisco large subunits (RbcL), two Arabidopsis thaliana Rubisco accumulation factors 1 (AtRaf1), and seven Arabidopsis thaliana Bundle Sheath Defective 2 (AtBSD2) Deposited 2023-03-03	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: nonadecameric	Chain A 1–472（472 aa） Chain B 1–472（472 aa） Chain F 1–472（472 aa） Chain G 1–472（472 aa） Chain H 1–472（472 aa） Chain I 1–472（472 aa） Chain J 1–472（472 aa） Chain K 1–472（472 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
8IO2 The Rubisco assembly intermidate of Arabidopsis thaliana Rubisco accumulation factor 1 (AtRaf1) and Rubisco large subunit (RbcL) Deposited 2023-03-10	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 17 PDB declaration: heptadecameric	Chain A 2–472（471 aa） Chain B 2–472（471 aa） Chain C 2–472（471 aa） Chain D 2–472（471 aa） Chain E 2–472（471 aa） Chain F 2–472（471 aa） Chain G 2–472（471 aa） Chain H 2–472（471 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
8IOJ The Rubisco assembly intermidiate of Rubisco large subunit (RbcL) and Arabidopsis thaliana Rubisco accumulation factor 1 (AtRaf1) Deposited 2023-03-11	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 15 PDB declaration: pentadecameric	Chain A 1–472（472 aa） Chain B 1–472（472 aa） Chain C 1–472（472 aa） Chain D 1–472（472 aa） Chain H 1–472（472 aa） Chain I 1–472（472 aa） Chain J 1–472（472 aa） Chain K 1–472（472 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.10 Å
8IOL The complex of Rubisco large subunit (RbcL) Deposited 2023-03-11	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 8 PDB declaration: octameric	Chain A 1–472（472 aa） Chain B 1–472（472 aa） Chain C 1–472（472 aa） Chain D 1–472（472 aa） Chain E 1–472（472 aa） Chain F 1–472（472 aa） Chain G 1–472（472 aa） Chain H 1–472（472 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å

8 other PDB entries and 8 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	RBL_SYNP6
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–472； UniProt 1–472 Author chain B； PDBConstruct 1–472； UniProt 1–472 Author chain C； PDBConstruct 1–472； UniProt 1–472 Author chain D； PDBConstruct 1–472； UniProt 1–472 Author chain E； PDBConstruct 1–472； UniProt 1–472 Author chain F； PDBConstruct 1–472； UniProt 1–472 Author chain G； PDBConstruct 1–472； UniProt 1–472 Author chain H； PDBConstruct 1–472； UniProt 1–472

RIBULOSE 1,5 BISPHOSPHATE CARBOXYLASE/OXYGENASE (SMALL CHAIN)

Synechococcus elongatus

UniProt P04716

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 16 PDB declaration: hexadecameric（16） Consistent with protein copy count	Chain I； UniProt 1–110 Chain J； UniProt 1–110 Chain K； UniProt 1–110 Chain L； UniProt 1–110 Chain M； UniProt 1–110 Chain N； UniProt 1–110 Chain O； UniProt 1–110 Chain P； UniProt 1–110	Not recorded	RIBULOSE 1,5 BISPHOSPHATE CARBOXYLASE/OXYGENASE (LARGE CHAIN) × 8 （P00880） XBP XYLULOSE-1,5-BISPHOSPHATE × 8	X-RAY DIFFRACTION mmCIF provides none of the parsed experimental conditions	Resolution 2.30 Å

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 1RSC	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1RBL STRUCTURE DETERMINATION AND REFINEMENT OF RIBULOSE 1,5 BISPHOSPHATE CARBOXYLASE(SLASH)OXYGENASE FROM SYNECHOCOCCUS PCC6301 Deposited 1993-05-12	Different construct Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain I 1–109（109 aa） Chain J 1–109（109 aa） Chain K 1–109（109 aa） Chain L 1–109（109 aa） Chain M 1–109（109 aa） Chain N 1–109（109 aa） Chain O 1–109（109 aa） Chain P 1–109（109 aa）	Not recorded	MG MAGNESIUM ION × 8 CAP 2-CARBOXYARABINITOL-1,5-DIPHOSPHATE × 8 FMT FORMIC ACID × 8	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.20 Å
1UZH A CHIMERIC CHLAMYDOMONAS, SYNECHOCOCCUS RUBISCO ENZYME Deposited 2004-03-12	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain C 46–52（7 aa） Chain F 47–53（7 aa） Chain I 47–53（7 aa） Chain J 47–53（7 aa） Chain M 47–53（7 aa） Chain P 47–53（7 aa） Chain T 47–53（7 aa） Chain W 47–53（7 aa）	Not recorded	MG MAGNESIUM ION × 8 CAP 2-CARBOXYARABINITOL-1,5-DIPHOSPHATE × 8 EDO 1,2-ETHANEDIOL × 50	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；291 K；50 MM HEPES PH 7.5, 8-12% PEG 4 50 MM NAHCO3, 5 MM MGCL2, 50 UM 2-CABP, 18 DEG C, 10-15 MG PROTEIN	Resolution 2.20 Å R-free 0.193
9FWV Rubisco in native beta-carboxysomes Deposited 2024-07-01	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: 20-meric	Chain D 8–108（101 aa） Chain E 8–108（101 aa） Chain K 8–108（101 aa） Chain L 8–108（101 aa） Chain M 8–108（101 aa） Chain N 8–108（101 aa） Chain O 8–108（101 aa） Chain P 8–108（101 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å

3 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	RBS_SYNP6
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain I； PDBConstruct 2–111； UniProt 1–110 Author chain J； PDBConstruct 2–111； UniProt 1–110 Author chain K； PDBConstruct 2–111； UniProt 1–110 Author chain L； PDBConstruct 2–111； UniProt 1–110 Author chain M； PDBConstruct 2–111； UniProt 1–110 Author chain N； PDBConstruct 2–111； UniProt 1–110 Author chain O； PDBConstruct 2–111； UniProt 1–110 Author chain P； PDBConstruct 2–111； UniProt 1–110

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

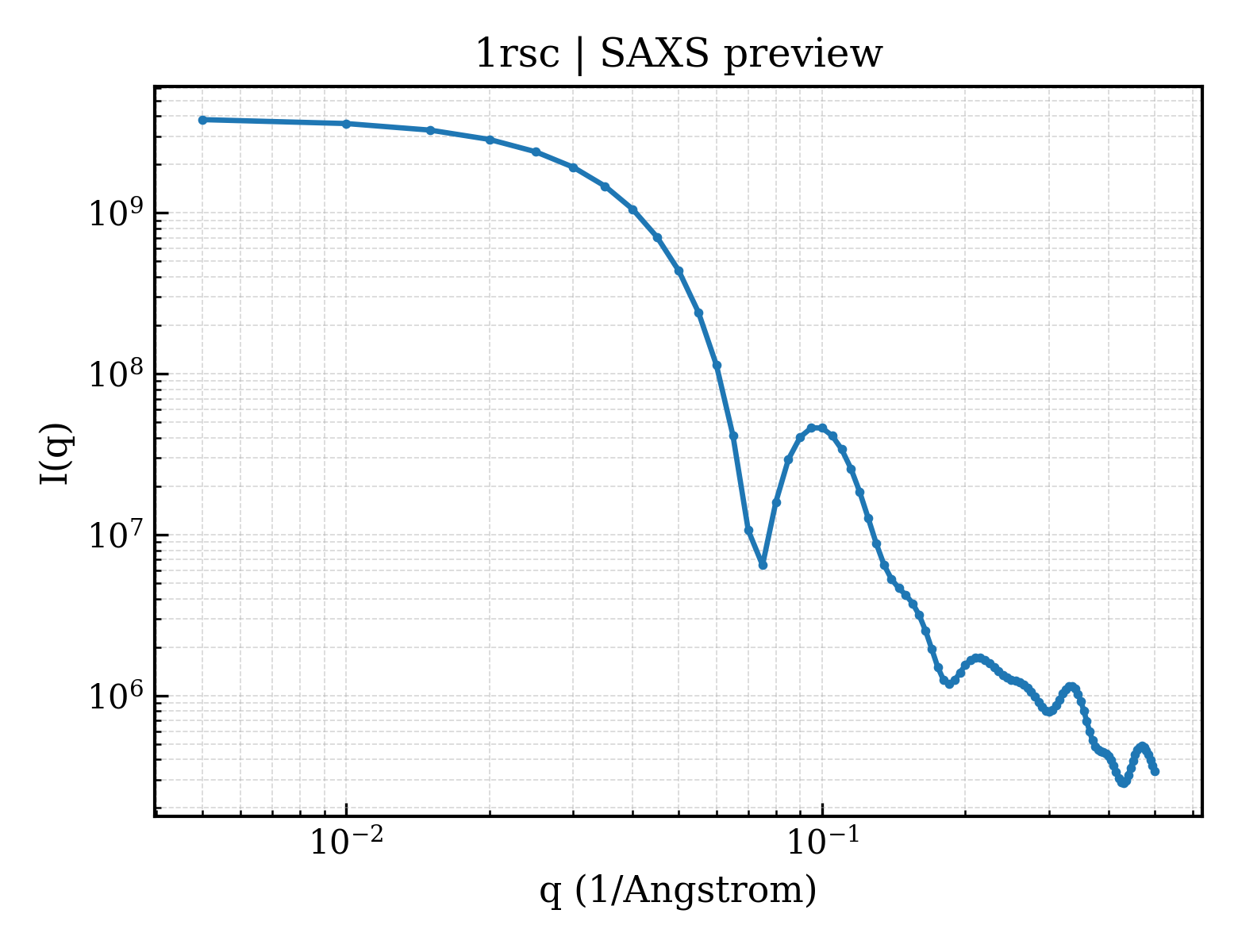

SAXS scattering curve SAXS Profile

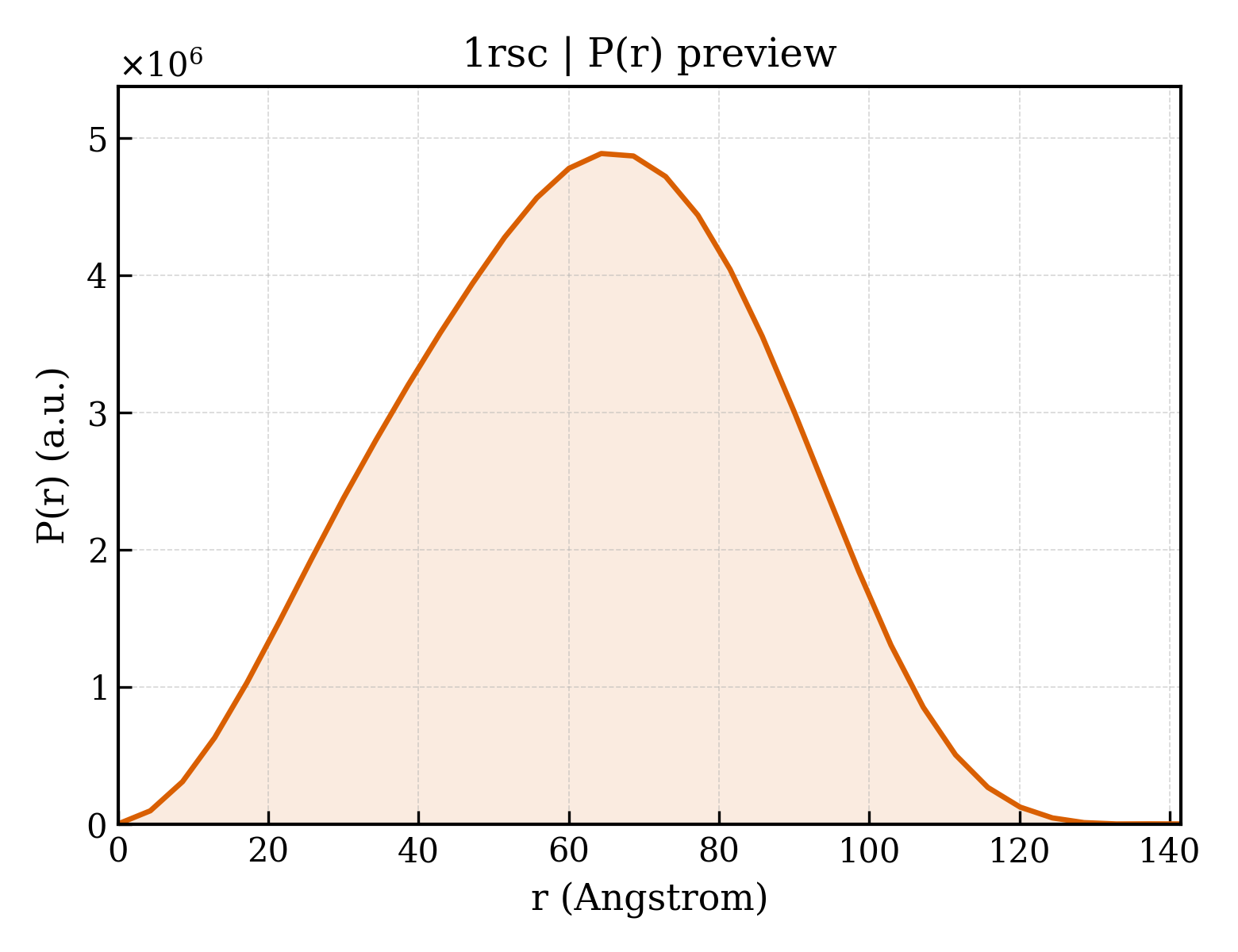

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1rsc
Deposition date deposition_date	1994-03-29
Structure title title	STRUCTURE OF AN EFFECTOR INDUCED INACTIVATED STATE OF RIBULOSE BISPHOSPHATE CARBOXYLASE(SLASH)OXYGENASE: THE BINARY COMPLEX BETWEEN ENZYME AND XYLULOSE BISPHOSPHATE
Keywords keywords	LYASE (CARBON-CARBON); LYASE (CARBON-CARBON)
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	47.55 Å
Radius of gyration Rg (electron density) rg_electron	46.65 Å
Forward intensity I(0) i0	3869200000.00
Molecular weight molecular_weight	520040.0 kDa
Excluded volume excluded_volume	648790 Å³
Envelope volume envelope_volume	787660 Å³
Hydration-shell volume shell_volume	127090 Å³
Envelope diameter envelope_diameter	142.6 Å
Shell Rg shell_rg	60.11 Å
Envelope Rg envelope_rg	46.18 Å
Shape Rg shape_rg	46.67 Å
Total Rg total_rg	46.92 Å
Total atoms total_atoms	36640
Residues n_residues	4608
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	141.5 Å
Rg (real space) rg_real	47.05 Å
Rg uncertainty (real space) rg_real_error	0.79 Å
I(0) (real space) i0_real	3.8690e+09
I(0) uncertainty (real space) i0_real_error	6.2190e+07
Rg (reciprocal space) rg_reciprocal	47.55 Å
I(0) (reciprocal space) i0_reciprocal	3872000000.0000
Solution quality estimate total_estimate	0.8879
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	64.3 Å
Skewness Skewness skewness	-0.052
Kurtosis Kurtosis kurtosis	-0.578
Angular range angular_range	— – 0.1650 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1376000000.0000
Real-space data points n_real_points	34
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.900; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.938; Smooth: 0.900

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	RIBULOSE 1,5 BISPHOSPHATE CARBOXYLASE/OXYGENASE (LARGE CHAIN)
Molecular weight formula_weight	52516.6 kDa
EC 编号 ec_number	4.1.1.39
Source method src_method	man
Copy count entity_count	8

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H
Atom count atom_count	36846

MPKTQSAAGYKAGVKDYKLTYYTPDYTPKDTDLLAAFRFSPQPGVPADEAGAAIAAESSTGTWTTVWTDLLTDMDRYKGKCYHIEPVQGEENSYFAFIAYPLDLFEEGSVTNILTSIVGNVFGFKAIRSLRLEDIRFPVALVKTFQGPPHGIQVERDLLNKYGRPMLGCTIKPKLGLSAKNYGRAVYECLRGGLDFTKDDENINSQPFQRWRDRFLFVADAIHKSQAETGEIKGHYLNVTAPTCEEMMKRAEFAKELGMPIIMHDFLTAGFTANTTLAKWCRDNGVLLHIHRAMHAVIDRQRNHGIHFRVLAKCLRLSGGDHLHSGTVVGKLEGDKASTLGFVDLMREDHIEADRSRGVFFTQDWASMPGVLPVASGGIHVWHMPALVEIFGDDSVLQFGGGTLGHPWGNAPGATANRVALEACVQARNEGRDLYREGGDILREAGKWSPELAAALDLWKEIKFEFETMDKL

来源 Source

来源生物 organism	Synechococcus elongatus
NCBI Class编号 ncbi_taxonomy_id	269084

Entity 2 Entity 2 polymer

Description description	RIBULOSE 1,5 BISPHOSPHATE CARBOXYLASE/OXYGENASE (SMALL CHAIN)
Molecular weight formula_weight	13350.2 kDa
EC 编号 ec_number	4.1.1.39
Source method src_method	man
Copy count entity_count	8

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	M,I,N,J,O,K,P,L

MSMKTLPKERRFETFSYLPPLSDRQIAAQIEYMIEQGFHPLIEFNEHSNPEEFYWTMWKLPLFDCKSPQQVLDEVRECRSEYGDCYIRVAGFDNIKECQTVSFIVHRPGRY

来源 Source

来源生物 organism	Synechococcus elongatus
NCBI Class编号 ncbi_taxonomy_id	269084

Entity 3 Entity 3 non-polymer

Description description	XYLULOSE-1,5-BISPHOSPHATE
Molecular weight formula_weight	310.1 kDa
Source method src_method	man
Copy count entity_count	8

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	206

▼

7. Fold Classification (SCOP + CATH) 48 domains

SCOP 2.08 (24 domains)

Domain ID domain_id	d1rsca1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.14 — RuBisCo, C-terminal domain
Family Family family	c.1.14.1 — RuBisCo, large subunit, C-terminal domain

Domain ID domain_id	d1rsca2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.9 — RuBisCO, large subunit, small (N-terminal) domain
Family Family family	d.58.9.1 — Ribulose 1,5-bisphosphate carboxylase-oxygenase

Domain ID domain_id	d1rscb1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.14 — RuBisCo, C-terminal domain
Family Family family	c.1.14.1 — RuBisCo, large subunit, C-terminal domain

Domain ID domain_id	d1rscb2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.9 — RuBisCO, large subunit, small (N-terminal) domain
Family Family family	d.58.9.1 — Ribulose 1,5-bisphosphate carboxylase-oxygenase

Domain ID domain_id	d1rscc1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.14 — RuBisCo, C-terminal domain
Family Family family	c.1.14.1 — RuBisCo, large subunit, C-terminal domain

Domain ID domain_id	d1rscc2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.9 — RuBisCO, large subunit, small (N-terminal) domain
Family Family family	d.58.9.1 — Ribulose 1,5-bisphosphate carboxylase-oxygenase

Domain ID domain_id	d1rscd1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.14 — RuBisCo, C-terminal domain
Family Family family	c.1.14.1 — RuBisCo, large subunit, C-terminal domain

Domain ID domain_id	d1rscd2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.9 — RuBisCO, large subunit, small (N-terminal) domain
Family Family family	d.58.9.1 — Ribulose 1,5-bisphosphate carboxylase-oxygenase

Domain ID domain_id	d1rsce1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.14 — RuBisCo, C-terminal domain
Family Family family	c.1.14.1 — RuBisCo, large subunit, C-terminal domain

Domain ID domain_id	d1rsce2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.9 — RuBisCO, large subunit, small (N-terminal) domain
Family Family family	d.58.9.1 — Ribulose 1,5-bisphosphate carboxylase-oxygenase

Domain ID domain_id	d1rscf1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.14 — RuBisCo, C-terminal domain
Family Family family	c.1.14.1 — RuBisCo, large subunit, C-terminal domain

Domain ID domain_id	d1rscf2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.9 — RuBisCO, large subunit, small (N-terminal) domain
Family Family family	d.58.9.1 — Ribulose 1,5-bisphosphate carboxylase-oxygenase

Domain ID domain_id	d1rscg1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.14 — RuBisCo, C-terminal domain
Family Family family	c.1.14.1 — RuBisCo, large subunit, C-terminal domain

Domain ID domain_id	d1rscg2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.9 — RuBisCO, large subunit, small (N-terminal) domain
Family Family family	d.58.9.1 — Ribulose 1,5-bisphosphate carboxylase-oxygenase

Domain ID domain_id	d1rsch1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.14 — RuBisCo, C-terminal domain
Family Family family	c.1.14.1 — RuBisCo, large subunit, C-terminal domain

Domain ID domain_id	d1rsch2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.9 — RuBisCO, large subunit, small (N-terminal) domain
Family Family family	d.58.9.1 — Ribulose 1,5-bisphosphate carboxylase-oxygenase

Domain ID domain_id	d1rsci_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.73 — RuBisCO, small subunit
Superfamily Superfamily superfamily	d.73.1 — RuBisCO, small subunit
Family Family family	d.73.1.1 — RuBisCO, small subunit

Domain ID domain_id	d1rscj_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.73 — RuBisCO, small subunit
Superfamily Superfamily superfamily	d.73.1 — RuBisCO, small subunit
Family Family family	d.73.1.1 — RuBisCO, small subunit

Domain ID domain_id	d1rsck_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.73 — RuBisCO, small subunit
Superfamily Superfamily superfamily	d.73.1 — RuBisCO, small subunit
Family Family family	d.73.1.1 — RuBisCO, small subunit

Domain ID domain_id	d1rscl_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.73 — RuBisCO, small subunit
Superfamily Superfamily superfamily	d.73.1 — RuBisCO, small subunit
Family Family family	d.73.1.1 — RuBisCO, small subunit

Domain ID domain_id	d1rscm_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.73 — RuBisCO, small subunit
Superfamily Superfamily superfamily	d.73.1 — RuBisCO, small subunit
Family Family family	d.73.1.1 — RuBisCO, small subunit

Domain ID domain_id	d1rscn_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.73 — RuBisCO, small subunit
Superfamily Superfamily superfamily	d.73.1 — RuBisCO, small subunit
Family Family family	d.73.1.1 — RuBisCO, small subunit

Domain ID domain_id	d1rsco_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.73 — RuBisCO, small subunit
Superfamily Superfamily superfamily	d.73.1 — RuBisCO, small subunit
Family Family family	d.73.1.1 — RuBisCO, small subunit

Domain ID domain_id	d1rscp_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.73 — RuBisCO, small subunit
Superfamily Superfamily superfamily	d.73.1 — RuBisCO, small subunit
Family Family family	d.73.1.1 — RuBisCO, small subunit

CATH v4.4 (24 domains)

Domain ID domain_id	1rscA01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	150 — RuBisCO large subunit, N-terminal domain

Domain ID domain_id	1rscA02
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	110 — Ribulose bisphosphate carboxylase, large subunit, C-terminal domain

Domain ID domain_id	1rscB01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	150 — RuBisCO large subunit, N-terminal domain

Domain ID domain_id	1rscB02
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	110 — Ribulose bisphosphate carboxylase, large subunit, C-terminal domain

Domain ID domain_id	1rscC01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	150 — RuBisCO large subunit, N-terminal domain

Domain ID domain_id	1rscC02
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	110 — Ribulose bisphosphate carboxylase, large subunit, C-terminal domain

Domain ID domain_id	1rscD01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	150 — RuBisCO large subunit, N-terminal domain

Domain ID domain_id	1rscD02
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	110 — Ribulose bisphosphate carboxylase, large subunit, C-terminal domain

Domain ID domain_id	1rscE01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	150 — RuBisCO large subunit, N-terminal domain

Domain ID domain_id	1rscE02
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	110 — Ribulose bisphosphate carboxylase, large subunit, C-terminal domain

Domain ID domain_id	1rscF01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	150 — RuBisCO large subunit, N-terminal domain

Domain ID domain_id	1rscF02
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	110 — Ribulose bisphosphate carboxylase, large subunit, C-terminal domain

Domain ID domain_id	1rscG01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	150 — RuBisCO large subunit, N-terminal domain

Domain ID domain_id	1rscG02
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	110 — Ribulose bisphosphate carboxylase, large subunit, C-terminal domain

Domain ID domain_id	1rscH01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	150 — RuBisCO large subunit, N-terminal domain

Domain ID domain_id	1rscH02
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	110 — Ribulose bisphosphate carboxylase, large subunit, C-terminal domain

Domain ID domain_id	1rscI00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	190 — Ribulose 1,5 Bisphosphate Carboxylase/Oxygenase
Homologous superfamily homologous superfamily	10 — Ribulose bisphosphate carboxylase, small subunit

Domain ID domain_id	1rscJ00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	190 — Ribulose 1,5 Bisphosphate Carboxylase/Oxygenase
Homologous superfamily homologous superfamily	10 — Ribulose bisphosphate carboxylase, small subunit

Domain ID domain_id	1rscK00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	190 — Ribulose 1,5 Bisphosphate Carboxylase/Oxygenase
Homologous superfamily homologous superfamily	10 — Ribulose bisphosphate carboxylase, small subunit

Domain ID domain_id	1rscL00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	190 — Ribulose 1,5 Bisphosphate Carboxylase/Oxygenase
Homologous superfamily homologous superfamily	10 — Ribulose bisphosphate carboxylase, small subunit

Domain ID domain_id	1rscM00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	190 — Ribulose 1,5 Bisphosphate Carboxylase/Oxygenase
Homologous superfamily homologous superfamily	10 — Ribulose bisphosphate carboxylase, small subunit

Domain ID domain_id	1rscN00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	190 — Ribulose 1,5 Bisphosphate Carboxylase/Oxygenase
Homologous superfamily homologous superfamily	10 — Ribulose bisphosphate carboxylase, small subunit

Domain ID domain_id	1rscO00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	190 — Ribulose 1,5 Bisphosphate Carboxylase/Oxygenase
Homologous superfamily homologous superfamily	10 — Ribulose bisphosphate carboxylase, small subunit

Domain ID domain_id	1rscP00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	190 — Ribulose 1,5 Bisphosphate Carboxylase/Oxygenase
Homologous superfamily homologous superfamily	10 — Ribulose bisphosphate carboxylase, small subunit

▶

8. Citations (4)

▶

Unit-cell length a length_a	224.400 Å
Unit-cell length b length_b	112.600 Å
Unit-cell length c length_c	200.300 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	32

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	0.2550
R_work r_work	0.2550
R_free r_free	—

STRUCTURE OF AN EFFECTOR INDUCED INACTIVATED STATE OF RIBULOSE BISPHOSPHATE CARBOXYLASE(SLASH)OXYGENASE: THE BINARY COMPLEX BETWEEN ENZYME AND XYLULOSE BISPHOSPHATE

1. Protein Identity and Related Structures Protein Identity & Related Structures

RIBULOSE 1,5 BISPHOSPHATE CARBOXYLASE/OXYGENASE (LARGE CHAIN)

State in the Current Structure

Other States of the Same Protein in the Database

RIBULOSE 1,5 BISPHOSPHATE CARBOXYLASE/OXYGENASE (SMALL CHAIN)

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 non-polymer

Entity 4 Entity 4 water

7. Fold Classification (SCOP + CATH) 48 domains

SCOP 2.08 (24 domains)

CATH v4.4 (24 domains)

8. Citations (4)

9. Files and Curves (10)

Files (7)

Curves (3)

fit	/app/data/saxs_computation/rs/1rsc/1rsc.fit
pddf	/app/data/pr_computation/rs/1rsc/1rsc.pr.out
profile	/app/data/saxs_computation/rs/1rsc/1rsc.dat
