1yew

Crystal structure of particulate methane monooxygenase

Method: X-RAY DIFFRACTION D_max: 124.0 Å Quality: GOOD

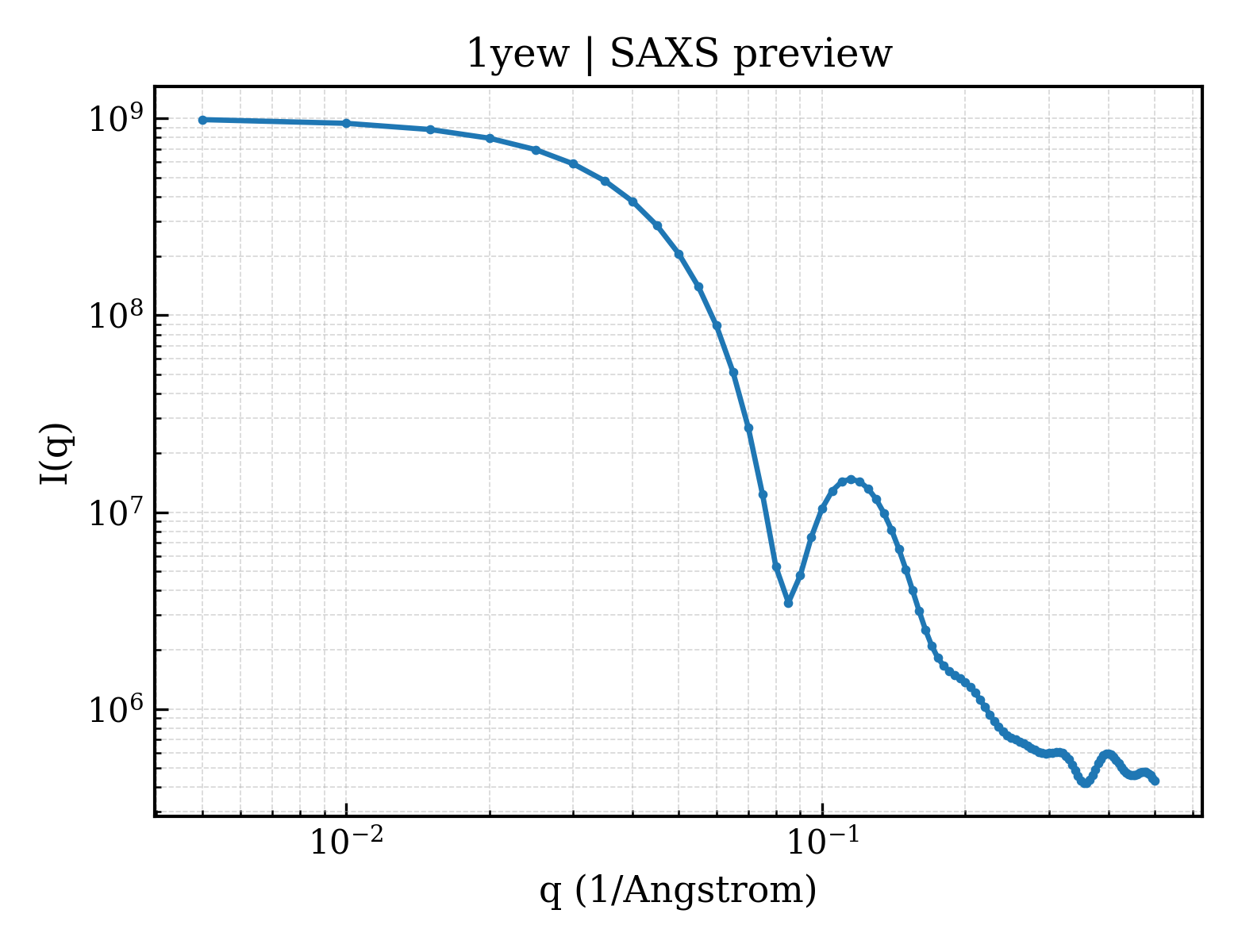

SAXS 散射曲线 SAXS Profile

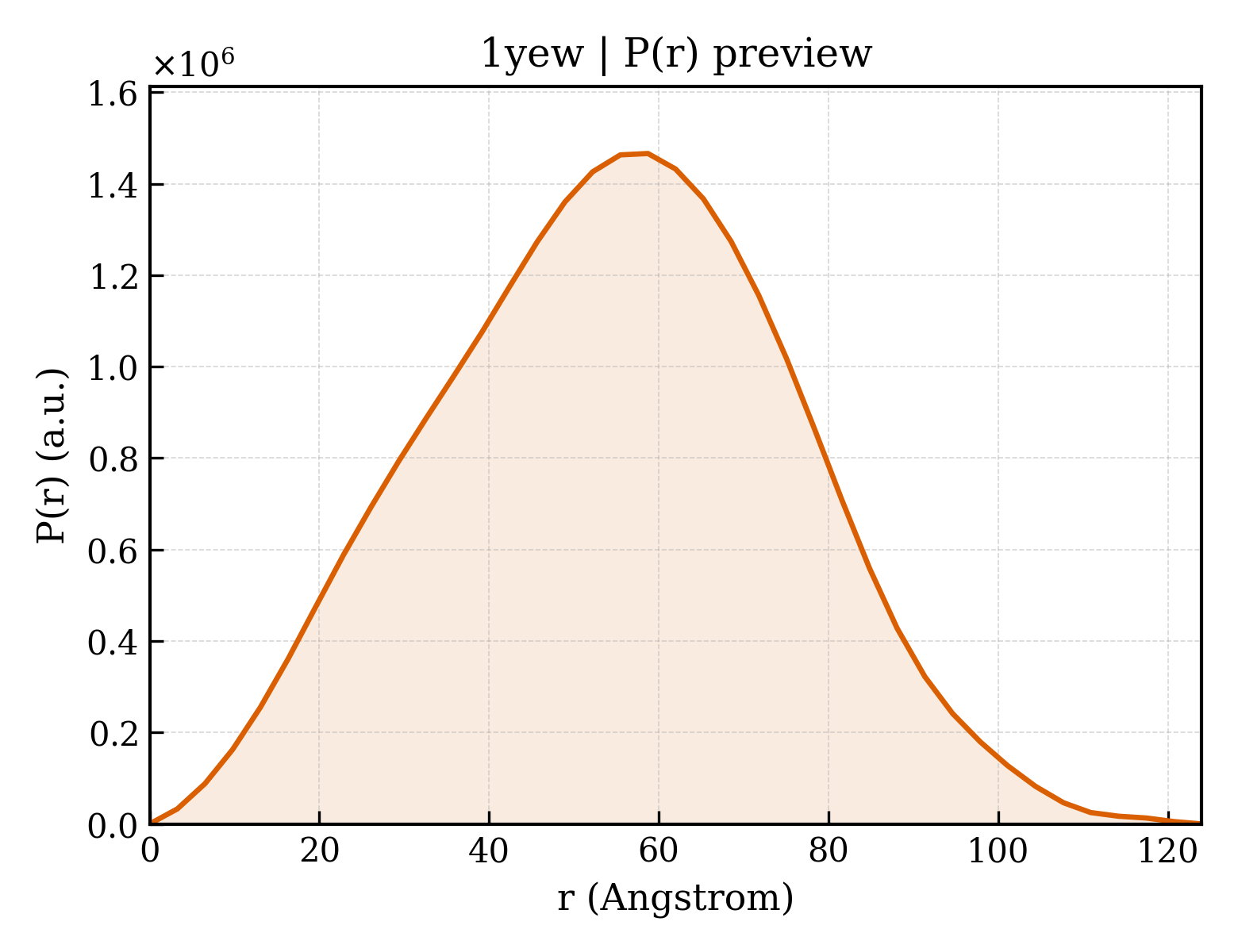

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1yew
沉积日期 deposition_date	2004-12-28
结构标题 title	Crystal structure of particulate methane monooxygenase
关键词 keywords	membrane protein, methane, beta barrel, OXIDOREDUCTASE; OXIDOREDUCTASE, MEMBRANE PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	41.66 Å
回转半径 Rg (电子) rg_electron	40.80 Å
零角强度 I(0) i0	1001440000.00
分子量 molecular_weight	279540.0 kDa
排除体积 excluded_volume	356120 Å³
包络体积 envelope_volume	453210 Å³
水化壳体积 shell_volume	87613 Å³
包络直径 envelope_diameter	129.8 Å
壳层 Rg shell_rg	50.35 Å
包络 Rg envelope_rg	39.85 Å
形状 Rg shape_rg	40.77 Å
总 Rg total_rg	41.36 Å
总原子数 total_atoms	19772
残基数 n_residues	2424
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	124.0 Å
Rg (实空间) rg_real	41.37 Å
Rg 误差 (实空间) rg_real_error	0.81 Å
I(0) (实空间) i0_real	1.0010e+09
I(0) 误差 (实空间) i0_real_error	1.6650e+07
Rg (倒空间) rg_reciprocal	41.66 Å
I(0) (倒空间) i0_reciprocal	1002000000.0000
解质量估计 total_estimate	0.8839
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	58.7 Å
偏度 Skewness skewness	0.016
峰度 Kurtosis kurtosis	-0.425
角度范围 angular_range	— – 0.1900 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	188900000.0000
实空间数据点数 n_real_points	39
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.896; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.953; Smooth: 0.847

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (6)

Entity 1 polymer

描述 description	particulate methane monooxygenase, B subunit
分子量 formula_weight	42832.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,E,I
原子数 atom_count	19772

HGEKSQAAFMRMRTIHWYDLSWSKEKVKINETVEIKGKFHVFEGWPETVDEPDVAFLNVGMPGPVFIRKESYIGGQLVPRSVRLEIGKTYDFRVVLKARRPGDWHVHTMMNVQGGGPIIGPGKWITVEGSMSEFRNPVTTLTGQTVDLENYNEGNTYFWHAFWFAIGVAWIGYWSRRPIFIPRLLMVDAGRADELVSATDRKVAMGFLAATILIVVMAMSSANSKYPITIPLQAGTMRGMKPLELPAPTVSVKVEDATYRVPGRAMRMKLTITNHGNSPIRLGEFYTASVRFLDSDVYKDTTGYPEDLLAEDGLSVSDNSPLAPGETRTVDVTASDAAWEVYRLSDIIYDPDSRFAGLLFFFDATGNRQVVQIDAPLIPSFM

Entity 2 polymer

描述 description	particulate methane monooxygenase, A subunit
分子量 formula_weight	28445.1 kDa
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,F,J

MSAAQSAVRSHAEAVQVSRTIDWMALFVVFFVIVGSYHIHAMLTMGDWDFWSDWKDRRLWVTVTPIVLVTFPAAVQSYLWERYRLPWGATVCVLGLLLGEWINRYFNFWGWTYFPINFVFPASLVPGAIILDTVLMLSGSYLFTAIVGAMGWGLIFYPGNWPIIAPLHVPVEYNGMLMSIADIQGYNYVRTGTPEYIRMVEKGTLRTFGKDVAPVSAFFSAFMSILIYFMWHFIGRWFSNERFLQST

来源 Source

来源生物 organism	Methylococcus capsulatus
NCBI 分类编号 ncbi_taxonomy_id	243233
宿主生物 host_organism	Escherichia coli

Entity 3 polymer

描述 description	particulate methane monooxygenase subunit C2
分子量 formula_weight	33214.2 kDa
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,G,K

MHETKQGGEKRFTGAICRCSHRYNSMEVKMAATTIGGAAAAEAPLLDKKWLTFALAIYTVFYLWVRWYEGVYGWSAGLDSFAPEFETYWMNFLYTEIVLEIVTASILWGYLWKTRDRNLAALTPREELRRNFTHLVWLVAYAWAIYWGASYFTEQDGTWHQTIVRDTDFTPSHIIEFYLSYPIYIITGFAAFIYAKTRLPFFAKGISLPYLVLVVGPFMILPNVGLNEWGHTFWFMEELFVAPLHYGFVIFGWLALAVMGTLTQTFYSFAQGGLGQSLCEAVDEGLIAK

来源 Source

来源生物 organism	Methylococcus capsulatus
NCBI 分类编号 ncbi_taxonomy_id	414
宿主生物 host_organism	Escherichia coli

Entity 4 non-polymer

描述 description	COPPER (II) ION
分子量 formula_weight	63.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 5 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	8

Entity 6 non-polymer

描述 description	DINUCLEAR COPPER ION
分子量 formula_weight	127.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

▼

6. 折叠分类 (SCOP + CATH) 15 domains

CATH v4.4 (15 domains)

结构域编号 domain_id	1yewA01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	120 — Jelly Rolls
同源超家族 H-superfamily homologous superfamily	570 — Particulate methane monooxygenase, b subunit. Chain: A, domain 1

结构域编号 domain_id	1yewA02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	287 — Helix Hairpins
同源超家族 H-superfamily homologous superfamily	710 — Helix hairpin bin

结构域编号 domain_id	1yewA03
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	1580 — Particulate methane monooxygenase, b subunit. Chain: A, domain 3

结构域编号 domain_id	1yewB00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	1450 — particulate methane monooxygenase, chain B
同源超家族 H-superfamily homologous superfamily	10 — Ammonia/particulate methane monooxygenase, subunit A

结构域编号 domain_id	1yewC00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	1050 — Glutathione S-transferase Yfyf (Class Pi); Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	50 — Particulate methane monooxygenase subunit c2. Chain: C

结构域编号 domain_id	1yewE01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	120 — Jelly Rolls
同源超家族 H-superfamily homologous superfamily	570 — Particulate methane monooxygenase, b subunit. Chain: A, domain 1

结构域编号 domain_id	1yewE02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	287 — Helix Hairpins
同源超家族 H-superfamily homologous superfamily	710 — Helix hairpin bin

结构域编号 domain_id	1yewE03
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	1580 — Particulate methane monooxygenase, b subunit. Chain: A, domain 3

结构域编号 domain_id	1yewF00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	1450 — particulate methane monooxygenase, chain B
同源超家族 H-superfamily homologous superfamily	10 — Ammonia/particulate methane monooxygenase, subunit A

结构域编号 domain_id	1yewG00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	1050 — Glutathione S-transferase Yfyf (Class Pi); Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	50 — Particulate methane monooxygenase subunit c2. Chain: C

结构域编号 domain_id	1yewI01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	120 — Jelly Rolls
同源超家族 H-superfamily homologous superfamily	570 — Particulate methane monooxygenase, b subunit. Chain: A, domain 1

结构域编号 domain_id	1yewI02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	287 — Helix Hairpins
同源超家族 H-superfamily homologous superfamily	710 — Helix hairpin bin

结构域编号 domain_id	1yewI03
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	1580 — Particulate methane monooxygenase, b subunit. Chain: A, domain 3

结构域编号 domain_id	1yewJ00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	1450 — particulate methane monooxygenase, chain B
同源超家族 H-superfamily homologous superfamily	10 — Ammonia/particulate methane monooxygenase, subunit A

结构域编号 domain_id	1yewK00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	1050 — Glutathione S-transferase Yfyf (Class Pi); Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	50 — Particulate methane monooxygenase subunit c2. Chain: C

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	264.140 Å
晶胞边长 b length_b	264.140 Å
晶胞边长 c length_c	150.005 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	24

空间群 space_group	P 42 21 2
空间群编号 int_tables_number	94
晶系 crystal_system	—

分辨率 resolution	2.801 Å
最低分辨率 resolution_low	29.550 Å
R 因子 r_factor	0.2730
R_work r_work	0.2715
R_free r_free	0.3016
