Rattus norvegicus
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein monomer | Monomer | Protein 1 | water × 1 | Consistent with protein count |
| UniProt name | NR4A1_RAT |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 21–264； UniProt 354–597 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 1yje |
| Deposition date deposition_date | 2005-01-14 |
| Structure title title | Crystal structure of the rNGFI-B ligand-binding domain |
| Keywords keywords | ;NGFI-B, Nur77, Nuclear receptor, ligand-binding domain, novel coregulator interface, cell-specific, Structural Proteomics in Europe, SPINE, Structural Genomics, TRANSCRIPTION ;; TRANSCRIPTION |
| Experimental Method method | X-RAY DIFFRACTION |
This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

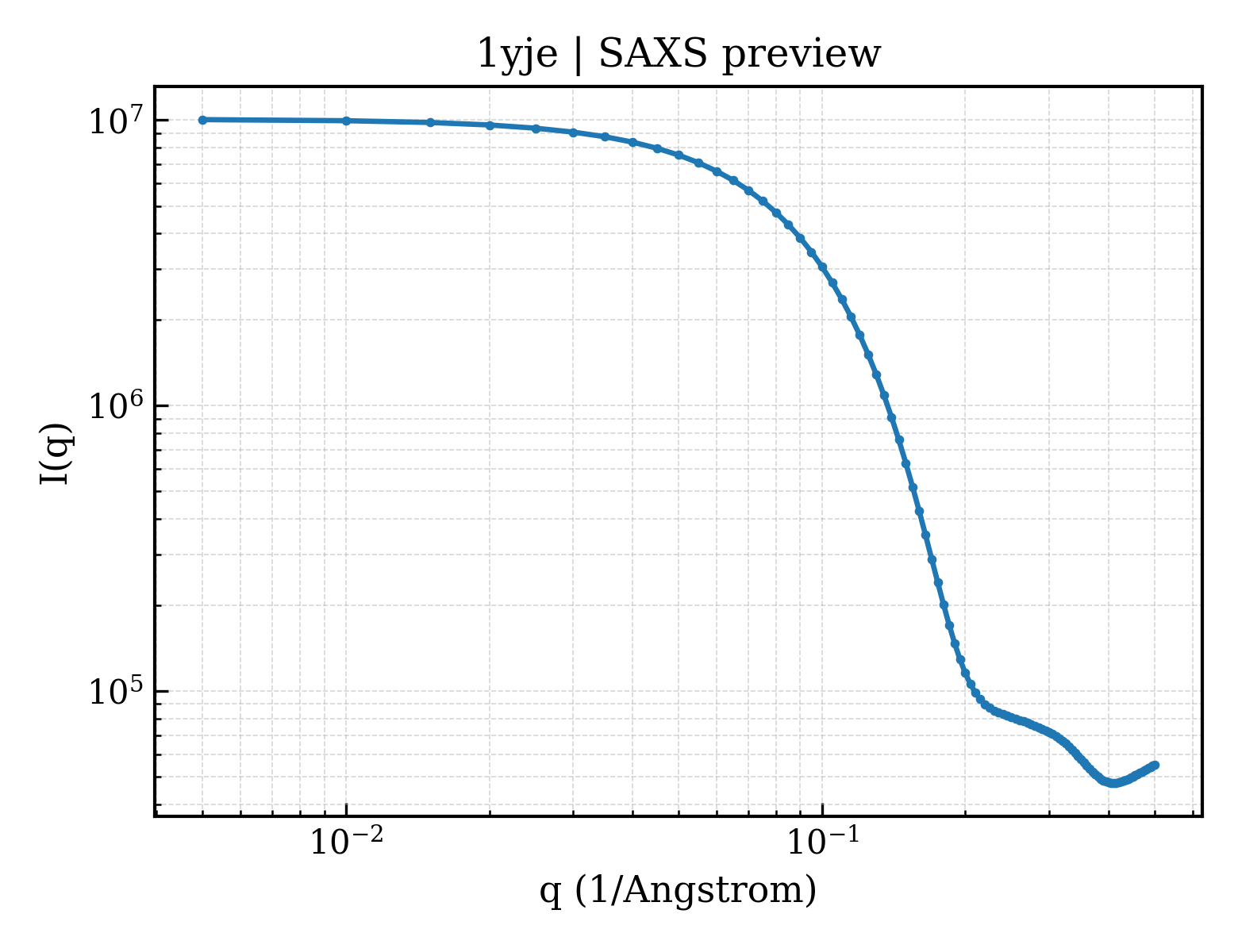

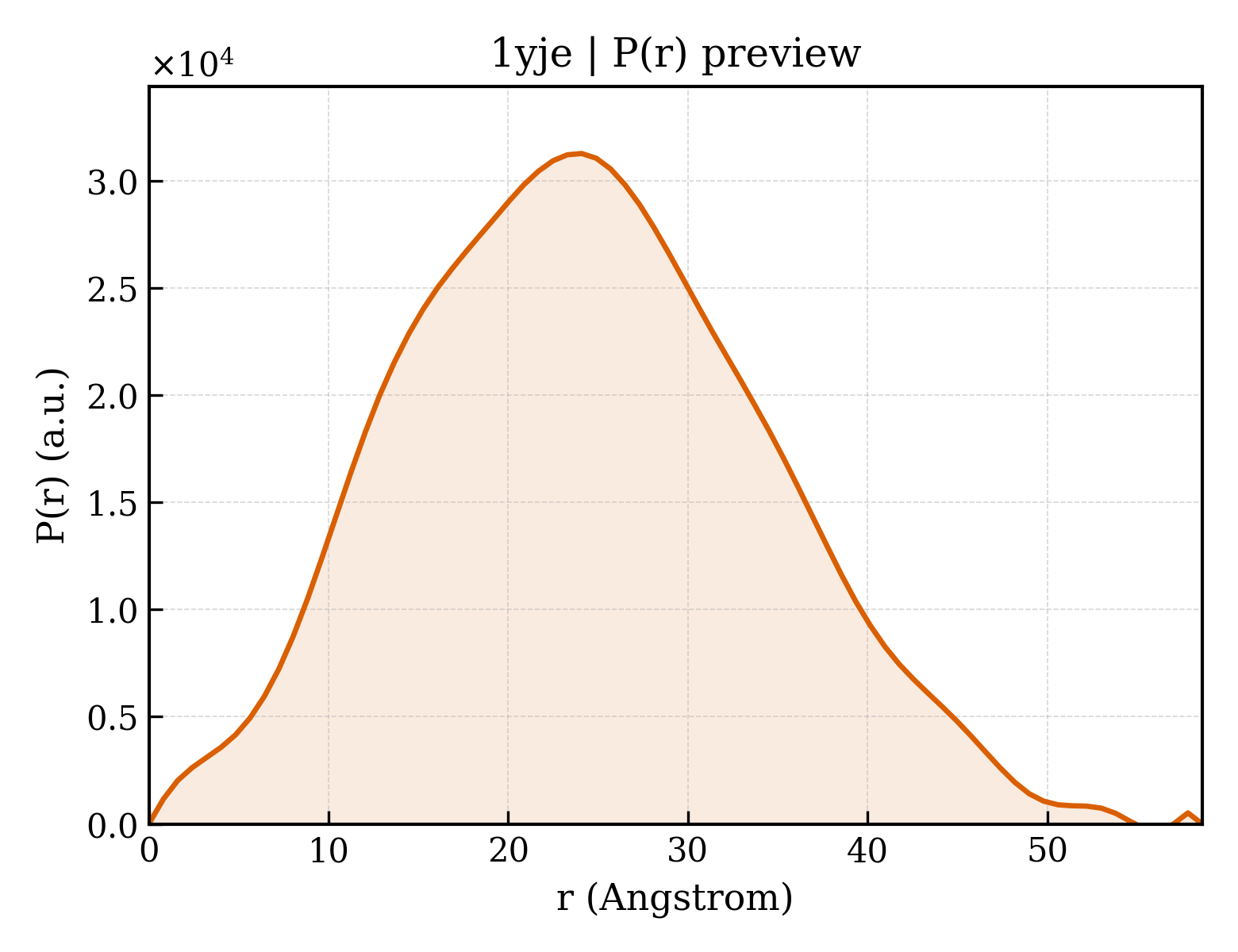

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 18.62 Å |
| Rg (electron density) | 17.44 Å |
| Total Rg | 18.44 Å |
| Atom count | 1726 |
| Residues | 226 |
| Excluded volume | 31117 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | d1yjea_ |
| Class class | a — All alpha proteins |
| Fold Fold fold | a.123 — Nuclear receptor ligand-binding domain |
| Superfamily Superfamily superfamily | a.123.1 — Nuclear receptor ligand-binding domain |
| Family Family family | a.123.1.1 — Nuclear receptor ligand-binding domain |
| Domain ID domain_id | 1yjeA00 |
| Class class | 1 — Mainly Alpha |
| Architecture architecture | 10 — Orthogonal Bundle |
| Topology topology | 565 — Retinoid X Receptor |
| Homologous superfamily homologous superfamily | 10 — Retinoid X Receptor |
