1zws

Crystal structure of the catalytic domain of human DRP-1 kinase

Method: X-RAY DIFFRACTION D_max: 256.5 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

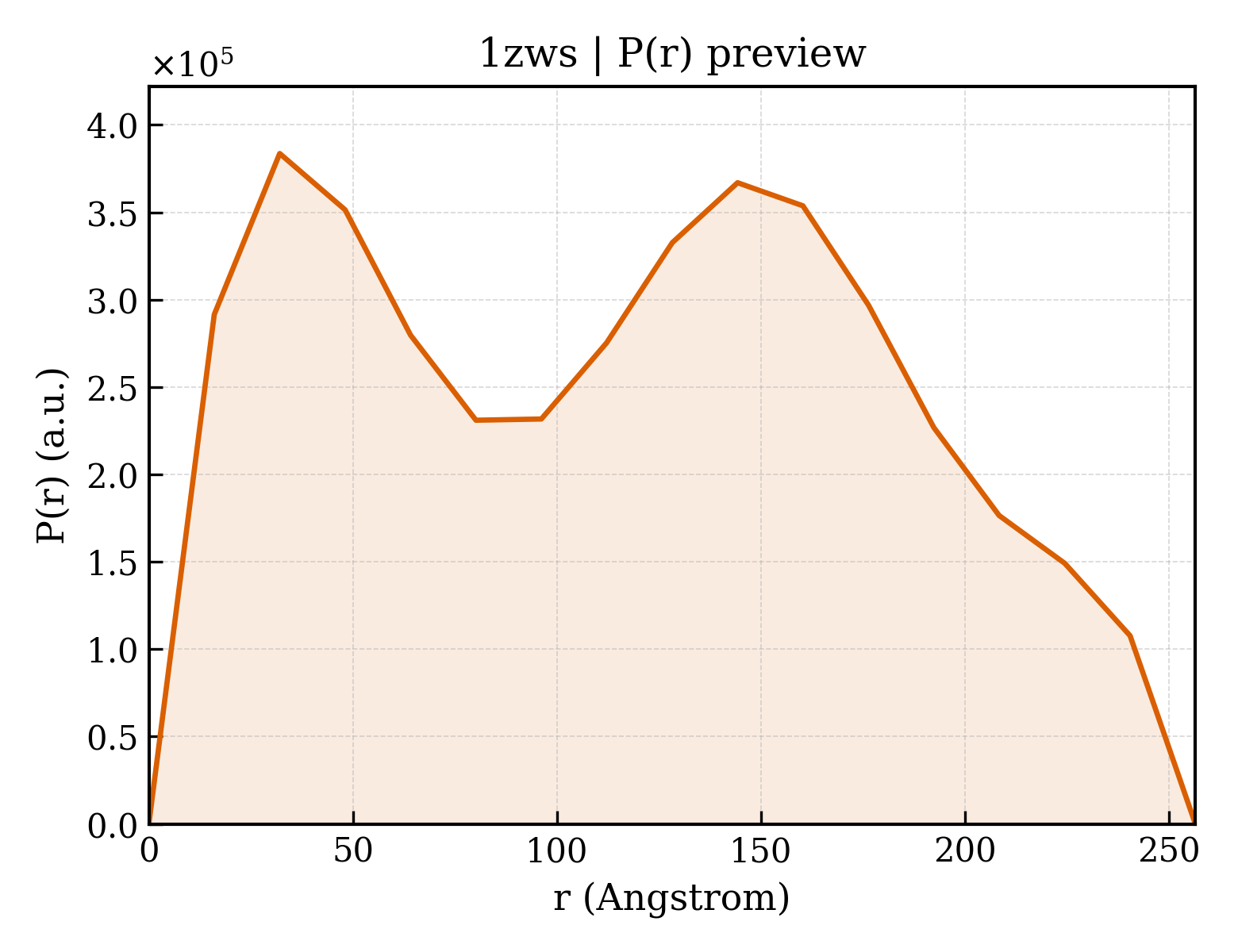

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1zws
沉积日期 deposition_date	2005-06-06
结构标题 title	Crystal structure of the catalytic domain of human DRP-1 kinase
关键词 keywords	protein kinase, twinning, TRANSFERASE; TRANSFERASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	94.15 Å
回转半径 Rg (电子) rg_electron	95.10 Å
零角强度 I(0) i0	824986000.00
分子量 molecular_weight	254800.0 kDa
排除体积 excluded_volume	322890 Å³
包络体积 envelope_volume	649330 Å³
水化壳体积 shell_volume	59141 Å³
包络直径 envelope_diameter	287.5 Å
壳层 Rg shell_rg	87.87 Å
包络 Rg envelope_rg	88.19 Å
形状 Rg shape_rg	95.10 Å
总 Rg total_rg	95.03 Å
总原子数 total_atoms	18024
残基数 n_residues	2224
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	256.5 Å
Rg (实空间) rg_real	93.43 Å
Rg 误差 (实空间) rg_real_error	1.62 Å
I(0) (实空间) i0_real	8.1690e+08
I(0) 误差 (实空间) i0_real_error	2.0180e+07
Rg (倒空间) rg_reciprocal	88.98 Å
I(0) (倒空间) i0_reciprocal	811200000.0000
解质量估计 total_estimate	0.6575
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	32.1 Å
偏度 Skewness skewness	0.086
峰度 Kurtosis kurtosis	-1.109
角度范围 angular_range	— – 0.0800 Å⁻¹
当前正则化参数 α current_alpha	0.1103
最高正则化参数 α highest_alpha	16390000.0000
实空间数据点数 n_real_points	17
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.364; Stabil: 0.980; Sysdev: 1.000; Positv: 1.000; Valcen: 0.439; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (1)

▼

6. 折叠分类 (SCOP + CATH) 24 domains

SCOP 2.08 (8 domains)

结构域编号 domain_id	d1zwsa_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.144 — Protein kinase-like (PK-like)
超家族 Superfamily superfamily	d.144.1 — Protein kinase-like (PK-like)
家族 Family family	d.144.1.7 — Protein kinases, catalytic subunit

结构域编号 domain_id	d1zwsb_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.144 — Protein kinase-like (PK-like)
超家族 Superfamily superfamily	d.144.1 — Protein kinase-like (PK-like)
家族 Family family	d.144.1.7 — Protein kinases, catalytic subunit

结构域编号 domain_id	d1zwsc_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.144 — Protein kinase-like (PK-like)
超家族 Superfamily superfamily	d.144.1 — Protein kinase-like (PK-like)
家族 Family family	d.144.1.7 — Protein kinases, catalytic subunit

结构域编号 domain_id	d1zwsd_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.144 — Protein kinase-like (PK-like)
超家族 Superfamily superfamily	d.144.1 — Protein kinase-like (PK-like)
家族 Family family	d.144.1.7 — Protein kinases, catalytic subunit

结构域编号 domain_id	d1zwse_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.144 — Protein kinase-like (PK-like)
超家族 Superfamily superfamily	d.144.1 — Protein kinase-like (PK-like)
家族 Family family	d.144.1.7 — Protein kinases, catalytic subunit

结构域编号 domain_id	d1zwsf_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.144 — Protein kinase-like (PK-like)
超家族 Superfamily superfamily	d.144.1 — Protein kinase-like (PK-like)
家族 Family family	d.144.1.7 — Protein kinases, catalytic subunit

结构域编号 domain_id	d1zwsg_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.144 — Protein kinase-like (PK-like)
超家族 Superfamily superfamily	d.144.1 — Protein kinase-like (PK-like)
家族 Family family	d.144.1.7 — Protein kinases, catalytic subunit

结构域编号 domain_id	d1zwsh_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.144 — Protein kinase-like (PK-like)
超家族 Superfamily superfamily	d.144.1 — Protein kinase-like (PK-like)
家族 Family family	d.144.1.7 — Protein kinases, catalytic subunit

CATH v4.4 (16 domains)

结构域编号 domain_id	1zwsA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	200 — Phosphorylase Kinase; domain 1
同源超家族 H-superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

结构域编号 domain_id	1zwsA02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	510 — Transferase(Phosphotransferase); domain 1
同源超家族 H-superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

结构域编号 domain_id	1zwsB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	200 — Phosphorylase Kinase; domain 1
同源超家族 H-superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

结构域编号 domain_id	1zwsB02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	510 — Transferase(Phosphotransferase); domain 1
同源超家族 H-superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

结构域编号 domain_id	1zwsC01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	200 — Phosphorylase Kinase; domain 1
同源超家族 H-superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

结构域编号 domain_id	1zwsC02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	510 — Transferase(Phosphotransferase); domain 1
同源超家族 H-superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

结构域编号 domain_id	1zwsD01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	200 — Phosphorylase Kinase; domain 1
同源超家族 H-superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

结构域编号 domain_id	1zwsD02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	510 — Transferase(Phosphotransferase); domain 1
同源超家族 H-superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

结构域编号 domain_id	1zwsE01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	200 — Phosphorylase Kinase; domain 1
同源超家族 H-superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

结构域编号 domain_id	1zwsE02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	510 — Transferase(Phosphotransferase); domain 1
同源超家族 H-superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

结构域编号 domain_id	1zwsF01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	200 — Phosphorylase Kinase; domain 1
同源超家族 H-superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

结构域编号 domain_id	1zwsF02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	510 — Transferase(Phosphotransferase); domain 1
同源超家族 H-superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

结构域编号 domain_id	1zwsG01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	200 — Phosphorylase Kinase; domain 1
同源超家族 H-superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

结构域编号 domain_id	1zwsG02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	510 — Transferase(Phosphotransferase); domain 1
同源超家族 H-superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

结构域编号 domain_id	1zwsH01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	200 — Phosphorylase Kinase; domain 1
同源超家族 H-superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

结构域编号 domain_id	1zwsH02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	510 — Transferase(Phosphotransferase); domain 1
同源超家族 H-superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	52.620 Å
晶胞边长 b length_b	211.830 Å
晶胞边长 c length_c	128.420 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	101.82 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	16

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	2.900 Å
最低分辨率 resolution_low	20.000 Å
R 因子 r_factor	—
R_work r_work	0.2204
R_free r_free	0.2576

描述 description	DAP-kinase related protein 1
分子量 formula_weight	33096.8 kDa
来源方法 src_method	man
拷贝数 entity_count	8

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F,G,H
原子数 atom_count	18024

Crystal structure of the catalytic domain of human DRP-1 kinase

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

1. 结构基本信息 1. Structure Basics

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

4. 晶体学与实验 4. Crystallography & Experiment

晶胞参数 Unit Cell

对称性 Symmetry

精修参数 Refinement

衍射实验 Diffraction

5. 实体与聚合体信息 (1)

Entity 1 polymer

聚合体 Polymer

来源 Source

6. 折叠分类 (SCOP + CATH) 24 domains

SCOP 2.08 (8 domains)

CATH v4.4 (16 domains)

7. 引用文献 (1)

8. 文件与曲线 (10)

Files (7)

Curves (3)

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli
