2a27

Human DRP-1 kinase, W305S S308A D40 mutant, crystal form with 8 monomers in the asymmetric unit

Method: X-RAY DIFFRACTION D_max: 219.1 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

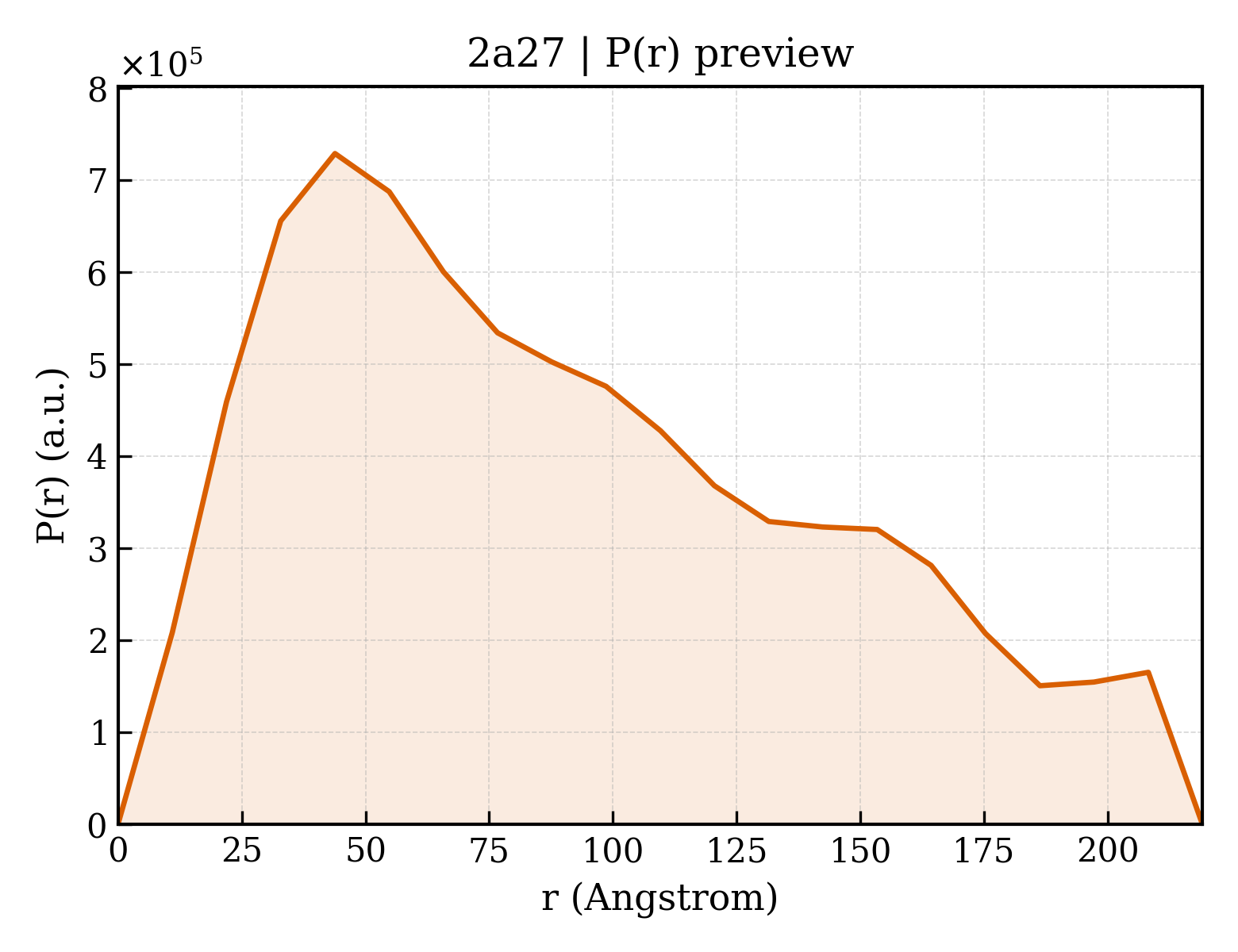

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2a27
沉积日期 deposition_date	2005-06-22
结构标题 title	Human DRP-1 kinase, W305S S308A D40 mutant, crystal form with 8 monomers in the asymmetric unit
关键词 keywords	protein kinase, autoinhibition, Transferase; TRANSFERASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	76.22 Å
回转半径 Rg (电子) rg_electron	78.07 Å
零角强度 I(0) i0	1064340000.00
分子量 molecular_weight	280830.0 kDa
排除体积 excluded_volume	354720 Å³
包络体积 envelope_volume	537840 Å³
水化壳体积 shell_volume	69934 Å³
包络直径 envelope_diameter	286.9 Å
壳层 Rg shell_rg	53.05 Å
包络 Rg envelope_rg	77.82 Å
形状 Rg shape_rg	78.07 Å
总 Rg total_rg	77.50 Å
总原子数 total_atoms	19827
残基数 n_residues	2427
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	219.1 Å
Rg (实空间) rg_real	73.20 Å
Rg 误差 (实空间) rg_real_error	1.93 Å
I(0) (实空间) i0_real	1.0430e+09
I(0) 误差 (实空间) i0_real_error	2.5910e+07
Rg (倒空间) rg_reciprocal	71.44 Å
I(0) (倒空间) i0_reciprocal	1051000000.0000
解质量估计 total_estimate	0.7571
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	43.8 Å
偏度 Skewness skewness	0.519
峰度 Kurtosis kurtosis	-0.702
角度范围 angular_range	— – 0.1000 Å⁻¹
当前正则化参数 α current_alpha	0.0406
最高正则化参数 α highest_alpha	22700000.0000
实空间数据点数 n_real_points	21
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.001; Oscil: 0.596; Stabil: 0.960; Sysdev: 1.000; Positv: 1.000; Valcen: 0.648; Smooth: 0.182

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	Death-associated protein kinase 2
分子量 formula_weight	37025.4 kDa
EC 编号 ec_number	2.7.1.37
突变 mutation	W305S, S308A
来源方法 src_method	man
拷贝数 entity_count	8

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F,G,H
原子数 atom_count	20003

GMEPFKQQKVEDFYDIGEELGSGQFAIVKKCREKSTGLEYAAKFIKKRQSRASRRGVSREEIEREVSILRQVLHHNVITLHDVYENRTDVVLILELVSGGELFDFLAQKESLSEEEATSFIKQILDGVNYLHTKKIAHFDLKPENIMLLDKNIPIPHIKLIDFGLAHEIEDGVEFKNIFGTPEFVAPEIVNYEPLGLEADMWSIGVITYILLSGASPFLGDTKQETLANITAVSYDFDEEFFSQTSELAKDFIRKLLVKETRKRLTIQEALRHPWITPVDNQQAMVRRESVVNLENFRKQYVRRRSKLAFSIVSLCNHLTR

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	2,3-DIHYDROXY-1,4-DITHIOBUTANE
分子量 formula_weight	154.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	8

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	176

▼

6. 折叠分类 (SCOP + CATH) 24 domains

SCOP 2.08 (8 domains)

结构域编号 domain_id	d2a27a_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.144 — Protein kinase-like (PK-like)
超家族 Superfamily superfamily	d.144.1 — Protein kinase-like (PK-like)
家族 Family family	d.144.1.7 — Protein kinases, catalytic subunit

结构域编号 domain_id	d2a27b_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.144 — Protein kinase-like (PK-like)
超家族 Superfamily superfamily	d.144.1 — Protein kinase-like (PK-like)
家族 Family family	d.144.1.7 — Protein kinases, catalytic subunit

结构域编号 domain_id	d2a27c_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.144 — Protein kinase-like (PK-like)
超家族 Superfamily superfamily	d.144.1 — Protein kinase-like (PK-like)
家族 Family family	d.144.1.7 — Protein kinases, catalytic subunit

结构域编号 domain_id	d2a27d_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.144 — Protein kinase-like (PK-like)
超家族 Superfamily superfamily	d.144.1 — Protein kinase-like (PK-like)
家族 Family family	d.144.1.7 — Protein kinases, catalytic subunit

结构域编号 domain_id	d2a27e_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.144 — Protein kinase-like (PK-like)
超家族 Superfamily superfamily	d.144.1 — Protein kinase-like (PK-like)
家族 Family family	d.144.1.7 — Protein kinases, catalytic subunit

结构域编号 domain_id	d2a27f_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.144 — Protein kinase-like (PK-like)
超家族 Superfamily superfamily	d.144.1 — Protein kinase-like (PK-like)
家族 Family family	d.144.1.7 — Protein kinases, catalytic subunit

结构域编号 domain_id	d2a27g_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.144 — Protein kinase-like (PK-like)
超家族 Superfamily superfamily	d.144.1 — Protein kinase-like (PK-like)
家族 Family family	d.144.1.7 — Protein kinases, catalytic subunit

结构域编号 domain_id	d2a27h_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.144 — Protein kinase-like (PK-like)
超家族 Superfamily superfamily	d.144.1 — Protein kinase-like (PK-like)
家族 Family family	d.144.1.7 — Protein kinases, catalytic subunit

CATH v4.4 (16 domains)

结构域编号 domain_id	2a27A01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	200 — Phosphorylase Kinase; domain 1
同源超家族 H-superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

结构域编号 domain_id	2a27A02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	510 — Transferase(Phosphotransferase); domain 1
同源超家族 H-superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

结构域编号 domain_id	2a27B01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	200 — Phosphorylase Kinase; domain 1
同源超家族 H-superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

结构域编号 domain_id	2a27B02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	510 — Transferase(Phosphotransferase); domain 1
同源超家族 H-superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

结构域编号 domain_id	2a27C01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	200 — Phosphorylase Kinase; domain 1
同源超家族 H-superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

结构域编号 domain_id	2a27C02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	510 — Transferase(Phosphotransferase); domain 1
同源超家族 H-superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

结构域编号 domain_id	2a27D01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	200 — Phosphorylase Kinase; domain 1
同源超家族 H-superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

结构域编号 domain_id	2a27D02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	510 — Transferase(Phosphotransferase); domain 1
同源超家族 H-superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

结构域编号 domain_id	2a27E01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	200 — Phosphorylase Kinase; domain 1
同源超家族 H-superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

结构域编号 domain_id	2a27E02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	510 — Transferase(Phosphotransferase); domain 1
同源超家族 H-superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

结构域编号 domain_id	2a27F01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	200 — Phosphorylase Kinase; domain 1
同源超家族 H-superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

结构域编号 domain_id	2a27F02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	510 — Transferase(Phosphotransferase); domain 1
同源超家族 H-superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

结构域编号 domain_id	2a27G01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	200 — Phosphorylase Kinase; domain 1
同源超家族 H-superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

结构域编号 domain_id	2a27G02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	510 — Transferase(Phosphotransferase); domain 1
同源超家族 H-superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

结构域编号 domain_id	2a27H01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	200 — Phosphorylase Kinase; domain 1
同源超家族 H-superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

结构域编号 domain_id	2a27H02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	510 — Transferase(Phosphotransferase); domain 1
同源超家族 H-superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	159.120 Å
晶胞边长 b length_b	113.350 Å
晶胞边长 c length_c	247.310 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	95.09 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	32

空间群 space_group	C 1 2 1
空间群编号 int_tables_number	5
晶系 crystal_system	—

分辨率 resolution	3.000 Å
最低分辨率 resolution_low	20.000 Å
R 因子 r_factor	0.2185
R_work r_work	0.2174
R_free r_free	0.2384
