Mus musculus
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein monomer | Monomer | Protein 1 | XENON × 2 water × 1 | Consistent with protein count |
| UniProt name | AP1G1_MOUSE |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 2–120； UniProt 703–821 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 2a7b |
| Deposition date deposition_date | 2005-07-05 |
| Structure title title | On the Routine Use of Soft X-Rays in Macromolecular Crystallography, Part III- The Optimal Data Collection Wavelength |
| Keywords keywords | Protein transport, ENDOCYTOSIS-EXOCYTOSIS COMPLEX; ENDOCYTOSIS/EXOCYTOSIS |
| Experimental Method method | X-RAY DIFFRACTION |

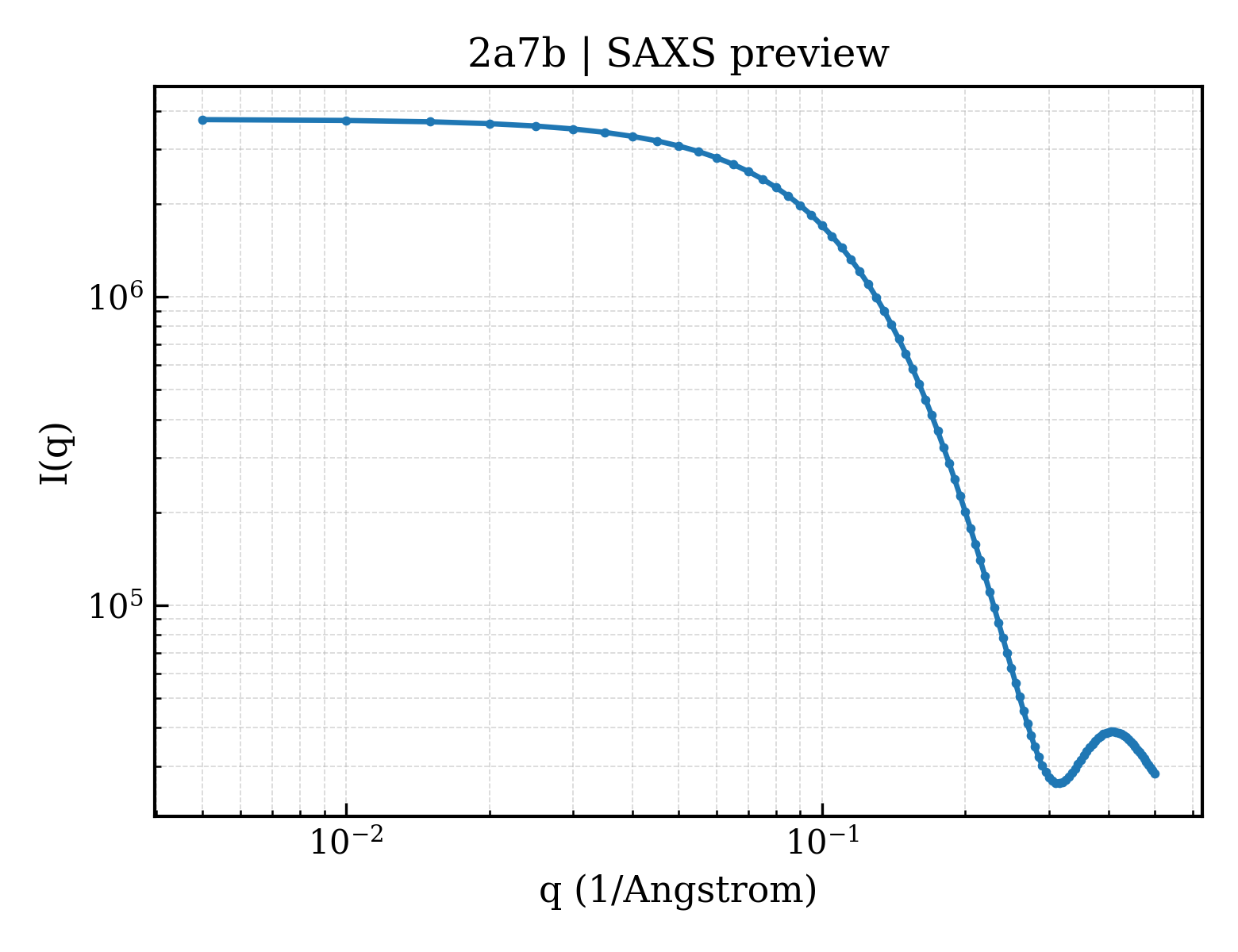

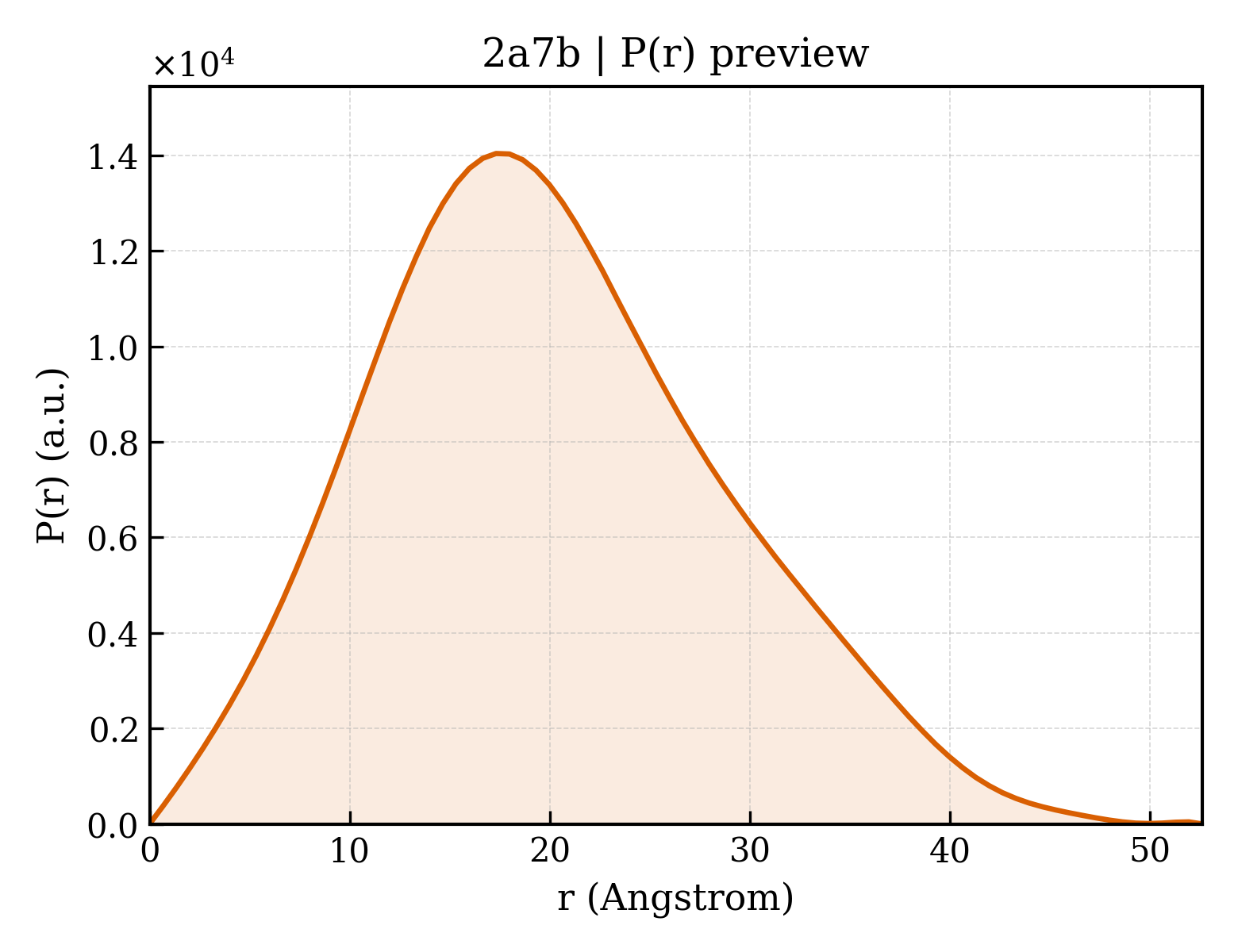

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 15.42 Å |
| Rg (electron density) | 14.37 Å |
| Total Rg | 15.31 Å |
| Atom count | 945 |
| Residues | 120 |
| Excluded volume | 16995 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | d2a7ba_ |
| Class class | b — All beta proteins |
| Fold Fold fold | b.1 — Immunoglobulin-like beta-sandwich |
| Superfamily Superfamily superfamily | b.1.10 — Clathrin adaptor appendage domain |
| Family Family family | b.1.10.2 — gamma-adaptin C-terminal appendage domain-like |
| Domain ID domain_id | 2a7bA00 |
| Class class | 2 — Mainly Beta |
| Architecture architecture | 60 — Sandwich |
| Topology topology | 40 — Immunoglobulin-like |
| Homologous superfamily homologous superfamily | 1230 — Gamma-adaptin ear (GAE) domain |
