SAXSdb — 2akp

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ATP-dependent molecular chaperone HSP82

Saccharomyces cerevisiae

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	water × 1	Consistent with protein count
3	Protein homooligomer	Homooligomer	Protein 2	water × 2	Consistent with protein count
4	Protein homooligomer	Homooligomer	Protein 2	water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	HSP82_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–186； UniProt 25–210 Author chain B； PDBConstruct 1–186； UniProt 25–210

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2akp
Deposition date deposition_date	2005-08-03
Structure title title	Hsp90 Delta24-N210 mutant
Keywords keywords	Hsp90, Xray crystal structure, Intrinsic Inhibition, CHAPERONE; CHAPERONE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2akp__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2akp__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

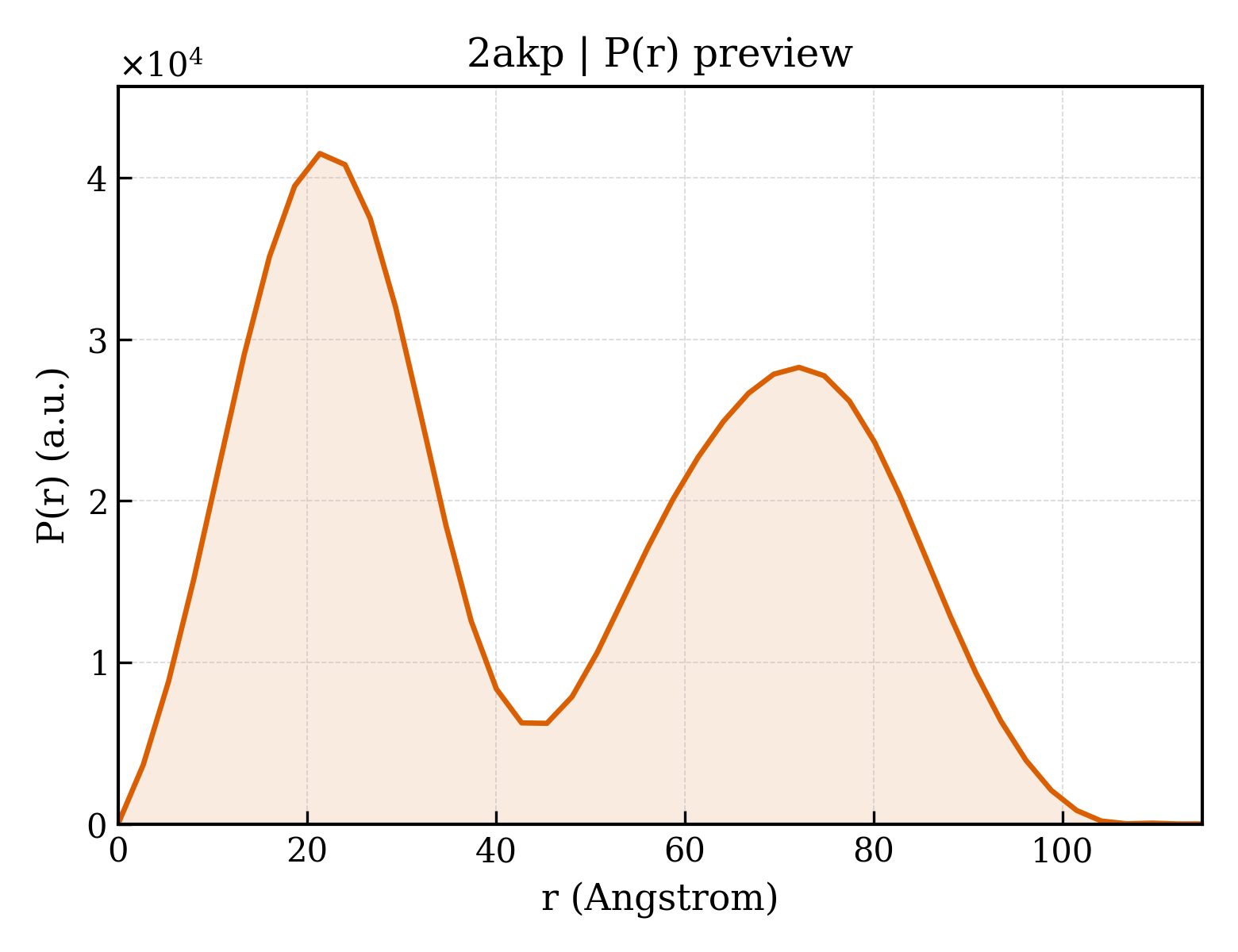

2akp__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	17.43 Å
Rg (electron density)	16.15 Å
Total Rg	17.26 Å
Atom count	1461
Residues	184
Excluded volume	26235 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2akp__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2akp__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`2akp__assembly_3__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
4	1	`2akp__assembly_4__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id	2akpA00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	565 — Heat Shock Protein 90
Homologous superfamily homologous superfamily	10 — Histidine kinase-like ATPase, C-terminal domain

Domain ID domain_id	2akpB00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	565 — Heat Shock Protein 90
Homologous superfamily homologous superfamily	10 — Histidine kinase-like ATPase, C-terminal domain

▶

Unit-cell length a length_a	90.500 Å
Unit-cell length b length_b	52.950 Å
Unit-cell length c length_c	84.240 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	122.05 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	1.940 Å
Low-resolution limit resolution_low	14.970 Å
R factor r_factor	0.2310
R_work r_work	0.2310
R_free r_free	0.2690

Description description	ATP-dependent molecular chaperone HSP82
Molecular weight formula_weight	20959.9 kDa
Source method src_method	man
Copy count entity_count	2

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	3145

Hsp90 Delta24-N210 mutant

1. Protein Identity and Related Structures Protein Identity & Related Structures

ATP-dependent molecular chaperone HSP82

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

2akp__assembly_1__model_1

2akp__assembly_1__model_1 | I(q)

2akp__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 water

6. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

7. Citations (1)

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	Escherichia coli

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	249
