2asq

Solution Structure of SUMO-1 in Complex with a SUMO-binding Motif (SBM)

Method: SOLUTION NMR
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Small ubiquitin-related modifier 1

Homo sapiens

UniProt P63165

State in the Current Structure

Assembly Physical composition Protein state Molecular copy count Associated components Data consistency
1 Protein heterocomplex Heteromer Protein 2 Protein inhibitor of activated STAT2 × 1 （O75928） Consistent with protein count

Other States of the Same Protein in the Database

Monomer
1a5r 2mw5 2n1v 5b7a 5elj 5ghd 6j4i

7 assemblies

Homodimer

None

Homotetramer

None

Other homooligomers

None

Heteromeric or nucleic-acid complex
1tgz 1tgz 1wyw 1y8r 1y8r 1z5s 2asq 2bf8 2g4d 2g4d 2io2 2iy0

87 assemblies; showing the first 12

View Construct and Data Evidence
UniProt name SUMO1_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–97； UniProt 1–97

Protein inhibitor of activated STAT2

Homo sapiens

UniProt O75928

State in the Current Structure

Assembly Physical composition Protein state Molecular copy count Associated components Data consistency
1 Protein heterocomplex Heteromer Protein 2 Small ubiquitin-related modifier 1 × 1 （P63165） Consistent with protein count

Other States of the Same Protein in the Database

Monomer
4fo9

1 assemblies

Homodimer

None

Homotetramer

None

Other homooligomers

None

Heteromeric or nucleic-acid complex
2asq

1 assemblies

View Construct and Data Evidence
UniProt name PIAS2_HUMAN
Isoform —
PDB entities 2
Chains and sequence ranges Author chain B； PDBConstruct 1–23； UniProt 466–488

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id2asq
Deposition date deposition_date2005-08-23
Structure title titleSolution Structure of SUMO-1 in Complex with a SUMO-binding Motif (SBM)
Keywords keywords;Protein-Peptide Complex, SUMO-1, Small Ubiquitin-like Modifier 1, SUMO-Binding Motif, SBM, Protein Inhibitor of Activated STAT, PIASx, PROTEIN BINDING ;; PROTEIN BINDING
Experimental Method methodSOLUTION NMR
▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2asq__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

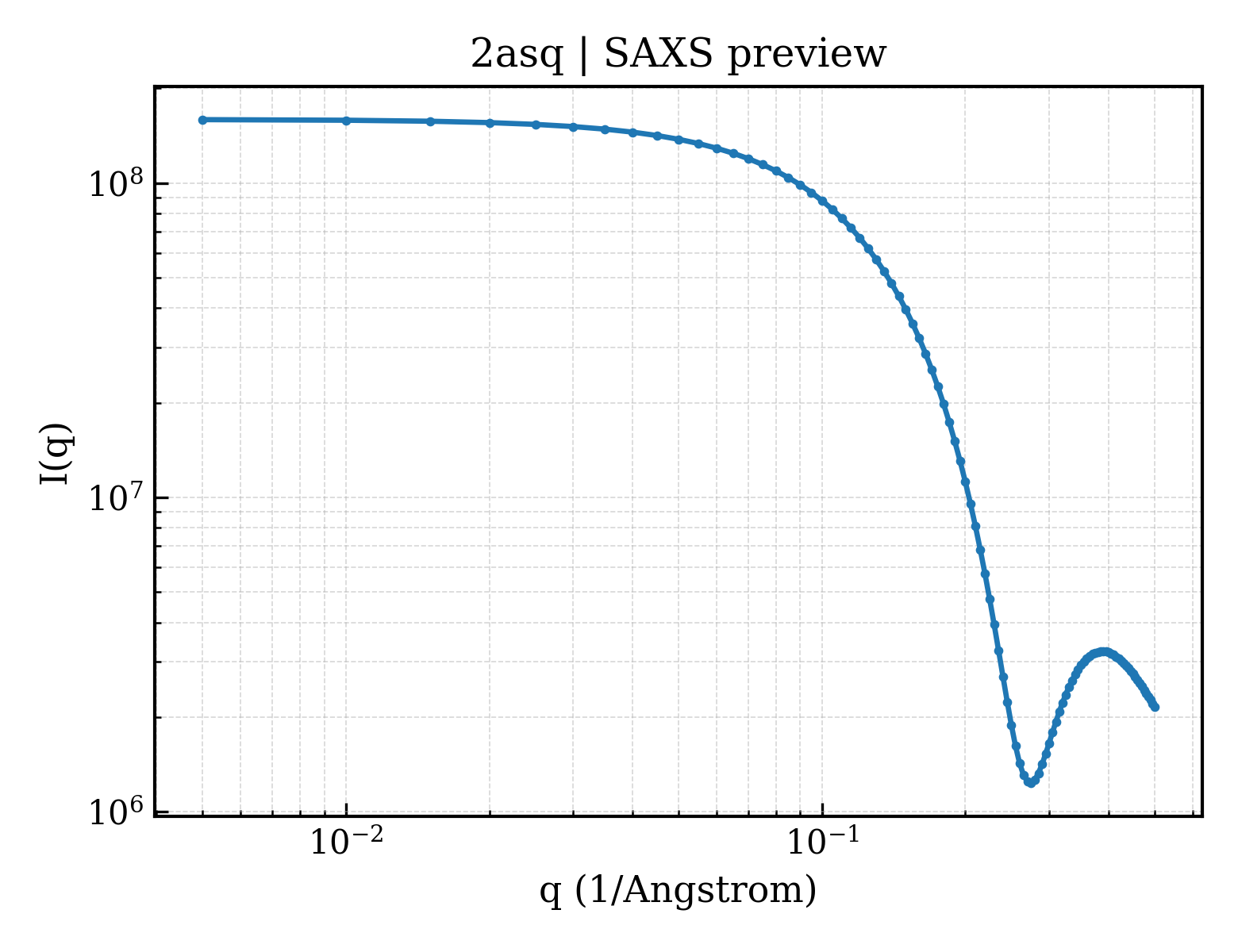

2asq__assembly_1__model_1 | I(q)

10-2 10-1 105 106 q (1/Angstrom) I(q)
100 plotted points; both axes use logarithmic scales.

2asq__assembly_1__model_1 | P(r) · Pending

The new assembly/model P(r) has not been calculated yet This placeholder does not display legacy data r (Angstrom) P(r)
P(r) will be calculated and displayed separately for the same assembly/model.
Rg（Guinier）14.11 Å
Rg (electron density)12.46 Å
Total Rg13.85 Å
Atom count1466
Residues91
Excluded volume13059 ų
Maximum q0.500 Å⁻¹
Assembly Model Structure unit Oligomeric description Status CRYSOL Actions
1 1 2asq__assembly_1__model_1 dimeric （2） Success 4.1.3-1-20251215 (887e7ef) View Download
1 2 2asq__assembly_1__model_2 dimeric （2） Success 4.1.3-1-20251215 (887e7ef) View Download
1 3 2asq__assembly_1__model_3 dimeric （2） Success 4.1.3-1-20251215 (887e7ef) View Download
1 4 2asq__assembly_1__model_4 dimeric （2） Success 4.1.3-1-20251215 (887e7ef) View Download
1 5 2asq__assembly_1__model_5 dimeric （2） Success 4.1.3-1-20251215 (887e7ef) View Download
1 6 2asq__assembly_1__model_6 dimeric （2） Success 4.1.3-1-20251215 (887e7ef) View Download
1 7 2asq__assembly_1__model_7 dimeric （2） Success 4.1.3-1-20251215 (887e7ef) View Download
1 8 2asq__assembly_1__model_8 dimeric （2） Success 4.1.3-1-20251215 (887e7ef) View Download
1 9 2asq__assembly_1__model_9 dimeric （2） Success 4.1.3-1-20251215 (887e7ef) View Download
1 10 2asq__assembly_1__model_10 dimeric （2） Success 4.1.3-1-20251215 (887e7ef) View Download
▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_idd2asqa_
Class classd — Alpha and beta proteins (a+b)
Fold Fold foldd.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamilyd.15.1 — Ubiquitin-like
Family Family familyd.15.1.1 — Ubiquitin-related

CATH v4.4 (1 domains)

Domain ID domain_id2asqA00
Class class3 — Alpha Beta
Architecture architecture10 — Roll
Topology topology20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily90 — Phosphatidylinositol 3-kinase Catalytic Subunit; Chain A, domain 1
▶

7. Citations (1)
