SAXSdb — 2bf8

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

UBIQUITIN-CONJUGATING ENZYME E2-25 KDA

BOS TAURUS

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	UBIQUITIN-LIKE PROTEIN SMT3C × 1 （P63165） water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	UBC1_BOVIN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 6–159； UniProt 1–154

UBIQUITIN-LIKE PROTEIN SMT3C

HOMO SAPIENS

UniProt P63165

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	UBIQUITIN-CONJUGATING ENZYME E2-25 KDA × 1 （P61085） water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SM33_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–77； UniProt 21–97

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2bf8
Deposition date deposition_date	2004-12-06
Structure title title	Crystal structure of SUMO modified ubiquitin conjugating enzyme E2- 25K
Keywords keywords	;LIGASE-COMPLEX, E2-25K, E2 UBIQUITIN CONJUGATING ENZYME, SUMO, SUMO-TARGET STRUCTURE, LIGASE, STRUCTURAL PROTEOMICS IN EUROPE, SPINE, STRUCTURAL GENOMICS ;; LIGASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2bf8__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2bf8__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

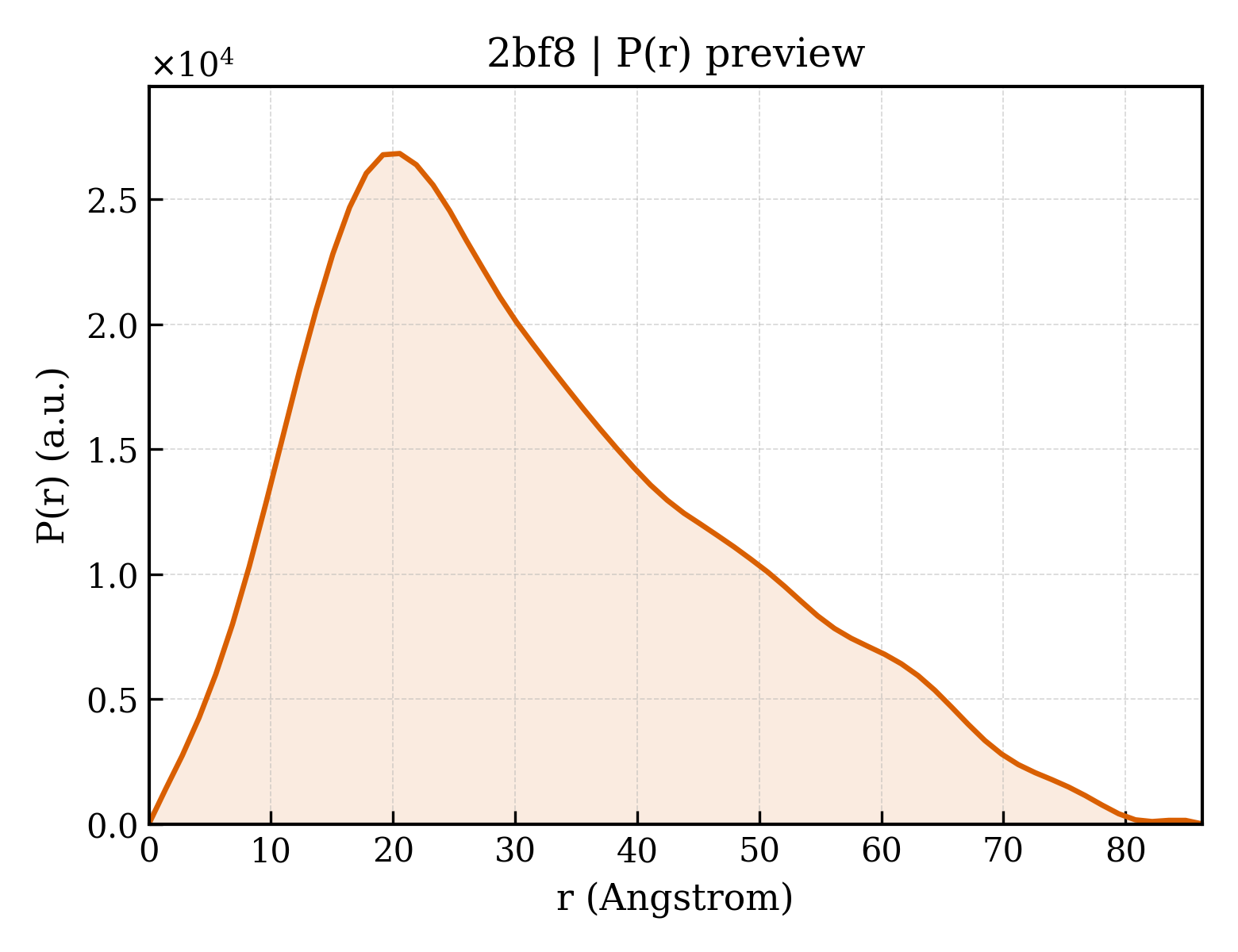

2bf8__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	24.59 Å
Rg (electron density)	24.44 Å
Total Rg	25.01 Å
Atom count	1853
Residues	231
Excluded volume	33109 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2bf8__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	UBIQUITIN-CONJUGATING ENZYME E2-25 KDA
Molecular weight formula_weight	17846.4 kDa
EC 编号 ec_number	6.3.2.19
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1947

GAMAMANIAVQRIKREFKEVLKSEETSKNQIKVDLVDENFTELRGEIAGPPDTPYEGGRYQLEIKIPETYPFNPPKVRFITKIWHPNISSVTGAICLDILKDQWAAAMTLRTVLLSLQALLAAAEPDDPQDAVVANQYKQNPEMFKQTARLWAHVYAGA

Source Source

Source organism organism	BOS TAURUS
Common name common_name	BOVINE
NCBI taxonomy ID ncbi_taxonomy_id	9913
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 polymer

Description description	UBIQUITIN-LIKE PROTEIN SMT3C
Molecular weight formula_weight	8970.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

YIKLKVIGQDSSEIHFKVKMTTHLKKLKESYCQRQGVPMNSLRFLFEGQRIADNHTPKELGMEEEDVIEVYQEQTGG

Source Source

Source organism organism	HOMO SAPIENS
Common name common_name	HUMAN
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	ESCHERICHIA COLI

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	83

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d2bf8a_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.20 — UBC-like
Superfamily Superfamily superfamily	d.20.1 — UBC-like
Family Family family	d.20.1.0 — automated matches

Domain ID domain_id	d2bf8b_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.1 — Ubiquitin-like
Family Family family	d.15.1.0 — automated matches

CATH v4.4 (2 domains)

Domain ID domain_id	2bf8A00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	110 — Ubiquitin Conjugating Enzyme
Homologous superfamily homologous superfamily	10 — Ubiquitin Conjugating Enzyme

Domain ID domain_id	2bf8B00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	90 — Phosphatidylinositol 3-kinase Catalytic Subunit; Chain A, domain 1

▶

Unit-cell length a length_a	58.391 Å
Unit-cell length b length_b	58.391 Å
Unit-cell length c length_c	162.842 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 43 21 2
Space-group number int_tables_number	96
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	55.050 Å
R factor r_factor	0.2130
R_work r_work	0.2100
R_free r_free	0.2790
