SAXSdb — 2b9r

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Human cyclin B1

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 165–433	Fragment：Residues 165-433 Mutation：C167S, C283S, C350S, E183A, E184A	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.90 Å R-free 0.308
2	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain B； UniProt 165–433	Fragment：Residues 165-433 Mutation：C167S, C283S, C350S, E183A, E184A	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.90 Å R-free 0.308

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2B9R	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2JGZ Crystal structure of phospho-CDK2 in complex with Cyclin B Deposited 2007-02-17	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 167–426（260 aa） Fragment：RESIDUES 167-426	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；0.9-1.2 M AMMONIUM SULPHATE, 100 MM MES PH 6.0-6.5, 100 MM POTASSIUM CHLORIDE	Resolution 2.90 Å R-free 0.275
4Y72 Human CDK1/CyclinB1/CKS2 With Inhibitor Deposited 2015-02-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: TRIMERIC	Chain B 165–433（269 aa）	Not recorded	LZ9 {[(2,6-difluorophenyl)carbonyl]amino}-N-(4-fluorophenyl)-1H-pyrazole-3-carboxamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6.7；277 K；Conditions around 0.1M MES/imidazole buffer (pH6.7), 6.5% MPD, 5% PEG4K, 10% PEG1K Protein at 10-12 mg/ml	Resolution 2.30 Å R-free 0.252
4YC3 CDK1/CyclinB1/CKS2 Apo Deposited 2015-02-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 165–433（269 aa） Fragment：UNP residues 165-433	Not recorded	MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6.7；277 K；0.1M MES/imidazole buffer (pH6.7), 6.5% MPD, 5% PEG4K, 10% PEG1K Protein at 10-12 mg/ml	Resolution 2.70 Å R-free 0.260
5HQ0 Ternary complex of human proteins CDK1, Cyclin B and CKS2, bound to an inhibitor Deposited 2016-01-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 165–433（269 aa）	Not recorded	LZ9 {[(2,6-difluorophenyl)carbonyl]amino}-N-(4-fluorophenyl)-1H-pyrazole-3-carboxamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.7；277 K；0.1 M MES pH6.7, 6.55 MPD, 5% PEG4K, 10% PEG 1K	Resolution 2.30 Å R-free 0.252
5LQF CDK1/CyclinB1/CKS2 in complex with NU6102 Deposited 2016-08-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 165–433（269 aa）	Not recorded	4SP O6-CYCLOHEXYLMETHOXY-2-(4'-SULPHAMOYLANILINO) PURINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.7；277 K；0.1M MES/IMIDAZOLE BUFFER (PH6.7), 6.5% MPD, 5% PEG4K, 10% PEG1K PROTEIN AT 10-12 MG/ML	Resolution 2.06 Å R-free 0.254
5LQF CDK1/CyclinB1/CKS2 in complex with NU6102 Deposited 2016-08-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 165–433（269 aa）	Not recorded	4SP O6-CYCLOHEXYLMETHOXY-2-(4'-SULPHAMOYLANILINO) PURINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.7；277 K；0.1M MES/IMIDAZOLE BUFFER (PH6.7), 6.5% MPD, 5% PEG4K, 10% PEG1K PROTEIN AT 10-12 MG/ML	Resolution 2.06 Å R-free 0.254
6GU2 CDK1/CyclinB/Cks2 in complex with Flavopiridol Deposited 2018-06-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 165–433（269 aa）	Not recorded	F9Z 2-(2-chlorophenyl)-8-[(3~{R},4~{R})-1-methyl-3-oxidanyl-piperidin-4-yl]-5,7-bis(oxidanyl)chromen-4-one × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.1M MES/IMIDAZOLE BUFFER (PH6.7), 6.5% MPD, 5% PEG4K, 10% PEG1K PROTEIN AT 10-12 MG/ML + 0.5mM Inhibitor	Resolution 2.00 Å R-free 0.239
6GU3 CDK1/CyclinB/Cks2 in complex with AZD5438 Deposited 2018-06-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 165–433（269 aa）	Not recorded	FB8 4-(2-methyl-3-propan-2-yl-imidazol-4-yl)-~{N}-(4-methylsulfonylphenyl)pyrimidin-2-amine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.1M MES/IMIDAZOLE BUFFER (PH6.7), 6.5% MPD, 5% PEG4K, 10% PEG1K PROTEIN AT 10-12 MG/ML + 0.5mM Inhibitor	Resolution 2.65 Å R-free 0.258
6GU4 CDK1/CyclinB/Cks2 in complex with CGP74514A Deposited 2018-06-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 165–433（269 aa）	Not recorded	FC8 ~{N}2-[(1~{R},2~{S})-2-azanylcyclohexyl]-~{N}6-(3-chlorophenyl)-9-ethyl-purine-2,6-diamine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.1M MES/IMIDAZOLE BUFFER (PH6.7), 6.5% MPD, 5% PEG4K, 10% PEG1K PROTEIN AT 10-12 MG/ML + 0.5mM Inhibitor	Resolution 2.73 Å R-free 0.253
7NJ0 CryoEM structure of the human Separase-Cdk1-cyclin B1-Cks1 complex Deposited 2021-02-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–433（433 aa）	Not recorded	PO4 PHOSPHATE ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
8TAR APC/C-CDH1-UBE2C-Ubiquitin-CyclinB-NTD Deposited 2023-06-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric	Chain B 39–50（12 aa） Fragment：NTD (residues 39-50)	Not recorded	ZN ZINC ION × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å
8TAU APC/C-CDH1-UBE2C-UBE2S-Ubiquitin-CyclinB Deposited 2023-06-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric	Chain B 39–50（12 aa） Fragment：NTD (residues 39-50)	Not recorded	ZN ZINC ION × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
9FH9 Structure of CyclinB1 N-terminus bound to the NCP Deposited 2024-05-27	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: 12-meric	Chain K 1–21（21 aa） Chain L 1–21（21 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.50 Å
9SKQ Cryo-EM structure of CAK-CDK1-cyclin B1 Deposited 2025-09-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 1–433（433 aa）	Not recorded	ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å

13 other PDB entries and 14 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CCNB1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–269； UniProt 165–433 Author chain B； PDBConstruct 1–269； UniProt 165–433

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2b9r
Deposition date deposition_date	2005-10-12
Structure title title	Crystal Structure of Human Cyclin B1
Keywords keywords	cyclin, CELL CYCLE; CELL CYCLE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	27.60 Å
Radius of gyration Rg (electron density) rg_electron	27.06 Å
Forward intensity I(0) i0	47829700.00
Molecular weight molecular_weight	56082.0 kDa
Excluded volume excluded_volume	71158 Å³
Envelope volume envelope_volume	85944 Å³
Hydration-shell volume shell_volume	27258 Å³
Envelope diameter envelope_diameter	92.4 Å
Shell Rg shell_rg	33.59 Å
Envelope Rg envelope_rg	27.12 Å
Shape Rg shape_rg	27.07 Å
Total Rg total_rg	27.76 Å
Total atoms total_atoms	3936
Residues n_residues	509
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	88.2 Å
Rg (real space) rg_real	27.74 Å
Rg uncertainty (real space) rg_real_error	0.57 Å
I(0) (real space) i0_real	4.7830e+07
I(0) uncertainty (real space) i0_real_error	6.0360e+05
Rg (reciprocal space) rg_reciprocal	27.70 Å
I(0) (reciprocal space) i0_reciprocal	47830000.0000
Solution quality estimate total_estimate	0.6559
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	26.3 Å
Skewness Skewness skewness	0.436
Kurtosis Kurtosis kurtosis	-0.436
Angular range angular_range	— – 0.2850 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	23860000.0000
Real-space data points n_real_points	58
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.885; Stabil: 0.999; Sysdev: 0.177; Positv: 1.000; Valcen: 0.934; Smooth: 0.406

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

▼

7. Fold Classification (SCOP + CATH) 4 domains

CATH v4.4 (4 domains)

Domain ID domain_id	2b9rA01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	472 — Cyclin A; domain 1
Homologous superfamily homologous superfamily	10 — Cyclin-like

Domain ID domain_id	2b9rA02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	472 — Cyclin A; domain 1
Homologous superfamily homologous superfamily	10 — Cyclin-like

Domain ID domain_id	2b9rB01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	472 — Cyclin A; domain 1
Homologous superfamily homologous superfamily	10 — Cyclin-like

Domain ID domain_id	2b9rB02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	472 — Cyclin A; domain 1
Homologous superfamily homologous superfamily	10 — Cyclin-like

▶

8. Citations (1)

▶

Unit-cell length a length_a	117.169 Å
Unit-cell length b length_b	117.169 Å
Unit-cell length c length_c	197.685 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	P 62 2 2
Space-group number int_tables_number	180
Crystal system crystal_system	—

Resolution resolution	2.900 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2493
R_work r_work	0.2430
R_free r_free	0.3080

Description description	Human cyclin B1
Molecular weight formula_weight	30840.1 kDa
Mutation mutation	C167S, C283S, C350S, E183A, E184A
Source method src_method	man
Copy count entity_count	2

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	4030

Crystal Structure of Human Cyclin B1

1. Protein Identity and Related Structures Protein Identity & Related Structures

Human cyclin B1

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

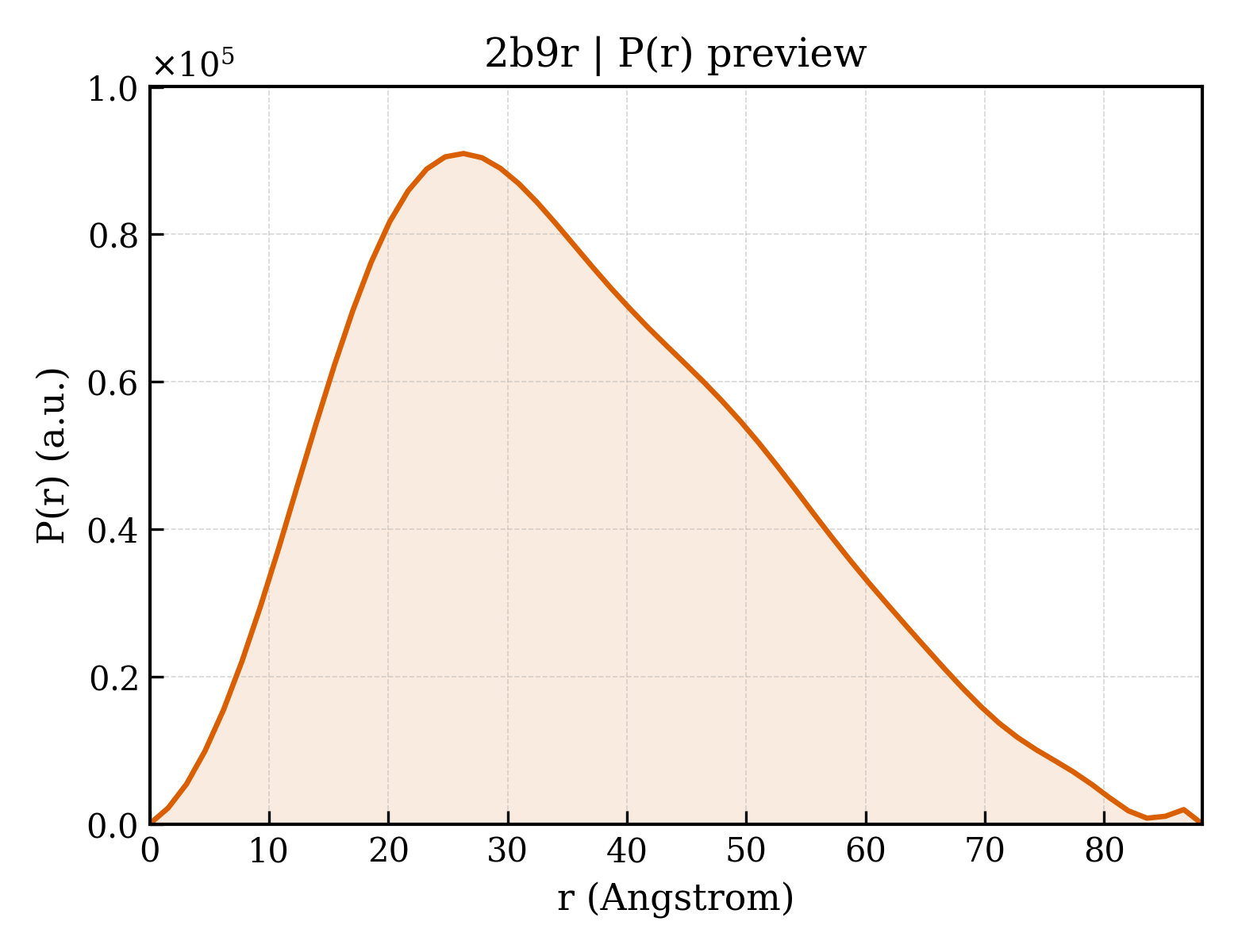

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 water

7. Fold Classification (SCOP + CATH) 4 domains

CATH v4.4 (4 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	94

fit	/app/data/saxs_computation/b9/2b9r/2b9r.fit
pddf	/app/data/pr_computation/b9/2b9r/2b9r.pr.out
profile	/app/data/saxs_computation/b9/2b9r/2b9r.dat
