8tau

APC/C-CDH1-UBE2C-UBE2S-Ubiquitin-CyclinB

Method: ELECTRON MICROSCOPY D_max: 252.6 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8tau
沉积日期 deposition_date	2023-06-27
结构标题 title	APC/C-CDH1-UBE2C-UBE2S-Ubiquitin-CyclinB
关键词 keywords	E3 RING Ligase, Ubiquitin Ligase, APC/C, Anaphase-Promoting Complex-Cyclosome, Cell Cycle, Cullin-RING ligase, LIGASE; LIGASE
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	74.65 Å
回转半径 Rg (电子) rg_electron	74.44 Å
零角强度 I(0) i0	9402440000.00
分子量 molecular_weight	504970.0 kDa
排除体积 excluded_volume	495830 Å³
包络体积 envelope_volume	1669500 Å³
水化壳体积 shell_volume	187060 Å³
包络直径 envelope_diameter	228.1 Å
壳层 Rg shell_rg	75.34 Å
包络 Rg envelope_rg	70.56 Å
形状 Rg shape_rg	74.44 Å
总 Rg total_rg	74.45 Å
总原子数 total_atoms	54106
残基数 n_residues	9002
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

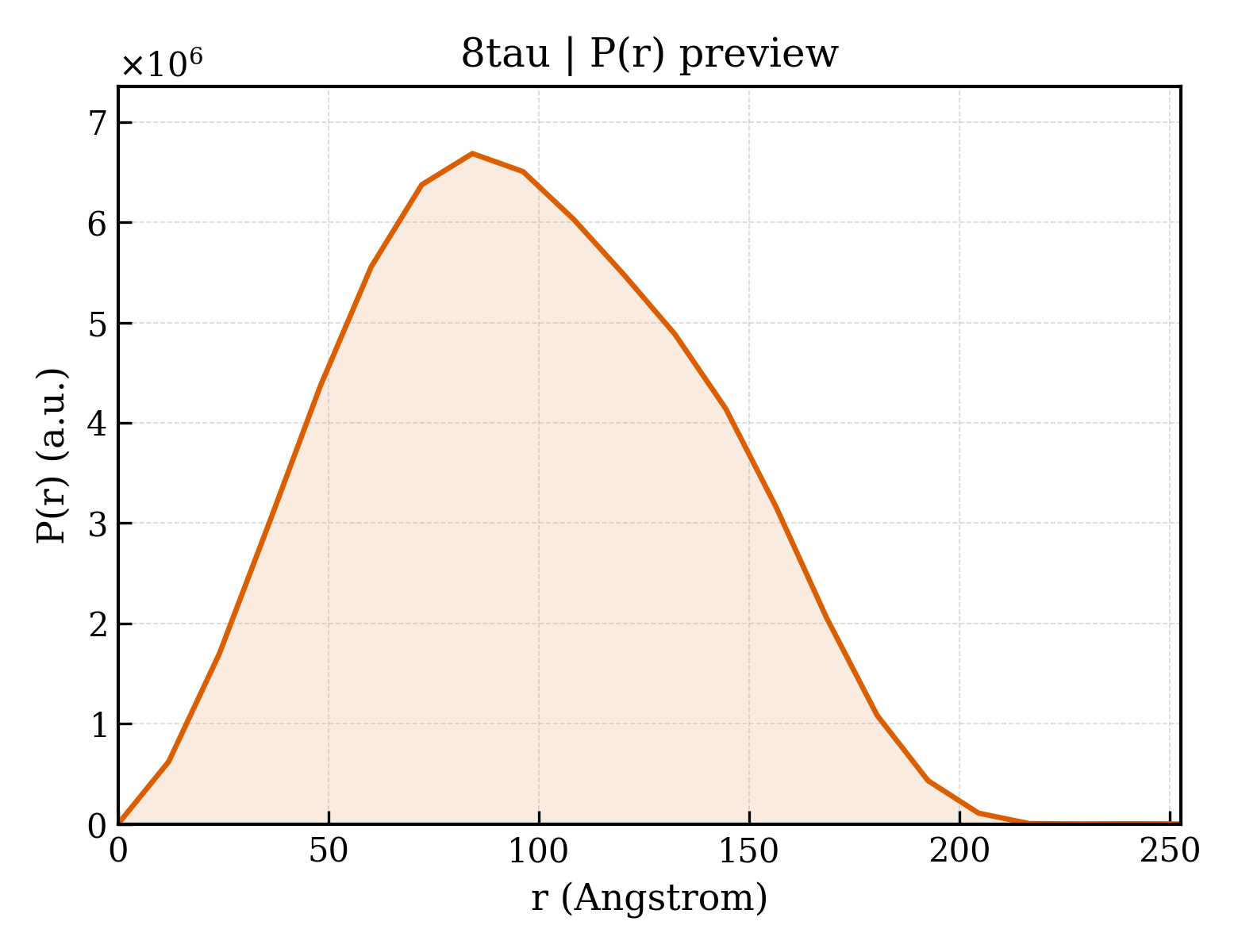

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	252.6 Å
Rg (实空间) rg_real	74.44 Å
Rg 误差 (实空间) rg_real_error	1.97 Å
I(0) (实空间) i0_real	9.4030e+09
I(0) 误差 (实空间) i0_real_error	2.0430e+08
Rg (倒空间) rg_reciprocal	75.20 Å
I(0) (倒空间) i0_reciprocal	9416000000.0000
解质量估计 total_estimate	0.8700
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	84.2 Å
偏度 Skewness skewness	0.147
峰度 Kurtosis kurtosis	-0.656
角度范围 angular_range	— – 0.1050 Å⁻¹
当前正则化参数 α current_alpha	0.0007
最高正则化参数 α highest_alpha	1026000000.0000
实空间数据点数 n_real_points	22
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.861; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.948; Smooth: 0.775

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (19)

Entity 1 polymer

描述 description	Anaphase-promoting complex subunit 1
分子量 formula_weight	217566.1 kDa
突变 mutation	;S202E, S286E, T291E, S313E, T316E, S317E, S334E, S341E, S343E, S355E, S362E, S372E, S377E, T537E, S547E, S555E, S569E, S688E, S699E, S916E, S1347E ;
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	54106

MSNFYEERTTMIAARDLQEFVPFGRDHCKHHPNALNLQLRQLQPASELWSSDGAAGLVGSLQEVTIHEKQKESWQLRKGVSEIGEDVDYDEELYVAGNMVIWSKGSKSQALAVYKAFTVDSPVQQALWCDFIISQDKSEKAYSSNEVEKCICILQSSCINMHSIEGKDYIASLPFQVANVWPTKYGLLFERSASSHEVPPGEPREPLPTMFSMLHPLDEITPLVCKSGSLFGSSRVQYVVDHAMKIVFLNTDPSIVMTYDAVQNVHSVWTLRRVKSEEENVVLKFEEQGGEPQNVATSSSLTAHLRSLSKGDEPVEEPFQNYSSIHSQSRSTSEPSLHSREPEISNMAALSRAHEPALGVHEFSGVQRFNIESHNQEPKRHSISHSPNSNSNGSFLAPETEPIVPELCIDHLWTETITNIREKNSQASKVFITSDLCGQKFLCFLVESQLQLRCVKFQESNDKTQLIFGSVTNIPAKDAAPVEKIDTMLVLEGSGNLVLYTGVVRVGKVFIPGLPAPSLTMSNTMPRPSTPLDGVSEPKPLSKLLGELDEVVLLEPVPELRDSSKLHDELYNEDCTFQQLGTYIHSIRDPVHNRVTLELSNGSMVRITIPEIATSELVQTCLQAIKFILPKEIAVQMLVKWYNVHSAPGGPSYHSEWNLFVTCLMNMMGYNTDRLAWTRNFDFEGSLEPVIAPKKARPEETGSDDDWEYLLNSDYHQNVESHLLNRSLCLSPSEASQMKDEDFSQNLSLDSSTLLFTHIPAIFFVLHLVYEELKLNTLMGEGICSLVELLVQLARDLKLGPYVDHYYRDYPTLVRTTGQVCTIDPGQTGFMHHPSFFTSEPPSIYQWVSSCLKGEGMPPYPYLPGICERSRLVVLSIALYILGDESLVSDESSQYLTRITIAPQKLQVEQEENRFEFRHSTSVSSLAERLVVWMTNVGFTLRDLETLPFGIALPIRDAIYHCREQPASDWPEAVCLLIGRQDLSKQACEGNLPKGKSVLSSDVPSGTETEEEDDGMNDMNHEVMSLIWSEDLRVQDVRRLLQSAHPVRVNVVQYPELSDHEFIEEKENRLLQLCQRTMALPVGRGMFTLFSYHPVPTEPLPIPKLNLTGRAPPRNTTVDLNSGNIDVPPNMTSWASFHNGVAAGLKIAPASQIDSAWIVYNKPKHAELANEYAGFLMALGLNGHLTKLATLNIHDYLTKGHEMTSIGLLLGVSAAKLGTMDMSITRLLSIHIPALLPPTSTELDVPHNVQVAAVVGIGLVYQGTAHRHTAEVLLAEIGRPPGPEMEYCTDRESYSLAAGLALGMVCLGHGSNLIGMSDLNVPEQLYQYMVGGHRRFQTGMHREKHKEPSYQIKEGDTINVDVTCPGATLALAMIYLKTNNRSIADWLRAPDTMYLLDFVKPEFLLLRTLARCLILWDDILPNSKWVDSNVPQIIRENSISLSEIELPCSEDLNLETLSQAHVYIIAGACLSLGFRFAGSENLSAFNCLHKFAKDFMTYLSAPNASVTGPHNLETCLSVVLLSLAMVMAGSGNLKVLQLCRFLHMKTGGEMNYGFHLAHHMALGLLFLGGGRYSLSTSNSSIAALLCALYPHFPAHSTDNRYHLQALRHLYVLAAEPRLLVPVDVDTNTPCYALLEVTYKGTQWYEQTKEELMAPTLLPELHLLKQIKVKGPRYWELLIDLSKGTQHLKSILSKDGVLYVKLRAGQLSYKEDPMGWQSLLAQTVANRNSEARAFKPETISAFTSDPALLSFAEYFCKPTVNMGQKQEILDLFSSVLYECVTQETPEMLPAYIAMDQAIRRLGRREMSETSELWQIKLVLEFFSSRSHQERLQNHPKRGLFMNSEFLPVVKCTIDNTLDQWLQVGGDMCVHAYLSGQPLEESQLSMLACFLVYHSVPAPQHLPPIGLEGSTSFAELLFKFKQLKMPVRALLRLAPLLLGNPQPMVM

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 2 polymer

描述 description	G2/mitotic-specific cyclin-B1
分子量 formula_weight	1284.5 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

LRPRTALGDIGN

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 3 polymer

描述 description	Anaphase-promoting complex subunit 11
分子量 formula_weight	9854.6 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

MKVKIKCWNGVATWLWVANDENCGICRMAFNGCCPDCKVPGDDCPLVWGQCSHCFHMHCILKWLHAQQVQQHCPMCRQEWKFKE

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 4 polymer

描述 description	Anaphase-promoting complex subunit 15
分子量 formula_weight	6556.3 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D

STLFPSLFPRVTETLWFNLDRPCVEETELQQQEQQHQAWLQSIAEKDNNLVPIGKP

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 5 polymer

描述 description	Ubiquitin-conjugating enzyme E2 S
分子量 formula_weight	2162.8 kDa
EC 编号 ec_number	2.3.2.23
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E

KKLAAKKKTDKKRALRRL

Entity 6 polymer

描述 description	Anaphase-promoting complex subunit CDC26
分子量 formula_weight	9920.1 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G,W

MLRRKPTRLELKLDDIEEFENIRKDLETRKKQKEDVEVVGGSDGEGAIGLEEDPKSREQMINDRIGYKPQPKPNNRSSQFGELEF

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 7 polymer

描述 description	Anaphase-promoting complex subunit 16
分子量 formula_weight	11678.0 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H

MAASSSSSSAGGVSGSSVTGSGFSVSDLAPPRKALFTYPKGAGEMLEDGSERFLCESVFSYQVASTLKQVKHDQQVARMEKLAGLVEELEADEWRFKPIEQLLGFTPSSG

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 8 polymer

描述 description	Anaphase-promoting complex subunit 4
分子量 formula_weight	92303.3 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	I

MLRFPTCFPSFRVVGEKQLPQEIIFLVWSPKRDLIALANTAGEVLLHRLASFHRVWSFPPNENTGKEVTCLAWRPDGKLLAFALADTKKIVLCDVEKPESLHSFSVEAPVSCMHWMEVTVESSVLTSFYNAEDESNLLLPKLPTLPKNYSNTSKIFSEENSDEIIKLLGDVRLNILVLGGSSGFIELYAYGMFKIARVTGIAGTCLALCLSSDLKSLSVVTEVSTNGASEVSYFQLETNLLYSFLPEVTRMARKFTHISALLQYINLSLTCMCEAWEEILMQMDSRLTKFVQEKNTTTSVQDEFMHLLLWGKASAELQTLLMNQLTVKGLKKLGQSIESSYSSIQKLVISHLQSGSESLLYHLSELKGMASWKQKYEPLGLDAAGIEEAITAVGSFILKANELLQVIDSSMKNFKAFFRWLYVAMLRMTEDHVLPELNKMTQKDITFVAEFLTEHFNEAPDLYNRKGKYFNVERVGQYLKDEDDDLVSPPNTEGNQWYDFLQNSSHLKESPLLFPYYPRKSLHFVKRRMENIIDQCLQKPADVIGKSMNQAICIPLYRDTRSEDSTRRLFKFPFLWNNKTSNLHYLLFTILEDSLYKMCILRRHTDISQSVSNGLIAIKFGSFTYATTEKVRRSIYSCLDAQFYDDETVTVVLKDTVGREGRDRLLVQLPLSLVYNSEDSAEYQFTGTYSTRLDEQCSAIPTRTMHFEKHWRLLESMKAQYVAGNGFRKVSCVLSSNLRHVRVFEMDIDDEWELDESSDEEEEASNKPVKIKEEVLEEEEAENQQAGAAALAPEIVIKVEKLDPELDS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 9 polymer

描述 description	Cell division cycle protein 27 homolog
分子量 formula_weight	92519.5 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	J,P

MTVLQEPVQAAIWQALNHYAYRDAVFLAERLYAEVHSEEALFLLATCYYRSGKAYKAYRLLKGHSCTTPQCKYLLAKCCVDLSKLAEGEQILSGGVFNKQKSHDDIVTEFGDSACFTLSLLGHVYCKTDRLAKGSECYQKSLSLNPFLWSPFESLCEIGEKPDPDQTFKFTSLQNFSNCLPNSCTTQVPNHSLSHRQPEEVLTEEPQDTIELNRLNLESENSKYSLNTDSSVSYIDSAVIEPDTVPLGTGTSILSKQVQNKPKTGRSLLGGPAALEPLTPSFGILPLETPSPGDGSYLQNYTNTPPVIDVPSTGAPSKKEVARIGQTGTKSVFSQEGNEREVTPILAQTQSSGPQTSTTPQVLSPTITSPPNALPRRSSRLFTSDEETTKENEKKLKMKFPPKIPNRKTKSKTNKGGITQPNINDELEITKLDSEIISEGKISTIEPQIQAFNLQKAAAEGLMSLLREMGKGYLALCSYNCKEAINILSHLPSHHYNTGWVLCQIGRAYFELSEYMQAERIFSEVRRIENYRVEGMEIYSTTLWHLQKDVALSVLSKDLTDMDKNSPEAWCAAGNCFSLQREHDIAIKFFQRAIQVDPNYAYAYTLLGHEFVLTEELDKALACFRNAIRVNPRHYNAWYGLGMIYYKQEKFSLAEMHFQKALDINPQSSVLLCHIGVVQHALKKSEKALDTLNKAIVIDPKNPLCKFHRASVLFANEKYKSALQELEELKQIVPKESLVYFLIGKVYKKLGQTHLALMNFSWAMDLDPKGANNQIKEAIDKRYLPDDEEPITQEEQIMGTDESQESSMTDADDTQLHAAESDEF

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 10 polymer

描述 description	Cell division cycle protein 16 homolog
分子量 formula_weight	71929.7 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	K,S

MNLERLRKRVRQYLDQQQYQSALFWADKVASLSREEPQDIYWLAQCLYLTAQYHRAAHALRSRKLDKLYEACRYLAARCHYAAKEHQQALDVLDMEEPINKRLFEKYLKDEEGFKDPSSDWEMSQSSIKSSICLLRGKIYDALDNRTLATYSYKEALKLDVYCFEAFDLLTSHHMLTAQEEKELLESLPLSKLCNEEQELLRFLFENKLKKYNKPSETVIPESVDGLQENLDVVVSLAERHYYNCDFKMCYKLTSVVMEKDPFHASCLPVHIGTLVELNKANELFYLSHKLVDLYPSNPVSWFAVGCYYLMVGHKNEHARRYLSKATTLEKTYGPAWIAYGHSFAVESEHDQAMAAYFTAAQLMKGCHLPMLYIGLEYGLTNNSKLAERFFSQALSIAPEDPFVMHEVGVVAFQNGEWKTAEKWFLDALEKIKAIGNEVTVDKWEPLLNNLGHVCRKLKKYAEALDYHRQALVLIPQNASTYSAIGYIHSLMGNFENAVDYFHTALGLRRDDTFSVTMLGHCIEMYIGDSEAYIGADIKDKLKCYDFDVHTMKTLKNIIEPPWDFREFEVEKQTAEETGLEPLEEERKTPDSRPSLEETFEIEMNESDMMLETSMSDHST

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 11 polymer

描述 description	Anaphase-promoting complex subunit 10
分子量 formula_weight	21310.2 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L

MTEPNKTPPGADPKQLERTGTVREIGSQAVWSLSSCKPGFGVDQLRDDNLETYWQSDGSQPHLVNIQFRRKTTVKTLCIYADYKSDESYTPSKISVRVGNNFHNLQEIRQLELVEPSGWIHVPLTDNHKKPTRTFMIQIAVLANHQNGRDTHMRQIKIYTPVEESSIGKFPRCTTIDFMMYRSIR

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 12 polymer

描述 description	Anaphase-promoting complex subunit 13
分子量 formula_weight	8528.3 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	M

MDSEVQRDGRILDLIDDAWREDKLPYEDVAIPLNELPEPEQDNGGTTESVKEQEMKWTDLALQYLHENVPPIGN

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 13 polymer

描述 description	Anaphase-promoting complex subunit 2
分子量 formula_weight	94149.2 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	N

MAAAVVVAEGDSDSRPGQELLVAWNTVSTGLVPPAALGLVSSRTSGAVPPKEEELRAAVEVLRGHGLHSVLEEWFVEVLQNDLQANISPEFWNAISQCENSADEPQCLLLLLDAFGLLESRLDPYLRSLELLEKWTRLGLLMGTGAQGLREEVHTMLRGVLFFSTPRTFQEMIQRLYGCFLRVYMQSKRKGEGGTDPELEGELDSRYARRRYYRLLQEPLCAGCSSDKQQCWCRQALEQFHQLSQVLHRLSLLERVSAEAVTTTLHQVTRERMEDRCRGEYERSFLREFHKWIERVVGWLGKVFLQDGPARPAEPEAGNTLRRWRCHVQRFFYRIYASLRIEELFSIVRDFPDSRPAIEDLKYCLERTDQRQQLLVSLKAALETRLLHPGVNTCDIITLYISAIKALRVLDPSMVILEVACEPIRRYLRTREDTVRQIVAGLTGDSDGTGDLAVELSKTDPASLETGQDEEDDSGEPEDWVPDPVDADPGKSSSKRRSSDIISLLVSIYGSKDLFINEYRSLLADRLLHQFSFEPEREIRNVELLKLRFGEAPMHFCEVMLKDMADSRRINANIREEDEKRPAEEQPPFGVYAVILSSEFWPPFKDEKLEVPEDIRAALEAYCKKYEQLKAMRTLSWKHTLGLVTMDVELADRTLSVAVTPVQAVILLYFQDQASWTLEELSKAVKMPVALLRRRMSVWLQQGVLREEPPGTFSVIEEERPQDRDNMVLIDSDDESDSGMASQADQKEEELLLFWTYIQAMLTNLESLSLDRIYNMLRMFVVTGPALAEIDLQELQGYLQKKVRDQQLVYEAGVYRLPKNCS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 14 polymer

描述 description	Anaphase-promoting complex subunit 5
分子量 formula_weight	85446.0 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	O

MASVHESLYFNPMMTNGVVHANVFGIKDWVTPYKIAVLVLLNEMSRTGEGAVSLMERRRLNQLLLPLLQGPDITLSKLYKLIEESCPQLANSVQIRIKLMAEGELKDMEQFFDDLSDSFSGTEPEVHKTSVVGLFLRHMILAYSKLSFSQVFKLYTALQQYFQNGEKKTVEDADMELEERDEGERKMEKEELDVEVREEEVECSGPLSQKQAEFFLSQQAELLKNDETKALEPASLQKELNNLLKFNPDFAEAHYLSYLNNLRVQDVFSSTHSLLHYFDRLILTGAESKSNGEEGYGRSLRYAALNLAALHCRFGHYQQAELALQEAIRIAQESNDHVCLQHCLSWLYVLGQKRSDSYVLLEHEVKKAVHFGLPYLASLGIQSLVQQRAFAGKTANKLMDALKDSDLLHWKHSLSELIDISIAQKTAIWRLYGRSTMALQQAQMLLSMNSLEAVNAGVQQNNTESFAVALCHLAELHAEQGCFAAASEVLKHLKERFPPNSQHAQLWMLCDQKIQFDRAMNDGKYHLADSLVTGITALNSIEGVYRKAVVLQAQNQMSEAHKLLQKLLVHCQKLKNTEMVISVLLSVAELYWRSSSPTIALPMLLQALALSKEYRLQYLASETVLNLAFAQLILGIPEQALSLLHMAIEPILADGAILDKGRAMFLVAKCQVASAASYDQPKKAEALEAAIENLNEAKNYFAKVDCKERIRDVVYFQARLYHTLGKTQERNRCAMLFRQLHQELPSHGVPLINHL

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 15 polymer

描述 description	Ubiquitin-conjugating enzyme E2 C
分子量 formula_weight	19673.3 kDa
EC 编号 ec_number	2.3.2.23,2.3.2.24
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Q

MASQNRDPAATSVAAARKGAEPSGGAARGPVGKRLQQELMTLMMSGDKGISAFPESDNLFKWVGTIHGAAGTVYEDLRYKLSLEFPSGYPYNAPTVKFLTPCYHPNVDTQGNICLDILKEKWSALYDVRTILLSIQSLLGEPNIDSPLNTHAAELWKNPTAFKKYLQETYSKQVTSQEP

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 16 polymer

描述 description	Fizzy-related protein homolog
分子量 formula_weight	55253.2 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	R

MDQDYERRLLRQIVIQNENTMPRVTEMRRTLTPASSPVSSPSKHGDRFIPSRAGANWSVNFHRINENEKSPSQNRKAKDATSDNGKDGLAYSALLKNELLGAGIEKVQDPQTEDRRLQPSTPEKKGLFTYSLSTKRSSPDDGNDVSPYSLSPVSNKSQKLLRSPRKPTRKISKIPFKVLDAPELQDDFYLNLVDWSSLNVLSVGLGTCVYLWSACTSQVTRLCDLSVEGDSVTSVGWSERGNLVAVGTHKGFVQIWDAAAGKKLSMLEGHTARVGALAWNAEQLSSGSRDRMILQRDIRTPPLQSERRLQGHRQEVCGLKWSTDHQLLASGGNDNKLLVWNHSSLSPVQQYTEHLAAVKAIAWSPHQHGLLASGGGTADRCIRFWNTLTGQPLQCIDTGSQVCNLAWSKHANELVSTHGYSQNQILVWKYPSLTQVAKLTGHSYRVLYLAMSPDGEAIVTGAGDETLRFWNVFSKTRSTKVKWESVSVLNLFTRIR

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 17 polymer

描述 description	Cell division cycle protein 23 homolog
分子量 formula_weight	69075.1 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	U,V

MAASTSMVPVAVTAAVAPVLSINSDFSDLREIKKQLLLIAGLTRERGLLHSSKWSAELAFSLPALPLAELQPPPPITEEDAQDMDAYTLAKAYFDVKEYDRAAHFLHGCNSKKAYFLYMYSRYLSGEKKKDDETVDSLGPLEKGQVKNEALRELRVELSKKHQARELDGFGLYLYGVVLRKLDLVKEAIDVFVEATHVLPLHWGAWLELCNLITDKEMLKFLSLPDTWMKEFFLAHIYTELQLIEEALQKYQNLIDVGFSKSSYIVSQIAVAYHNIRDIDKALSIFNELRKQDPYRIENMDTFSNLLYVRSMKSELSYLAHNLCEIDKYRVETCCVIGNYYSLRSQHEKAALYFQRALKLNPRYLGAWTLMGHEYMEMKNTSAAIQAYRHAIEVNKRDYRAWYGLGQTYEILKMPFYCLYYYRRAHQLRPNDSRMLVALGECYEKLNQLVEAKKCYWRAYAVGDVEKMALVKLAKLHEQLTESEQAAQCYIKYIQDIYSCGEIVEHLEESTAFRYLAQYYFKCKLWDEASTCAQKCCAFNDEREEGKALLRQILQLRNQGEEPTTEVPAPFFLPASLSANNEPTRRVEPLNLSSVEP

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 18 polymer

描述 description	Anaphase-promoting complex subunit 7
分子量 formula_weight	63204.0 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Y,Z

MNVIDHVRDMAAAGLHSNVRLLSSLLLTMSNNNPELFSPPQKYQLLVYHADSLFHDKEYRNAVSKYTMALQQKKALSKTSKVRPSTGNSASTPQSQCLPSEIEVKYKMAECYTMLKQDKDAIAILDGIPSRQRTPKINMMLANLYKKAGQERPSVTSYKEVLRQCPLALDAILGLLSLSVKGAEVASMTMNVIQTVPNLDWLSVWIKAYAFVHTGDNSRAISTICSLEKKSLLRDNVDLLGSLADLYFRAGDNKNSVLKFEQAQMLDPYLIKGMDVYGYLLAREGRLEDVENLGCRLFNISDQHAEPWVVSGCHSFYSKRYSRALYLGAKAIQLNSNSVQALLLKGAALRNMGRVQEAIIHFREAIRLAPCRLDCYEGLIECYLASNSIREAMVMANNVYKTLGANAQTLTLLATVCLEDPVTQEKAKTLLDKALTQRPDYIKAVVKKAELLSREQKYEDGIALLRNALANQSDCVLHRILGDFLVAVNEYQEAMDQYSIALSLDPNDQKSLEGMQKMEKEESPTDATQEEDVDDMEGSGEEGDLEGSDSEAAQWADQEQWFGMQ

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 19 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.50 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	774933

fit	/app/data/saxs_computation/ta/8tau/8tau.fit
pddf	/app/data/pr_computation/ta/8tau/8tau.pr.out
profile	/app/data/saxs_computation/ta/8tau/8tau.dat
