5l9t

Model of human Anaphase-promoting complex/Cyclosome (APC/C-CDH1) with E2 UBE2S poised for polyubiquitination where UBE2S, APC2, and APC11 are modeled into low resolution density

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Anaphase-promoting complex subunit 1

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 22	Anaphase-promoting complex subunit 11 × 1 （Q9NYG5） Cell division cycle protein 23 homolog × 2 （Q9UJX2） Anaphase-promoting complex subunit 15 × 1 （P60006） Anaphase-promoting complex subunit 16 × 1 （Q96DE5） Cell division cycle protein 27 homolog × 2 （P30260） Anaphase-promoting complex subunit CDC26 × 2 （Q8NHZ8） Anaphase-promoting complex subunit 4 × 1 （Q9UJX5） Cell division cycle protein 16 homolog × 2 （Q13042） Anaphase-promoting complex subunit 10 × 1 （Q9UM13） Anaphase-promoting complex subunit 13 × 1 （Q9BS18） Anaphase-promoting complex subunit 2 × 1 （Q9UJX6） Anaphase-promoting complex subunit 5 × 1 （Q9UJX4） Fizzy-related protein homolog × 1 （Q9UM11） Ubiquitin_variant-Hsl1(substrate) fusion × 1 （P0CG47,P34244） Ubiquitin-conjugating enzyme E2 S × 1 （Q16763） Anaphase-promoting complex subunit 7 × 2 （Q9UJX3）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	APC1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–1944； UniProt 1–1944

Anaphase-promoting complex subunit 11

Homo sapiens

UniProt Q9NYG5

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 22	Anaphase-promoting complex subunit 1 × 1 （Q9H1A4） Cell division cycle protein 23 homolog × 2 （Q9UJX2） Anaphase-promoting complex subunit 15 × 1 （P60006） Anaphase-promoting complex subunit 16 × 1 （Q96DE5） Cell division cycle protein 27 homolog × 2 （P30260） Anaphase-promoting complex subunit CDC26 × 2 （Q8NHZ8） Anaphase-promoting complex subunit 4 × 1 （Q9UJX5） Cell division cycle protein 16 homolog × 2 （Q13042） Anaphase-promoting complex subunit 10 × 1 （Q9UM13） Anaphase-promoting complex subunit 13 × 1 （Q9BS18） Anaphase-promoting complex subunit 2 × 1 （Q9UJX6） Anaphase-promoting complex subunit 5 × 1 （Q9UJX4） Fizzy-related protein homolog × 1 （Q9UM11） Ubiquitin_variant-Hsl1(substrate) fusion × 1 （P0CG47,P34244） Ubiquitin-conjugating enzyme E2 S × 1 （Q16763） Anaphase-promoting complex subunit 7 × 2 （Q9UJX3）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	APC11_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–84； UniProt 1–84

Cell division cycle protein 23 homolog

Homo sapiens

UniProt Q9UJX2

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 22	Anaphase-promoting complex subunit 1 × 1 （Q9H1A4） Anaphase-promoting complex subunit 11 × 1 （Q9NYG5） Anaphase-promoting complex subunit 15 × 1 （P60006） Anaphase-promoting complex subunit 16 × 1 （Q96DE5） Cell division cycle protein 27 homolog × 2 （P30260） Anaphase-promoting complex subunit CDC26 × 2 （Q8NHZ8） Anaphase-promoting complex subunit 4 × 1 （Q9UJX5） Cell division cycle protein 16 homolog × 2 （Q13042） Anaphase-promoting complex subunit 10 × 1 （Q9UM13） Anaphase-promoting complex subunit 13 × 1 （Q9BS18） Anaphase-promoting complex subunit 2 × 1 （Q9UJX6） Anaphase-promoting complex subunit 5 × 1 （Q9UJX4） Fizzy-related protein homolog × 1 （Q9UM11） Ubiquitin_variant-Hsl1(substrate) fusion × 1 （P0CG47,P34244） Ubiquitin-conjugating enzyme E2 S × 1 （Q16763） Anaphase-promoting complex subunit 7 × 2 （Q9UJX3）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CDC23_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–597； UniProt 1–597 Author chain P； PDBConstruct 1–597； UniProt 1–597

Anaphase-promoting complex subunit 15

Homo sapiens

UniProt P60006

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 22	Anaphase-promoting complex subunit 1 × 1 （Q9H1A4） Anaphase-promoting complex subunit 11 × 1 （Q9NYG5） Cell division cycle protein 23 homolog × 2 （Q9UJX2） Anaphase-promoting complex subunit 16 × 1 （Q96DE5） Cell division cycle protein 27 homolog × 2 （P30260） Anaphase-promoting complex subunit CDC26 × 2 （Q8NHZ8） Anaphase-promoting complex subunit 4 × 1 （Q9UJX5） Cell division cycle protein 16 homolog × 2 （Q13042） Anaphase-promoting complex subunit 10 × 1 （Q9UM13） Anaphase-promoting complex subunit 13 × 1 （Q9BS18） Anaphase-promoting complex subunit 2 × 1 （Q9UJX6） Anaphase-promoting complex subunit 5 × 1 （Q9UJX4） Fizzy-related protein homolog × 1 （Q9UM11） Ubiquitin_variant-Hsl1(substrate) fusion × 1 （P0CG47,P34244） Ubiquitin-conjugating enzyme E2 S × 1 （Q16763） Anaphase-promoting complex subunit 7 × 2 （Q9UJX3）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	APC15_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 1–121； UniProt 1–121

Anaphase-promoting complex subunit 16

Homo sapiens

UniProt Q96DE5

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 22	Anaphase-promoting complex subunit 1 × 1 （Q9H1A4） Anaphase-promoting complex subunit 11 × 1 （Q9NYG5） Cell division cycle protein 23 homolog × 2 （Q9UJX2） Anaphase-promoting complex subunit 15 × 1 （P60006） Cell division cycle protein 27 homolog × 2 （P30260） Anaphase-promoting complex subunit CDC26 × 2 （Q8NHZ8） Anaphase-promoting complex subunit 4 × 1 （Q9UJX5） Cell division cycle protein 16 homolog × 2 （Q13042） Anaphase-promoting complex subunit 10 × 1 （Q9UM13） Anaphase-promoting complex subunit 13 × 1 （Q9BS18） Anaphase-promoting complex subunit 2 × 1 （Q9UJX6） Anaphase-promoting complex subunit 5 × 1 （Q9UJX4） Fizzy-related protein homolog × 1 （Q9UM11） Ubiquitin_variant-Hsl1(substrate) fusion × 1 （P0CG47,P34244） Ubiquitin-conjugating enzyme E2 S × 1 （Q16763） Anaphase-promoting complex subunit 7 × 2 （Q9UJX3）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	APC16_HUMAN
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain E； PDBConstruct 1–110； UniProt 1–110

Cell division cycle protein 27 homolog

Homo sapiens

UniProt P30260

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 22	Anaphase-promoting complex subunit 1 × 1 （Q9H1A4） Anaphase-promoting complex subunit 11 × 1 （Q9NYG5） Cell division cycle protein 23 homolog × 2 （Q9UJX2） Anaphase-promoting complex subunit 15 × 1 （P60006） Anaphase-promoting complex subunit 16 × 1 （Q96DE5） Anaphase-promoting complex subunit CDC26 × 2 （Q8NHZ8） Anaphase-promoting complex subunit 4 × 1 （Q9UJX5） Cell division cycle protein 16 homolog × 2 （Q13042） Anaphase-promoting complex subunit 10 × 1 （Q9UM13） Anaphase-promoting complex subunit 13 × 1 （Q9BS18） Anaphase-promoting complex subunit 2 × 1 （Q9UJX6） Anaphase-promoting complex subunit 5 × 1 （Q9UJX4） Fizzy-related protein homolog × 1 （Q9UM11） Ubiquitin_variant-Hsl1(substrate) fusion × 1 （P0CG47,P34244） Ubiquitin-conjugating enzyme E2 S × 1 （Q16763） Anaphase-promoting complex subunit 7 × 2 （Q9UJX3）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CDC27_HUMAN
Isoform	—
PDB entities	6
Chains and sequence ranges	Author chain F； PDBConstruct 1–824； UniProt 1–824 Author chain H； PDBConstruct 1–824； UniProt 1–824

Anaphase-promoting complex subunit CDC26

Homo sapiens

UniProt Q8NHZ8

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 22	Anaphase-promoting complex subunit 1 × 1 （Q9H1A4） Anaphase-promoting complex subunit 11 × 1 （Q9NYG5） Cell division cycle protein 23 homolog × 2 （Q9UJX2） Anaphase-promoting complex subunit 15 × 1 （P60006） Anaphase-promoting complex subunit 16 × 1 （Q96DE5） Cell division cycle protein 27 homolog × 2 （P30260） Anaphase-promoting complex subunit 4 × 1 （Q9UJX5） Cell division cycle protein 16 homolog × 2 （Q13042） Anaphase-promoting complex subunit 10 × 1 （Q9UM13） Anaphase-promoting complex subunit 13 × 1 （Q9BS18） Anaphase-promoting complex subunit 2 × 1 （Q9UJX6） Anaphase-promoting complex subunit 5 × 1 （Q9UJX4） Fizzy-related protein homolog × 1 （Q9UM11） Ubiquitin_variant-Hsl1(substrate) fusion × 1 （P0CG47,P34244） Ubiquitin-conjugating enzyme E2 S × 1 （Q16763） Anaphase-promoting complex subunit 7 × 2 （Q9UJX3）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CDC26_HUMAN
Isoform	—
PDB entities	7
Chains and sequence ranges	Author chain G； PDBConstruct 1–85； UniProt 1–85 Author chain W； PDBConstruct 1–85； UniProt 1–85

Anaphase-promoting complex subunit 4

Homo sapiens

UniProt Q9UJX5

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 22	Anaphase-promoting complex subunit 1 × 1 （Q9H1A4） Anaphase-promoting complex subunit 11 × 1 （Q9NYG5） Cell division cycle protein 23 homolog × 2 （Q9UJX2） Anaphase-promoting complex subunit 15 × 1 （P60006） Anaphase-promoting complex subunit 16 × 1 （Q96DE5） Cell division cycle protein 27 homolog × 2 （P30260） Anaphase-promoting complex subunit CDC26 × 2 （Q8NHZ8） Cell division cycle protein 16 homolog × 2 （Q13042） Anaphase-promoting complex subunit 10 × 1 （Q9UM13） Anaphase-promoting complex subunit 13 × 1 （Q9BS18） Anaphase-promoting complex subunit 2 × 1 （Q9UJX6） Anaphase-promoting complex subunit 5 × 1 （Q9UJX4） Fizzy-related protein homolog × 1 （Q9UM11） Ubiquitin_variant-Hsl1(substrate) fusion × 1 （P0CG47,P34244） Ubiquitin-conjugating enzyme E2 S × 1 （Q16763） Anaphase-promoting complex subunit 7 × 2 （Q9UJX3）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	APC4_HUMAN
Isoform	—
PDB entities	8
Chains and sequence ranges	Author chain I； PDBConstruct 1–808； UniProt 1–808

Cell division cycle protein 16 homolog

Homo sapiens

UniProt Q13042

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 22	Anaphase-promoting complex subunit 1 × 1 （Q9H1A4） Anaphase-promoting complex subunit 11 × 1 （Q9NYG5） Cell division cycle protein 23 homolog × 2 （Q9UJX2） Anaphase-promoting complex subunit 15 × 1 （P60006） Anaphase-promoting complex subunit 16 × 1 （Q96DE5） Cell division cycle protein 27 homolog × 2 （P30260） Anaphase-promoting complex subunit CDC26 × 2 （Q8NHZ8） Anaphase-promoting complex subunit 4 × 1 （Q9UJX5） Anaphase-promoting complex subunit 10 × 1 （Q9UM13） Anaphase-promoting complex subunit 13 × 1 （Q9BS18） Anaphase-promoting complex subunit 2 × 1 （Q9UJX6） Anaphase-promoting complex subunit 5 × 1 （Q9UJX4） Fizzy-related protein homolog × 1 （Q9UM11） Ubiquitin_variant-Hsl1(substrate) fusion × 1 （P0CG47,P34244） Ubiquitin-conjugating enzyme E2 S × 1 （Q16763） Anaphase-promoting complex subunit 7 × 2 （Q9UJX3）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CDC16_HUMAN
Isoform	—
PDB entities	9
Chains and sequence ranges	Author chain J； PDBConstruct 1–620； UniProt 1–620 Author chain K； PDBConstruct 1–620； UniProt 1–620

Anaphase-promoting complex subunit 10

Homo sapiens

UniProt Q9UM13

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 22	Anaphase-promoting complex subunit 1 × 1 （Q9H1A4） Anaphase-promoting complex subunit 11 × 1 （Q9NYG5） Cell division cycle protein 23 homolog × 2 （Q9UJX2） Anaphase-promoting complex subunit 15 × 1 （P60006） Anaphase-promoting complex subunit 16 × 1 （Q96DE5） Cell division cycle protein 27 homolog × 2 （P30260） Anaphase-promoting complex subunit CDC26 × 2 （Q8NHZ8） Anaphase-promoting complex subunit 4 × 1 （Q9UJX5） Cell division cycle protein 16 homolog × 2 （Q13042） Anaphase-promoting complex subunit 13 × 1 （Q9BS18） Anaphase-promoting complex subunit 2 × 1 （Q9UJX6） Anaphase-promoting complex subunit 5 × 1 （Q9UJX4） Fizzy-related protein homolog × 1 （Q9UM11） Ubiquitin_variant-Hsl1(substrate) fusion × 1 （P0CG47,P34244） Ubiquitin-conjugating enzyme E2 S × 1 （Q16763） Anaphase-promoting complex subunit 7 × 2 （Q9UJX3）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	APC10_HUMAN
Isoform	—
PDB entities	10
Chains and sequence ranges	Author chain L； PDBConstruct 1–185； UniProt 1–185

Anaphase-promoting complex subunit 13

Homo sapiens

UniProt Q9BS18

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 22	Anaphase-promoting complex subunit 1 × 1 （Q9H1A4） Anaphase-promoting complex subunit 11 × 1 （Q9NYG5） Cell division cycle protein 23 homolog × 2 （Q9UJX2） Anaphase-promoting complex subunit 15 × 1 （P60006） Anaphase-promoting complex subunit 16 × 1 （Q96DE5） Cell division cycle protein 27 homolog × 2 （P30260） Anaphase-promoting complex subunit CDC26 × 2 （Q8NHZ8） Anaphase-promoting complex subunit 4 × 1 （Q9UJX5） Cell division cycle protein 16 homolog × 2 （Q13042） Anaphase-promoting complex subunit 10 × 1 （Q9UM13） Anaphase-promoting complex subunit 2 × 1 （Q9UJX6） Anaphase-promoting complex subunit 5 × 1 （Q9UJX4） Fizzy-related protein homolog × 1 （Q9UM11） Ubiquitin_variant-Hsl1(substrate) fusion × 1 （P0CG47,P34244） Ubiquitin-conjugating enzyme E2 S × 1 （Q16763） Anaphase-promoting complex subunit 7 × 2 （Q9UJX3）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	APC13_HUMAN
Isoform	—
PDB entities	11
Chains and sequence ranges	Author chain M； PDBConstruct 1–74； UniProt 1–74

Anaphase-promoting complex subunit 2

Homo sapiens

UniProt Q9UJX6

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 22	Anaphase-promoting complex subunit 1 × 1 （Q9H1A4） Anaphase-promoting complex subunit 11 × 1 （Q9NYG5） Cell division cycle protein 23 homolog × 2 （Q9UJX2） Anaphase-promoting complex subunit 15 × 1 （P60006） Anaphase-promoting complex subunit 16 × 1 （Q96DE5） Cell division cycle protein 27 homolog × 2 （P30260） Anaphase-promoting complex subunit CDC26 × 2 （Q8NHZ8） Anaphase-promoting complex subunit 4 × 1 （Q9UJX5） Cell division cycle protein 16 homolog × 2 （Q13042） Anaphase-promoting complex subunit 10 × 1 （Q9UM13） Anaphase-promoting complex subunit 13 × 1 （Q9BS18） Anaphase-promoting complex subunit 5 × 1 （Q9UJX4） Fizzy-related protein homolog × 1 （Q9UM11） Ubiquitin_variant-Hsl1(substrate) fusion × 1 （P0CG47,P34244） Ubiquitin-conjugating enzyme E2 S × 1 （Q16763） Anaphase-promoting complex subunit 7 × 2 （Q9UJX3）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ANC2_HUMAN
Isoform	—
PDB entities	12
Chains and sequence ranges	Author chain N； PDBConstruct 1–822； UniProt 1–822

Anaphase-promoting complex subunit 5

Homo sapiens

UniProt Q9UJX4

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 22	Anaphase-promoting complex subunit 1 × 1 （Q9H1A4） Anaphase-promoting complex subunit 11 × 1 （Q9NYG5） Cell division cycle protein 23 homolog × 2 （Q9UJX2） Anaphase-promoting complex subunit 15 × 1 （P60006） Anaphase-promoting complex subunit 16 × 1 （Q96DE5） Cell division cycle protein 27 homolog × 2 （P30260） Anaphase-promoting complex subunit CDC26 × 2 （Q8NHZ8） Anaphase-promoting complex subunit 4 × 1 （Q9UJX5） Cell division cycle protein 16 homolog × 2 （Q13042） Anaphase-promoting complex subunit 10 × 1 （Q9UM13） Anaphase-promoting complex subunit 13 × 1 （Q9BS18） Anaphase-promoting complex subunit 2 × 1 （Q9UJX6） Fizzy-related protein homolog × 1 （Q9UM11） Ubiquitin_variant-Hsl1(substrate) fusion × 1 （P0CG47,P34244） Ubiquitin-conjugating enzyme E2 S × 1 （Q16763） Anaphase-promoting complex subunit 7 × 2 （Q9UJX3）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	APC5_HUMAN
Isoform	—
PDB entities	13
Chains and sequence ranges	Author chain O； PDBConstruct 1–755； UniProt 1–755

Fizzy-related protein homolog

Homo sapiens

UniProt Q9UM11

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 22	Anaphase-promoting complex subunit 1 × 1 （Q9H1A4） Anaphase-promoting complex subunit 11 × 1 （Q9NYG5） Cell division cycle protein 23 homolog × 2 （Q9UJX2） Anaphase-promoting complex subunit 15 × 1 （P60006） Anaphase-promoting complex subunit 16 × 1 （Q96DE5） Cell division cycle protein 27 homolog × 2 （P30260） Anaphase-promoting complex subunit CDC26 × 2 （Q8NHZ8） Anaphase-promoting complex subunit 4 × 1 （Q9UJX5） Cell division cycle protein 16 homolog × 2 （Q13042） Anaphase-promoting complex subunit 10 × 1 （Q9UM13） Anaphase-promoting complex subunit 13 × 1 （Q9BS18） Anaphase-promoting complex subunit 2 × 1 （Q9UJX6） Anaphase-promoting complex subunit 5 × 1 （Q9UJX4） Ubiquitin_variant-Hsl1(substrate) fusion × 1 （P0CG47,P34244） Ubiquitin-conjugating enzyme E2 S × 1 （Q16763） Anaphase-promoting complex subunit 7 × 2 （Q9UJX3）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	FZR_HUMAN
Isoform	—
PDB entities	14
Chains and sequence ranges	Author chain R； PDBConstruct 1–493； UniProt 1–496

Ubiquitin_variant-Hsl1(substrate) fusion

Saccharomyces cerevisiae (strain ATCC 204508 / S288c)

UniProt P0CG47

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 22	Anaphase-promoting complex subunit 1 × 1 （Q9H1A4） Anaphase-promoting complex subunit 11 × 1 （Q9NYG5） Cell division cycle protein 23 homolog × 2 （Q9UJX2） Anaphase-promoting complex subunit 15 × 1 （P60006） Anaphase-promoting complex subunit 16 × 1 （Q96DE5） Cell division cycle protein 27 homolog × 2 （P30260） Anaphase-promoting complex subunit CDC26 × 2 （Q8NHZ8） Anaphase-promoting complex subunit 4 × 1 （Q9UJX5） Cell division cycle protein 16 homolog × 2 （Q13042） Anaphase-promoting complex subunit 10 × 1 （Q9UM13） Anaphase-promoting complex subunit 13 × 1 （Q9BS18） Anaphase-promoting complex subunit 2 × 1 （Q9UJX6） Anaphase-promoting complex subunit 5 × 1 （Q9UJX4） Fizzy-related protein homolog × 1 （Q9UM11） Ubiquitin-conjugating enzyme E2 S × 1 （Q16763） Anaphase-promoting complex subunit 7 × 2 （Q9UJX3）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	UBB_HUMAN
Isoform	—
PDB entities	15
Chains and sequence ranges	Author chain S； PDBConstruct 6–82； UniProt 77–153

Ubiquitin_variant-Hsl1(substrate) fusion

Saccharomyces cerevisiae (strain ATCC 204508 / S288c)

UniProt P34244

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 22	Anaphase-promoting complex subunit 1 × 1 （Q9H1A4） Anaphase-promoting complex subunit 11 × 1 （Q9NYG5） Cell division cycle protein 23 homolog × 2 （Q9UJX2） Anaphase-promoting complex subunit 15 × 1 （P60006） Anaphase-promoting complex subunit 16 × 1 （Q96DE5） Cell division cycle protein 27 homolog × 2 （P30260） Anaphase-promoting complex subunit CDC26 × 2 （Q8NHZ8） Anaphase-promoting complex subunit 4 × 1 （Q9UJX5） Cell division cycle protein 16 homolog × 2 （Q13042） Anaphase-promoting complex subunit 10 × 1 （Q9UM13） Anaphase-promoting complex subunit 13 × 1 （Q9BS18） Anaphase-promoting complex subunit 2 × 1 （Q9UJX6） Anaphase-promoting complex subunit 5 × 1 （Q9UJX4） Fizzy-related protein homolog × 1 （Q9UM11） Ubiquitin-conjugating enzyme E2 S × 1 （Q16763） Anaphase-promoting complex subunit 7 × 2 （Q9UJX3）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	HSL1_YEAST
Isoform	—
PDB entities	15
Chains and sequence ranges	Author chain S； PDBConstruct 84–108； UniProt 818–842

Ubiquitin-conjugating enzyme E2 S

Homo sapiens

UniProt Q16763

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 22	Anaphase-promoting complex subunit 1 × 1 （Q9H1A4） Anaphase-promoting complex subunit 11 × 1 （Q9NYG5） Cell division cycle protein 23 homolog × 2 （Q9UJX2） Anaphase-promoting complex subunit 15 × 1 （P60006） Anaphase-promoting complex subunit 16 × 1 （Q96DE5） Cell division cycle protein 27 homolog × 2 （P30260） Anaphase-promoting complex subunit CDC26 × 2 （Q8NHZ8） Anaphase-promoting complex subunit 4 × 1 （Q9UJX5） Cell division cycle protein 16 homolog × 2 （Q13042） Anaphase-promoting complex subunit 10 × 1 （Q9UM13） Anaphase-promoting complex subunit 13 × 1 （Q9BS18） Anaphase-promoting complex subunit 2 × 1 （Q9UJX6） Anaphase-promoting complex subunit 5 × 1 （Q9UJX4） Fizzy-related protein homolog × 1 （Q9UM11） Ubiquitin_variant-Hsl1(substrate) fusion × 1 （P0CG47,P34244） Anaphase-promoting complex subunit 7 × 2 （Q9UJX3）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	UBE2S_HUMAN
Isoform	—
PDB entities	16
Chains and sequence ranges	Author chain T； PDBConstruct 5–185； UniProt 1–222

Anaphase-promoting complex subunit 7

Homo sapiens

UniProt Q9UJX3

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 22	Anaphase-promoting complex subunit 1 × 1 （Q9H1A4） Anaphase-promoting complex subunit 11 × 1 （Q9NYG5） Cell division cycle protein 23 homolog × 2 （Q9UJX2） Anaphase-promoting complex subunit 15 × 1 （P60006） Anaphase-promoting complex subunit 16 × 1 （Q96DE5） Cell division cycle protein 27 homolog × 2 （P30260） Anaphase-promoting complex subunit CDC26 × 2 （Q8NHZ8） Anaphase-promoting complex subunit 4 × 1 （Q9UJX5） Cell division cycle protein 16 homolog × 2 （Q13042） Anaphase-promoting complex subunit 10 × 1 （Q9UM13） Anaphase-promoting complex subunit 13 × 1 （Q9BS18） Anaphase-promoting complex subunit 2 × 1 （Q9UJX6） Anaphase-promoting complex subunit 5 × 1 （Q9UJX4） Fizzy-related protein homolog × 1 （Q9UM11） Ubiquitin_variant-Hsl1(substrate) fusion × 1 （P0CG47,P34244） Ubiquitin-conjugating enzyme E2 S × 1 （Q16763）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	APC7_HUMAN
Isoform	—
PDB entities	17
Chains and sequence ranges	Author chain X； PDBConstruct 1–565； UniProt 35–599 Author chain Y； PDBConstruct 1–565； UniProt 35–599

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5l9t
Deposition date deposition_date	2016-06-11
Structure title title	Model of human Anaphase-promoting complex/Cyclosome (APC/C-CDH1) with E2 UBE2S poised for polyubiquitination where UBE2S, APC2, and APC11 are modeled into low resolution density
Keywords keywords	Ubiquitination, multi-protein complex, cell division, conformational regulation, cell cycle; CELL CYCLE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

5l9t__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

5l9t__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

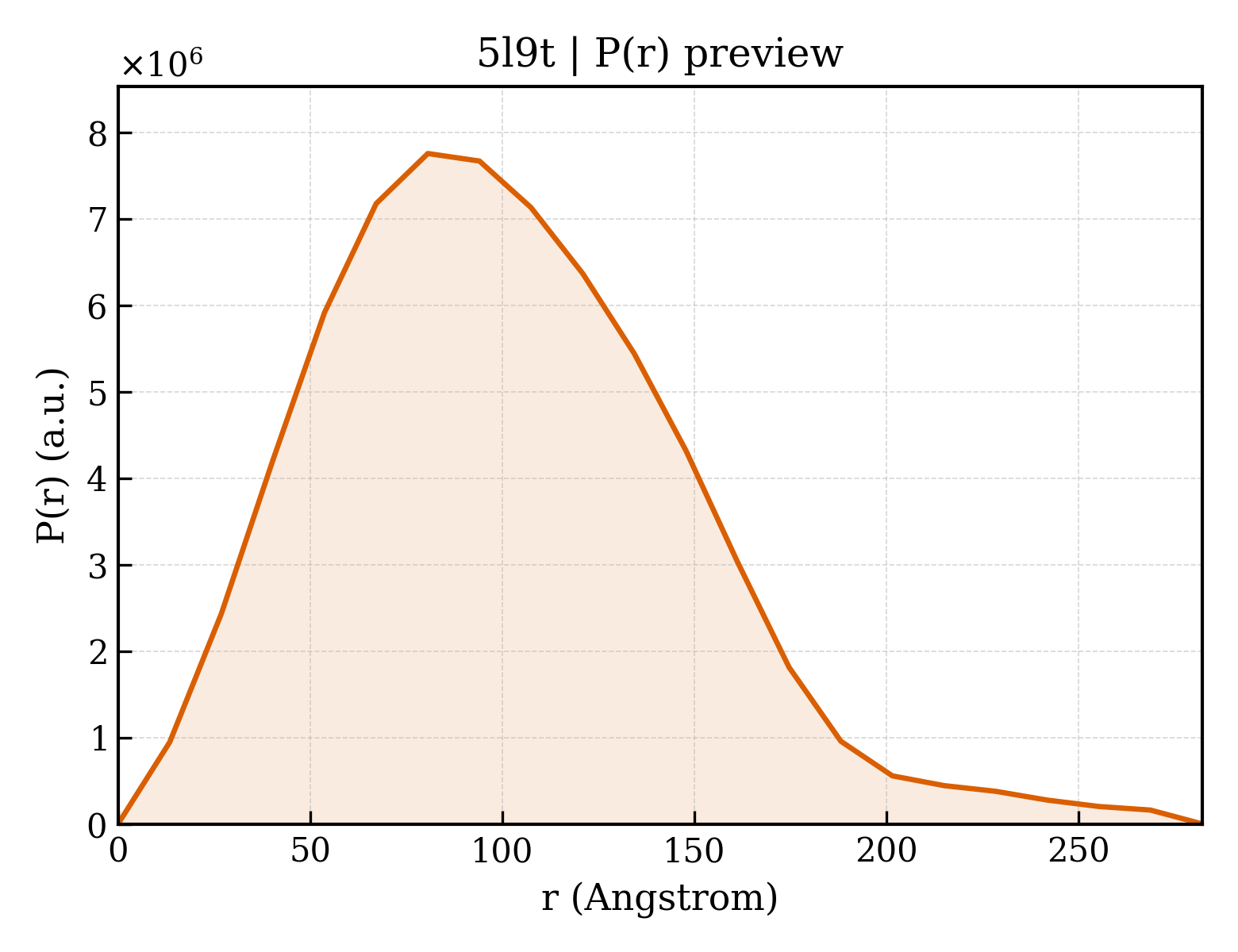

5l9t__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	73.37 Å
Rg (electron density)	73.16 Å
Total Rg	73.15 Å
Atom count	0
Residues	0
Excluded volume	1130100 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`5l9t__assembly_1__model_1`	22-meric （22）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (17)

Entity 1 Entity 1 polymer

Description description	Anaphase-promoting complex subunit 1
Molecular weight formula_weight	216725.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	8038

MSNFYEERTTMIAARDLQEFVPFGRDHCKHHPNALNLQLRQLQPASELWSSDGAAGLVGSLQEVTIHEKQKESWQLRKGVSEIGEDVDYDEELYVAGNMVIWSKGSKSQALAVYKAFTVDSPVQQALWCDFIISQDKSEKAYSSNEVEKCICILQSSCINMHSIEGKDYIASLPFQVANVWPTKYGLLFERSASSHEVPPGSPREPLPTMFSMLHPLDEITPLVCKSGSLFGSSRVQYVVDHAMKIVFLNTDPSIVMTYDAVQNVHSVWTLRRVKSEEENVVLKFSEQGGTPQNVATSSSLTAHLRSLSKGDSPVTSPFQNYSSIHSQSRSTSSPSLHSRSPSISNMAALSRAHSPALGVHSFSGVQRFNISSHNQSPKRHSISHSPNSNSNGSFLAPETEPIVPELCIDHLWTETITNIREKNSQASKVFITSDLCGQKFLCFLVESQLQLRCVKFQESNDKTQLIFGSVTNIPAKDAAPVEKIDTMLVLEGSGNLVLYTGVVRVGKVFIPGLPAPSLTMSNTMPRPSTPLDGVSTPKPLSKLLGSLDEVVLLSPVPELRDSSKLHDSLYNEDCTFQQLGTYIHSIRDPVHNRVTLELSNGSMVRITIPEIATSELVQTCLQAIKFILPKEIAVQMLVKWYNVHSAPGGPSYHSEWNLFVTCLMNMMGYNTDRLAWTRNFDFEGSLSPVIAPKKARPSETGSDDDWEYLLNSDYHQNVESHLLNRSLCLSPSEASQMKDEDFSQNLSLDSSTLLFTHIPAIFFVLHLVYEELKLNTLMGEGICSLVELLVQLARDLKLGPYVDHYYRDYPTLVRTTGQVCTIDPGQTGFMHHPSFFTSEPPSIYQWVSSCLKGEGMPPYPYLPGICERSRLVVLSIALYILGDESLVSDESSQYLTRITIAPQKLQVEQEENRFSFRHSTSVSSLAERLVVWMTNVGFTLRDLETLPFGIALPIRDAIYHCREQPASDWPEAVCLLIGRQDLSKQACEGNLPKGKSVLSSDVPSGTETEEEDDGMNDMNHEVMSLIWSEDLRVQDVRRLLQSAHPVRVNVVQYPELSDHEFIEEKENRLLQLCQRTMALPVGRGMFTLFSYHPVPTEPLPIPKLNLTGRAPPRNTTVDLNSGNIDVPPNMTSWASFHNGVAAGLKIAPASQIDSAWIVYNKPKHAELANEYAGFLMALGLNGHLTKLATLNIHDYLTKGHEMTSIGLLLGVSAAKLGTMDMSITRLLSIHIPALLPPTSTELDVPHNVQVAAVVGIGLVYQGTAHRHTAEVLLAEIGRPPGPEMEYCTDRESYSLAAGLALGMVCLGHGSNLIGMSDLNVPEQLYQYMVGGHRRFQTGMHREKHKSPSYQIKEGDTINVDVTCPGATLALAMIYLKTNNRSIADWLRAPDTMYLLDFVKPEFLLLRTLARCLILWDDILPNSKWVDSNVPQIIRENSISLSEIELPCSEDLNLETLSQAHVYIIAGACLSLGFRFAGSENLSAFNCLHKFAKDFMTYLSAPNASVTGPHNLETCLSVVLLSLAMVMAGSGNLKVLQLCRFLHMKTGGEMNYGFHLAHHMALGLLFLGGGRYSLSTSNSSIAALLCALYPHFPAHSTDNRYHLQALRHLYVLAAEPRLLVPVDVDTNTPCYALLEVTYKGTQWYEQTKEELMAPTLLPELHLLKQIKVKGPRYWELLIDLSKGTQHLKSILSKDGVLYVKLRAGQLSYKEDPMGWQSLLAQTVANRNSEARAFKPETISAFTSDPALLSFAEYFCKPTVNMGQKQEILDLFSSVLYECVTQETPEMLPAYIAMDQAIRRLGRREMSETSELWQIKLVLEFFSSRSHQERLQNHPKRGLFMNSEFLPVVKCTIDNTLDQWLQVGGDMCVHAYLSGQPLEESQLSMLACFLVYHSVPAPQHLPPIGLEGSTSFAELLFKFKQLKMPVRALLRLAPLLLGNPQPMVM

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 2 Entity 2 polymer

Description description	Anaphase-promoting complex subunit 11
Molecular weight formula_weight	9854.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MKVKIKCWNGVATWLWVANDENCGICRMAFNGCCPDCKVPGDDCPLVWGQCSHCFHMHCILKWLHAQQVQQHCPMCRQEWKFKE

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 3 Entity 3 polymer

Description description	Cell division cycle protein 23 homolog
Molecular weight formula_weight	68921.0 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,P

MAASTSMVPVAVTAAVAPVLSINSDFSDLREIKKQLLLIAGLTRERGLLHSSKWSAELAFSLPALPLAELQPPPPITEEDAQDMDAYTLAKAYFDVKEYDRAAHFLHGCNSKKAYFLYMYSRYLSGEKKKDDETVDSLGPLEKGQVKNEALRELRVELSKKHQARELDGFGLYLYGVVLRKLDLVKEAIDVFVEATHVLPLHWGAWLELCNLITDKEMLKFLSLPDTWMKEFFLAHIYTELQLIEEALQKYQNLIDVGFSKSSYIVSQIAVAYHNIRDIDKALSIFNELRKQDPYRIENMDTFSNLLYVRSMKSELSYLAHNLCEIDKYRVETCCVIGNYYSLRSQHEKAALYFQRALKLNPRYLGAWTLMGHEYMEMKNTSAAIQAYRHAIEVNKRDYRAWYGLGQTYEILKMPFYCLYYYRRAHQLRPNDSRMLVALGECYEKLNQLVEAKKCYWRAYAVGDVEKMALVKLAKLHEQLTESEQAAQCYIKYIQDIYSCGEIVEHLEESTAFRYLAQYYFKCKLWDEASTCAQKCCAFNDTREEGKALLRQILQLRNQGETPTTEVPAPFFLPASLSANNTPTRRVSPLNLSSVTP

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 polymer

Description description	Anaphase-promoting complex subunit 15
Molecular weight formula_weight	14286.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

MSTLFPSLFPRVTETLWFNLDRPCVEETELQQQEQQHQAWLQSIAEKDNNLVPIGKPASEHYDDEEEEDDEDDEDSEEDSEDDEDMQDMDEMNDYNESPDDGEVNEVDMEGNEQDQDQWMI

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 5 Entity 5 polymer

Description description	Anaphase-promoting complex subunit 16
Molecular weight formula_weight	11678.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

MAASSSSSSAGGVSGSSVTGSGFSVSDLAPPRKALFTYPKGAGEMLEDGSERFLCESVFSYQVASTLKQVKHDQQVARMEKLAGLVEELEADEWRFKPIEQLLGFTPSSG

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 6 Entity 6 polymer

Description description	Cell division cycle protein 27 homolog
Molecular weight formula_weight	91973.1 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F,H

MTVLQEPVQAAIWQALNHYAYRDAVFLAERLYAEVHSEEALFLLATCYYRSGKAYKAYRLLKGHSCTTPQCKYLLAKCCVDLSKLAEGEQILSGGVFNKQKSHDDIVTEFGDSACFTLSLLGHVYCKTDRLAKGSECYQKSLSLNPFLWSPFESLCEIGEKPDPDQTFKFTSLQNFSNCLPNSCTTQVPNHSLSHRQPETVLTETPQDTIELNRLNLESSNSKYSLNTDSSVSYIDSAVISPDTVPLGTGTSILSKQVQNKPKTGRSLLGGPAALSPLTPSFGILPLETPSPGDGSYLQNYTNTPPVIDVPSTGAPSKKSVARIGQTGTKSVFSQSGNSREVTPILAQTQSSGPQTSTTPQVLSPTITSPPNALPRRSSRLFTSDSSTTKENSKKLKMKFPPKIPNRKTKSKTNKGGITQPNINDSLEITKLDSSIISEGKISTITPQIQAFNLQKAAAEGLMSLLREMGKGYLALCSYNCKEAINILSHLPSHHYNTGWVLCQIGRAYFELSEYMQAERIFSEVRRIENYRVEGMEIYSTTLWHLQKDVALSVLSKDLTDMDKNSPEAWCAAGNCFSLQREHDIAIKFFQRAIQVDPNYAYAYTLLGHEFVLTEELDKALACFRNAIRVNPRHYNAWYGLGMIYYKQEKFSLAEMHFQKALDINPQSSVLLCHIGVVQHALKKSEKALDTLNKAIVIDPKNPLCKFHRASVLFANEKYKSALQELEELKQIVPKESLVYFLIGKVYKKLGQTHLALMNFSWAMDLDPKGANNQIKEAIDKRYLPDDEEPITQEEQIMGTDESQESSMTDADDTQLHAAESDEF

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 7 Entity 7 polymer

Description description	Anaphase-promoting complex subunit CDC26
Molecular weight formula_weight	9794.0 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G,W

MLRRKPTRLELKLDDIEEFENIRKDLETRKKQKEDVEVVGGSDGEGAIGLSSDPKSREQMINDRIGYKPQPKPNNRSSQFGSLEF

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 8 Entity 8 polymer

Description description	Anaphase-promoting complex subunit 4
Molecular weight formula_weight	93207.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	I

MLRFPTCFPSFRVVGEKQLPQEIIFLVWSPKRDLIALANTAGEVLLHRLASFHRVWSFPPNENTGKEVTCLAWRPDGKLLAFALADTKKIVLCDVEKPESLHSFSVEAPVSCMHWMEVTVESSVLTSFYNAEDESNLLLPKLPTLPKNYSNTSKIFSEENSDEIIKLLGDVRLNILVLGGSSGFIELYAYGMFKIARVTGIAGTCLALCLSSDLKSLSVVTEVSTNGASEVSYFQLETNLLYSFLPEVTRMARKFTHISALLQYINLSLTCMCEAWEEILMQMDSRLTKFVQEKNTTTSVQDEFMHLLLWGKASAELQTLLMNQLTVKGLKKLGQSIESSYSSIQKLVISHLQSGSESLLYHLSELKGMASWKQKYEPLGLDAAGIEEAITAVGSFILKANELLQVIDSSMKNFKAFFRWLYVAMLRMTEDHVLPELNKMTQKDITFVAEFLTEHFNEAPDLYNRKGKYFNVERVGQYLKDEDDDLVSPPNTEGNQWYDFLQNSSHLKESPLLFPYYPRKSLHFVKRRMENIIDQCLQKPADVIGKSMNQAICIPLYRDTRSEDSTRRLFKFPFLWNNKTSNLHYLLFTILEDSLYKMCILRRHTDISQSVSNGLIAIKFGSFTYATTEKVRRSIYSCLDAQFYDDETVTVVLKDTVGREGRDRLLVQLPLSLVYNSEDSAEYQFTGTYSTRLDEQCSAIPTRTMHFEKHWRLLESMKAQYVAGNGFRKVSCVLSSNLRHVRVFEMDIDDEWELDESSDEEEEASNKPVKIKEEVLSESEAENQQAGAAALAPEIVIKVEKLDPELDSGGSLEVLFQG

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 9 Entity 9 polymer

Description description	Cell division cycle protein 16 homolog
Molecular weight formula_weight	71747.5 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	J,K

MNLERLRKRVRQYLDQQQYQSALFWADKVASLSREEPQDIYWLAQCLYLTAQYHRAAHALRSRKLDKLYEACRYLAARCHYAAKEHQQALDVLDMEEPINKRLFEKYLKDESGFKDPSSDWEMSQSSIKSSICLLRGKIYDALDNRTLATYSYKEALKLDVYCFEAFDLLTSHHMLTAQEEKELLESLPLSKLCNEEQELLRFLFENKLKKYNKPSETVIPESVDGLQENLDVVVSLAERHYYNCDFKMCYKLTSVVMEKDPFHASCLPVHIGTLVELNKANELFYLSHKLVDLYPSNPVSWFAVGCYYLMVGHKNEHARRYLSKATTLEKTYGPAWIAYGHSFAVESEHDQAMAAYFTAAQLMKGCHLPMLYIGLEYGLTNNSKLAERFFSQALSIAPEDPFVMHEVGVVAFQNGEWKTAEKWFLDALEKIKAIGNEVTVDKWEPLLNNLGHVCRKLKKYAEALDYHRQALVLIPQNASTYSAIGYIHSLMGNFENAVDYFHTALGLRRDDTFSVTMLGHCIEMYIGDSEAYIGADIKDKLKCYDFDVHTMKTLKNIISPPWDFREFEVEKQTAEETGLTPLETSRKTPDSRPSLEETFEIEMNESDMMLETSMSDHST

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 10 Entity 10 polymer

Description description	Anaphase-promoting complex subunit 10
Molecular weight formula_weight	21282.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L

MTTPNKTPPGADPKQLERTGTVREIGSQAVWSLSSCKPGFGVDQLRDDNLETYWQSDGSQPHLVNIQFRRKTTVKTLCIYADYKSDESYTPSKISVRVGNNFHNLQEIRQLELVEPSGWIHVPLTDNHKKPTRTFMIQIAVLANHQNGRDTHMRQIKIYTPVEESSIGKFPRCTTIDFMMYRSIR

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 11 Entity 11 polymer

Description description	Anaphase-promoting complex subunit 13
Molecular weight formula_weight	8528.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	M

MDSEVQRDGRILDLIDDAWREDKLPYEDVAIPLNELPEPEQDNGGTTESVKEQEMKWTDLALQYLHENVPPIGN

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 12 Entity 12 polymer

Description description	Anaphase-promoting complex subunit 2
Molecular weight formula_weight	93939.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	N

MAAAVVVAEGDSDSRPGQELLVAWNTVSTGLVPPAALGLVSSRTSGAVPPKEEELRAAVEVLRGHGLHSVLEEWFVEVLQNDLQANISPEFWNAISQCENSADEPQCLLLLLDAFGLLESRLDPYLRSLELLEKWTRLGLLMGTGAQGLREEVHTMLRGVLFFSTPRTFQEMIQRLYGCFLRVYMQSKRKGEGGTDPELEGELDSRYARRRYYRLLQSPLCAGCSSDKQQCWCRQALEQFHQLSQVLHRLSLLERVSAEAVTTTLHQVTRERMEDRCRGEYERSFLREFHKWIERVVGWLGKVFLQDGPARPASPEAGNTLRRWRCHVQRFFYRIYASLRIEELFSIVRDFPDSRPAIEDLKYCLERTDQRQQLLVSLKAALETRLLHPGVNTCDIITLYISAIKALRVLDPSMVILEVACEPIRRYLRTREDTVRQIVAGLTGDSDGTGDLAVELSKTDPASLETGQDSEDDSGEPEDWVPDPVDADPGKSSSKRRSSDIISLLVSIYGSKDLFINEYRSLLADRLLHQFSFSPEREIRNVELLKLRFGEAPMHFCEVMLKDMADSRRINANIREEDEKRPAEEQPPFGVYAVILSSEFWPPFKDEKLEVPEDIRAALEAYCKKYEQLKAMRTLSWKHTLGLVTMDVELADRTLSVAVTPVQAVILLYFQDQASWTLEELSKAVKMPVALLRRRMSVWLQQGVLREEPPGTFSVIEEERPQDRDNMVLIDSDDESDSGMASQADQKEEELLLFWTYIQAMLTNLESLSLDRIYNMLRMFVVTGPALAEIDLQELQGYLQKKVRDQQLVYSAGVYRLPKNCS

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 13 Entity 13 polymer

Description description	Anaphase-promoting complex subunit 5
Molecular weight formula_weight	85179.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	O

MASVHESLYFNPMMTNGVVHANVFGIKDWVTPYKIAVLVLLNEMSRTGEGAVSLMERRRLNQLLLPLLQGPDITLSKLYKLIEESCPQLANSVQIRIKLMAEGELKDMEQFFDDLSDSFSGTEPEVHKTSVVGLFLRHMILAYSKLSFSQVFKLYTALQQYFQNGEKKTVEDADMELTSRDEGERKMEKEELDVSVREEEVSCSGPLSQKQAEFFLSQQASLLKNDETKALTPASLQKELNNLLKFNPDFAEAHYLSYLNNLRVQDVFSSTHSLLHYFDRLILTGAESKSNGEEGYGRSLRYAALNLAALHCRFGHYQQAELALQEAIRIAQESNDHVCLQHCLSWLYVLGQKRSDSYVLLEHSVKKAVHFGLPYLASLGIQSLVQQRAFAGKTANKLMDALKDSDLLHWKHSLSELIDISIAQKTAIWRLYGRSTMALQQAQMLLSMNSLEAVNAGVQQNNTESFAVALCHLAELHAEQGCFAAASEVLKHLKERFPPNSQHAQLWMLCDQKIQFDRAMNDGKYHLADSLVTGITALNSIEGVYRKAVVLQAQNQMSEAHKLLQKLLVHCQKLKNTEMVISVLLSVAELYWRSSSPTIALPMLLQALALSKEYRLQYLASETVLNLAFAQLILGIPEQALSLLHMAIEPILADGAILDKGRAMFLVAKCQVASAASYDQPKKAEALEAAIENLNEAKNYFAKVDCKERIRDVVYFQARLYHTLGKTQERNRCAMLFRQLHQELPSHGVPLINHL

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 14 Entity 14 polymer

Description description	Fizzy-related protein homolog
Molecular weight formula_weight	54838.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	R

MDQDYERRLLRQIVIQNENTMPRVTEMRRTLTPASSPVSSPSKHGDRFIPSRAGANWSVNFHRINENEKSPSQNRKAKDATSDNGKDGLAYSALLKNELLGAGIEKVQDPQTEDRRLQPSTPEKKGLFTYSLSTKRSSPDDGNDVSPYSLSPVSNKSQKLLRSPRKPTRKISKIPFKVLDAPELQDDFYLNLVDWSSLNVLSVGLGTCVYLWSACTSQVTRLCDLSVEGDSVTSVGWSERGNLVAVGTHKGFVQIWDAAAGKKLSMLEGHTARVGALAWNAEQLSSGSRDRMILQRDIRTPPLQSERRLQGHRQEVCGLKWSTDHQLLASGGNDNKLLVWNHSSLSPVQQYTEHLAAVKAIAWSPHQHGLLASGGGTADRCIRFWNTLTGQPLQCIDTGSQVCNLAWSKHANELVSTHGYSQNQILVWKYPSLTQVAKLTGHSYRVLYLAMSPDGEAIVTGAGDETLRFWNVFSKTRSTKESVSVLNLFTRIR

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 15 Entity 15 polymer

Description description	Ubiquitin_variant-Hsl1(substrate) fusion
Molecular weight formula_weight	12030.9 kDa
EC 编号 ec_number	2.7.11.1
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	S

GSGGSMQILVKTPRGCTITLEVEPSDTIENVKAKIQDKEGIPPDQQILFFAVKRLEDGRTLSDYNIQKKSSLLLAMRVPGKMKSSYLEEQKPKRAALSDITNSFNKMN

Source Source

Source organism organism	Saccharomyces cerevisiae (strain ATCC 204508 / S288c)
Common name common_name	;Baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	559292
Host organism host_organism	Escherichia coli

Entity 16 Entity 16 polymer

Description description	Ubiquitin-conjugating enzyme E2 S
Molecular weight formula_weight	20519.7 kDa
EC 编号 ec_number	2.3.2.23
Mutation mutation	C118F, delta 161-201
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	T

GPGSMNSNVENLPPHIIRLVYKEVTTLTADPPDGIKVFPNEEDLTDLQVTIEGPEGTPYAGGLFRMKLLLGKDFPASPPKGYFLTKIFHPNVGANGEICVNVLKRDWTAELGIRHVLLTIKFLLIHPNPESALNEEAGRLLLENYEEYAARARLLTEIHGGAGGERDKKLAAKKKTDKKRALRRL

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 17 Entity 17 polymer

Description description	Anaphase-promoting complex subunit 7
Molecular weight formula_weight	63204.0 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	X,Y

MNVIDHVRDMAAAGLHSNVRLLSSLLLTMSNNNPELFSPPQKYQLLVYHADSLFHDKEYRNAVSKYTMALQQKKALSKTSKVRPSTGNSASTPQSQCLPSEIEVKYKMAECYTMLKQDKDAIAILDGIPSRQRTPKINMMLANLYKKAGQERPSVTSYKEVLRQCPLALDAILGLLSLSVKGAEVASMTMNVIQTVPNLDWLSVWIKAYAFVHTGDNSRAISTICSLEKKSLLRDNVDLLGSLADLYFRAGDNKNSVLKFEQAQMLDPYLIKGMDVYGYLLAREGRLEDVENLGCRLFNISDQHAEPWVVSGCHSFYSKRYSRALYLGAKAIQLNSNSVQALLLKGAALRNMGRVQEAIIHFREAIRLAPCRLDCYEGLIECYLASNSIREAMVMANNVYKTLGANAQTLTLLATVCLEDPVTQEKAKTLLDKALTQRPDYIKAVVKKAELLSREQKYEDGIALLRNALANQSDCVLHRILGDFLVAVNEYQEAMDQYSIALSLDPNDQKSLEGMQKMEKEESPTDATQEEDVDDMEGSGEEGDLEGSDSEAAQWADQEQWFGMQ

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

▶

Resolution resolution	6.40 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	135578

Model of human Anaphase-promoting complex/Cyclosome (APC/C-CDH1) with E2 UBE2S poised for polyubiquitination where UBE2S, APC2, and APC11 are modeled into low resolution density

1. Protein Identity and Related Structures Protein Identity & Related Structures

Anaphase-promoting complex subunit 1

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Anaphase-promoting complex subunit 11

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Cell division cycle protein 23 homolog

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Anaphase-promoting complex subunit 15

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Anaphase-promoting complex subunit 16

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Cell division cycle protein 27 homolog

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Anaphase-promoting complex subunit CDC26

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Anaphase-promoting complex subunit 4

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Cell division cycle protein 16 homolog

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Anaphase-promoting complex subunit 10

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer
