5khr

Model of human Anaphase-promoting complex/Cyclosome complex (APC15 deletion mutant) in complex with the E2 UBE2C/UBCH10 poised for ubiquitin ligation to substrate (APC/C-CDC20-substrate-UBE2C)

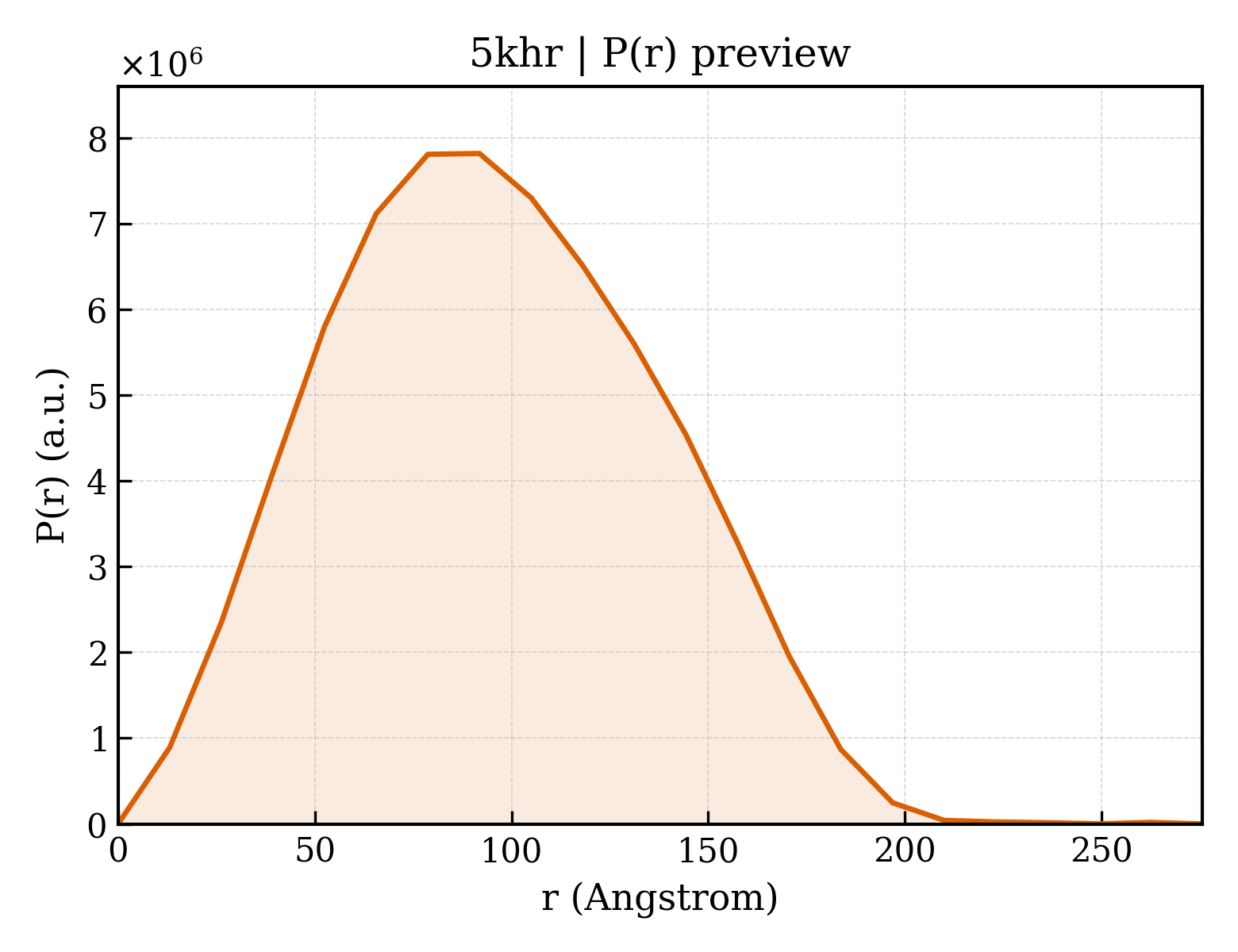

Method: ELECTRON MICROSCOPY Dmax: 275.6 Å Quality: GOOD
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Anaphase-promoting complex subunit 1

Homo sapiens

UniProt Q9H1A4

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 21 PDB declaration: 21-meric（21） Consistent with protein copy count Chain A； UniProt 1–1944 Not recorded Anaphase-promoting complex subunit 11 × 1 （Q9NYG5） Cell division cycle protein 23 homolog × 2 （Q9UJX2） Anaphase-promoting complex subunit 16 × 1 （Q96DE5） Cell division cycle protein 27 homolog × 2 （P30260） Anaphase-promoting complex subunit CDC26 × 2 （Q8NHZ8） Anaphase-promoting complex subunit 4 × 1 （Q9UJX5） Cell division cycle protein 16 homolog × 2 （Q13042） Anaphase-promoting complex subunit 10 × 1 （Q9UM13） Anaphase-promoting complex subunit 13 × 1 （Q9BS18） Anaphase-promoting complex subunit 2 × 1 （Q9UJX6） Anaphase-promoting complex subunit 5 × 1 （Q9UJX4） Ubiquitin-conjugating enzyme E2 C × 1 （O00762） Cell division cycle protein 20 homolog × 1 （Q12834） HSL1 peptide × 1 Anaphase-promoting complex subunit 7 × 2 （Q9UJX3） ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 6.10 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 5KHR Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
4UI9 Atomic structure of the human Anaphase-Promoting Complex Deposited 2015-03-27 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain A 1–1944（1944 aa）
Not recorded ZN ZINC ION × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
5G04 Structure of the human APC-Cdc20-Hsl1 complex Deposited 2016-03-16 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain A 1–1944（1944 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer 20MM HEPES, 150MM NACL, 0. 5MM TCEP；pH 8；20MM HEPES, 150MM NACL, 0. 5MM TCEP
cryo-EM vitrification conditions Cryogen ETHANE；LIQUID ETHANE
Resolution 3.90 Å
5G05 Cryo-EM structure of combined apo phosphorylated APC Deposited 2016-03-16 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain A 1–1944（1944 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer 20MM HEPES, 150MM NACL, 0. 5MM TCEP；pH 8；20MM HEPES, 150MM NACL, 0. 5MM TCEP
cryo-EM vitrification conditions Cryogen ETHANE；LIQUID ETHANE
Resolution 3.40 Å
5KHU Model of human Anaphase-promoting complex/Cyclosome (APC15 deletion mutant), in complex with the Mitotic checkpoint complex (APC/C-CDC20-MCC) based on cryo EM data at 4.8 Angstrom resolution Deposited 2016-06-15 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain A 1–1944（1944 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.80 Å
5L9T Model of human Anaphase-promoting complex/Cyclosome (APC/C-CDH1) with E2 UBE2S poised for polyubiquitination where UBE2S, APC2, and APC11 are modeled into low resolution density Deposited 2016-06-11 Different oligomeric state Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 22 PDB declaration: 22-meric
Chain A 1–1944（1944 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.40 Å
5L9U Model of human Anaphase-promoting complex/Cyclosome (APC/C-CDH1) with a cross linked Ubiquitin variant-substrate-UBE2C (UBCH10) complex representing key features of multiubiquitination Deposited 2016-06-11 Different oligomeric state Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 22 PDB declaration: 22-meric
Chain A 1–1944（1944 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.40 Å
5LCW Cryo-EM structure of the Anaphase-promoting complex/Cyclosome, in complex with the Mitotic checkpoint complex (APC/C-MCC) at 4.2 angstrom resolution Deposited 2016-06-22 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain A 1–1944（1944 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
5LGG The N-terminal WD40 domain of Apc1 (Anaphase promoting complex subunit 1) Deposited 2016-07-07 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–33（33 aa）
Chain A 70–306（237 aa）
Chain A 403–522（120 aa）
Chain A 581–613（33 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；277 K；0.1 M citric acid, pH5.0, 2M NaCl
Resolution 2.15 Å R-free 0.227
6Q6G Cryo-EM structure of the APC/C-Cdc20-Cdk2-cyclinA2-Cks2 complex, the D1 box class Deposited 2018-12-11 Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain A 1–306（306 aa）
Chain A 397–1944（1548 aa）
Mutation：deletion of residues 307-395,deletion of residues 307-395 Mutation：deletion of residues 307-395,deletion of residues 307-395 No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Hepes, 150mM NaCl, 0.5mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
6TLJ Cryo-EM structure of the Anaphase-promoting complex/Cyclosome, in complex with the Mitotic checkpoint complex (APC/C-MCC) at 3.8 angstrom resolution Deposited 2019-12-02 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain A 1–1944（1944 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
6TM5 Cryo-EM structure of the Anaphase-promoting complex/Cyclosome, in complex with the Nek2A substrate at 3.9 angstrom resolution Deposited 2019-12-03 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain A 1–1944（1944 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
6TNT SUMOylated apoAPC/C with repositioned APC2 WHB domain Deposited 2019-12-10 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain A 1–1944（1944 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.78 Å
8PKP Cryo-EM structure of the apo Anaphase-promoting complex/cyclosome (APC/C) at 3.2 Angstrom resolution Deposited 2023-06-27 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: 19-meric
Chain A 1–1944（1944 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8TAR APC/C-CDH1-UBE2C-Ubiquitin-CyclinB-NTD Deposited 2023-06-27 Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain A 1–1944（1944 aa）
Mutation：;S202E, S286E, T291E, S313E, T316E, S317E, S334E, S341E, S343E, S355E, S362E, S372E, S377E, T537E, S547E, S555E, S569E, S688E, S699E, S916E, S1347E ; ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
8TAU APC/C-CDH1-UBE2C-UBE2S-Ubiquitin-CyclinB Deposited 2023-06-27 Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain A 1–1944（1944 aa）
Mutation：;S202E, S286E, T291E, S313E, T316E, S317E, S334E, S341E, S343E, S355E, S362E, S372E, S377E, T537E, S547E, S555E, S569E, S688E, S699E, S916E, S1347E ; ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
9GAW High-resolution structure of the Anaphase-promoting complex/cyclosome (APC/C) bound to co-activator Cdh1 Deposited 2024-07-29 Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain A 1–1944（1944 aa）
Not recorded ZN ZINC ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
9N9R Model of APC/C-CDC20-UBE2C from H2A/H2B-bound complex Deposited 2025-02-11 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain A 1–1944（1944 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.90 Å
9N9S Model of APC/C-CDC20-UBE2C from H3/H4-bound complex Deposited 2025-02-11 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain A 1–1944（1944 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.90 Å

18 other PDB entries and 18 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name APC1_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–1944； UniProt 1–1944

Anaphase-promoting complex subunit 11

Homo sapiens

UniProt Q9NYG5

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 21 PDB declaration: 21-meric（21） Consistent with protein copy count Chain B； UniProt 1–84 Not recorded Anaphase-promoting complex subunit 1 × 1 （Q9H1A4） Cell division cycle protein 23 homolog × 2 （Q9UJX2） Anaphase-promoting complex subunit 16 × 1 （Q96DE5） Cell division cycle protein 27 homolog × 2 （P30260） Anaphase-promoting complex subunit CDC26 × 2 （Q8NHZ8） Anaphase-promoting complex subunit 4 × 1 （Q9UJX5） Cell division cycle protein 16 homolog × 2 （Q13042） Anaphase-promoting complex subunit 10 × 1 （Q9UM13） Anaphase-promoting complex subunit 13 × 1 （Q9BS18） Anaphase-promoting complex subunit 2 × 1 （Q9UJX6） Anaphase-promoting complex subunit 5 × 1 （Q9UJX4） Ubiquitin-conjugating enzyme E2 C × 1 （O00762） Cell division cycle protein 20 homolog × 1 （Q12834） HSL1 peptide × 1 Anaphase-promoting complex subunit 7 × 2 （Q9UJX3） ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 6.10 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 5KHR Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
2MT5 Isolated Ring domain Deposited 2014-08-13 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 17–84（68 aa） Fragment：UNP residues 17-84
Not recorded ZN ZINC ION × 3 SOLUTION NMR
NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 100；Pressure ambient
NMR sample composition 0.5 mM [U-100% 13C; U-100% 15N] protein_1, 90% H2O/10% D2O | 90% H2O/10% D2O
Resolution not provided
4R2Y Crystal structure of APC11 RING domain Deposited 2014-08-13 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 17–84（68 aa） Fragment：RING domain (UNP Residues 17-84)
Not recorded ZN ZINC ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；16% PEG3350, 0.2 M NaNO3, 0.1 M Bis-Tris, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 1.75 Å R-free 0.229
4R2Y Crystal structure of APC11 RING domain Deposited 2014-08-13 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 17–84（68 aa） Fragment：RING domain (UNP Residues 17-84)
Not recorded ZN ZINC ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；16% PEG3350, 0.2 M NaNO3, 0.1 M Bis-Tris, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 1.75 Å R-free 0.229
4R2Y Crystal structure of APC11 RING domain Deposited 2014-08-13 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 17–84（68 aa） Fragment：RING domain (UNP Residues 17-84)
Not recorded ZN ZINC ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；16% PEG3350, 0.2 M NaNO3, 0.1 M Bis-Tris, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 1.75 Å R-free 0.229
4R2Y Crystal structure of APC11 RING domain Deposited 2014-08-13 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain D 17–84（68 aa） Fragment：RING domain (UNP Residues 17-84)
Not recorded ZN ZINC ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；16% PEG3350, 0.2 M NaNO3, 0.1 M Bis-Tris, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 1.75 Å R-free 0.229
4R2Y Crystal structure of APC11 RING domain Deposited 2014-08-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 5 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 17–84（68 aa） Fragment：RING domain (UNP Residues 17-84)
Chain B 17–84（68 aa） Fragment：RING domain (UNP Residues 17-84)
Not recorded ZN ZINC ION × 12 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；16% PEG3350, 0.2 M NaNO3, 0.1 M Bis-Tris, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 1.75 Å R-free 0.229
4R2Y Crystal structure of APC11 RING domain Deposited 2014-08-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 6 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain C 17–84（68 aa） Fragment：RING domain (UNP Residues 17-84)
Chain D 17–84（68 aa） Fragment：RING domain (UNP Residues 17-84)
Not recorded ZN ZINC ION × 12 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；16% PEG3350, 0.2 M NaNO3, 0.1 M Bis-Tris, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 1.75 Å R-free 0.229
4UI9 Atomic structure of the human Anaphase-Promoting Complex Deposited 2015-03-27 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain B 1–84（84 aa）
Not recorded ZN ZINC ION × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
5A31 Structure of the human APC-Cdh1-Hsl1-UbcH10 complex. Deposited 2015-05-26 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 24 PDB declaration: 24-meric
Chain B 1–84（84 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.30 Å
5G04 Structure of the human APC-Cdc20-Hsl1 complex Deposited 2016-03-16 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain B 1–84（84 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer 20MM HEPES, 150MM NACL, 0. 5MM TCEP；pH 8；20MM HEPES, 150MM NACL, 0. 5MM TCEP
cryo-EM vitrification conditions Cryogen ETHANE；LIQUID ETHANE
Resolution 3.90 Å
5G05 Cryo-EM structure of combined apo phosphorylated APC Deposited 2016-03-16 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain B 1–84（84 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer 20MM HEPES, 150MM NACL, 0. 5MM TCEP；pH 8；20MM HEPES, 150MM NACL, 0. 5MM TCEP
cryo-EM vitrification conditions Cryogen ETHANE；LIQUID ETHANE
Resolution 3.40 Å
5JG6 APC11-Ubv shows role of noncovalent RING-Ubiquitin interactions in processive multiubiquitination and Ubiquitin chain elongation by APC/C Deposited 2016-04-19 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 17–84（68 aa）
Not recorded ZN ZINC ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；0.2 M Ammonium acetate, 0.1 M Sodium acetate pH 4.6, 33% PEG4000
Resolution 2.00 Å R-free 0.220
5JG6 APC11-Ubv shows role of noncovalent RING-Ubiquitin interactions in processive multiubiquitination and Ubiquitin chain elongation by APC/C Deposited 2016-04-19 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 17–84（68 aa）
Not recorded ZN ZINC ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；0.2 M Ammonium acetate, 0.1 M Sodium acetate pH 4.6, 33% PEG4000
Resolution 2.00 Å R-free 0.220
5KHU Model of human Anaphase-promoting complex/Cyclosome (APC15 deletion mutant), in complex with the Mitotic checkpoint complex (APC/C-CDC20-MCC) based on cryo EM data at 4.8 Angstrom resolution Deposited 2016-06-15 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain B 1–84（84 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.80 Å
5L9T Model of human Anaphase-promoting complex/Cyclosome (APC/C-CDH1) with E2 UBE2S poised for polyubiquitination where UBE2S, APC2, and APC11 are modeled into low resolution density Deposited 2016-06-11 Different oligomeric state Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 22 PDB declaration: 22-meric
Chain B 1–84（84 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.40 Å
5L9U Model of human Anaphase-promoting complex/Cyclosome (APC/C-CDH1) with a cross linked Ubiquitin variant-substrate-UBE2C (UBCH10) complex representing key features of multiubiquitination Deposited 2016-06-11 Different oligomeric state Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 22 PDB declaration: 22-meric
Chain B 1–84（84 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.40 Å
5LCW Cryo-EM structure of the Anaphase-promoting complex/Cyclosome, in complex with the Mitotic checkpoint complex (APC/C-MCC) at 4.2 angstrom resolution Deposited 2016-06-22 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain B 1–84（84 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
6Q6G Cryo-EM structure of the APC/C-Cdc20-Cdk2-cyclinA2-Cks2 complex, the D1 box class Deposited 2018-12-11 Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain C 1–84（84 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Hepes, 150mM NaCl, 0.5mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
6Q6H Cryo-EM structure of the APC/C-Cdc20-Cdk2-cyclinA2-Cks2 complex, the D2 box class Deposited 2018-12-11 Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain C 1–84（84 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Hepes, 150mM NaCl, 0.5mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
6TLJ Cryo-EM structure of the Anaphase-promoting complex/Cyclosome, in complex with the Mitotic checkpoint complex (APC/C-MCC) at 3.8 angstrom resolution Deposited 2019-12-02 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain B 1–84（84 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
6TM5 Cryo-EM structure of the Anaphase-promoting complex/Cyclosome, in complex with the Nek2A substrate at 3.9 angstrom resolution Deposited 2019-12-03 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain B 1–84（84 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
6TNT SUMOylated apoAPC/C with repositioned APC2 WHB domain Deposited 2019-12-10 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain B 1–84（84 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.78 Å
8PKP Cryo-EM structure of the apo Anaphase-promoting complex/cyclosome (APC/C) at 3.2 Angstrom resolution Deposited 2023-06-27 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: 19-meric
Chain C 1–84（84 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8TAR APC/C-CDH1-UBE2C-Ubiquitin-CyclinB-NTD Deposited 2023-06-27 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain C 1–84（84 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
8TAU APC/C-CDH1-UBE2C-UBE2S-Ubiquitin-CyclinB Deposited 2023-06-27 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain C 1–84（84 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
9GAW High-resolution structure of the Anaphase-promoting complex/cyclosome (APC/C) bound to co-activator Cdh1 Deposited 2024-07-29 Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain C 1–84（84 aa）
Not recorded ZN ZINC ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
9N9R Model of APC/C-CDC20-UBE2C from H2A/H2B-bound complex Deposited 2025-02-11 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain C 1–84（84 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.90 Å
9N9S Model of APC/C-CDC20-UBE2C from H3/H4-bound complex Deposited 2025-02-11 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain C 1–84（84 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.90 Å

22 other PDB entries and 28 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name APC11_HUMAN
Isoform —
PDB entities 2
Chains and sequence ranges Author chain B； PDBConstruct 1–84； UniProt 1–84

Cell division cycle protein 23 homolog

Homo sapiens

UniProt Q9UJX2

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 21 PDB declaration: 21-meric（21） Consistent with protein copy count Chain C； UniProt 1–597 Chain P； UniProt 1–597 Not recorded Anaphase-promoting complex subunit 1 × 1 （Q9H1A4） Anaphase-promoting complex subunit 11 × 1 （Q9NYG5） Anaphase-promoting complex subunit 16 × 1 （Q96DE5） Cell division cycle protein 27 homolog × 2 （P30260） Anaphase-promoting complex subunit CDC26 × 2 （Q8NHZ8） Anaphase-promoting complex subunit 4 × 1 （Q9UJX5） Cell division cycle protein 16 homolog × 2 （Q13042） Anaphase-promoting complex subunit 10 × 1 （Q9UM13） Anaphase-promoting complex subunit 13 × 1 （Q9BS18） Anaphase-promoting complex subunit 2 × 1 （Q9UJX6） Anaphase-promoting complex subunit 5 × 1 （Q9UJX4） Ubiquitin-conjugating enzyme E2 C × 1 （O00762） Cell division cycle protein 20 homolog × 1 （Q12834） HSL1 peptide × 1 Anaphase-promoting complex subunit 7 × 2 （Q9UJX3） ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 6.10 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 5KHR Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
4UI9 Atomic structure of the human Anaphase-Promoting Complex Deposited 2015-03-27 Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain C 7–597（591 aa）
Chain P 7–597（591 aa）
Not recorded ZN ZINC ION × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
5A31 Structure of the human APC-Cdh1-Hsl1-UbcH10 complex. Deposited 2015-05-26 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 24 PDB declaration: 24-meric
Chain C 1–597（597 aa）
Chain P 1–597（597 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.30 Å
5G04 Structure of the human APC-Cdc20-Hsl1 complex Deposited 2016-03-16 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain C 1–597（597 aa）
Chain P 1–597（597 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer 20MM HEPES, 150MM NACL, 0. 5MM TCEP；pH 8；20MM HEPES, 150MM NACL, 0. 5MM TCEP
cryo-EM vitrification conditions Cryogen ETHANE；LIQUID ETHANE
Resolution 3.90 Å
5G05 Cryo-EM structure of combined apo phosphorylated APC Deposited 2016-03-16 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain C 1–597（597 aa）
Chain P 1–597（597 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer 20MM HEPES, 150MM NACL, 0. 5MM TCEP；pH 8；20MM HEPES, 150MM NACL, 0. 5MM TCEP
cryo-EM vitrification conditions Cryogen ETHANE；LIQUID ETHANE
Resolution 3.40 Å
5KHU Model of human Anaphase-promoting complex/Cyclosome (APC15 deletion mutant), in complex with the Mitotic checkpoint complex (APC/C-CDC20-MCC) based on cryo EM data at 4.8 Angstrom resolution Deposited 2016-06-15 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain C 1–597（597 aa）
Chain P 1–597（597 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.80 Å
5L9T Model of human Anaphase-promoting complex/Cyclosome (APC/C-CDH1) with E2 UBE2S poised for polyubiquitination where UBE2S, APC2, and APC11 are modeled into low resolution density Deposited 2016-06-11 Different oligomeric state Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 22 PDB declaration: 22-meric
Chain C 1–597（597 aa）
Chain P 1–597（597 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.40 Å
5L9U Model of human Anaphase-promoting complex/Cyclosome (APC/C-CDH1) with a cross linked Ubiquitin variant-substrate-UBE2C (UBCH10) complex representing key features of multiubiquitination Deposited 2016-06-11 Different oligomeric state Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 22 PDB declaration: 22-meric
Chain C 1–597（597 aa）
Chain P 1–597（597 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.40 Å
5LCW Cryo-EM structure of the Anaphase-promoting complex/Cyclosome, in complex with the Mitotic checkpoint complex (APC/C-MCC) at 4.2 angstrom resolution Deposited 2016-06-22 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain C 1–597（597 aa）
Chain P 1–597（597 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
6Q6G Cryo-EM structure of the APC/C-Cdc20-Cdk2-cyclinA2-Cks2 complex, the D1 box class Deposited 2018-12-11 Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain U 1–597（597 aa）
Chain V 1–597（597 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Hepes, 150mM NaCl, 0.5mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
6Q6H Cryo-EM structure of the APC/C-Cdc20-Cdk2-cyclinA2-Cks2 complex, the D2 box class Deposited 2018-12-11 Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain U 1–597（597 aa）
Chain V 1–597（597 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Hepes, 150mM NaCl, 0.5mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
6TLJ Cryo-EM structure of the Anaphase-promoting complex/Cyclosome, in complex with the Mitotic checkpoint complex (APC/C-MCC) at 3.8 angstrom resolution Deposited 2019-12-02 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain C 1–597（597 aa）
Chain P 1–597（597 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
6TM5 Cryo-EM structure of the Anaphase-promoting complex/Cyclosome, in complex with the Nek2A substrate at 3.9 angstrom resolution Deposited 2019-12-03 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain C 1–597（597 aa）
Chain P 1–597（597 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
6TNT SUMOylated apoAPC/C with repositioned APC2 WHB domain Deposited 2019-12-10 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain C 1–597（597 aa）
Chain P 1–597（597 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.78 Å
8PKP Cryo-EM structure of the apo Anaphase-promoting complex/cyclosome (APC/C) at 3.2 Angstrom resolution Deposited 2023-06-27 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: 19-meric
Chain U 1–597（597 aa）
Chain V 1–597（597 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8TAR APC/C-CDH1-UBE2C-Ubiquitin-CyclinB-NTD Deposited 2023-06-27 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain U 1–597（597 aa）
Chain V 1–597（597 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
8TAU APC/C-CDH1-UBE2C-UBE2S-Ubiquitin-CyclinB Deposited 2023-06-27 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain U 1–597（597 aa）
Chain V 1–597（597 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
9GAW High-resolution structure of the Anaphase-promoting complex/cyclosome (APC/C) bound to co-activator Cdh1 Deposited 2024-07-29 Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain U 1–597（597 aa）
Chain V 1–597（597 aa）
Not recorded ZN ZINC ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
9N9R Model of APC/C-CDC20-UBE2C from H2A/H2B-bound complex Deposited 2025-02-11 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain U 1–597（597 aa）
Chain V 1–597（597 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.90 Å
9N9S Model of APC/C-CDC20-UBE2C from H3/H4-bound complex Deposited 2025-02-11 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain U 1–597（597 aa）
Chain V 1–597（597 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.90 Å

19 other PDB entries and 19 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name CDC23_HUMAN
Isoform —
PDB entities 3
Chains and sequence ranges Author chain C； PDBConstruct 1–597； UniProt 1–597 Author chain P； PDBConstruct 1–597； UniProt 1–597

Anaphase-promoting complex subunit 16

Homo sapiens

UniProt Q96DE5

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 21 PDB declaration: 21-meric（21） Consistent with protein copy count Chain E； UniProt 1–110 Not recorded Anaphase-promoting complex subunit 1 × 1 （Q9H1A4） Anaphase-promoting complex subunit 11 × 1 （Q9NYG5） Cell division cycle protein 23 homolog × 2 （Q9UJX2） Cell division cycle protein 27 homolog × 2 （P30260） Anaphase-promoting complex subunit CDC26 × 2 （Q8NHZ8） Anaphase-promoting complex subunit 4 × 1 （Q9UJX5） Cell division cycle protein 16 homolog × 2 （Q13042） Anaphase-promoting complex subunit 10 × 1 （Q9UM13） Anaphase-promoting complex subunit 13 × 1 （Q9BS18） Anaphase-promoting complex subunit 2 × 1 （Q9UJX6） Anaphase-promoting complex subunit 5 × 1 （Q9UJX4） Ubiquitin-conjugating enzyme E2 C × 1 （O00762） Cell division cycle protein 20 homolog × 1 （Q12834） HSL1 peptide × 1 Anaphase-promoting complex subunit 7 × 2 （Q9UJX3） ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 6.10 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 5KHR Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
4RG6 Crystal structure of APC3-APC16 complex Deposited 2014-09-29 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain S 74–109（36 aa） Fragment：UNP residues 74-109
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；0.1M MES, pH 6.0, 0.2M magnesium chloride, 8% PEG6000, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 3.30 Å R-free 0.242
4RG9 Crystal structure of APC3-APC16 complex (Selenomethionine Derivative) Deposited 2014-09-29 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain S 74–109（36 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；293 K；0.1M MES, pH 6.2, 0.24M magnesium chloride, 6% PEG6000, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 3.25 Å R-free 0.248
4UI9 Atomic structure of the human Anaphase-Promoting Complex Deposited 2015-03-27 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain E 1–110（110 aa）
Not recorded ZN ZINC ION × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
5A31 Structure of the human APC-Cdh1-Hsl1-UbcH10 complex. Deposited 2015-05-26 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 24 PDB declaration: 24-meric
Chain E 1–110（110 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.30 Å
5G04 Structure of the human APC-Cdc20-Hsl1 complex Deposited 2016-03-16 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain E 1–110（110 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer 20MM HEPES, 150MM NACL, 0. 5MM TCEP；pH 8；20MM HEPES, 150MM NACL, 0. 5MM TCEP
cryo-EM vitrification conditions Cryogen ETHANE；LIQUID ETHANE
Resolution 3.90 Å
5G05 Cryo-EM structure of combined apo phosphorylated APC Deposited 2016-03-16 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain E 1–110（110 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer 20MM HEPES, 150MM NACL, 0. 5MM TCEP；pH 8；20MM HEPES, 150MM NACL, 0. 5MM TCEP
cryo-EM vitrification conditions Cryogen ETHANE；LIQUID ETHANE
Resolution 3.40 Å
5KHU Model of human Anaphase-promoting complex/Cyclosome (APC15 deletion mutant), in complex with the Mitotic checkpoint complex (APC/C-CDC20-MCC) based on cryo EM data at 4.8 Angstrom resolution Deposited 2016-06-15 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain E 1–110（110 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.80 Å
5L9T Model of human Anaphase-promoting complex/Cyclosome (APC/C-CDH1) with E2 UBE2S poised for polyubiquitination where UBE2S, APC2, and APC11 are modeled into low resolution density Deposited 2016-06-11 Different oligomeric state Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 22 PDB declaration: 22-meric
Chain E 1–110（110 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.40 Å
5L9U Model of human Anaphase-promoting complex/Cyclosome (APC/C-CDH1) with a cross linked Ubiquitin variant-substrate-UBE2C (UBCH10) complex representing key features of multiubiquitination Deposited 2016-06-11 Different oligomeric state Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 22 PDB declaration: 22-meric
Chain E 1–110（110 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.40 Å
5LCW Cryo-EM structure of the Anaphase-promoting complex/Cyclosome, in complex with the Mitotic checkpoint complex (APC/C-MCC) at 4.2 angstrom resolution Deposited 2016-06-22 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain E 1–110（110 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
6Q6G Cryo-EM structure of the APC/C-Cdc20-Cdk2-cyclinA2-Cks2 complex, the D1 box class Deposited 2018-12-11 Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain H 1–110（110 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Hepes, 150mM NaCl, 0.5mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
6Q6H Cryo-EM structure of the APC/C-Cdc20-Cdk2-cyclinA2-Cks2 complex, the D2 box class Deposited 2018-12-11 Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain H 1–110（110 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Hepes, 150mM NaCl, 0.5mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
6TLJ Cryo-EM structure of the Anaphase-promoting complex/Cyclosome, in complex with the Mitotic checkpoint complex (APC/C-MCC) at 3.8 angstrom resolution Deposited 2019-12-02 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain E 1–110（110 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
6TM5 Cryo-EM structure of the Anaphase-promoting complex/Cyclosome, in complex with the Nek2A substrate at 3.9 angstrom resolution Deposited 2019-12-03 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain E 1–110（110 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
6TNT SUMOylated apoAPC/C with repositioned APC2 WHB domain Deposited 2019-12-10 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain E 1–110（110 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.78 Å
8PKP Cryo-EM structure of the apo Anaphase-promoting complex/cyclosome (APC/C) at 3.2 Angstrom resolution Deposited 2023-06-27 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: 19-meric
Chain H 1–110（110 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8TAR APC/C-CDH1-UBE2C-Ubiquitin-CyclinB-NTD Deposited 2023-06-27 Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain H 51–108（58 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
8TAU APC/C-CDH1-UBE2C-UBE2S-Ubiquitin-CyclinB Deposited 2023-06-27 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain H 1–110（110 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
9GAW High-resolution structure of the Anaphase-promoting complex/cyclosome (APC/C) bound to co-activator Cdh1 Deposited 2024-07-29 Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain H 1–110（110 aa）
Not recorded ZN ZINC ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
9N9R Model of APC/C-CDC20-UBE2C from H2A/H2B-bound complex Deposited 2025-02-11 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain H 51–108（58 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.90 Å
9N9S Model of APC/C-CDC20-UBE2C from H3/H4-bound complex Deposited 2025-02-11 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain H 51–108（58 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.90 Å

21 other PDB entries and 21 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name APC16_HUMAN
Isoform —
PDB entities 4
Chains and sequence ranges Author chain E； PDBConstruct 1–110； UniProt 1–110

Cell division cycle protein 27 homolog

Homo sapiens

UniProt P30260

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 21 PDB declaration: 21-meric（21） Consistent with protein copy count Chain F； UniProt 1–824 Chain H； UniProt 1–824 Not recorded Anaphase-promoting complex subunit 1 × 1 （Q9H1A4） Anaphase-promoting complex subunit 11 × 1 （Q9NYG5） Cell division cycle protein 23 homolog × 2 （Q9UJX2） Anaphase-promoting complex subunit 16 × 1 （Q96DE5） Anaphase-promoting complex subunit CDC26 × 2 （Q8NHZ8） Anaphase-promoting complex subunit 4 × 1 （Q9UJX5） Cell division cycle protein 16 homolog × 2 （Q13042） Anaphase-promoting complex subunit 10 × 1 （Q9UM13） Anaphase-promoting complex subunit 13 × 1 （Q9BS18） Anaphase-promoting complex subunit 2 × 1 （Q9UJX6） Anaphase-promoting complex subunit 5 × 1 （Q9UJX4） Ubiquitin-conjugating enzyme E2 C × 1 （O00762） Cell division cycle protein 20 homolog × 1 （Q12834） HSL1 peptide × 1 Anaphase-promoting complex subunit 7 × 2 （Q9UJX3） ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 6.10 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 5KHR Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
4RG6 Crystal structure of APC3-APC16 complex Deposited 2014-09-29 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–180（180 aa） Fragment：UNP residues 1-180, 447-824
Chain A 447–824（378 aa） Fragment：UNP residues 1-180, 447-824
Chain B 1–180（180 aa） Fragment：UNP residues 1-180, 447-824
Chain B 447–824（378 aa） Fragment：UNP residues 1-180, 447-824
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；0.1M MES, pH 6.0, 0.2M magnesium chloride, 8% PEG6000, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 3.30 Å R-free 0.242
4RG7 Crystal structure of APC3 Deposited 2014-09-29 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–180（180 aa） Fragment：UNP residues 1-180, 447-824
Chain A 447–824（378 aa） Fragment：UNP residues 1-180, 447-824
Chain B 1–180（180 aa） Fragment：UNP residues 1-180, 447-824
Chain B 447–824（378 aa） Fragment：UNP residues 1-180, 447-824
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；0.1M MES, pH 6.0, 0.2M magnesium chloride, 8% PEG6000, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 4.25 Å R-free 0.282
4RG9 Crystal structure of APC3-APC16 complex (Selenomethionine Derivative) Deposited 2014-09-29 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–180（180 aa） Fragment：UNP RESIDUES 1-180, 447-824
Chain A 447–824（378 aa） Fragment：UNP RESIDUES 1-180, 447-824
Chain B 1–180（180 aa） Fragment：UNP RESIDUES 1-180, 447-824
Chain B 447–824（378 aa） Fragment：UNP RESIDUES 1-180, 447-824
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；293 K；0.1M MES, pH 6.2, 0.24M magnesium chloride, 6% PEG6000, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 3.25 Å R-free 0.248
4UI9 Atomic structure of the human Anaphase-Promoting Complex Deposited 2015-03-27 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain F 1–824（824 aa）
Chain H 1–824（824 aa）
Not recorded ZN ZINC ION × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
5A31 Structure of the human APC-Cdh1-Hsl1-UbcH10 complex. Deposited 2015-05-26 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 24 PDB declaration: 24-meric
Chain F 1–824（824 aa）
Chain H 1–824（824 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.30 Å
5G04 Structure of the human APC-Cdc20-Hsl1 complex Deposited 2016-03-16 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain F 1–824（824 aa）
Chain H 1–824（824 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer 20MM HEPES, 150MM NACL, 0. 5MM TCEP；pH 8；20MM HEPES, 150MM NACL, 0. 5MM TCEP
cryo-EM vitrification conditions Cryogen ETHANE；LIQUID ETHANE
Resolution 3.90 Å
5G05 Cryo-EM structure of combined apo phosphorylated APC Deposited 2016-03-16 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain F 1–824（824 aa）
Chain H 1–824（824 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer 20MM HEPES, 150MM NACL, 0. 5MM TCEP；pH 8；20MM HEPES, 150MM NACL, 0. 5MM TCEP
cryo-EM vitrification conditions Cryogen ETHANE；LIQUID ETHANE
Resolution 3.40 Å
5KHU Model of human Anaphase-promoting complex/Cyclosome (APC15 deletion mutant), in complex with the Mitotic checkpoint complex (APC/C-CDC20-MCC) based on cryo EM data at 4.8 Angstrom resolution Deposited 2016-06-15 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain F 1–824（824 aa）
Chain H 1–824（824 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.80 Å
5L9T Model of human Anaphase-promoting complex/Cyclosome (APC/C-CDH1) with E2 UBE2S poised for polyubiquitination where UBE2S, APC2, and APC11 are modeled into low resolution density Deposited 2016-06-11 Different oligomeric state Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 22 PDB declaration: 22-meric
Chain F 1–824（824 aa）
Chain H 1–824（824 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.40 Å
5L9U Model of human Anaphase-promoting complex/Cyclosome (APC/C-CDH1) with a cross linked Ubiquitin variant-substrate-UBE2C (UBCH10) complex representing key features of multiubiquitination Deposited 2016-06-11 Different oligomeric state Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 22 PDB declaration: 22-meric
Chain F 1–824（824 aa）
Chain H 1–824（824 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.40 Å
5LCW Cryo-EM structure of the Anaphase-promoting complex/Cyclosome, in complex with the Mitotic checkpoint complex (APC/C-MCC) at 4.2 angstrom resolution Deposited 2016-06-22 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain F 1–824（824 aa）
Chain H 1–824（824 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
6Q6G Cryo-EM structure of the APC/C-Cdc20-Cdk2-cyclinA2-Cks2 complex, the D1 box class Deposited 2018-12-11 Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain J 1–824（824 aa）
Chain P 1–824（824 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Hepes, 150mM NaCl, 0.5mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
6Q6H Cryo-EM structure of the APC/C-Cdc20-Cdk2-cyclinA2-Cks2 complex, the D2 box class Deposited 2018-12-11 Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain J 1–824（824 aa）
Chain P 1–824（824 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Hepes, 150mM NaCl, 0.5mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
6TLJ Cryo-EM structure of the Anaphase-promoting complex/Cyclosome, in complex with the Mitotic checkpoint complex (APC/C-MCC) at 3.8 angstrom resolution Deposited 2019-12-02 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain F 1–824（824 aa）
Chain H 1–824（824 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
6TM5 Cryo-EM structure of the Anaphase-promoting complex/Cyclosome, in complex with the Nek2A substrate at 3.9 angstrom resolution Deposited 2019-12-03 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain F 1–824（824 aa）
Chain H 1–824（824 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
6TNT SUMOylated apoAPC/C with repositioned APC2 WHB domain Deposited 2019-12-10 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain F 1–824（824 aa）
Chain H 1–824（824 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.78 Å
8PKP Cryo-EM structure of the apo Anaphase-promoting complex/cyclosome (APC/C) at 3.2 Angstrom resolution Deposited 2023-06-27 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: 19-meric
Chain J 1–824（824 aa）
Chain P 1–824（824 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8TAR APC/C-CDH1-UBE2C-Ubiquitin-CyclinB-NTD Deposited 2023-06-27 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain J 1–824（824 aa）
Chain P 1–824（824 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
8TAU APC/C-CDH1-UBE2C-UBE2S-Ubiquitin-CyclinB Deposited 2023-06-27 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain J 1–824（824 aa）
Chain P 1–824（824 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
9FGQ Structure of human APC3loop 375-381 bound to the NCP Deposited 2024-05-24 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain K 177–446（270 aa）
Chain L 177–446（270 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20 mM HEPEs pH8.0, 50 mM NaCl, 0.5 mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.50 Å
9GAW High-resolution structure of the Anaphase-promoting complex/cyclosome (APC/C) bound to co-activator Cdh1 Deposited 2024-07-29 Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain J 1–824（824 aa）
Chain P 1–824（824 aa）
Not recorded ZN ZINC ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
9N9R Model of APC/C-CDC20-UBE2C from H2A/H2B-bound complex Deposited 2025-02-11 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain J 1–824（824 aa）
Chain P 1–824（824 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.90 Å
9N9S Model of APC/C-CDC20-UBE2C from H3/H4-bound complex Deposited 2025-02-11 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain J 1–824（824 aa）
Chain P 1–824（824 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.90 Å

23 other PDB entries and 23 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name CDC27_HUMAN
Isoform —
PDB entities 5
Chains and sequence ranges Author chain F； PDBConstruct 1–824； UniProt 1–824 Author chain H； PDBConstruct 1–824； UniProt 1–824

Anaphase-promoting complex subunit CDC26

Homo sapiens

UniProt Q8NHZ8

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 21 PDB declaration: 21-meric（21） Consistent with protein copy count Chain G； UniProt 1–85 Chain W； UniProt 1–85 Not recorded Anaphase-promoting complex subunit 1 × 1 （Q9H1A4） Anaphase-promoting complex subunit 11 × 1 （Q9NYG5） Cell division cycle protein 23 homolog × 2 （Q9UJX2） Anaphase-promoting complex subunit 16 × 1 （Q96DE5） Cell division cycle protein 27 homolog × 2 （P30260） Anaphase-promoting complex subunit 4 × 1 （Q9UJX5） Cell division cycle protein 16 homolog × 2 （Q13042） Anaphase-promoting complex subunit 10 × 1 （Q9UM13） Anaphase-promoting complex subunit 13 × 1 （Q9BS18） Anaphase-promoting complex subunit 2 × 1 （Q9UJX6） Anaphase-promoting complex subunit 5 × 1 （Q9UJX4） Ubiquitin-conjugating enzyme E2 C × 1 （O00762） Cell division cycle protein 20 homolog × 1 （Q12834） HSL1 peptide × 1 Anaphase-promoting complex subunit 7 × 2 （Q9UJX3） ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 6.10 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 5KHR Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
3HYM Insights into Anaphase Promoting Complex TPR subdomain assembly from a CDC26-APC6 structure Deposited 2009-06-22 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–29（29 aa） Fragment：CDC26N
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.4；297 K；1:1 mix with well buffer: 0.2M MgCl2, 7% isopropanol, 0.1 M Tris-Cl pH 8.4, VAPOR DIFFUSION, HANGING DROP, temperature 297K
Resolution 2.80 Å R-free 0.220
3HYM Insights into Anaphase Promoting Complex TPR subdomain assembly from a CDC26-APC6 structure Deposited 2009-06-22 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 10 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain A 1–29（29 aa） Fragment：CDC26N
Chain C 1–29（29 aa） Fragment：CDC26N
Chain E 1–29（29 aa） Fragment：CDC26N
Chain G 1–29（29 aa） Fragment：CDC26N
Chain I 1–29（29 aa） Fragment：CDC26N
Chain K 1–29（29 aa） Fragment：CDC26N
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.4；297 K；1:1 mix with well buffer: 0.2M MgCl2, 7% isopropanol, 0.1 M Tris-Cl pH 8.4, VAPOR DIFFUSION, HANGING DROP, temperature 297K
Resolution 2.80 Å R-free 0.220
3HYM Insights into Anaphase Promoting Complex TPR subdomain assembly from a CDC26-APC6 structure Deposited 2009-06-22 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 1–29（29 aa） Fragment：CDC26N
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.4；297 K；1:1 mix with well buffer: 0.2M MgCl2, 7% isopropanol, 0.1 M Tris-Cl pH 8.4, VAPOR DIFFUSION, HANGING DROP, temperature 297K
Resolution 2.80 Å R-free 0.220
3HYM Insights into Anaphase Promoting Complex TPR subdomain assembly from a CDC26-APC6 structure Deposited 2009-06-22 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain E 1–29（29 aa） Fragment：CDC26N
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.4；297 K；1:1 mix with well buffer: 0.2M MgCl2, 7% isopropanol, 0.1 M Tris-Cl pH 8.4, VAPOR DIFFUSION, HANGING DROP, temperature 297K
Resolution 2.80 Å R-free 0.220
3HYM Insights into Anaphase Promoting Complex TPR subdomain assembly from a CDC26-APC6 structure Deposited 2009-06-22 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain G 1–29（29 aa） Fragment：CDC26N
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.4；297 K；1:1 mix with well buffer: 0.2M MgCl2, 7% isopropanol, 0.1 M Tris-Cl pH 8.4, VAPOR DIFFUSION, HANGING DROP, temperature 297K
Resolution 2.80 Å R-free 0.220
3HYM Insights into Anaphase Promoting Complex TPR subdomain assembly from a CDC26-APC6 structure Deposited 2009-06-22 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 5 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain I 1–29（29 aa） Fragment：CDC26N
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.4；297 K；1:1 mix with well buffer: 0.2M MgCl2, 7% isopropanol, 0.1 M Tris-Cl pH 8.4, VAPOR DIFFUSION, HANGING DROP, temperature 297K
Resolution 2.80 Å R-free 0.220
3HYM Insights into Anaphase Promoting Complex TPR subdomain assembly from a CDC26-APC6 structure Deposited 2009-06-22 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 6 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain K 1–29（29 aa） Fragment：CDC26N
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.4；297 K；1:1 mix with well buffer: 0.2M MgCl2, 7% isopropanol, 0.1 M Tris-Cl pH 8.4, VAPOR DIFFUSION, HANGING DROP, temperature 297K
Resolution 2.80 Å R-free 0.220
3HYM Insights into Anaphase Promoting Complex TPR subdomain assembly from a CDC26-APC6 structure Deposited 2009-06-22 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 7 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–29（29 aa） Fragment：CDC26N
Chain E 1–29（29 aa） Fragment：CDC26N
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.4；297 K；1:1 mix with well buffer: 0.2M MgCl2, 7% isopropanol, 0.1 M Tris-Cl pH 8.4, VAPOR DIFFUSION, HANGING DROP, temperature 297K
Resolution 2.80 Å R-free 0.220
3HYM Insights into Anaphase Promoting Complex TPR subdomain assembly from a CDC26-APC6 structure Deposited 2009-06-22 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 8 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–29（29 aa） Fragment：CDC26N
Chain K 1–29（29 aa） Fragment：CDC26N
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.4；297 K；1:1 mix with well buffer: 0.2M MgCl2, 7% isopropanol, 0.1 M Tris-Cl pH 8.4, VAPOR DIFFUSION, HANGING DROP, temperature 297K
Resolution 2.80 Å R-free 0.220
3HYM Insights into Anaphase Promoting Complex TPR subdomain assembly from a CDC26-APC6 structure Deposited 2009-06-22 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 9 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain G 1–29（29 aa） Fragment：CDC26N
Chain I 1–29（29 aa） Fragment：CDC26N
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.4；297 K；1:1 mix with well buffer: 0.2M MgCl2, 7% isopropanol, 0.1 M Tris-Cl pH 8.4, VAPOR DIFFUSION, HANGING DROP, temperature 297K
Resolution 2.80 Å R-free 0.220
4UI9 Atomic structure of the human Anaphase-Promoting Complex Deposited 2015-03-27 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain G 1–85（85 aa）
Chain W 1–85（85 aa）
Not recorded ZN ZINC ION × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
5A31 Structure of the human APC-Cdh1-Hsl1-UbcH10 complex. Deposited 2015-05-26 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 24 PDB declaration: 24-meric
Chain G 1–85（85 aa）
Chain W 1–85（85 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.30 Å
5G04 Structure of the human APC-Cdc20-Hsl1 complex Deposited 2016-03-16 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain G 1–85（85 aa）
Chain W 1–85（85 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer 20MM HEPES, 150MM NACL, 0. 5MM TCEP；pH 8；20MM HEPES, 150MM NACL, 0. 5MM TCEP
cryo-EM vitrification conditions Cryogen ETHANE；LIQUID ETHANE
Resolution 3.90 Å
5G05 Cryo-EM structure of combined apo phosphorylated APC Deposited 2016-03-16 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain G 1–85（85 aa）
Chain W 1–85（85 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer 20MM HEPES, 150MM NACL, 0. 5MM TCEP；pH 8；20MM HEPES, 150MM NACL, 0. 5MM TCEP
cryo-EM vitrification conditions Cryogen ETHANE；LIQUID ETHANE
Resolution 3.40 Å
5KHU Model of human Anaphase-promoting complex/Cyclosome (APC15 deletion mutant), in complex with the Mitotic checkpoint complex (APC/C-CDC20-MCC) based on cryo EM data at 4.8 Angstrom resolution Deposited 2016-06-15 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain G 1–85（85 aa）
Chain W 1–85（85 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.80 Å
5L9T Model of human Anaphase-promoting complex/Cyclosome (APC/C-CDH1) with E2 UBE2S poised for polyubiquitination where UBE2S, APC2, and APC11 are modeled into low resolution density Deposited 2016-06-11 Different oligomeric state Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 22 PDB declaration: 22-meric
Chain G 1–85（85 aa）
Chain W 1–85（85 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.40 Å
5L9U Model of human Anaphase-promoting complex/Cyclosome (APC/C-CDH1) with a cross linked Ubiquitin variant-substrate-UBE2C (UBCH10) complex representing key features of multiubiquitination Deposited 2016-06-11 Different oligomeric state Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 22 PDB declaration: 22-meric
Chain G 1–85（85 aa）
Chain W 1–85（85 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.40 Å
5LCW Cryo-EM structure of the Anaphase-promoting complex/Cyclosome, in complex with the Mitotic checkpoint complex (APC/C-MCC) at 4.2 angstrom resolution Deposited 2016-06-22 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain G 1–85（85 aa）
Chain W 1–85（85 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
6Q6G Cryo-EM structure of the APC/C-Cdc20-Cdk2-cyclinA2-Cks2 complex, the D1 box class Deposited 2018-12-11 Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain G 1–85（85 aa）
Chain W 1–85（85 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Hepes, 150mM NaCl, 0.5mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
6Q6H Cryo-EM structure of the APC/C-Cdc20-Cdk2-cyclinA2-Cks2 complex, the D2 box class Deposited 2018-12-11 Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain G 1–85（85 aa）
Chain W 1–85（85 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Hepes, 150mM NaCl, 0.5mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
6TLJ Cryo-EM structure of the Anaphase-promoting complex/Cyclosome, in complex with the Mitotic checkpoint complex (APC/C-MCC) at 3.8 angstrom resolution Deposited 2019-12-02 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain G 1–85（85 aa）
Chain W 1–85（85 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
6TM5 Cryo-EM structure of the Anaphase-promoting complex/Cyclosome, in complex with the Nek2A substrate at 3.9 angstrom resolution Deposited 2019-12-03 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain G 1–85（85 aa）
Chain W 1–85（85 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
6TNT SUMOylated apoAPC/C with repositioned APC2 WHB domain Deposited 2019-12-10 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain G 1–85（85 aa）
Chain W 1–85（85 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.78 Å
8PKP Cryo-EM structure of the apo Anaphase-promoting complex/cyclosome (APC/C) at 3.2 Angstrom resolution Deposited 2023-06-27 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: 19-meric
Chain G 1–85（85 aa）
Chain W 1–85（85 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8TAR APC/C-CDH1-UBE2C-Ubiquitin-CyclinB-NTD Deposited 2023-06-27 Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain G 1–85（85 aa）
Chain W 1–85（85 aa）
Mutation：S51E, S52E, S82E Mutation：S51E, S52E, S82E ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
8TAU APC/C-CDH1-UBE2C-UBE2S-Ubiquitin-CyclinB Deposited 2023-06-27 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain G 1–85（85 aa）
Chain W 1–85（85 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
9GAW High-resolution structure of the Anaphase-promoting complex/cyclosome (APC/C) bound to co-activator Cdh1 Deposited 2024-07-29 Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain G 1–85（85 aa）
Chain W 1–85（85 aa）
Not recorded ZN ZINC ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
9N9R Model of APC/C-CDC20-UBE2C from H2A/H2B-bound complex Deposited 2025-02-11 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain G 1–85（85 aa）
Chain W 1–85（85 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.90 Å
9N9S Model of APC/C-CDC20-UBE2C from H3/H4-bound complex Deposited 2025-02-11 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain G 1–85（85 aa）
Chain W 1–85（85 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.90 Å

20 other PDB entries and 29 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name CDC26_HUMAN
Isoform —
PDB entities 6
Chains and sequence ranges Author chain G； PDBConstruct 1–85； UniProt 1–85 Author chain W； PDBConstruct 1–85； UniProt 1–85

Anaphase-promoting complex subunit 4

Homo sapiens

UniProt Q9UJX5

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 21 PDB declaration: 21-meric（21） Consistent with protein copy count Chain I； UniProt 1–808 Not recorded Anaphase-promoting complex subunit 1 × 1 （Q9H1A4） Anaphase-promoting complex subunit 11 × 1 （Q9NYG5） Cell division cycle protein 23 homolog × 2 （Q9UJX2） Anaphase-promoting complex subunit 16 × 1 （Q96DE5） Cell division cycle protein 27 homolog × 2 （P30260） Anaphase-promoting complex subunit CDC26 × 2 （Q8NHZ8） Cell division cycle protein 16 homolog × 2 （Q13042） Anaphase-promoting complex subunit 10 × 1 （Q9UM13） Anaphase-promoting complex subunit 13 × 1 （Q9BS18） Anaphase-promoting complex subunit 2 × 1 （Q9UJX6） Anaphase-promoting complex subunit 5 × 1 （Q9UJX4） Ubiquitin-conjugating enzyme E2 C × 1 （O00762） Cell division cycle protein 20 homolog × 1 （Q12834） HSL1 peptide × 1 Anaphase-promoting complex subunit 7 × 2 （Q9UJX3） ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 6.10 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 5KHR Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
4UI9 Atomic structure of the human Anaphase-Promoting Complex Deposited 2015-03-27 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain I 1–808（808 aa）
Not recorded ZN ZINC ION × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
5A31 Structure of the human APC-Cdh1-Hsl1-UbcH10 complex. Deposited 2015-05-26 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 24 PDB declaration: 24-meric
Chain I 1–808（808 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.30 Å
5BPW Atomic-resolution structures of the APC/C subunits Apc4 and the Apc5 N-terminal domain Deposited 2015-05-28 Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–808（808 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；Apc4 crystals were grown by vapour-diffusion in a buffer containing 10 mM malic acid, 20 mM MES, 20 mM Tris.HCl (pH 8.0), 160 mM NDSB 196, 10 mM EDTA and 19% (v/v) PEG 1500. Crystals were incubated in a cryoprotection buffer comprising 10 mM malic acid, 20 mM MES, 20 mM Tris.HCl (pH 8.0), 160 mM NDSB 196, 10 mM EDTA, 22% (v/v) PEG 1500 and 20% (v/v) ethylene glycol prior to freezing in liquid nitrogen.
Resolution 3.40 Å R-free 0.275
5G04 Structure of the human APC-Cdc20-Hsl1 complex Deposited 2016-03-16 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain I 1–808（808 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer 20MM HEPES, 150MM NACL, 0. 5MM TCEP；pH 8；20MM HEPES, 150MM NACL, 0. 5MM TCEP
cryo-EM vitrification conditions Cryogen ETHANE；LIQUID ETHANE
Resolution 3.90 Å
5G05 Cryo-EM structure of combined apo phosphorylated APC Deposited 2016-03-16 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain I 1–808（808 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer 20MM HEPES, 150MM NACL, 0. 5MM TCEP；pH 8；20MM HEPES, 150MM NACL, 0. 5MM TCEP
cryo-EM vitrification conditions Cryogen ETHANE；LIQUID ETHANE
Resolution 3.40 Å
5KHU Model of human Anaphase-promoting complex/Cyclosome (APC15 deletion mutant), in complex with the Mitotic checkpoint complex (APC/C-CDC20-MCC) based on cryo EM data at 4.8 Angstrom resolution Deposited 2016-06-15 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain I 1–808（808 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.80 Å
5L9T Model of human Anaphase-promoting complex/Cyclosome (APC/C-CDH1) with E2 UBE2S poised for polyubiquitination where UBE2S, APC2, and APC11 are modeled into low resolution density Deposited 2016-06-11 Different oligomeric state Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 22 PDB declaration: 22-meric
Chain I 1–808（808 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.40 Å
5L9U Model of human Anaphase-promoting complex/Cyclosome (APC/C-CDH1) with a cross linked Ubiquitin variant-substrate-UBE2C (UBCH10) complex representing key features of multiubiquitination Deposited 2016-06-11 Different oligomeric state Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 22 PDB declaration: 22-meric
Chain I 1–808（808 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.40 Å
5LCW Cryo-EM structure of the Anaphase-promoting complex/Cyclosome, in complex with the Mitotic checkpoint complex (APC/C-MCC) at 4.2 angstrom resolution Deposited 2016-06-22 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain I 1–808（808 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
6Q6G Cryo-EM structure of the APC/C-Cdc20-Cdk2-cyclinA2-Cks2 complex, the D1 box class Deposited 2018-12-11 Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain I 1–808（808 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Hepes, 150mM NaCl, 0.5mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
6Q6H Cryo-EM structure of the APC/C-Cdc20-Cdk2-cyclinA2-Cks2 complex, the D2 box class Deposited 2018-12-11 Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain I 1–808（808 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Hepes, 150mM NaCl, 0.5mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
6TLJ Cryo-EM structure of the Anaphase-promoting complex/Cyclosome, in complex with the Mitotic checkpoint complex (APC/C-MCC) at 3.8 angstrom resolution Deposited 2019-12-02 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain I 1–808（808 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
6TM5 Cryo-EM structure of the Anaphase-promoting complex/Cyclosome, in complex with the Nek2A substrate at 3.9 angstrom resolution Deposited 2019-12-03 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain I 1–808（808 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
6TNT SUMOylated apoAPC/C with repositioned APC2 WHB domain Deposited 2019-12-10 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain I 1–808（808 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.78 Å
8PKP Cryo-EM structure of the apo Anaphase-promoting complex/cyclosome (APC/C) at 3.2 Angstrom resolution Deposited 2023-06-27 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: 19-meric
Chain I 1–808（808 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8TAR APC/C-CDH1-UBE2C-Ubiquitin-CyclinB-NTD Deposited 2023-06-27 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain I 1–808（808 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
8TAU APC/C-CDH1-UBE2C-UBE2S-Ubiquitin-CyclinB Deposited 2023-06-27 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain I 1–808（808 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
9GAW High-resolution structure of the Anaphase-promoting complex/cyclosome (APC/C) bound to co-activator Cdh1 Deposited 2024-07-29 Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain I 1–808（808 aa）
Not recorded ZN ZINC ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
9N9R Model of APC/C-CDC20-UBE2C from H2A/H2B-bound complex Deposited 2025-02-11 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain I 1–808（808 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.90 Å
9N9S Model of APC/C-CDC20-UBE2C from H3/H4-bound complex Deposited 2025-02-11 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain I 1–808（808 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.90 Å

20 other PDB entries and 20 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name APC4_HUMAN
Isoform —
PDB entities 7
Chains and sequence ranges Author chain I； PDBConstruct 1–808； UniProt 1–808

Cell division cycle protein 16 homolog

Homo sapiens

UniProt Q13042

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 21 PDB declaration: 21-meric（21） Consistent with protein copy count Chain J； UniProt 1–620 Chain K； UniProt 1–620 Not recorded Anaphase-promoting complex subunit 1 × 1 （Q9H1A4） Anaphase-promoting complex subunit 11 × 1 （Q9NYG5） Cell division cycle protein 23 homolog × 2 （Q9UJX2） Anaphase-promoting complex subunit 16 × 1 （Q96DE5） Cell division cycle protein 27 homolog × 2 （P30260） Anaphase-promoting complex subunit CDC26 × 2 （Q8NHZ8） Anaphase-promoting complex subunit 4 × 1 （Q9UJX5） Anaphase-promoting complex subunit 10 × 1 （Q9UM13） Anaphase-promoting complex subunit 13 × 1 （Q9BS18） Anaphase-promoting complex subunit 2 × 1 （Q9UJX6） Anaphase-promoting complex subunit 5 × 1 （Q9UJX4） Ubiquitin-conjugating enzyme E2 C × 1 （O00762） Cell division cycle protein 20 homolog × 1 （Q12834） HSL1 peptide × 1 Anaphase-promoting complex subunit 7 × 2 （Q9UJX3） ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 6.10 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 5KHR Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
3HYM Insights into Anaphase Promoting Complex TPR subdomain assembly from a CDC26-APC6 structure Deposited 2009-06-22 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 212–539（328 aa） Fragment：APC6TPR
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.4；297 K；1:1 mix with well buffer: 0.2M MgCl2, 7% isopropanol, 0.1 M Tris-Cl pH 8.4, VAPOR DIFFUSION, HANGING DROP, temperature 297K
Resolution 2.80 Å R-free 0.220
3HYM Insights into Anaphase Promoting Complex TPR subdomain assembly from a CDC26-APC6 structure Deposited 2009-06-22 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 10 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain B 212–539（328 aa） Fragment：APC6TPR
Chain D 212–539（328 aa） Fragment：APC6TPR
Chain F 212–539（328 aa） Fragment：APC6TPR
Chain H 212–539（328 aa） Fragment：APC6TPR
Chain J 212–539（328 aa） Fragment：APC6TPR
Chain L 212–539（328 aa） Fragment：APC6TPR
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.4；297 K；1:1 mix with well buffer: 0.2M MgCl2, 7% isopropanol, 0.1 M Tris-Cl pH 8.4, VAPOR DIFFUSION, HANGING DROP, temperature 297K
Resolution 2.80 Å R-free 0.220
3HYM Insights into Anaphase Promoting Complex TPR subdomain assembly from a CDC26-APC6 structure Deposited 2009-06-22 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 212–539（328 aa） Fragment：APC6TPR
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.4；297 K；1:1 mix with well buffer: 0.2M MgCl2, 7% isopropanol, 0.1 M Tris-Cl pH 8.4, VAPOR DIFFUSION, HANGING DROP, temperature 297K
Resolution 2.80 Å R-free 0.220
3HYM Insights into Anaphase Promoting Complex TPR subdomain assembly from a CDC26-APC6 structure Deposited 2009-06-22 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain F 212–539（328 aa） Fragment：APC6TPR
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.4；297 K；1:1 mix with well buffer: 0.2M MgCl2, 7% isopropanol, 0.1 M Tris-Cl pH 8.4, VAPOR DIFFUSION, HANGING DROP, temperature 297K
Resolution 2.80 Å R-free 0.220
3HYM Insights into Anaphase Promoting Complex TPR subdomain assembly from a CDC26-APC6 structure Deposited 2009-06-22 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain H 212–539（328 aa） Fragment：APC6TPR
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.4；297 K；1:1 mix with well buffer: 0.2M MgCl2, 7% isopropanol, 0.1 M Tris-Cl pH 8.4, VAPOR DIFFUSION, HANGING DROP, temperature 297K
Resolution 2.80 Å R-free 0.220
3HYM Insights into Anaphase Promoting Complex TPR subdomain assembly from a CDC26-APC6 structure Deposited 2009-06-22 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 5 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain J 212–539（328 aa） Fragment：APC6TPR
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.4；297 K；1:1 mix with well buffer: 0.2M MgCl2, 7% isopropanol, 0.1 M Tris-Cl pH 8.4, VAPOR DIFFUSION, HANGING DROP, temperature 297K
Resolution 2.80 Å R-free 0.220
3HYM Insights into Anaphase Promoting Complex TPR subdomain assembly from a CDC26-APC6 structure Deposited 2009-06-22 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 6 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain L 212–539（328 aa） Fragment：APC6TPR
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.4；297 K；1:1 mix with well buffer: 0.2M MgCl2, 7% isopropanol, 0.1 M Tris-Cl pH 8.4, VAPOR DIFFUSION, HANGING DROP, temperature 297K
Resolution 2.80 Å R-free 0.220
3HYM Insights into Anaphase Promoting Complex TPR subdomain assembly from a CDC26-APC6 structure Deposited 2009-06-22 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 7 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 212–539（328 aa） Fragment：APC6TPR
Chain F 212–539（328 aa） Fragment：APC6TPR
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.4；297 K；1:1 mix with well buffer: 0.2M MgCl2, 7% isopropanol, 0.1 M Tris-Cl pH 8.4, VAPOR DIFFUSION, HANGING DROP, temperature 297K
Resolution 2.80 Å R-free 0.220
3HYM Insights into Anaphase Promoting Complex TPR subdomain assembly from a CDC26-APC6 structure Deposited 2009-06-22 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 8 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain D 212–539（328 aa） Fragment：APC6TPR
Chain L 212–539（328 aa） Fragment：APC6TPR
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.4；297 K；1:1 mix with well buffer: 0.2M MgCl2, 7% isopropanol, 0.1 M Tris-Cl pH 8.4, VAPOR DIFFUSION, HANGING DROP, temperature 297K
Resolution 2.80 Å R-free 0.220
3HYM Insights into Anaphase Promoting Complex TPR subdomain assembly from a CDC26-APC6 structure Deposited 2009-06-22 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 9 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain H 212–539（328 aa） Fragment：APC6TPR
Chain J 212–539（328 aa） Fragment：APC6TPR
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.4；297 K；1:1 mix with well buffer: 0.2M MgCl2, 7% isopropanol, 0.1 M Tris-Cl pH 8.4, VAPOR DIFFUSION, HANGING DROP, temperature 297K
Resolution 2.80 Å R-free 0.220
4UI9 Atomic structure of the human Anaphase-Promoting Complex Deposited 2015-03-27 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain J 1–620（620 aa）
Chain K 1–620（620 aa）
Not recorded ZN ZINC ION × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
5A31 Structure of the human APC-Cdh1-Hsl1-UbcH10 complex. Deposited 2015-05-26 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 24 PDB declaration: 24-meric
Chain J 1–620（620 aa）
Chain K 1–620（620 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.30 Å
5G04 Structure of the human APC-Cdc20-Hsl1 complex Deposited 2016-03-16 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain J 1–620（620 aa）
Chain K 1–620（620 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer 20MM HEPES, 150MM NACL, 0. 5MM TCEP；pH 8；20MM HEPES, 150MM NACL, 0. 5MM TCEP
cryo-EM vitrification conditions Cryogen ETHANE；LIQUID ETHANE
Resolution 3.90 Å
5G05 Cryo-EM structure of combined apo phosphorylated APC Deposited 2016-03-16 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain J 1–620（620 aa）
Chain K 1–620（620 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer 20MM HEPES, 150MM NACL, 0. 5MM TCEP；pH 8；20MM HEPES, 150MM NACL, 0. 5MM TCEP
cryo-EM vitrification conditions Cryogen ETHANE；LIQUID ETHANE
Resolution 3.40 Å
5KHU Model of human Anaphase-promoting complex/Cyclosome (APC15 deletion mutant), in complex with the Mitotic checkpoint complex (APC/C-CDC20-MCC) based on cryo EM data at 4.8 Angstrom resolution Deposited 2016-06-15 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain J 1–620（620 aa）
Chain K 1–620（620 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.80 Å
5L9T Model of human Anaphase-promoting complex/Cyclosome (APC/C-CDH1) with E2 UBE2S poised for polyubiquitination where UBE2S, APC2, and APC11 are modeled into low resolution density Deposited 2016-06-11 Different oligomeric state Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 22 PDB declaration: 22-meric
Chain J 1–620（620 aa）
Chain K 1–620（620 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.40 Å
5L9U Model of human Anaphase-promoting complex/Cyclosome (APC/C-CDH1) with a cross linked Ubiquitin variant-substrate-UBE2C (UBCH10) complex representing key features of multiubiquitination Deposited 2016-06-11 Different oligomeric state Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 22 PDB declaration: 22-meric
Chain J 1–620（620 aa）
Chain K 1–620（620 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.40 Å
5LCW Cryo-EM structure of the Anaphase-promoting complex/Cyclosome, in complex with the Mitotic checkpoint complex (APC/C-MCC) at 4.2 angstrom resolution Deposited 2016-06-22 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain J 1–620（620 aa）
Chain K 1–620（620 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
6Q6G Cryo-EM structure of the APC/C-Cdc20-Cdk2-cyclinA2-Cks2 complex, the D1 box class Deposited 2018-12-11 Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain K 1–620（620 aa）
Chain Q 1–620（620 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Hepes, 150mM NaCl, 0.5mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
6Q6H Cryo-EM structure of the APC/C-Cdc20-Cdk2-cyclinA2-Cks2 complex, the D2 box class Deposited 2018-12-11 Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain K 1–620（620 aa）
Chain Q 1–620（620 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Hepes, 150mM NaCl, 0.5mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
6TLJ Cryo-EM structure of the Anaphase-promoting complex/Cyclosome, in complex with the Mitotic checkpoint complex (APC/C-MCC) at 3.8 angstrom resolution Deposited 2019-12-02 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain J 1–620（620 aa）
Chain K 1–620（620 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
6TM5 Cryo-EM structure of the Anaphase-promoting complex/Cyclosome, in complex with the Nek2A substrate at 3.9 angstrom resolution Deposited 2019-12-03 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain J 1–620（620 aa）
Chain K 1–620（620 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
6TNT SUMOylated apoAPC/C with repositioned APC2 WHB domain Deposited 2019-12-10 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain J 1–620（620 aa）
Chain K 1–620（620 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.78 Å
8PKP Cryo-EM structure of the apo Anaphase-promoting complex/cyclosome (APC/C) at 3.2 Angstrom resolution Deposited 2023-06-27 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: 19-meric
Chain K 1–620（620 aa）
Chain Q 1–620（620 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8TAR APC/C-CDH1-UBE2C-Ubiquitin-CyclinB-NTD Deposited 2023-06-27 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain K 1–620（620 aa）
Chain S 1–620（620 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
8TAU APC/C-CDH1-UBE2C-UBE2S-Ubiquitin-CyclinB Deposited 2023-06-27 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain K 1–620（620 aa）
Chain S 1–620（620 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
9GAW High-resolution structure of the Anaphase-promoting complex/cyclosome (APC/C) bound to co-activator Cdh1 Deposited 2024-07-29 Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain K 1–620（620 aa）
Chain Q 1–620（620 aa）
Not recorded ZN ZINC ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
9N9R Model of APC/C-CDC20-UBE2C from H2A/H2B-bound complex Deposited 2025-02-11 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain K 1–620（620 aa）
Chain S 1–620（620 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.90 Å
9N9S Model of APC/C-CDC20-UBE2C from H3/H4-bound complex Deposited 2025-02-11 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain K 1–620（620 aa）
Chain S 1–620（620 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.90 Å

20 other PDB entries and 29 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name CDC16_HUMAN
Isoform —
PDB entities 8
Chains and sequence ranges Author chain J； PDBConstruct 1–620； UniProt 1–620 Author chain K； PDBConstruct 1–620； UniProt 1–620

Anaphase-promoting complex subunit 10

Homo sapiens

UniProt Q9UM13

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 21 PDB declaration: 21-meric（21） Consistent with protein copy count Chain L； UniProt 1–185 Not recorded Anaphase-promoting complex subunit 1 × 1 （Q9H1A4） Anaphase-promoting complex subunit 11 × 1 （Q9NYG5） Cell division cycle protein 23 homolog × 2 （Q9UJX2） Anaphase-promoting complex subunit 16 × 1 （Q96DE5） Cell division cycle protein 27 homolog × 2 （P30260） Anaphase-promoting complex subunit CDC26 × 2 （Q8NHZ8） Anaphase-promoting complex subunit 4 × 1 （Q9UJX5） Cell division cycle protein 16 homolog × 2 （Q13042） Anaphase-promoting complex subunit 13 × 1 （Q9BS18） Anaphase-promoting complex subunit 2 × 1 （Q9UJX6） Anaphase-promoting complex subunit 5 × 1 （Q9UJX4） Ubiquitin-conjugating enzyme E2 C × 1 （O00762） Cell division cycle protein 20 homolog × 1 （Q12834） HSL1 peptide × 1 Anaphase-promoting complex subunit 7 × 2 （Q9UJX3） ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 6.10 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 5KHR Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1JHJ Crystal structure of the APC10/Doc1 subunit of the human anaphase-promoting complex Deposited 2001-06-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2–172（171 aa）
Mutation：T2A NI NICKEL (II) ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.2；291 K；ammonium sulfate, pH 7.2, VAPOR DIFFUSION, SITTING DROP, temperature 291K
Resolution 1.60 Å R-free 0.244
4UI9 Atomic structure of the human Anaphase-Promoting Complex Deposited 2015-03-27 Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain L 2–185（184 aa）
Not recorded ZN ZINC ION × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
5A31 Structure of the human APC-Cdh1-Hsl1-UbcH10 complex. Deposited 2015-05-26 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 24 PDB declaration: 24-meric
Chain L 1–185（185 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.30 Å
5G04 Structure of the human APC-Cdc20-Hsl1 complex Deposited 2016-03-16 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain L 1–185（185 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer 20MM HEPES, 150MM NACL, 0. 5MM TCEP；pH 8；20MM HEPES, 150MM NACL, 0. 5MM TCEP
cryo-EM vitrification conditions Cryogen ETHANE；LIQUID ETHANE
Resolution 3.90 Å
5G05 Cryo-EM structure of combined apo phosphorylated APC Deposited 2016-03-16 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain L 1–185（185 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer 20MM HEPES, 150MM NACL, 0. 5MM TCEP；pH 8；20MM HEPES, 150MM NACL, 0. 5MM TCEP
cryo-EM vitrification conditions Cryogen ETHANE；LIQUID ETHANE
Resolution 3.40 Å
5KHU Model of human Anaphase-promoting complex/Cyclosome (APC15 deletion mutant), in complex with the Mitotic checkpoint complex (APC/C-CDC20-MCC) based on cryo EM data at 4.8 Angstrom resolution Deposited 2016-06-15 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain L 1–185（185 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.80 Å
5L9T Model of human Anaphase-promoting complex/Cyclosome (APC/C-CDH1) with E2 UBE2S poised for polyubiquitination where UBE2S, APC2, and APC11 are modeled into low resolution density Deposited 2016-06-11 Different oligomeric state Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 22 PDB declaration: 22-meric
Chain L 1–185（185 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.40 Å
5L9U Model of human Anaphase-promoting complex/Cyclosome (APC/C-CDH1) with a cross linked Ubiquitin variant-substrate-UBE2C (UBCH10) complex representing key features of multiubiquitination Deposited 2016-06-11 Different oligomeric state Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 22 PDB declaration: 22-meric
Chain L 1–185（185 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.40 Å
5LCW Cryo-EM structure of the Anaphase-promoting complex/Cyclosome, in complex with the Mitotic checkpoint complex (APC/C-MCC) at 4.2 angstrom resolution Deposited 2016-06-22 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain L 1–185（185 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
6Q6G Cryo-EM structure of the APC/C-Cdc20-Cdk2-cyclinA2-Cks2 complex, the D1 box class Deposited 2018-12-11 Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain L 1–185（185 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Hepes, 150mM NaCl, 0.5mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
6Q6H Cryo-EM structure of the APC/C-Cdc20-Cdk2-cyclinA2-Cks2 complex, the D2 box class Deposited 2018-12-11 Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain L 1–185（185 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Hepes, 150mM NaCl, 0.5mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
6TLJ Cryo-EM structure of the Anaphase-promoting complex/Cyclosome, in complex with the Mitotic checkpoint complex (APC/C-MCC) at 3.8 angstrom resolution Deposited 2019-12-02 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain L 1–185（185 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
6TM5 Cryo-EM structure of the Anaphase-promoting complex/Cyclosome, in complex with the Nek2A substrate at 3.9 angstrom resolution Deposited 2019-12-03 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain L 1–185（185 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
6TNT SUMOylated apoAPC/C with repositioned APC2 WHB domain Deposited 2019-12-10 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain L 1–185（185 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.78 Å
8PKP Cryo-EM structure of the apo Anaphase-promoting complex/cyclosome (APC/C) at 3.2 Angstrom resolution Deposited 2023-06-27 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: 19-meric
Chain L 1–185（185 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8TAR APC/C-CDH1-UBE2C-Ubiquitin-CyclinB-NTD Deposited 2023-06-27 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain L 1–185（185 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
8TAU APC/C-CDH1-UBE2C-UBE2S-Ubiquitin-CyclinB Deposited 2023-06-27 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain L 1–185（185 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
9GAW High-resolution structure of the Anaphase-promoting complex/cyclosome (APC/C) bound to co-activator Cdh1 Deposited 2024-07-29 Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain L 1–185（185 aa）
Not recorded ZN ZINC ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
9N9R Model of APC/C-CDC20-UBE2C from H2A/H2B-bound complex Deposited 2025-02-11 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain L 1–185（185 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.90 Å
9N9S Model of APC/C-CDC20-UBE2C from H3/H4-bound complex Deposited 2025-02-11 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain L 1–185（185 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.90 Å

20 other PDB entries and 20 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name APC10_HUMAN
Isoform —
PDB entities 9
Chains and sequence ranges Author chain L； PDBConstruct 1–185； UniProt 1–185

Anaphase-promoting complex subunit 13

Homo sapiens

UniProt Q9BS18

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 21 PDB declaration: 21-meric（21） Consistent with protein copy count Chain M； UniProt 1–74 Not recorded Anaphase-promoting complex subunit 1 × 1 （Q9H1A4） Anaphase-promoting complex subunit 11 × 1 （Q9NYG5） Cell division cycle protein 23 homolog × 2 （Q9UJX2） Anaphase-promoting complex subunit 16 × 1 （Q96DE5） Cell division cycle protein 27 homolog × 2 （P30260） Anaphase-promoting complex subunit CDC26 × 2 （Q8NHZ8） Anaphase-promoting complex subunit 4 × 1 （Q9UJX5） Cell division cycle protein 16 homolog × 2 （Q13042） Anaphase-promoting complex subunit 10 × 1 （Q9UM13） Anaphase-promoting complex subunit 2 × 1 （Q9UJX6） Anaphase-promoting complex subunit 5 × 1 （Q9UJX4） Ubiquitin-conjugating enzyme E2 C × 1 （O00762） Cell division cycle protein 20 homolog × 1 （Q12834） HSL1 peptide × 1 Anaphase-promoting complex subunit 7 × 2 （Q9UJX3） ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 6.10 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 5KHR Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
4UI9 Atomic structure of the human Anaphase-Promoting Complex Deposited 2015-03-27 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain M 1–74（74 aa）
Not recorded ZN ZINC ION × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
5G04 Structure of the human APC-Cdc20-Hsl1 complex Deposited 2016-03-16 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain M 1–74（74 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer 20MM HEPES, 150MM NACL, 0. 5MM TCEP；pH 8；20MM HEPES, 150MM NACL, 0. 5MM TCEP
cryo-EM vitrification conditions Cryogen ETHANE；LIQUID ETHANE
Resolution 3.90 Å
5KHU Model of human Anaphase-promoting complex/Cyclosome (APC15 deletion mutant), in complex with the Mitotic checkpoint complex (APC/C-CDC20-MCC) based on cryo EM data at 4.8 Angstrom resolution Deposited 2016-06-15 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain M 1–74（74 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.80 Å
5L9T Model of human Anaphase-promoting complex/Cyclosome (APC/C-CDH1) with E2 UBE2S poised for polyubiquitination where UBE2S, APC2, and APC11 are modeled into low resolution density Deposited 2016-06-11 Different oligomeric state Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 22 PDB declaration: 22-meric
Chain M 1–74（74 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.40 Å
5L9U Model of human Anaphase-promoting complex/Cyclosome (APC/C-CDH1) with a cross linked Ubiquitin variant-substrate-UBE2C (UBCH10) complex representing key features of multiubiquitination Deposited 2016-06-11 Different oligomeric state Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 22 PDB declaration: 22-meric
Chain M 1–74（74 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.40 Å
5LCW Cryo-EM structure of the Anaphase-promoting complex/Cyclosome, in complex with the Mitotic checkpoint complex (APC/C-MCC) at 4.2 angstrom resolution Deposited 2016-06-22 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain M 1–74（74 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
6Q6G Cryo-EM structure of the APC/C-Cdc20-Cdk2-cyclinA2-Cks2 complex, the D1 box class Deposited 2018-12-11 Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain M 1–74（74 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Hepes, 150mM NaCl, 0.5mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
6Q6H Cryo-EM structure of the APC/C-Cdc20-Cdk2-cyclinA2-Cks2 complex, the D2 box class Deposited 2018-12-11 Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain M 1–74（74 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Hepes, 150mM NaCl, 0.5mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
6TLJ Cryo-EM structure of the Anaphase-promoting complex/Cyclosome, in complex with the Mitotic checkpoint complex (APC/C-MCC) at 3.8 angstrom resolution Deposited 2019-12-02 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain M 1–74（74 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
6TM5 Cryo-EM structure of the Anaphase-promoting complex/Cyclosome, in complex with the Nek2A substrate at 3.9 angstrom resolution Deposited 2019-12-03 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain M 1–74（74 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
6TNT SUMOylated apoAPC/C with repositioned APC2 WHB domain Deposited 2019-12-10 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain M 1–74（74 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.78 Å
8PKP Cryo-EM structure of the apo Anaphase-promoting complex/cyclosome (APC/C) at 3.2 Angstrom resolution Deposited 2023-06-27 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: 19-meric
Chain M 1–74（74 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8TAR APC/C-CDH1-UBE2C-Ubiquitin-CyclinB-NTD Deposited 2023-06-27 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain M 1–74（74 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
8TAU APC/C-CDH1-UBE2C-UBE2S-Ubiquitin-CyclinB Deposited 2023-06-27 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain M 1–74（74 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
9GAW High-resolution structure of the Anaphase-promoting complex/cyclosome (APC/C) bound to co-activator Cdh1 Deposited 2024-07-29 Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain M 1–74（74 aa）
Not recorded ZN ZINC ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
9N9R Model of APC/C-CDC20-UBE2C from H2A/H2B-bound complex Deposited 2025-02-11 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain M 1–74（74 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.90 Å
9N9S Model of APC/C-CDC20-UBE2C from H3/H4-bound complex Deposited 2025-02-11 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain M 1–74（74 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.90 Å

17 other PDB entries and 17 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name APC13_HUMAN
Isoform —
PDB entities 10
Chains and sequence ranges Author chain M； PDBConstruct 1–74； UniProt 1–74

Anaphase-promoting complex subunit 2

Homo sapiens

UniProt Q9UJX6

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 21 PDB declaration: 21-meric（21） Consistent with protein copy count Chain N； UniProt 1–822 Not recorded Anaphase-promoting complex subunit 1 × 1 （Q9H1A4） Anaphase-promoting complex subunit 11 × 1 （Q9NYG5） Cell division cycle protein 23 homolog × 2 （Q9UJX2） Anaphase-promoting complex subunit 16 × 1 （Q96DE5） Cell division cycle protein 27 homolog × 2 （P30260） Anaphase-promoting complex subunit CDC26 × 2 （Q8NHZ8） Anaphase-promoting complex subunit 4 × 1 （Q9UJX5） Cell division cycle protein 16 homolog × 2 （Q13042） Anaphase-promoting complex subunit 10 × 1 （Q9UM13） Anaphase-promoting complex subunit 13 × 1 （Q9BS18） Anaphase-promoting complex subunit 5 × 1 （Q9UJX4） Ubiquitin-conjugating enzyme E2 C × 1 （O00762） Cell division cycle protein 20 homolog × 1 （Q12834） HSL1 peptide × 1 Anaphase-promoting complex subunit 7 × 2 （Q9UJX3） ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 6.10 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 5KHR Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
4UI9 Atomic structure of the human Anaphase-Promoting Complex Deposited 2015-03-27 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain N 1–822（822 aa）
Not recorded ZN ZINC ION × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
4YII Structure of an APC2-UBCH10 complex reveals distinctive cullin-RING ligase mechanism for Anaphase-promoting complex/Cyclosome Deposited 2015-03-02 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 735–822（88 aa） Fragment：unp residues 735-822
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；296 K；PEG 3000, MES
Resolution 1.80 Å R-free 0.245
5G04 Structure of the human APC-Cdc20-Hsl1 complex Deposited 2016-03-16 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain N 1–822（822 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer 20MM HEPES, 150MM NACL, 0. 5MM TCEP；pH 8；20MM HEPES, 150MM NACL, 0. 5MM TCEP
cryo-EM vitrification conditions Cryogen ETHANE；LIQUID ETHANE
Resolution 3.90 Å
5G05 Cryo-EM structure of combined apo phosphorylated APC Deposited 2016-03-16 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain N 1–822（822 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer 20MM HEPES, 150MM NACL, 0. 5MM TCEP；pH 8；20MM HEPES, 150MM NACL, 0. 5MM TCEP
cryo-EM vitrification conditions Cryogen ETHANE；LIQUID ETHANE
Resolution 3.40 Å
5KHU Model of human Anaphase-promoting complex/Cyclosome (APC15 deletion mutant), in complex with the Mitotic checkpoint complex (APC/C-CDC20-MCC) based on cryo EM data at 4.8 Angstrom resolution Deposited 2016-06-15 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain N 1–822（822 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.80 Å
5L9T Model of human Anaphase-promoting complex/Cyclosome (APC/C-CDH1) with E2 UBE2S poised for polyubiquitination where UBE2S, APC2, and APC11 are modeled into low resolution density Deposited 2016-06-11 Different oligomeric state Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 22 PDB declaration: 22-meric
Chain N 1–822（822 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.40 Å
5L9U Model of human Anaphase-promoting complex/Cyclosome (APC/C-CDH1) with a cross linked Ubiquitin variant-substrate-UBE2C (UBCH10) complex representing key features of multiubiquitination Deposited 2016-06-11 Different oligomeric state Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 22 PDB declaration: 22-meric
Chain N 1–822（822 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.40 Å
5LCW Cryo-EM structure of the Anaphase-promoting complex/Cyclosome, in complex with the Mitotic checkpoint complex (APC/C-MCC) at 4.2 angstrom resolution Deposited 2016-06-22 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain N 1–822（822 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
6NXK Ubiquitin binding variants Deposited 2019-02-08 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 735–822（88 aa） Fragment：WHB domain
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277.15 K；0.1M HEPES pH 7.7, 27.5% PEG3350, 2.5mM APC2 WHB (735-C) + 2.08mM Ubiquitin protein co-mixed
Resolution 2.20 Å R-free 0.266
6NXK Ubiquitin binding variants Deposited 2019-02-08 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 735–822（88 aa） Fragment：WHB domain
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277.15 K；0.1M HEPES pH 7.7, 27.5% PEG3350, 2.5mM APC2 WHB (735-C) + 2.08mM Ubiquitin protein co-mixed
Resolution 2.20 Å R-free 0.266
6OB1 Structure of WHB in complex with Ubiquitin Variant Deposited 2019-03-19 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 735–822（88 aa）
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 7；308 K；Ionic strength (raw mmCIF value) 100；Pressure atmospheric
NMR sample composition 0.5 mM [U-99% 13C; U-99% 15N] WHB, 0.6 mM Ubiquitin Variant, 90% H2O/10% D2O | 90% H2O/10% D2O
Resolution not provided
6Q6G Cryo-EM structure of the APC/C-Cdc20-Cdk2-cyclinA2-Cks2 complex, the D1 box class Deposited 2018-12-11 Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain N 1–822（822 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Hepes, 150mM NaCl, 0.5mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
6Q6H Cryo-EM structure of the APC/C-Cdc20-Cdk2-cyclinA2-Cks2 complex, the D2 box class Deposited 2018-12-11 Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain N 1–822（822 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Hepes, 150mM NaCl, 0.5mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
6TLJ Cryo-EM structure of the Anaphase-promoting complex/Cyclosome, in complex with the Mitotic checkpoint complex (APC/C-MCC) at 3.8 angstrom resolution Deposited 2019-12-02 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain N 1–822（822 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
6TM5 Cryo-EM structure of the Anaphase-promoting complex/Cyclosome, in complex with the Nek2A substrate at 3.9 angstrom resolution Deposited 2019-12-03 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain N 1–822（822 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
6TNT SUMOylated apoAPC/C with repositioned APC2 WHB domain Deposited 2019-12-10 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain N 1–822（822 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.78 Å
8PKP Cryo-EM structure of the apo Anaphase-promoting complex/cyclosome (APC/C) at 3.2 Angstrom resolution Deposited 2023-06-27 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: 19-meric
Chain N 1–822（822 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8TAR APC/C-CDH1-UBE2C-Ubiquitin-CyclinB-NTD Deposited 2023-06-27 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain N 1–822（822 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
8TAU APC/C-CDH1-UBE2C-UBE2S-Ubiquitin-CyclinB Deposited 2023-06-27 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain N 1–822（822 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
9GAW High-resolution structure of the Anaphase-promoting complex/cyclosome (APC/C) bound to co-activator Cdh1 Deposited 2024-07-29 Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain N 1–822（822 aa）
Not recorded ZN ZINC ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
9N9R Model of APC/C-CDC20-UBE2C from H2A/H2B-bound complex Deposited 2025-02-11 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain N 1–822（822 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.90 Å
9N9S Model of APC/C-CDC20-UBE2C from H3/H4-bound complex Deposited 2025-02-11 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain N 1–720（720 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.90 Å

21 other PDB entries and 22 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name ANC2_HUMAN
Isoform —
PDB entities 11
Chains and sequence ranges Author chain N； PDBConstruct 1–822； UniProt 1–822

Anaphase-promoting complex subunit 5

Homo sapiens

UniProt Q9UJX4

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 21 PDB declaration: 21-meric（21） Consistent with protein copy count Chain O； UniProt 1–755 Not recorded Anaphase-promoting complex subunit 1 × 1 （Q9H1A4） Anaphase-promoting complex subunit 11 × 1 （Q9NYG5） Cell division cycle protein 23 homolog × 2 （Q9UJX2） Anaphase-promoting complex subunit 16 × 1 （Q96DE5） Cell division cycle protein 27 homolog × 2 （P30260） Anaphase-promoting complex subunit CDC26 × 2 （Q8NHZ8） Anaphase-promoting complex subunit 4 × 1 （Q9UJX5） Cell division cycle protein 16 homolog × 2 （Q13042） Anaphase-promoting complex subunit 10 × 1 （Q9UM13） Anaphase-promoting complex subunit 13 × 1 （Q9BS18） Anaphase-promoting complex subunit 2 × 1 （Q9UJX6） Ubiquitin-conjugating enzyme E2 C × 1 （O00762） Cell division cycle protein 20 homolog × 1 （Q12834） HSL1 peptide × 1 Anaphase-promoting complex subunit 7 × 2 （Q9UJX3） ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 6.10 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 5KHR Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
4UI9 Atomic structure of the human Anaphase-Promoting Complex Deposited 2015-03-27 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain O 1–755（755 aa）
Not recorded ZN ZINC ION × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
5A31 Structure of the human APC-Cdh1-Hsl1-UbcH10 complex. Deposited 2015-05-26 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 24 PDB declaration: 24-meric
Chain O 1–755（755 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.30 Å
5G04 Structure of the human APC-Cdc20-Hsl1 complex Deposited 2016-03-16 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain O 1–755（755 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer 20MM HEPES, 150MM NACL, 0. 5MM TCEP；pH 8；20MM HEPES, 150MM NACL, 0. 5MM TCEP
cryo-EM vitrification conditions Cryogen ETHANE；LIQUID ETHANE
Resolution 3.90 Å
5G05 Cryo-EM structure of combined apo phosphorylated APC Deposited 2016-03-16 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain O 1–755（755 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer 20MM HEPES, 150MM NACL, 0. 5MM TCEP；pH 8；20MM HEPES, 150MM NACL, 0. 5MM TCEP
cryo-EM vitrification conditions Cryogen ETHANE；LIQUID ETHANE
Resolution 3.40 Å
5KHU Model of human Anaphase-promoting complex/Cyclosome (APC15 deletion mutant), in complex with the Mitotic checkpoint complex (APC/C-CDC20-MCC) based on cryo EM data at 4.8 Angstrom resolution Deposited 2016-06-15 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain O 1–755（755 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.80 Å
5L9T Model of human Anaphase-promoting complex/Cyclosome (APC/C-CDH1) with E2 UBE2S poised for polyubiquitination where UBE2S, APC2, and APC11 are modeled into low resolution density Deposited 2016-06-11 Different oligomeric state Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 22 PDB declaration: 22-meric
Chain O 1–755（755 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.40 Å
5L9U Model of human Anaphase-promoting complex/Cyclosome (APC/C-CDH1) with a cross linked Ubiquitin variant-substrate-UBE2C (UBCH10) complex representing key features of multiubiquitination Deposited 2016-06-11 Different oligomeric state Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 22 PDB declaration: 22-meric
Chain O 1–755（755 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.40 Å
5LCW Cryo-EM structure of the Anaphase-promoting complex/Cyclosome, in complex with the Mitotic checkpoint complex (APC/C-MCC) at 4.2 angstrom resolution Deposited 2016-06-22 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain O 1–755（755 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
6Q6G Cryo-EM structure of the APC/C-Cdc20-Cdk2-cyclinA2-Cks2 complex, the D1 box class Deposited 2018-12-11 Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain O 1–755（755 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Hepes, 150mM NaCl, 0.5mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
6Q6H Cryo-EM structure of the APC/C-Cdc20-Cdk2-cyclinA2-Cks2 complex, the D2 box class Deposited 2018-12-11 Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain O 1–755（755 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Hepes, 150mM NaCl, 0.5mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
6TLJ Cryo-EM structure of the Anaphase-promoting complex/Cyclosome, in complex with the Mitotic checkpoint complex (APC/C-MCC) at 3.8 angstrom resolution Deposited 2019-12-02 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain O 1–755（755 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
6TM5 Cryo-EM structure of the Anaphase-promoting complex/Cyclosome, in complex with the Nek2A substrate at 3.9 angstrom resolution Deposited 2019-12-03 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain O 1–755（755 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
6TNT SUMOylated apoAPC/C with repositioned APC2 WHB domain Deposited 2019-12-10 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain O 1–755（755 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.78 Å
8PKP Cryo-EM structure of the apo Anaphase-promoting complex/cyclosome (APC/C) at 3.2 Angstrom resolution Deposited 2023-06-27 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: 19-meric
Chain O 1–755（755 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8TAR APC/C-CDH1-UBE2C-Ubiquitin-CyclinB-NTD Deposited 2023-06-27 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain O 1–755（755 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
8TAU APC/C-CDH1-UBE2C-UBE2S-Ubiquitin-CyclinB Deposited 2023-06-27 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain O 1–755（755 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
9GAW High-resolution structure of the Anaphase-promoting complex/cyclosome (APC/C) bound to co-activator Cdh1 Deposited 2024-07-29 Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain O 1–755（755 aa）
Not recorded ZN ZINC ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
9N9R Model of APC/C-CDC20-UBE2C from H2A/H2B-bound complex Deposited 2025-02-11 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain O 1–755（755 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.90 Å
9N9S Model of APC/C-CDC20-UBE2C from H3/H4-bound complex Deposited 2025-02-11 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain O 1–755（755 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.90 Å

19 other PDB entries and 19 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name APC5_HUMAN
Isoform —
PDB entities 12
Chains and sequence ranges Author chain O； PDBConstruct 1–755； UniProt 1–755

Ubiquitin-conjugating enzyme E2 C

Homo sapiens

UniProt O00762

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 21 PDB declaration: 21-meric（21） Consistent with protein copy count Chain Q； UniProt 1–179 Not recorded Anaphase-promoting complex subunit 1 × 1 （Q9H1A4） Anaphase-promoting complex subunit 11 × 1 （Q9NYG5） Cell division cycle protein 23 homolog × 2 （Q9UJX2） Anaphase-promoting complex subunit 16 × 1 （Q96DE5） Cell division cycle protein 27 homolog × 2 （P30260） Anaphase-promoting complex subunit CDC26 × 2 （Q8NHZ8） Anaphase-promoting complex subunit 4 × 1 （Q9UJX5） Cell division cycle protein 16 homolog × 2 （Q13042） Anaphase-promoting complex subunit 10 × 1 （Q9UM13） Anaphase-promoting complex subunit 13 × 1 （Q9BS18） Anaphase-promoting complex subunit 2 × 1 （Q9UJX6） Anaphase-promoting complex subunit 5 × 1 （Q9UJX4） Cell division cycle protein 20 homolog × 1 （Q12834） HSL1 peptide × 1 Anaphase-promoting complex subunit 7 × 2 （Q9UJX3） ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 6.10 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 5KHR Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1I7K CRYSTAL STRUCTURE OF HUMAN MITOTIC-SPECIFIC UBIQUITIN-CONJUGATING ENZYME, UBCH10 Deposited 2001-03-09 Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–179（179 aa）
Mutation：C114S No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；PEG 1500, sodium chloride, sodium acetate, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 1.95 Å R-free 0.226
1I7K CRYSTAL STRUCTURE OF HUMAN MITOTIC-SPECIFIC UBIQUITIN-CONJUGATING ENZYME, UBCH10 Deposited 2001-03-09 Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1–179（179 aa）
Mutation：C114S No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；PEG 1500, sodium chloride, sodium acetate, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 1.95 Å R-free 0.226
4YII Structure of an APC2-UBCH10 complex reveals distinctive cullin-RING ligase mechanism for Anaphase-promoting complex/Cyclosome Deposited 2015-03-02 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain U 27–179（153 aa） Fragment：unp residues 27-179
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；296 K；PEG 3000, MES
Resolution 1.80 Å R-free 0.245
5L9U Model of human Anaphase-promoting complex/Cyclosome (APC/C-CDH1) with a cross linked Ubiquitin variant-substrate-UBE2C (UBCH10) complex representing key features of multiubiquitination Deposited 2016-06-11 Different mutation/modification Different oligomeric state Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 22 PDB declaration: 22-meric
Chain U 1–179（179 aa）
Mutation：C102A No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.40 Å
8TAR APC/C-CDH1-UBE2C-Ubiquitin-CyclinB-NTD Deposited 2023-06-27 Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain Q 29–173（145 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
8TAU APC/C-CDH1-UBE2C-UBE2S-Ubiquitin-CyclinB Deposited 2023-06-27 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain Q 1–179（179 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
9N9R Model of APC/C-CDC20-UBE2C from H2A/H2B-bound complex Deposited 2025-02-11 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain Q 29–173（145 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.90 Å
9N9S Model of APC/C-CDC20-UBE2C from H3/H4-bound complex Deposited 2025-02-11 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain Q 29–173（145 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.90 Å

7 other PDB entries and 8 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name UBE2C_HUMAN
Isoform —
PDB entities 13
Chains and sequence ranges Author chain Q； PDBConstruct 1–179； UniProt 1–179

Cell division cycle protein 20 homolog

Homo sapiens

UniProt Q12834

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 21 PDB declaration: 21-meric（21） Consistent with protein copy count Chain R； UniProt 1–499 Not recorded Anaphase-promoting complex subunit 1 × 1 （Q9H1A4） Anaphase-promoting complex subunit 11 × 1 （Q9NYG5） Cell division cycle protein 23 homolog × 2 （Q9UJX2） Anaphase-promoting complex subunit 16 × 1 （Q96DE5） Cell division cycle protein 27 homolog × 2 （P30260） Anaphase-promoting complex subunit CDC26 × 2 （Q8NHZ8） Anaphase-promoting complex subunit 4 × 1 （Q9UJX5） Cell division cycle protein 16 homolog × 2 （Q13042） Anaphase-promoting complex subunit 10 × 1 （Q9UM13） Anaphase-promoting complex subunit 13 × 1 （Q9BS18） Anaphase-promoting complex subunit 2 × 1 （Q9UJX6） Anaphase-promoting complex subunit 5 × 1 （Q9UJX4） Ubiquitin-conjugating enzyme E2 C × 1 （O00762） HSL1 peptide × 1 Anaphase-promoting complex subunit 7 × 2 （Q9UJX3） ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 6.10 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 5KHR Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
4GGA Structural Analysis of Human Cdc20 Supports Multi-site Degron Recognition by APC/C Deposited 2012-08-06 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 81–499（419 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；293 K；100 mM Na citrate, 15 % (w/v) PEG 6000, and 4% MPD, pH 5.6, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.04 Å R-free 0.203
4GGC Structural Analysis of Human Cdc20 Supports Multi-site Degron Recognition by APC/C Deposited 2012-08-06 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 161–477（317 aa）
Not recorded MRD (4R)-2-METHYLPENTANE-2,4-DIOL × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；100 mM MES, 15% (w/v) PEG 6000, and 5% MPD, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 1.35 Å R-free 0.146
4GGD Structural analysis of human Cdc20 supports multisite degron recognition by APC/C. Deposited 2012-08-06 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 71–499（429 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions sitting-drop vapor diffusion；pH 9.3；293 K；50 mM CAPSO, 5% (w/v) PEG 6000, and 15.5 % MPD, pH 9.3, sitting-drop vapor diffusion, temperature 293K
Resolution 2.44 Å R-free 0.201
4GGD Structural analysis of human Cdc20 supports multisite degron recognition by APC/C. Deposited 2012-08-06 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 71–499（429 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions sitting-drop vapor diffusion；pH 9.3；293 K；50 mM CAPSO, 5% (w/v) PEG 6000, and 15.5 % MPD, pH 9.3, sitting-drop vapor diffusion, temperature 293K
Resolution 2.44 Å R-free 0.201
4N14 Crystal structure of Cdc20 and apcin complex Deposited 2013-10-03 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 165–477（313 aa） Fragment：WD domain residues 165-477
Not recorded WR7 2-(2-methyl-5-nitro-1H-imidazol-1-yl)ethyl [(1R)-2,2,2-trichloro-1-(pyrimidin-2-ylamino)ethyl]carbamate × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；100 mM MES, 15% (w/v) PEG 6000, and 5% MPD, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.10 Å R-free 0.213
5G04 Structure of the human APC-Cdc20-Hsl1 complex Deposited 2016-03-16 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain R 1–499（499 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer 20MM HEPES, 150MM NACL, 0. 5MM TCEP；pH 8；20MM HEPES, 150MM NACL, 0. 5MM TCEP
cryo-EM vitrification conditions Cryogen ETHANE；LIQUID ETHANE
Resolution 3.90 Å
5KHU Model of human Anaphase-promoting complex/Cyclosome (APC15 deletion mutant), in complex with the Mitotic checkpoint complex (APC/C-CDC20-MCC) based on cryo EM data at 4.8 Angstrom resolution Deposited 2016-06-15 Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain R 1–499（499 aa）
Chain S 1–499（499 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.80 Å
5LCW Cryo-EM structure of the Anaphase-promoting complex/Cyclosome, in complex with the Mitotic checkpoint complex (APC/C-MCC) at 4.2 angstrom resolution Deposited 2016-06-22 Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain Q 126–499（374 aa）
Chain R 1–499（499 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
6F0X Cryo-EM structure of TRIP13 in complex with ATP gamma S, p31comet, C-Mad2 and Cdc20 Deposited 2017-11-20 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain Q 1–499（499 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.60 Å
6Q6G Cryo-EM structure of the APC/C-Cdc20-Cdk2-cyclinA2-Cks2 complex, the D1 box class Deposited 2018-12-11 Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain R 1–499（499 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Hepes, 150mM NaCl, 0.5mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
6Q6H Cryo-EM structure of the APC/C-Cdc20-Cdk2-cyclinA2-Cks2 complex, the D2 box class Deposited 2018-12-11 Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain R 1–499（499 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Hepes, 150mM NaCl, 0.5mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
6TLJ Cryo-EM structure of the Anaphase-promoting complex/Cyclosome, in complex with the Mitotic checkpoint complex (APC/C-MCC) at 3.8 angstrom resolution Deposited 2019-12-02 Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain Q 126–499（374 aa）
Chain R 1–499（499 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
9I68 Crystal structure of human Cdc20 bound to synthetic D-box peptide D21 Deposited 2025-01-29 Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–499（499 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6.5；293 K；10 % MPD, 12-14 % PEG 6000, 0.1 M MES pH 6.5
Resolution 1.50 Å R-free 0.194
9I69 Crystal structure of human Cdc20 bound to synthetic D-box peptide D20 Deposited 2025-01-29 Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–499（499 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6.5；293 K；10 % MPD, 12-14 % PEG 6000, 0.1 M MES pH 6.5
Resolution 1.46 Å R-free 0.184
9I6A Crystal structure of human Cdc20 bound to synthetic D-box peptide D7 Deposited 2025-01-29 Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–499（499 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6.5；293 K；10 % MPD, 12-14 % PEG 6000, 0.1 M MES pH 6.5
Resolution 1.92 Å R-free 0.231
9N9R Model of APC/C-CDC20-UBE2C from H2A/H2B-bound complex Deposited 2025-02-11 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain R 1–499（499 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.90 Å
9N9S Model of APC/C-CDC20-UBE2C from H3/H4-bound complex Deposited 2025-02-11 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain R 1–499（499 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.90 Å

16 other PDB entries and 17 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name CDC20_HUMAN
Isoform —
PDB entities 14
Chains and sequence ranges Author chain R； PDBConstruct 1–499； UniProt 1–499

Anaphase-promoting complex subunit 7

Homo sapiens

UniProt Q9UJX3

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 21 PDB declaration: 21-meric（21） Consistent with protein copy count Chain X； UniProt 35–599 Chain Y； UniProt 35–599 Not recorded Anaphase-promoting complex subunit 1 × 1 （Q9H1A4） Anaphase-promoting complex subunit 11 × 1 （Q9NYG5） Cell division cycle protein 23 homolog × 2 （Q9UJX2） Anaphase-promoting complex subunit 16 × 1 （Q96DE5） Cell division cycle protein 27 homolog × 2 （P30260） Anaphase-promoting complex subunit CDC26 × 2 （Q8NHZ8） Anaphase-promoting complex subunit 4 × 1 （Q9UJX5） Cell division cycle protein 16 homolog × 2 （Q13042） Anaphase-promoting complex subunit 10 × 1 （Q9UM13） Anaphase-promoting complex subunit 13 × 1 （Q9BS18） Anaphase-promoting complex subunit 2 × 1 （Q9UJX6） Anaphase-promoting complex subunit 5 × 1 （Q9UJX4） Ubiquitin-conjugating enzyme E2 C × 1 （O00762） Cell division cycle protein 20 homolog × 1 （Q12834） HSL1 peptide × 1 ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 6.10 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 5KHR Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
3FFL Crystal Structure of the N-terminal Domain of Anaphase-Promoting Complex Subunit 7 Deposited 2008-12-03 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–147（147 aa） Fragment：N-terminal domain
Chain C 1–147（147 aa） Fragment：N-terminal domain
Mutation：M49L, M128L, M134V, M160L Mutation：M49L, M128L, M134V, M160L No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；294 K；0.2M sodium/potassium tartrate, 15% PEG 3350, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 294K
Resolution 2.50 Å R-free 0.240
3FFL Crystal Structure of the N-terminal Domain of Anaphase-Promoting Complex Subunit 7 Deposited 2008-12-03 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain B 1–147（147 aa） Fragment：N-terminal domain
Chain D 1–147（147 aa） Fragment：N-terminal domain
Mutation：M49L, M128L, M134V, M160L Mutation：M49L, M128L, M134V, M160L No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；294 K；0.2M sodium/potassium tartrate, 15% PEG 3350, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 294K
Resolution 2.50 Å R-free 0.240
4UI9 Atomic structure of the human Anaphase-Promoting Complex Deposited 2015-03-27 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain X 35–599（565 aa）
Chain Y 35–599（565 aa）
Not recorded ZN ZINC ION × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
5A31 Structure of the human APC-Cdh1-Hsl1-UbcH10 complex. Deposited 2015-05-26 Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 24 PDB declaration: 24-meric
Chain X 1–599（599 aa）
Chain Y 1–599（599 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.30 Å
5G04 Structure of the human APC-Cdc20-Hsl1 complex Deposited 2016-03-16 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain X 1–599（599 aa）
Chain Y 1–599（599 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer 20MM HEPES, 150MM NACL, 0. 5MM TCEP；pH 8；20MM HEPES, 150MM NACL, 0. 5MM TCEP
cryo-EM vitrification conditions Cryogen ETHANE；LIQUID ETHANE
Resolution 3.90 Å
5G05 Cryo-EM structure of combined apo phosphorylated APC Deposited 2016-03-16 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain X 1–599（599 aa）
Chain Y 1–599（599 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer 20MM HEPES, 150MM NACL, 0. 5MM TCEP；pH 8；20MM HEPES, 150MM NACL, 0. 5MM TCEP
cryo-EM vitrification conditions Cryogen ETHANE；LIQUID ETHANE
Resolution 3.40 Å
5KHU Model of human Anaphase-promoting complex/Cyclosome (APC15 deletion mutant), in complex with the Mitotic checkpoint complex (APC/C-CDC20-MCC) based on cryo EM data at 4.8 Angstrom resolution Deposited 2016-06-15 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain X 35–599（565 aa）
Chain Y 35–599（565 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.80 Å
5L9T Model of human Anaphase-promoting complex/Cyclosome (APC/C-CDH1) with E2 UBE2S poised for polyubiquitination where UBE2S, APC2, and APC11 are modeled into low resolution density Deposited 2016-06-11 Different oligomeric state Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 22 PDB declaration: 22-meric
Chain X 35–599（565 aa）
Chain Y 35–599（565 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.40 Å
5L9U Model of human Anaphase-promoting complex/Cyclosome (APC/C-CDH1) with a cross linked Ubiquitin variant-substrate-UBE2C (UBCH10) complex representing key features of multiubiquitination Deposited 2016-06-11 Different oligomeric state Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 22 PDB declaration: 22-meric
Chain X 35–599（565 aa）
Chain Y 35–599（565 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.40 Å
5LCW Cryo-EM structure of the Anaphase-promoting complex/Cyclosome, in complex with the Mitotic checkpoint complex (APC/C-MCC) at 4.2 angstrom resolution Deposited 2016-06-22 Different construct Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain X 1–599（599 aa）
Chain Y 1–599（599 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
6Q6G Cryo-EM structure of the APC/C-Cdc20-Cdk2-cyclinA2-Cks2 complex, the D1 box class Deposited 2018-12-11 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain Y 1–599（599 aa）
Chain Z 1–599（599 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Hepes, 150mM NaCl, 0.5mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
6Q6H Cryo-EM structure of the APC/C-Cdc20-Cdk2-cyclinA2-Cks2 complex, the D2 box class Deposited 2018-12-11 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain Y 1–599（599 aa）
Chain Z 1–599（599 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Hepes, 150mM NaCl, 0.5mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
6TLJ Cryo-EM structure of the Anaphase-promoting complex/Cyclosome, in complex with the Mitotic checkpoint complex (APC/C-MCC) at 3.8 angstrom resolution Deposited 2019-12-02 Different construct Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain X 1–599（599 aa）
Chain Y 1–599（599 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
6TM5 Cryo-EM structure of the Anaphase-promoting complex/Cyclosome, in complex with the Nek2A substrate at 3.9 angstrom resolution Deposited 2019-12-03 Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain X 1–599（599 aa）
Chain Y 1–599（599 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
6TNT SUMOylated apoAPC/C with repositioned APC2 WHB domain Deposited 2019-12-10 Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain X 1–599（599 aa）
Chain Y 1–599（599 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.78 Å
8PKP Cryo-EM structure of the apo Anaphase-promoting complex/cyclosome (APC/C) at 3.2 Angstrom resolution Deposited 2023-06-27 Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: 19-meric
Chain Y 1–565（565 aa）
Chain Z 1–565（565 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8TAR APC/C-CDH1-UBE2C-Ubiquitin-CyclinB-NTD Deposited 2023-06-27 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain Y 35–599（565 aa）
Chain Z 35–599（565 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
8TAU APC/C-CDH1-UBE2C-UBE2S-Ubiquitin-CyclinB Deposited 2023-06-27 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain Y 35–599（565 aa）
Chain Z 35–599（565 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
9GAW High-resolution structure of the Anaphase-promoting complex/cyclosome (APC/C) bound to co-activator Cdh1 Deposited 2024-07-29 Different construct Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain Y 1–599（599 aa）
Chain Z 1–599（599 aa）
Not recorded ZN ZINC ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
9N9R Model of APC/C-CDC20-UBE2C from H2A/H2B-bound complex Deposited 2025-02-11 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain Y 35–599（565 aa）
Chain Z 35–599（565 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.90 Å
9N9S Model of APC/C-CDC20-UBE2C from H3/H4-bound complex Deposited 2025-02-11 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain Y 35–599（565 aa）
Chain Z 35–599（565 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.90 Å

20 other PDB entries and 21 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name APC7_HUMAN
Isoform —
PDB entities 16
Chains and sequence ranges Author chain X； PDBConstruct 1–565； UniProt 35–599 Author chain Y； PDBConstruct 1–565； UniProt 35–599

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 5khr

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 5khr
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id5khr
Deposition date deposition_date2016-06-15
Structure title titleModel of human Anaphase-promoting complex/Cyclosome complex (APC15 deletion mutant) in complex with the E2 UBE2C/UBCH10 poised for ubiquitin ligation to substrate (APC/C-CDC20-substrate-UBE2C)
Keywords keywordsubiquitination, cell cycle, protein complex, mitosis; CELL CYCLE
Experimental Method methodELECTRON MICROSCOPY
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier73.35 Å
Radius of gyration Rg (electron density) rg_electron73.16 Å
Forward intensity I(0) i010922500000.00
Molecular weight molecular_weight906290.0 kDa
Excluded volume excluded_volume1115400 ų
Envelope volume envelope_volume1381100 ų
Hydration-shell volume shell_volume162320 ų
Envelope diameter envelope_diameter220.6 Å
Shell Rg shell_rg71.39 Å
Envelope Rg envelope_rg67.88 Å
Shape Rg shape_rg73.17 Å
Total Rg total_rg73.14 Å
Total atoms total_atoms—
Residues n_residues—
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax275.6 Å
Rg (real space) rg_real73.38 Å
Rg uncertainty (real space) rg_real_error2.55 Å
I(0) (real space) i0_real1.0930e+10
I(0) uncertainty (real space) i0_real_error2.1400e+08
Rg (reciprocal space) rg_reciprocal73.84 Å
I(0) (reciprocal space) i0_reciprocal10940000000.0000
Solution quality estimate total_estimate0.8492
Solution quality rating solution_quality GOOD a GOOD solution
P(r) peaks n_peaks2
Primary peak position r_peak_primary91.9 Å
Skewness Skewness skewness0.190
Kurtosis Kurtosis kurtosis-0.524
Angular range angular_range— – 0.1050 Å−1
Current regularization parameter α current_alpha0.0348
Highest regularization parameter α highest_alpha796700000.0000
Real-space data points n_real_points22
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.689; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.973; Smooth: 0.994
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (16)

▶

8. Citations (1)

▶

9. Files and Curves (10)
