SAXSdb — 2boc

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2boc
沉积日期 deposition_date	2005-04-09
结构标题 title	Potassium channel KcsA-Fab complex in thallium with tetraethylarsonium (TEAs)
关键词 keywords	;IMMUNE SYSTEM/TRANSPORT PROTEIN, COMPLEX (ANTIBODY-ION CHANNEL), POTASSIUM CHANNEL, ION TRANSPORT, IONIC CHANNEL, PROTEIN- ANTIBODY FAB COMPLEX, IMMUNE SYSTEM-TRANSPORT PROTEIN complex ;; IMMUNE SYSTEM/TRANSPORT PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	31.35 Å
回转半径 Rg (电子) rg_electron	31.05 Å
零角强度 I(0) i0	59012700.00
分子量 molecular_weight	58827.0 kDa
排除体积 excluded_volume	72565 Å³
包络体积 envelope_volume	93939 Å³
水化壳体积 shell_volume	28242 Å³
包络直径 envelope_diameter	130.6 Å
壳层 Rg shell_rg	34.07 Å
包络 Rg envelope_rg	32.47 Å
形状 Rg shape_rg	30.81 Å
总 Rg total_rg	32.05 Å
总原子数 total_atoms	4087
残基数 n_residues	534
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	126.6 Å
Rg (实空间) rg_real	32.07 Å
Rg 误差 (实空间) rg_real_error	1.66 Å
I(0) (实空间) i0_real	5.9010e+07
I(0) 误差 (实空间) i0_real_error	1.0430e+06
Rg (倒空间) rg_reciprocal	31.76 Å
I(0) (倒空间) i0_reciprocal	59000000.0000
解质量估计 total_estimate	0.7059
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	29.8 Å
偏度 Skewness skewness	0.891
峰度 Kurtosis kurtosis	0.679
角度范围 angular_range	— – 0.2550 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	6502000.0000
实空间数据点数 n_real_points	52
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.355; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.182; Smooth: 0.926

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (7)

Entity 1 polymer

描述 description	ANTIBODY FAB FRAGMENT HEAVY CHAIN
分子量 formula_weight	23411.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	4108

QVQLQQPGAELVKPGASVKLSCKASGYTFTSDWIHWVKQRPGHGLEWIGEIIPSYGRANYNEKIQKKATLTADKSSSTAFMQLSSLTSEDSAVYYCARERGDGYFAVWGAGTTVTVSSAKTTPPSVYPLAPGSAAQTNSMVTLGCLVKGYFPEPVTVTWNSGSLSSGVHTFPAVLQSDLYTLSSSVTVPSSSWPSETVTCNVAHPASSTKVDKKIVPRD

Entity 2 polymer

描述 description	ANTIBODY FAB FRAGMENT LIGHT CHAIN
分子量 formula_weight	23435.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

DILLTQSPAILSVSPGERVSFSCRASQSIGTDIHWYQQRTNGSPRLLIKYASESISGIPSRFSGSGSGTDFTLSINSVESEDIANYYCQQSNRWPFTFGSGTKLEIKRADAAPTVSIFPPSSEQLTSGGASVVCFLNNFYPKDINVKWKIDGSERQNGVLNSWTDQDSKDSTYSMSSTLTLTKDEYERHNSYTCEATHKTSTSPIVKSFNRN

Entity 3 polymer

描述 description	POTASSIUM CHANNEL KCSA
分子量 formula_weight	13211.6 kDa
突变 mutation	YES
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

MAPMLSGLLARLVKLLLGRHGSALHWRAAGAATVLLVIVLLAGSYLAVLAERGAPGAQLITYPRALWWSVETATTVGYGDLYPVTLWGRCVAVVVMVAGITSFGLVTAALATWFVGREQERRGH

来源 Source

来源生物 organism	STREPTOMYCES LIVIDANS
NCBI 分类编号 ncbi_taxonomy_id	1916
宿主生物 host_organism	ESCHERICHIA COLI

Entity 4 non-polymer

描述 description	THALLIUM (I) ION
分子量 formula_weight	204.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 5 non-polymer

描述 description	COBALT (II) ION
分子量 formula_weight	58.9 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 6 non-polymer

描述 description	TETRAETHYLARSONIUM ION
分子量 formula_weight	191.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 7 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	12

▼

6. 折叠分类 (SCOP + CATH) 10 domains

SCOP 2.08 (5 domains)

结构域编号 domain_id	d2boca1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.1 — V set domains (antibody variable domain-like)

结构域编号 domain_id	d2boca2
类 Class class	l — Artifacts
折叠类型 Fold fold	l.1 — Tags
超家族 Superfamily superfamily	l.1.1 — Tags
家族 Family family	l.1.1.1 — Tags

结构域编号 domain_id	d2bocb1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.0 — automated matches

结构域编号 domain_id	d2bocb2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

结构域编号 domain_id	d2bocc_
类 Class class	f — Membrane and cell surface proteins and peptides
折叠类型 Fold fold	f.14 — Gated ion channels
超家族 Superfamily superfamily	f.14.1 — Voltage-gated ion channels
家族 Family family	f.14.1.1 — Voltage-gated potassium channels

CATH v4.4 (5 domains)

结构域编号 domain_id	2bocA01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	2bocA02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	2bocB01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	2bocB02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	2bocC00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	287 — Helix Hairpins
同源超家族 H-superfamily homologous superfamily	70 —

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	154.680 Å
晶胞边长 b length_b	154.680 Å
晶胞边长 c length_c	76.190 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	I 4
空间群编号 int_tables_number	79
晶系 crystal_system	—

分辨率 resolution	3.010 Å
最低分辨率 resolution_low	25.000 Å
R 因子 r_factor	0.2230
R_work r_work	0.2220
R_free r_free	0.2500

fit	/app/data/saxs_computation/bo/2boc/2boc.fit
pddf	/app/data/pr_computation/bo/2boc/2boc.pr.out
profile	/app/data/saxs_computation/bo/2boc/2boc.dat

Potassium channel KcsA-Fab complex in thallium with tetraethylarsonium (TEAs)

SAXS 散射曲线 SAXS Profile

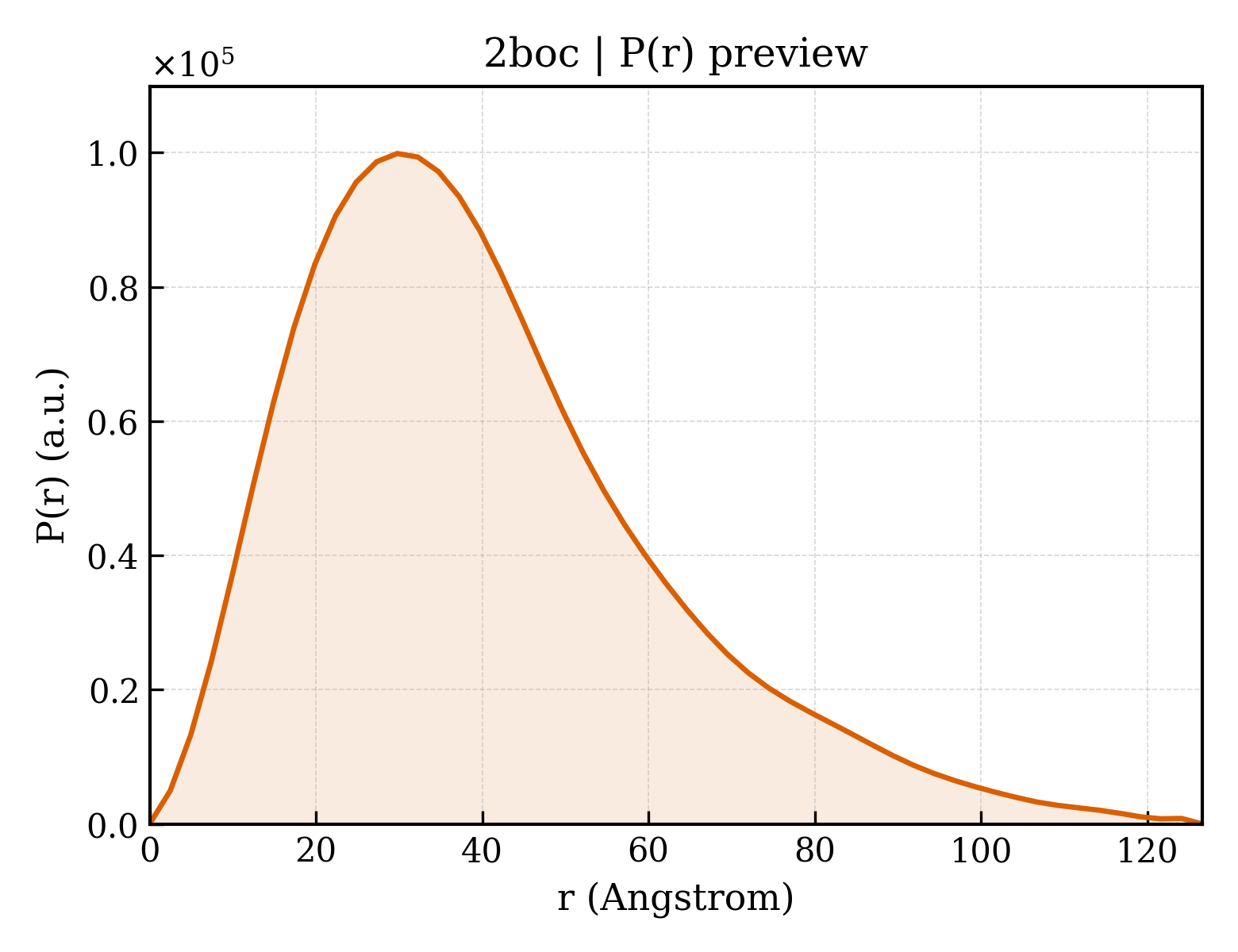

P(r) 距离分布 P(r) Distribution
