2bpg

STRUCTURES OF TERNARY COMPLEXES OF RAT DNA POLYMERASE BETA, A DNA TEMPLATE-PRIMER, AND DDCTP

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

DNA POLYMERASE BETA

Rattus norvegicus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Monomer	Protein 1 DNA 2	;DNA (5'-D(GPGPGPCPGPCPCPG)-3') ; × 1 ;DNA (5'-D(CPGPGPCPGPCP*C)-3') ; × 1 MAGNESIUM ION × 1 ;2',3'-DIDEOXYCYTIDINE 5'-TRIPHOSPHATE ; × 1 water × 1	Consistent with all polymers
2	Protein–DNA	Monomer	Protein 1 DNA 2	;DNA (5'-D(GPGPGPCPGPCPCPG)-3') ; × 1 ;DNA (5'-D(CPGPGPCPGPCP*C)-3') ; × 1 ;2',3'-DIDEOXYCYTIDINE 5'-TRIPHOSPHATE ; × 1 water × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DPOB_RAT
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain A； PDBConstruct 2–335； UniProt 1–334 Author chain B； PDBConstruct 2–335； UniProt 1–334

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2bpg
Deposition date deposition_date	1994-05-19
Structure title title	STRUCTURES OF TERNARY COMPLEXES OF RAT DNA POLYMERASE BETA, A DNA TEMPLATE-PRIMER, AND DDCTP
Keywords keywords	PROTEIN-DNA COMPLEX, TRANSFERASE-DNA COMPLEX; TRANSFERASE/DNA
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2bpg__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2bpg__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

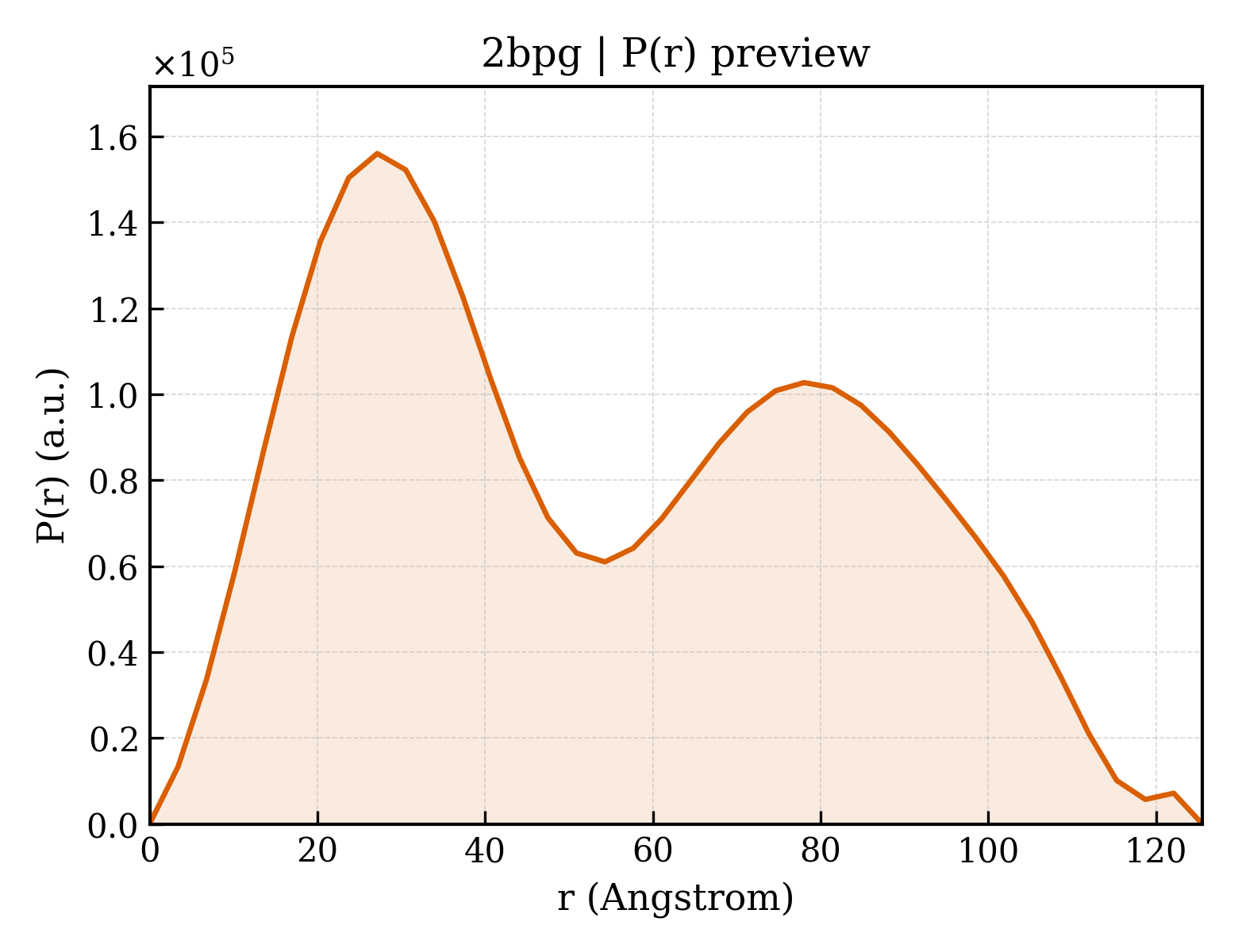

2bpg__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	22.31 Å
Rg (electron density)	21.99 Å
Total Rg	22.72 Å
Atom count	2876
Residues	339
Excluded volume	49857 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2bpg__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2bpg__assembly_2__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	;DNA (5'-D(GPGPGPCPGPCPCPG)-3') ;
Molecular weight formula_weight	2468.6 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	T,C
Atom count atom_count	5754

GGGCGCCG

Entity 2 Entity 2 polymer

Description description	;DNA (5'-D(CPGPGPCPGPCP*C)-3') ;
Molecular weight formula_weight	2099.4 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	P,D

CGGCGCC

Entity 3 Entity 3 polymer

Description description	DNA POLYMERASE BETA
Molecular weight formula_weight	38388.8 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B

MSKRKAPQETLNGGITDMLVELANFEKNVSQAIHKYNAYRKAASVIAKYPHKIKSGAEAKKLPGVGTKIAEKIDEFLATGKLRKLEKIRQDDTSSSINFLTRVTGIGPSAARKLVDEGIKTLEDLRKNEDKLNHHQRIGLKYFEDFEKRIPREEMLQMQDIVLNEVKKLDPEYIATVCGSFRRGAESSGDMDVLLTHPNFTSESSKQPKLLHRVVEQLQKVRFITDTLSKGETKFMGVCQLPSENDENEYPHRRIDIRLIPKDQYYCGVLYFTGSDIFNKNMRAHALEKGFTINEYTIRPLGVTGVAGEPLPVDSEQDIFDYIQWRYREPKDRSE

Source Source

Source organism organism	Rattus norvegicus
Common name common_name	Norway rat
NCBI taxonomy ID ncbi_taxonomy_id	10116
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	;2',3'-DIDEOXYCYTIDINE 5'-TRIPHOSPHATE ;
Molecular weight formula_weight	451.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	4

▼

6. Fold Classification (SCOP + CATH) 14 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d2bpga1
Class class	a — All alpha proteins
Fold Fold fold	a.60 — SAM domain-like
Superfamily Superfamily superfamily	a.60.6 — DNA polymerase beta, N-terminal domain-like
Family Family family	a.60.6.1 — DNA polymerase beta, N-terminal domain-like

Domain ID domain_id	d2bpga3
Class class	a — All alpha proteins
Fold Fold fold	a.60 — SAM domain-like
Superfamily Superfamily superfamily	a.60.12 — PsbU/PolX domain-like
Family Family family	a.60.12.1 — DNA polymerase beta-like, second domain

Domain ID domain_id	d2bpga4
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.218 — Nucleotidyltransferase
Superfamily Superfamily superfamily	d.218.1 — Nucleotidyltransferase
Family Family family	d.218.1.2 — DNA polymerase beta-like

Domain ID domain_id	d2bpgb1
Class class	a — All alpha proteins
Fold Fold fold	a.60 — SAM domain-like
Superfamily Superfamily superfamily	a.60.6 — DNA polymerase beta, N-terminal domain-like
Family Family family	a.60.6.1 — DNA polymerase beta, N-terminal domain-like

Domain ID domain_id	d2bpgb3
Class class	a — All alpha proteins
Fold Fold fold	a.60 — SAM domain-like
Superfamily Superfamily superfamily	a.60.12 — PsbU/PolX domain-like
Family Family family	a.60.12.1 — DNA polymerase beta-like, second domain

Domain ID domain_id	d2bpgb4
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.218 — Nucleotidyltransferase
Superfamily Superfamily superfamily	d.218.1 — Nucleotidyltransferase
Family Family family	d.218.1.2 — DNA polymerase beta-like

CATH v4.4 (8 domains)

Domain ID domain_id	2bpgA01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	150 — DNA polymerase; domain 1
Homologous superfamily homologous superfamily	110 — DNA polymerase beta, N-terminal domain-like

Domain ID domain_id	2bpgA02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	150 — DNA polymerase; domain 1
Homologous superfamily homologous superfamily	20 — 5' to 3' exonuclease, C-terminal subdomain

Domain ID domain_id	2bpgA03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	460 — Beta Polymerase; domain 2
Homologous superfamily homologous superfamily	10 — Beta Polymerase, domain 2

Domain ID domain_id	2bpgA04
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	210 — Beta Polymerase; domain 3
Homologous superfamily homologous superfamily	10 — DNA polymerase, thumb domain

Domain ID domain_id	2bpgB01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	150 — DNA polymerase; domain 1
Homologous superfamily homologous superfamily	110 — DNA polymerase beta, N-terminal domain-like

Domain ID domain_id	2bpgB02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	150 — DNA polymerase; domain 1
Homologous superfamily homologous superfamily	20 — 5' to 3' exonuclease, C-terminal subdomain

Domain ID domain_id	2bpgB03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	460 — Beta Polymerase; domain 2
Homologous superfamily homologous superfamily	10 — Beta Polymerase, domain 2

Domain ID domain_id	2bpgB04
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	210 — Beta Polymerase; domain 3
Homologous superfamily homologous superfamily	10 — DNA polymerase, thumb domain

▶

Unit-cell length a length_a	106.300 Å
Unit-cell length b length_b	56.800 Å
Unit-cell length c length_c	86.700 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	106.40 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	3.600 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.1990
R_work r_work	—
R_free r_free	—
