2bxe

Human serum albumin complexed with diflunisal

Method: X-RAY DIFFRACTION D_max: 144.2 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

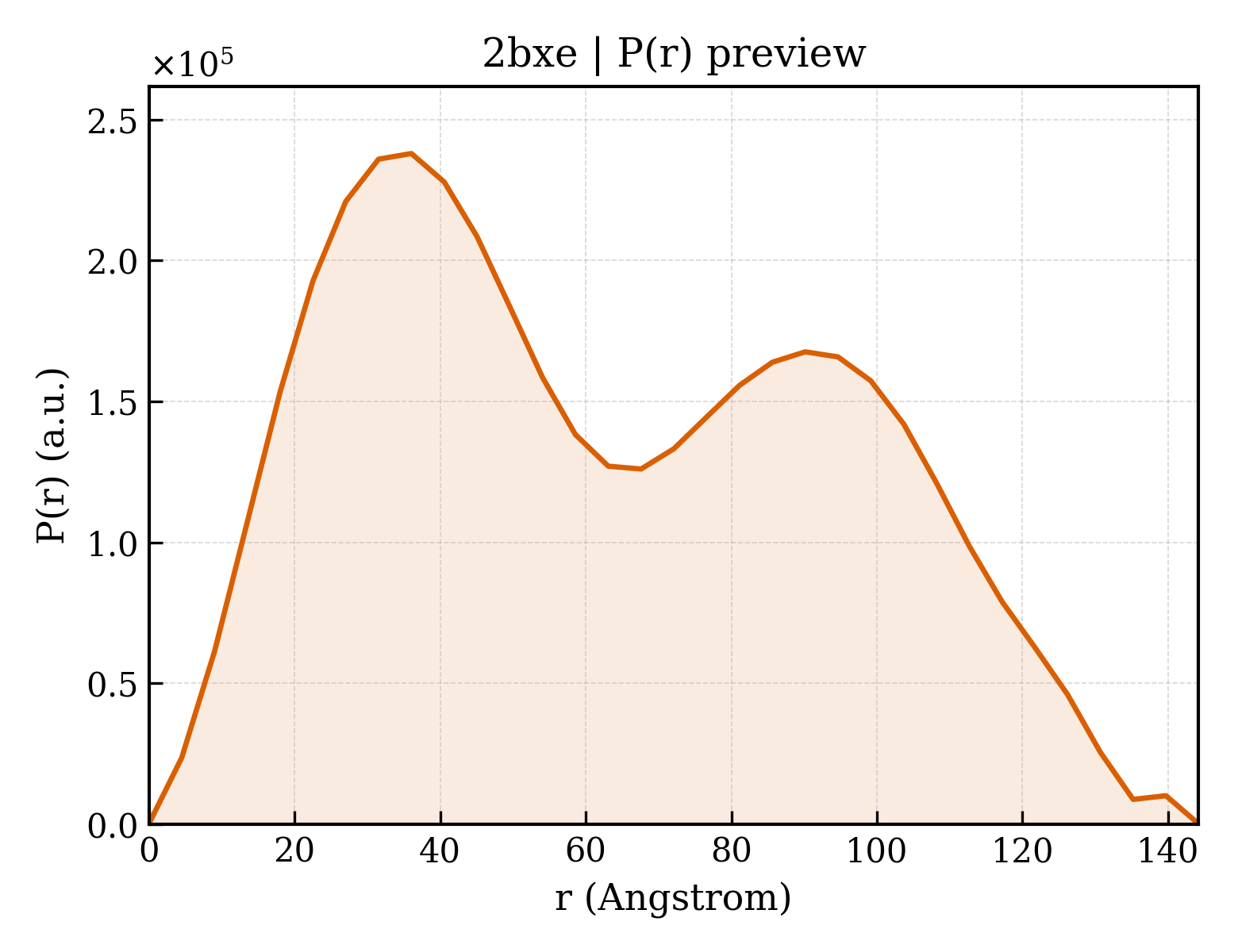

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2bxe
沉积日期 deposition_date	2005-07-26
结构标题 title	Human serum albumin complexed with diflunisal
关键词 keywords	TRANSPORT PROTEIN, CARRIER PROTEIN, LIPID-BINDING, METAL-BINDING, DRUG-BINDING; TRANSPORT PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	49.08 Å
回转半径 Rg (电子) rg_electron	49.31 Å
零角强度 I(0) i0	231322000.00
分子量 molecular_weight	124270.0 kDa
排除体积 excluded_volume	154440 Å³
包络体积 envelope_volume	235680 Å³
水化壳体积 shell_volume	40373 Å³
包络直径 envelope_diameter	154.4 Å
壳层 Rg shell_rg	52.33 Å
包络 Rg envelope_rg	47.51 Å
形状 Rg shape_rg	49.31 Å
总 Rg total_rg	49.43 Å
总原子数 total_atoms	8710
残基数 n_residues	1135
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	144.2 Å
Rg (实空间) rg_real	49.53 Å
Rg 误差 (实空间) rg_real_error	1.47 Å
I(0) (实空间) i0_real	2.3130e+08
I(0) 误差 (实空间) i0_real_error	4.2850e+06
Rg (倒空间) rg_reciprocal	49.08 Å
I(0) (倒空间) i0_reciprocal	231200000.0000
解质量估计 total_estimate	0.7366
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	3
主峰位置 r_peak_primary	36.1 Å
偏度 Skewness skewness	0.259
峰度 Kurtosis kurtosis	-1.054
角度范围 angular_range	— – 0.1600 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	16190000.0000
实空间数据点数 n_real_points	33
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.649; Stabil: 0.994; Sysdev: 1.000; Positv: 1.000; Valcen: 0.643; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

Entity 1 polymer

描述 description	SERUM ALBUMIN
分子量 formula_weight	66571.2 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	8710

DAHKSEVAHRFKDLGEENFKALVLIAFAQYLQQCPFEDHVKLVNEVTEFAKTCVADESAENCDKSLHTLFGDKLCTVATLRETYGEMADCCAKQEPERNECFLQHKDDNPNLPRLVRPEVDVMCTAFHDNEETFLKKYLYEIARRHPYFYAPELLFFAKRYKAAFTECCQAADKAACLLPKLDELRDEGKASSAKQRLKCASLQKFGERAFKAWAVARLSQRFPKAEFAEVSKLVTDLTKVHTECCHGDLLECADDRADLAKYICENQDSISSKLKECCEKPLLEKSHCIAEVENDEMPADLPSLAADFVESKDVCKNYAEAKDVFLGMFLYEYARRHPDYSVVLLLRLAKTYETTLEKCCAAADPHECYAKVFDEFKPLVEEPQNLIKQNCELFEQLGEYKFQNALLVRYTKKVPQVSTPTLVEVSRNLGKVGSKCCKHPEAKRMPCAEDYLSVVLNQLCVLHEKTPVSDRVTKCCTESLVNRRPCFSALEVDETYVPKEFNAETFTFHADICTLSEKERQIKKQTALVELVKHKPKATKEQLKAVMDDFAAFVEKCCKADDKETCFAEEGKKLVAASQAALGL

来源 Source

来源生物 organism	HOMO SAPIENS
通用名 common_name	HUMAN
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	PICHIA PASTORIS

Entity 2 non-polymer

描述 description	5-(2,4-DIFLUOROPHENYL)-2-HYDROXY-BENZOIC ACID
分子量 formula_weight	250.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	6

▼

6. 折叠分类 (SCOP + CATH) 18 domains

SCOP 2.08 (6 domains)

结构域编号 domain_id	d2bxea1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.126 — Serum albumin-like
超家族 Superfamily superfamily	a.126.1 — Serum albumin-like
家族 Family family	a.126.1.1 — Serum albumin-like

结构域编号 domain_id	d2bxea2
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.126 — Serum albumin-like
超家族 Superfamily superfamily	a.126.1 — Serum albumin-like
家族 Family family	a.126.1.1 — Serum albumin-like

结构域编号 domain_id	d2bxea3
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.126 — Serum albumin-like
超家族 Superfamily superfamily	a.126.1 — Serum albumin-like
家族 Family family	a.126.1.1 — Serum albumin-like

结构域编号 domain_id	d2bxeb1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.126 — Serum albumin-like
超家族 Superfamily superfamily	a.126.1 — Serum albumin-like
家族 Family family	a.126.1.1 — Serum albumin-like

结构域编号 domain_id	d2bxeb2
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.126 — Serum albumin-like
超家族 Superfamily superfamily	a.126.1 — Serum albumin-like
家族 Family family	a.126.1.1 — Serum albumin-like

结构域编号 domain_id	d2bxeb3
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.126 — Serum albumin-like
超家族 Superfamily superfamily	a.126.1 — Serum albumin-like
家族 Family family	a.126.1.1 — Serum albumin-like

CATH v4.4 (12 domains)

结构域编号 domain_id	2bxeA01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	246 — Serum Albumin; Chain A, Domain 1
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	2bxeA02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	246 — Serum Albumin; Chain A, Domain 1
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	2bxeA03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	246 — Serum Albumin; Chain A, Domain 1
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	2bxeA04
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	246 — Serum Albumin; Chain A, Domain 1
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	2bxeA05
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	246 — Serum Albumin; Chain A, Domain 1
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	2bxeA06
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	246 — Serum Albumin; Chain A, Domain 1
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	2bxeB01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	246 — Serum Albumin; Chain A, Domain 1
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	2bxeB02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	246 — Serum Albumin; Chain A, Domain 1
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	2bxeB03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	246 — Serum Albumin; Chain A, Domain 1
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	2bxeB04
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	246 — Serum Albumin; Chain A, Domain 1
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	2bxeB05
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	246 — Serum Albumin; Chain A, Domain 1
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	2bxeB06
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	246 — Serum Albumin; Chain A, Domain 1
同源超家族 H-superfamily homologous superfamily	10 —

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	55.410 Å
晶胞边长 b length_b	55.530 Å
晶胞边长 c length_c	120.520 Å
晶胞夹角 α angle_alpha	81.54 °
晶胞夹角 β angle_beta	90.09 °
晶胞夹角 γ angle_gamma	65.93 °
晶胞分子数 Z z_pdb	2

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.950 Å
最低分辨率 resolution_low	38.220 Å
R 因子 r_factor	0.2260
R_work r_work	0.2260
R_free r_free	0.2700
