2c35

Subunits Rpb4 and Rpb7 of human RNA polymerase II

Method: X-RAY DIFFRACTION D_max: 151.0 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

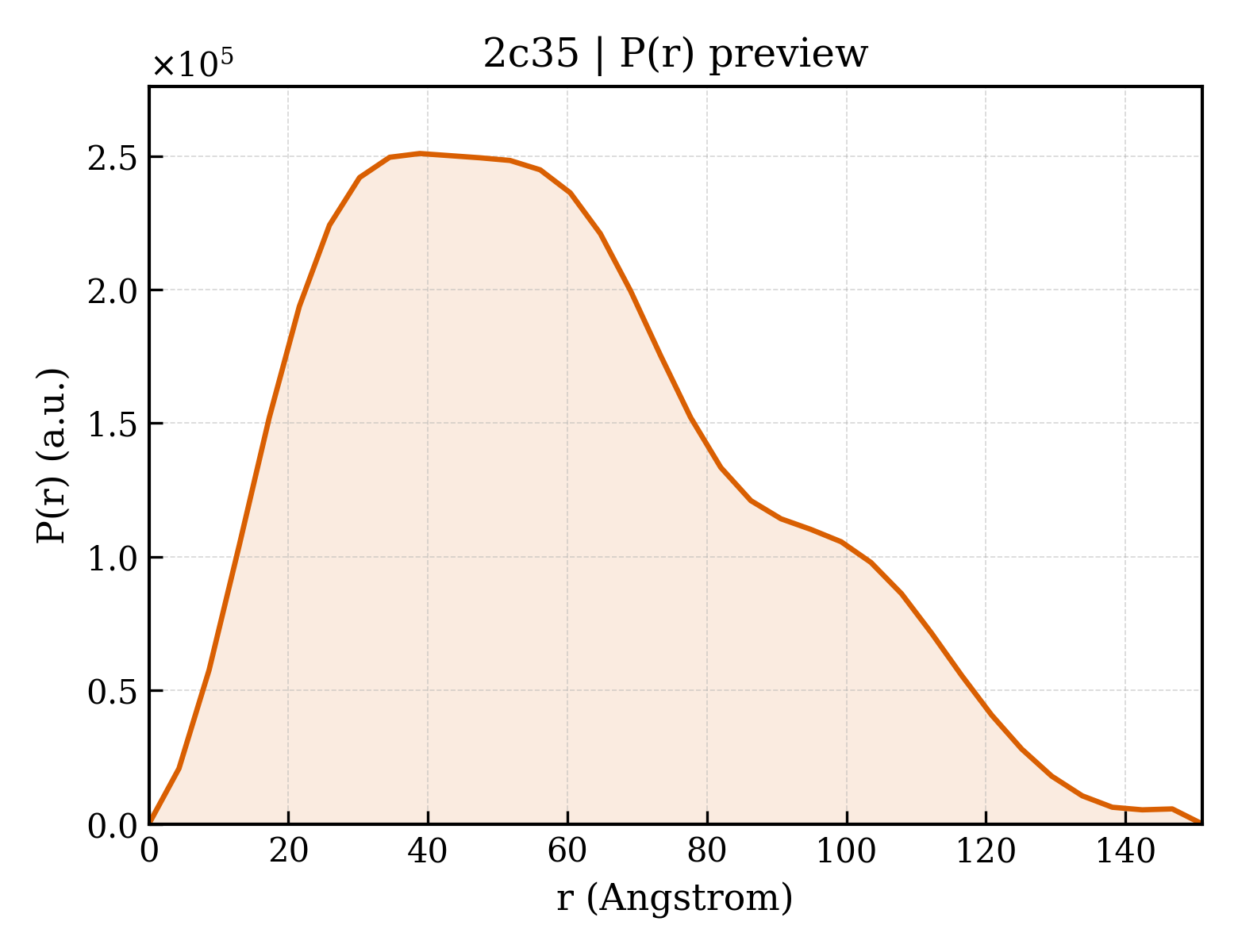

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2c35
沉积日期 deposition_date	2005-10-04
结构标题 title	Subunits Rpb4 and Rpb7 of human RNA polymerase II
关键词 keywords	TRANSCRIPTION, RNA POLYMERASE II, POLYMERASE, NUCLEOTIDYLTRANSFERASE, TRANSFERASE; TRANSFERASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	45.12 Å
回转半径 Rg (电子) rg_electron	45.67 Å
零角强度 I(0) i0	242960000.00
分子量 molecular_weight	131120.0 kDa
排除体积 excluded_volume	165470 Å³
包络体积 envelope_volume	234490 Å³
水化壳体积 shell_volume	46404 Å³
包络直径 envelope_diameter	161.5 Å
壳层 Rg shell_rg	44.84 Å
包络 Rg envelope_rg	45.56 Å
形状 Rg shape_rg	45.68 Å
总 Rg total_rg	45.59 Å
总原子数 total_atoms	9236
残基数 n_residues	1194
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	151.0 Å
Rg (实空间) rg_real	45.57 Å
Rg 误差 (实空间) rg_real_error	1.55 Å
I(0) (实空间) i0_real	2.4300e+08
I(0) 误差 (实空间) i0_real_error	4.9030e+06
Rg (倒空间) rg_reciprocal	45.13 Å
I(0) (倒空间) i0_reciprocal	242800000.0000
解质量估计 total_estimate	0.8276
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	38.8 Å
偏度 Skewness skewness	0.486
峰度 Kurtosis kurtosis	-0.448
角度范围 angular_range	— – 0.1750 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	25320000.0000
实空间数据点数 n_real_points	36
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.806; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.720; Smooth: 0.618

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	DNA-DIRECTED RNA POLYMERASE II 16 KDA POLYPEPTIDE
分子量 formula_weight	17319.3 kDa
EC 编号 ec_number	2.7.7.6
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,C,E,G
原子数 atom_count	9290

GSRRASVGSQMAAGGSDPRAGDVEEDASQLIFPKEFETAETLLNSEVHMLLEHRKQQNESAEDEQELSEVFMKTLNYTARFSRFKNRETIASVRSLLLQKKLHKFELACLANLCPETAEESKALIPSLEGRFEDEELQQILDDIQTKRSFQY

来源 Source

来源生物 organism	HOMO SAPIENS
通用名 common_name	HUMAN
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 polymer

描述 description	DNA-DIRECTED RNA POLYMERASE II 19 KDA POLYPEPTIDE
分子量 formula_weight	19314.3 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,D,F,H

MFYHISLEHEILLHPRYFGPNLLNTVKQKLFTEVEGTCTGKYGFVIAVTTIDNIGAGVIQPGRGFVLYPVKYKAIVFRPFKGEVVDAVVTQVNKVGLFTEIGPMSCFISRHSIPSEMEFDPNSNPPCYKTMDEDIVIQQDDEIRLKIVGTRVDKNDIFAIGSLMDDYLGLVS

来源 Source

来源生物 organism	HOMO SAPIENS
通用名 common_name	HUMAN
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	ESCHERICHIA COLI

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	54

▼

6. 折叠分类 (SCOP + CATH) 24 domains

SCOP 2.08 (12 domains)

结构域编号 domain_id	d2c35a1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.60 — SAM domain-like
超家族 Superfamily superfamily	a.60.8 — HRDC-like
家族 Family family	a.60.8.2 — RNA polymerase II subunit RBP4 (RpoF)

结构域编号 domain_id	d2c35b1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.40 — OB-fold
超家族 Superfamily superfamily	b.40.4 — Nucleic acid-binding proteins
家族 Family family	b.40.4.5 — Cold shock DNA-binding domain-like

结构域编号 domain_id	d2c35b2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.230 — Dodecin subunit-like
超家族 Superfamily superfamily	d.230.1 — N-terminal, heterodimerisation domain of RBP7 (RpoE)
家族 Family family	d.230.1.1 — N-terminal, heterodimerisation domain of RBP7 (RpoE)

结构域编号 domain_id	d2c35c_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.60 — SAM domain-like
超家族 Superfamily superfamily	a.60.8 — HRDC-like
家族 Family family	a.60.8.2 — RNA polymerase II subunit RBP4 (RpoF)

结构域编号 domain_id	d2c35d1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.40 — OB-fold
超家族 Superfamily superfamily	b.40.4 — Nucleic acid-binding proteins
家族 Family family	b.40.4.5 — Cold shock DNA-binding domain-like

结构域编号 domain_id	d2c35d2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.230 — Dodecin subunit-like
超家族 Superfamily superfamily	d.230.1 — N-terminal, heterodimerisation domain of RBP7 (RpoE)
家族 Family family	d.230.1.1 — N-terminal, heterodimerisation domain of RBP7 (RpoE)

结构域编号 domain_id	d2c35e_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.60 — SAM domain-like
超家族 Superfamily superfamily	a.60.8 — HRDC-like
家族 Family family	a.60.8.2 — RNA polymerase II subunit RBP4 (RpoF)

结构域编号 domain_id	d2c35f1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.40 — OB-fold
超家族 Superfamily superfamily	b.40.4 — Nucleic acid-binding proteins
家族 Family family	b.40.4.5 — Cold shock DNA-binding domain-like

结构域编号 domain_id	d2c35f2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.230 — Dodecin subunit-like
超家族 Superfamily superfamily	d.230.1 — N-terminal, heterodimerisation domain of RBP7 (RpoE)
家族 Family family	d.230.1.1 — N-terminal, heterodimerisation domain of RBP7 (RpoE)

结构域编号 domain_id	d2c35g_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.60 — SAM domain-like
超家族 Superfamily superfamily	a.60.8 — HRDC-like
家族 Family family	a.60.8.2 — RNA polymerase II subunit RBP4 (RpoF)

结构域编号 domain_id	d2c35h1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.40 — OB-fold
超家族 Superfamily superfamily	b.40.4 — Nucleic acid-binding proteins
家族 Family family	b.40.4.5 — Cold shock DNA-binding domain-like

结构域编号 domain_id	d2c35h2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.230 — Dodecin subunit-like
超家族 Superfamily superfamily	d.230.1 — N-terminal, heterodimerisation domain of RBP7 (RpoE)
家族 Family family	d.230.1.1 — N-terminal, heterodimerisation domain of RBP7 (RpoE)

CATH v4.4 (12 domains)

结构域编号 domain_id	2c35A00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	1250 — Growth Hormone; Chain: A;
同源超家族 H-superfamily homologous superfamily	40 — RNA Polymerase II, Rpb4 subunit

结构域编号 domain_id	2c35B01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	1490 — Dna Ligase; domain 1
同源超家族 H-superfamily homologous superfamily	120 — RNA polymerase Rpb7-like, N-terminal domain

结构域编号 domain_id	2c35B02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
同源超家族 H-superfamily homologous superfamily	140 — Nucleic acid-binding proteins

结构域编号 domain_id	2c35C00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	1250 — Growth Hormone; Chain: A;
同源超家族 H-superfamily homologous superfamily	40 — RNA Polymerase II, Rpb4 subunit

结构域编号 domain_id	2c35D01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	1490 — Dna Ligase; domain 1
同源超家族 H-superfamily homologous superfamily	120 — RNA polymerase Rpb7-like, N-terminal domain

结构域编号 domain_id	2c35D02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
同源超家族 H-superfamily homologous superfamily	140 — Nucleic acid-binding proteins

结构域编号 domain_id	2c35E00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	1250 — Growth Hormone; Chain: A;
同源超家族 H-superfamily homologous superfamily	40 — RNA Polymerase II, Rpb4 subunit

结构域编号 domain_id	2c35F01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	1490 — Dna Ligase; domain 1
同源超家族 H-superfamily homologous superfamily	120 — RNA polymerase Rpb7-like, N-terminal domain

结构域编号 domain_id	2c35F02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
同源超家族 H-superfamily homologous superfamily	140 — Nucleic acid-binding proteins

结构域编号 domain_id	2c35G00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	1250 — Growth Hormone; Chain: A;
同源超家族 H-superfamily homologous superfamily	40 — RNA Polymerase II, Rpb4 subunit

结构域编号 domain_id	2c35H01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	1490 — Dna Ligase; domain 1
同源超家族 H-superfamily homologous superfamily	120 — RNA polymerase Rpb7-like, N-terminal domain

结构域编号 domain_id	2c35H02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
同源超家族 H-superfamily homologous superfamily	140 — Nucleic acid-binding proteins

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	45.690 Å
晶胞边长 b length_b	83.190 Å
晶胞边长 c length_c	99.310 Å
晶胞夹角 α angle_alpha	85.53 °
晶胞夹角 β angle_beta	81.80 °
晶胞夹角 γ angle_gamma	81.77 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.700 Å
最低分辨率 resolution_low	43.260 Å
R 因子 r_factor	0.2300
R_work r_work	0.2300
R_free r_free	0.2660

fit	/app/data/saxs_computation/c3/2c35/2c35.fit
pddf	/app/data/pr_computation/c3/2c35/2c35.pr.out
profile	/app/data/saxs_computation/c3/2c35/2c35.dat
