SAXSdb — 2ckk

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

KIN17

HOMO SAPIENS

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 268–393	Fragment：C-TERMINAL DOMAIN, RESIDUES 268-393	IOD IODIDE ION × 12 ACT ACETATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.3；290 K；VAPOR DIFFUSION, SITTING DROP 10% ETHYLENE GLYCOL, 27% PEG 6000, 500 MM LICL, 100 MM SODIUM ACETATE PH 6.3 290 K	Resolution 1.45 Å R-free 0.175

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2CKK	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2V1N SOLUTION STRUCTURE OF THE REGION 51-160 OF HUMAN KIN17 REVEALS A WINGED HELIX FOLD Deposited 2007-05-27	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 51–160（110 aa） Fragment：RESIDUES 51-160	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6；303 K；Ionic strength (raw mmCIF value) 50MM PHOSPHATE , 150MM NACL NMR measurement conditions pH 6；303 K；Ionic strength (raw mmCIF value) 50MM PHOSPHATE , 150MM NACL NMR sample composition 90%WATER / 10%D2O	Resolution not provided
7ABH Human pre-Bact-2 spliceosome (SF3b/U2 snRNP portion) Deposited 2020-09-07	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 14 PDB declaration: hexadecameric	Chain 7 1–393（393 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.50 Å
7ABI Human pre-Bact-2 spliceosome Deposited 2020-09-07	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 52 PDB declaration: 56-meric	Chain 7 1–393（393 aa）	Not recorded	GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 IHP INOSITOL HEXAKISPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 8.00 Å
8I0P The cryo-EM structure of human pre-Bact complex Deposited 2023-01-11	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 47 PDB declaration: 51-meric	Chain K 1–393（393 aa）	Not recorded	GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 ZN ZINC ION × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
9COJ SH3-like tandem domain of human KIN protein Deposited 2024-07-16	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 268–393（126 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；298.4 K；Ionic strength (raw mmCIF value) 50 mM NaPi, 100 mM NaCl；Pressure 1 NMR sample composition 500 uM [U-13C; U-15N] SH3-like tandem domain of human KIN protein, 0.5 mM PMSF, 3 mM EDTA, 0.02 % v/v sodium azide, 0.33 mM 98% 2H DSS, 95% H2O/5% D2O \| 95% H2O/5% D2O	Resolution not provided

5 other PDB entries and 5 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	O60870_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–127； UniProt 268–393

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2ckk
Deposition date deposition_date	2006-04-20
Structure title title	High resolution crystal structure of the human kin17 C-terminal domain containing a kow motif
Keywords keywords	BETA BARREL, RIBOSOMAL PROTEIN, RIBONUCLEOPROTEIN, NUCLEAR PROTEIN; NUCLEAR PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	15.68 Å
Radius of gyration Rg (electron density) rg_electron	14.56 Å
Forward intensity I(0) i0	5473240.00
Molecular weight molecular_weight	15053.0 kDa
Excluded volume excluded_volume	17714 Å³
Envelope volume envelope_volume	19772 Å³
Hydration-shell volume shell_volume	11892 Å³
Envelope diameter envelope_diameter	49.6 Å
Shell Rg shell_rg	19.71 Å
Envelope Rg envelope_rg	14.69 Å
Shape Rg shape_rg	14.43 Å
Total Rg total_rg	15.76 Å
Total atoms total_atoms	965
Residues n_residues	120
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

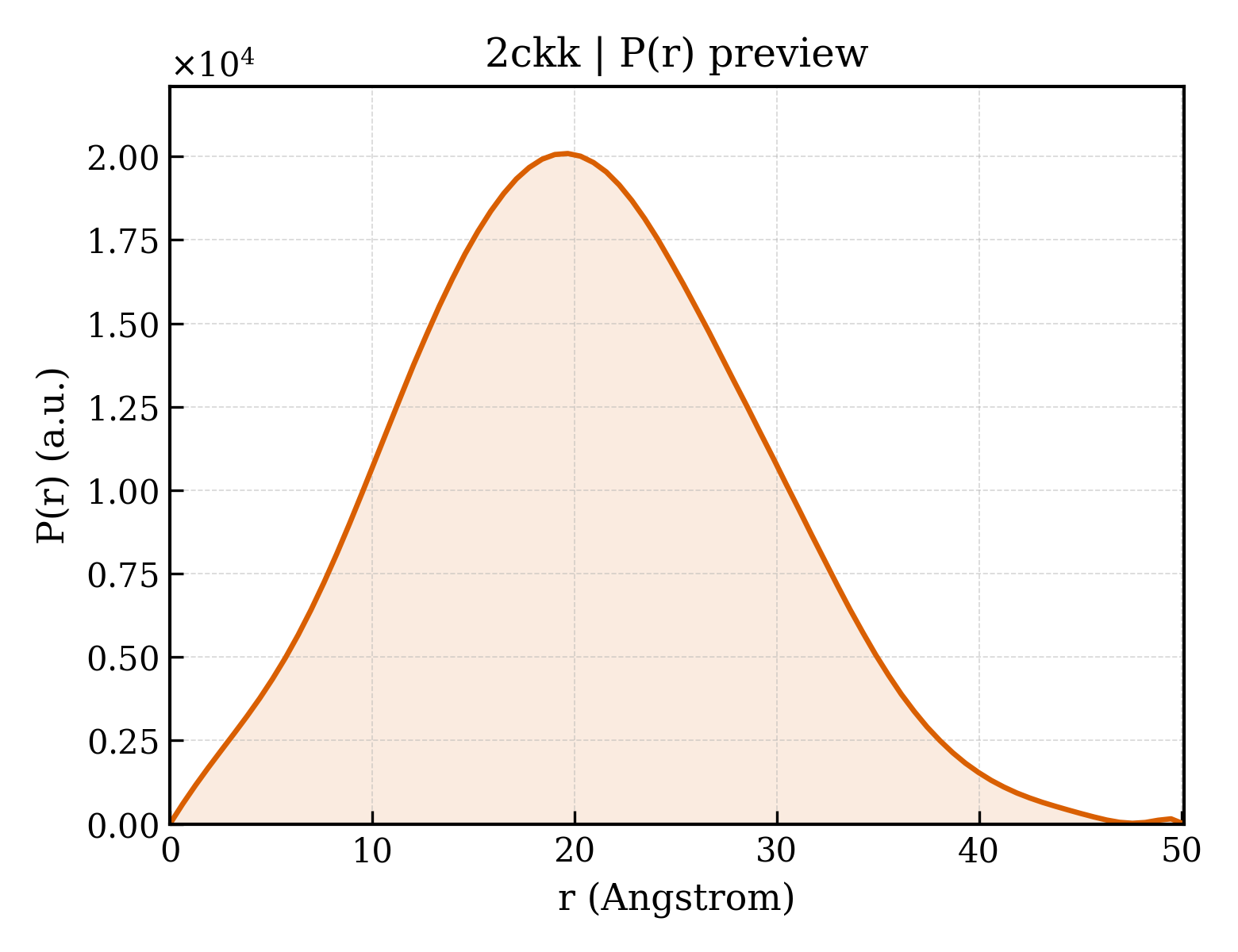

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	50.1 Å
Rg (real space) rg_real	15.60 Å
Rg uncertainty (real space) rg_real_error	0.30 Å
I(0) (real space) i0_real	5.4730e+06
I(0) uncertainty (real space) i0_real_error	5.5910e+04
Rg (reciprocal space) rg_reciprocal	15.61 Å
I(0) (reciprocal space) i0_reciprocal	5473000.0000
Solution quality estimate total_estimate	0.8867
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	19.7 Å
Skewness Skewness skewness	0.181
Kurtosis Kurtosis kurtosis	-0.316
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	413600.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.882; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.879

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	KIN17
Molecular weight formula_weight	14348.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1181

GEEEKKRTARTDYWLQPEIIVKIITKKLGEKYHKKKAIVKEVIDKYTAVVKMIDSGDKLKLDQTHLETVIPAPGKRILVLNGGYRGNEGTLESINEKTFSATIVIETGPLKGRRVEGIQYEDISKLA

来源 Source

来源生物 organism	HOMO SAPIENS
通用名 common_name	HUMAN
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	IODIDE ION
Molecular weight formula_weight	126.9 kDa
Source method src_method	syn
Copy count entity_count	12

Entity 3 Entity 3 non-polymer

Description description	ACETATE ION
Molecular weight formula_weight	59.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	211

▼

7. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id	2ckkA01
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	140 —

Domain ID domain_id	2ckkA02
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	30 —

▶

8. Citations (1)

▶

Unit-cell length a length_a	45.752 Å
Unit-cell length b length_b	46.309 Å
Unit-cell length c length_c	60.798 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.450 Å
Low-resolution limit resolution_low	32.620 Å
R factor r_factor	0.1390
R_work r_work	0.1370
R_free r_free	0.1750
