SAXSdb — 2dlf

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PROTEIN (ANTI-DANSYL IMMUNOGLOBULIN IGG2A(S)-KAPPA (LIGHT CHAIN))

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	PROTEIN (ANTI-DANSYL IMMUNOGLOBULIN IGG2A(S) (HEAVY CHAIN)) × 1 （P01801） SULFATE ION × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	KV2G_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain L； PDBConstruct 1–113； UniProt 1–113

PROTEIN (ANTI-DANSYL IMMUNOGLOBULIN IGG2A(S) (HEAVY CHAIN))

OrganismNot specified

UniProt P01801

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	PROTEIN (ANTI-DANSYL IMMUNOGLOBULIN IGG2A(S)-KAPPA (LIGHT CHAIN)) × 1 （P01631） SULFATE ION × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	HV32_MOUSE
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain H； PDBConstruct 1–121； UniProt 1–115

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2dlf
Deposition date deposition_date	1998-12-17
Structure title title	HIGH RESOLUTION CRYSTAL STRUCTURE OF THE FV FRAGMENT FROM AN ANTI-DANSYL SWITCH VARIANT ANTIBODY IGG2A(S) CRYSTALLIZED AT PH 6.75
Keywords keywords	FV FRAGMENT, IMMUNOGLOBULIN, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2dlf__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2dlf__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

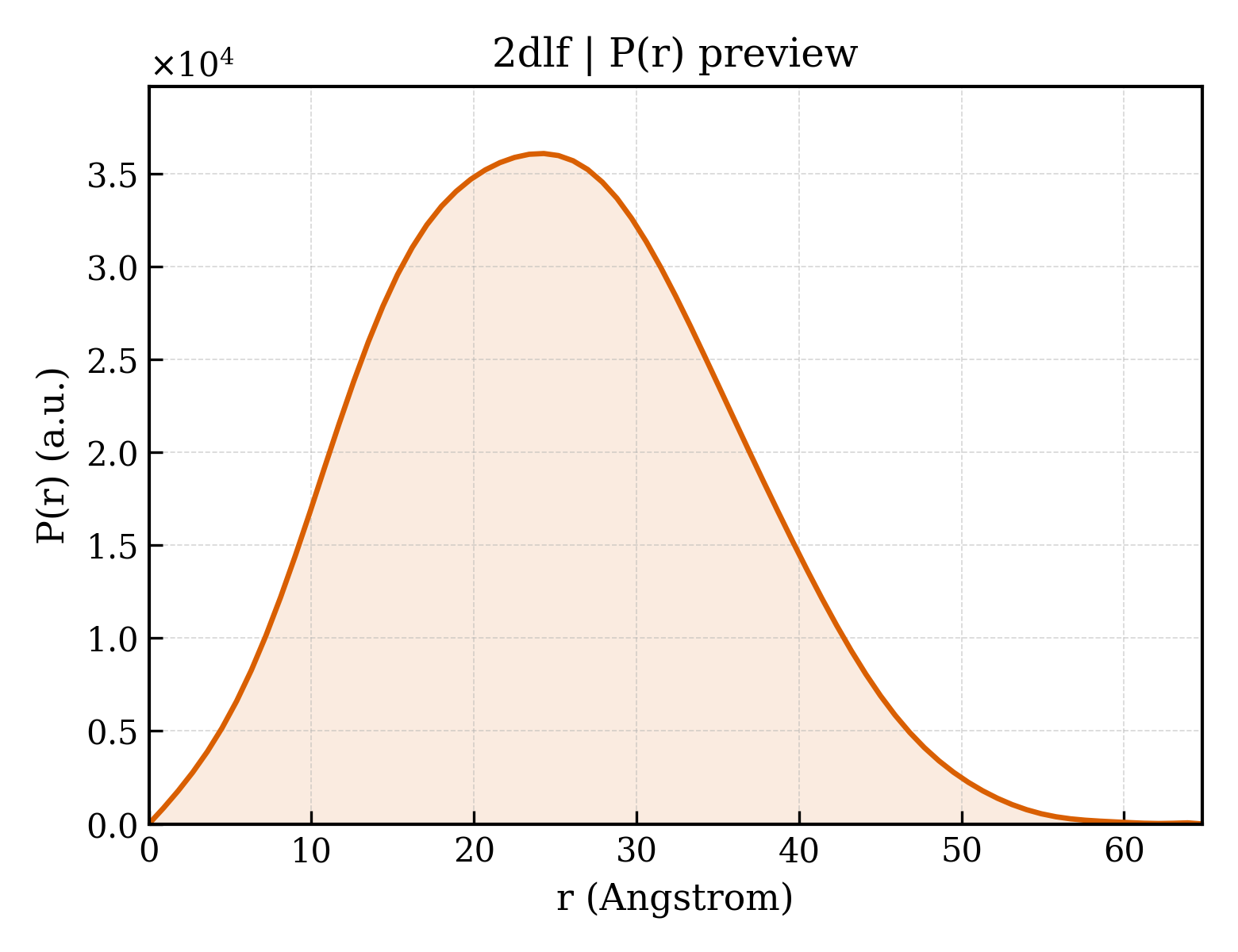

2dlf__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	19.15 Å
Rg (electron density)	17.95 Å
Total Rg	19.03 Å
Atom count	1847
Residues	233
Excluded volume	32577 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2dlf__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	PROTEIN (ANTI-DANSYL IMMUNOGLOBULIN IGG2A(S)-KAPPA (LIGHT CHAIN))
Molecular weight formula_weight	12386.9 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L
Atom count atom_count	2282

DVVMTQTPLSLPVSLGNQASISCRSSQSLVHSNGNTYLHWYLQKPGQSPKLLIYKVSNRFSGVPDRFSGSGSGTDFTLKISRVEAEDLGVYFCSQSTHVPFTFGSGTKLEIKR

Entity 2 Entity 2 polymer

Description description	PROTEIN (ANTI-DANSYL IMMUNOGLOBULIN IGG2A(S) (HEAVY CHAIN))
Molecular weight formula_weight	14152.8 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

EVKLEESGGGLVQPGGSMKLSCATSGFTFSDAWMDWVRQSPEKGLEWVAEIRNKANNHATYYAESVKGRFTISRDDSKRRVYLQMNTLRAEDTGIYYCTGIYYHYPWFAYWGQGTLVTVSAEPR

Entity 3 Entity 3 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	400

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d2dlfh_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.1 — V set domains (antibody variable domain-like)

Domain ID domain_id	d2dlfl_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.1 — V set domains (antibody variable domain-like)

CATH v4.4 (2 domains)

Domain ID domain_id	2dlfH00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	2dlfL00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

7. Citations (8)

;The pH-dependent structural variation of complementarity-determining region H3 in the crystal structures of the Fv fragment from an anti-dansyl monoclonal antibody. ;

J.Mol.Biol. (1999)

PMID: 10438610 · DOI: 10.1006/jmbi.1999.2931 PRIMARY

;Role of the Domain-Domain Interaction in the Construction of the Antigen Combining Site. A Comparative Study by 1H-15N Shift Correlation NMR Spectroscopy of the Fv and Fab Fragment of Anti-Dansyl Mouse Monoclonal Antibody ;

J.Mol.Biol. (1994)

Dynamical Structure of the Antibody Combining Site as Studied by 1H-15N Shift Correlation NMR Spectroscopy

Biochemistry (1992)

;Isotope-Edited Nuclear Magnetic Resonance Study of Fv Fragment of an Anti- Dansyl Mouse Monoclonal Antibody: Recognition of the Dansyl Hapten ;

Biochemistry (1992)

;Preparation of the Fv Fragment from a Short-Chain Mouse IgG2a Anti-Dansyl Monoclonal Antibody and Use of Selectively Deuterated Fv Analogues for Two- Dimensional 1H NMR Analyses of Antigen-Antibody Interactions ;

Biochemistry (1991)

Multinuclear NMR Study of the Structure of the Fv Fragment of Anti-Dansyl Mouse IgG2a Antibody

Biochemistry (1991)

Conformation and Stereoselective Reduction of Hapten Side Chain in the Antibody Combining Site

J.Am.Chem.Soc. (1991)

Structure of a Mouse Immunoglobulin G that Lacks the Entire CH1 Domain: Protein Sequencing and Small-Angle X-Ray Scattering Studies

Biochemistry (1990)

Unit-cell length a length_a	57.290 Å
Unit-cell length b length_b	66.930 Å
Unit-cell length c length_c	53.630 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.550 Å
Low-resolution limit resolution_low	8.000 Å
R factor r_factor	0.1840
R_work r_work	0.1840
R_free r_free	0.2330

HIGH RESOLUTION CRYSTAL STRUCTURE OF THE FV FRAGMENT FROM AN ANTI-DANSYL SWITCH VARIANT ANTIBODY IGG2A(S) CRYSTALLIZED AT PH 6.75
