2efr
;Crystal structure of the c-terminal tropomyosin fragment with N- and C-terminal extensions of the leucine zipper at 1.8 angstroms resolution ;

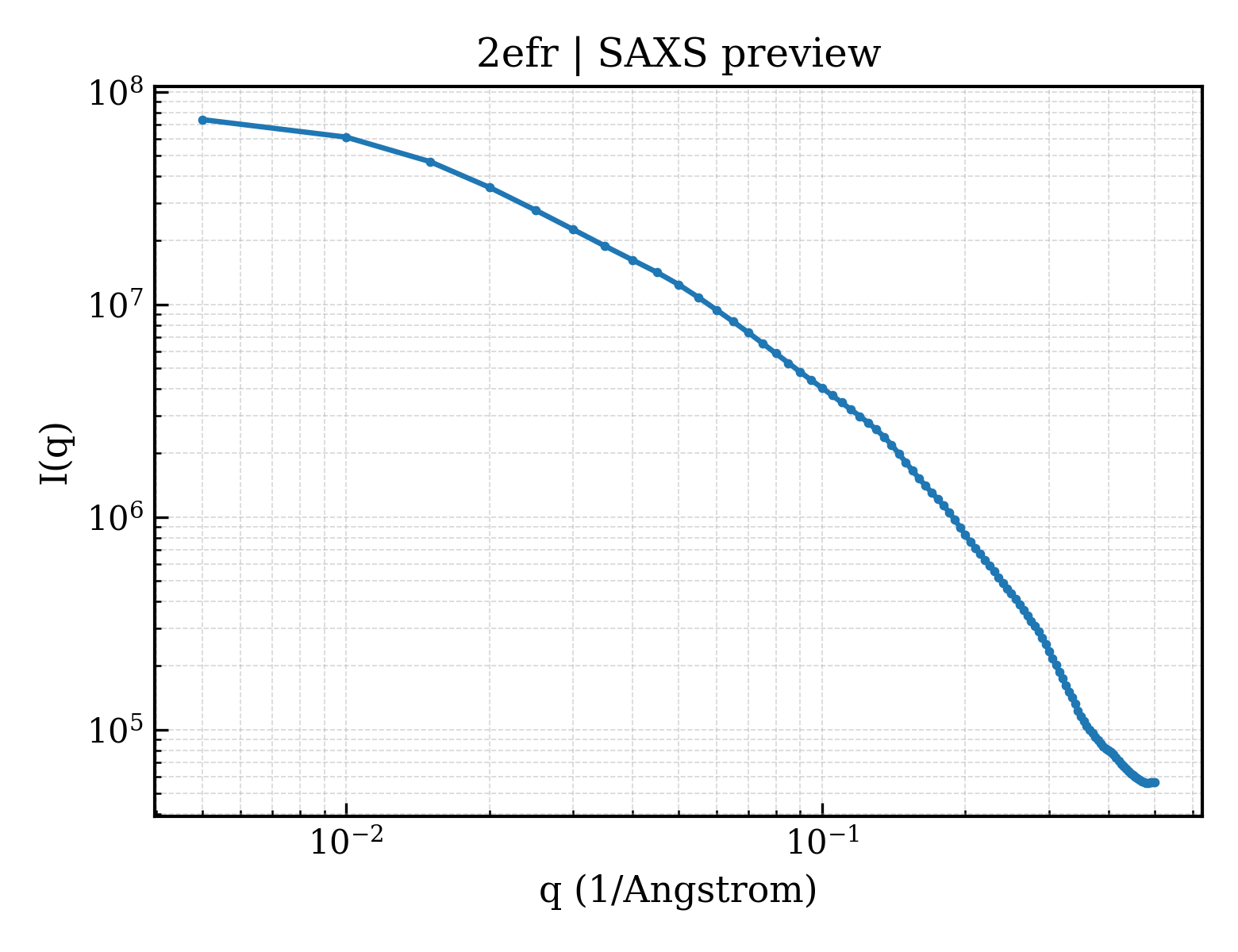

SAXS 散射曲线 SAXS Profile

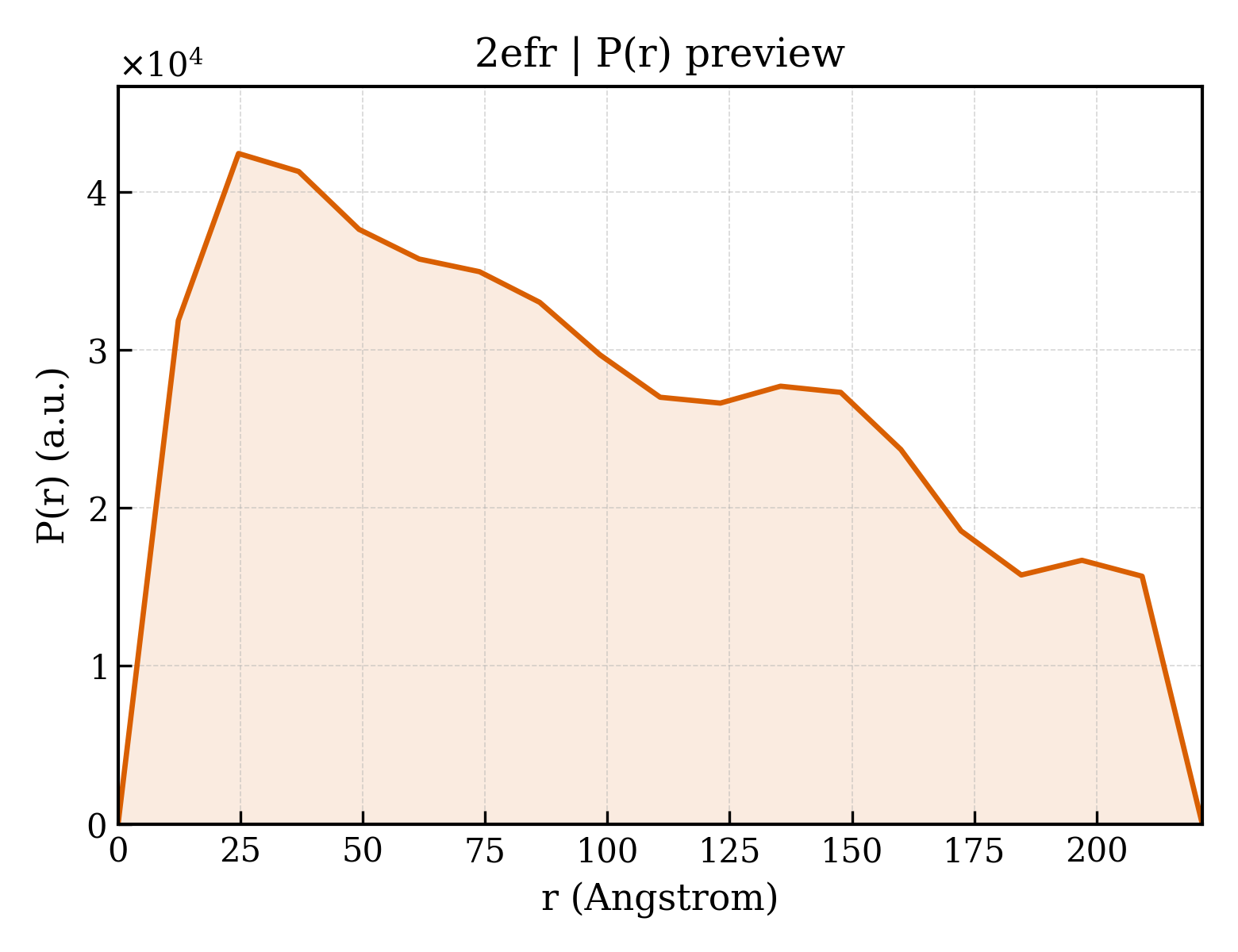

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 2efr |
| 沉积日期 deposition_date | 2007-02-23 |
| 结构标题 title | ;Crystal structure of the c-terminal tropomyosin fragment with N- and C-terminal extensions of the leucine zipper at 1.8 angstroms resolution ; |
| 关键词 keywords | DESTABILIZING CLUSTER, HYDROPHOBIC CORE, CONTRACTILE PROTEIN; CONTRACTILE PROTEIN |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 87.79 Å |
| 回转半径 Rg (电子) rg_electron | 92.42 Å |
| 零角强度 I(0) i0 | 79177100.00 |
| 分子量 molecular_weight | 72868.0 kDa |
| 排除体积 excluded_volume | 91271 ų |
| 包络体积 envelope_volume | 178180 ų |
| 水化壳体积 shell_volume | 24535 ų |
| 包络直径 envelope_diameter | 353.7 Å |
| 壳层 Rg shell_rg | 45.58 Å |
| 包络 Rg envelope_rg | 95.65 Å |
| 形状 Rg shape_rg | 92.27 Å |
| 总 Rg total_rg | 91.39 Å |
| 总原子数 total_atoms | 5118 |
| 残基数 n_residues | 618 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 221.6 Å |
| Rg (实空间) rg_real | 77.97 Å |
| Rg 误差 (实空间) rg_real_error | 1.65 Å |
| I(0) (实空间) i0_real | 7.5140e+07 |
| I(0) 误差 (实空间) i0_real_error | 1.6340e+06 |
| Rg (倒空间) rg_reciprocal | 77.56 Å |
| I(0) (倒空间) i0_reciprocal | 76930000.0000 |
| 解质量估计 total_estimate | 0.4593 |
| 解质量评级 solution_quality | SUSPICIOUS a SUSPICIOUS solution |
| P(r) 峰数 n_peaks | 3 |
| 主峰位置 r_peak_primary | 24.6 Å |
| 偏度 Skewness skewness | 0.340 |
| 峰度 Kurtosis kurtosis | -0.996 |
| 角度范围 angular_range | — – 0.0900 Å−1 |
| 当前正则化参数 α current_alpha | 0.0580 |
| 最高正则化参数 α highest_alpha | 7818000.0000 |
| 实空间数据点数 n_real_points | 19 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.018; Oscil: 0.269; Stabil: 0.906; Sysdev: 0.000; Positv: 1.000; Valcen: 0.243; Smooth: 0.202 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (2)
6. 折叠分类 (SCOP + CATH) 4 domains
CATH v4.4 (4 domains)
| 结构域编号 domain_id | 2efrA00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 20 — Up-down Bundle |
| 拓扑 Topology topology | 5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces |
| 同源超家族 H-superfamily homologous superfamily | 170 — |
| 结构域编号 domain_id | 2efrB00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 20 — Up-down Bundle |
| 拓扑 Topology topology | 5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces |
| 同源超家族 H-superfamily homologous superfamily | 170 — |
| 结构域编号 domain_id | 2efrC00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 20 — Up-down Bundle |
| 拓扑 Topology topology | 5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces |
| 同源超家族 H-superfamily homologous superfamily | 170 — |
| 结构域编号 domain_id | 2efrD00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 20 — Up-down Bundle |
| 拓扑 Topology topology | 5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces |
| 同源超家族 H-superfamily homologous superfamily | 170 — |
