2esp

Human ubiquitin-conjugating enzyme (E2) UbcH5b mutant Ile88Ala

Method: X-RAY DIFFRACTION D_max: 57.9 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Ubiquitin-conjugating enzyme E2 D2

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–147	Mutation：I88A	CL CHLORIDE ION × 1 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 4.5；294 K；NaCl, PEG 6000, Sodium Acetate, temperature 294K, pH 4.5, VAPOR DIFFUSION, HANGING DROP	Resolution 1.52 Å R-free 0.233

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2ESP	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2CLW Crystal structure of human ubiquitin-conjugating enzyme UbcH5B Deposited 2006-05-02	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–147（147 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	SO4 SULFATE ION × 1 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 4.6；150 MM AMMONIUM SULPHATE, 100 MM SODIUM ACETATE TRIHYDRATE [PH 4.6], 25% W/V PEG MME 2000	Resolution 1.95 Å R-free 0.255
2CLW Crystal structure of human ubiquitin-conjugating enzyme UbcH5B Deposited 2006-05-02	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–147（147 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 4.6；150 MM AMMONIUM SULPHATE, 100 MM SODIUM ACETATE TRIHYDRATE [PH 4.6], 25% W/V PEG MME 2000	Resolution 1.95 Å R-free 0.255
2CLW Crystal structure of human ubiquitin-conjugating enzyme UbcH5B Deposited 2006-05-02	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 1–147（147 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 4.6；150 MM AMMONIUM SULPHATE, 100 MM SODIUM ACETATE TRIHYDRATE [PH 4.6], 25% W/V PEG MME 2000	Resolution 1.95 Å R-free 0.255
2CLW Crystal structure of human ubiquitin-conjugating enzyme UbcH5B Deposited 2006-05-02	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 1–147（147 aa）	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 4.6；150 MM AMMONIUM SULPHATE, 100 MM SODIUM ACETATE TRIHYDRATE [PH 4.6], 25% W/V PEG MME 2000	Resolution 1.95 Å R-free 0.255
2ESK Human Ubiquitin-Conjugating Enzyme (E2) UbcH5b, wild-type Deposited 2005-10-26	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–147（147 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；294 K；NaCl, PEG 6000, Sodium Acetate, temperature 294K, pH 4.5, VAPOR DIFFUSION, HANGING DROP	Resolution 1.36 Å R-free 0.224
2ESO Human Ubiquitin-Conjugating Enzyme (E2) UbcH5b mutant Ile37Ala Deposited 2005-10-26	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–147（147 aa）	Mutation：I37A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；294 K；NaCl, PEG 6000, Sodium Acetate, temperature 294K, pH 4.5, VAPOR DIFFUSION, HANGING DROP	Resolution 1.50 Å R-free 0.219
2ESQ Human Ubiquitin-Conjugating Enzyme (E2) UbcH5b mutant Ser94Gly Deposited 2005-10-26	Different mutation/modification Different ligand/ion Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–147（147 aa）	Mutation：S94G	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；294 K；NaCl, PEG 6000, Sodium Acetate, temperature 294K, pH 4.5, VAPOR DIFFUSION, HANGING DROP	Resolution 1.44 Å R-free 0.205
3A33 UbcH5b~Ubiquitin Conjugate Deposited 2009-06-08	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–147（147 aa）	Mutation：C85S	GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.1；293 K；2.0M NaCl, 0.1M Potassium acetate, pH 4.1, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.20 Å R-free 0.280
3JVZ E2~Ubiquitin-HECT Deposited 2009-09-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 2–147（146 aa）	Mutation：L3S, C85S, T98K	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.1；277 K；0.1 M sodium citrate, pH 5.1-5.2, 2.4-2.5 M sodium chloride, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 3.30 Å R-free 0.267
3JVZ E2~Ubiquitin-HECT Deposited 2009-09-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 2–147（146 aa）	Mutation：L3S, C85S, T98K	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.1；277 K；0.1 M sodium citrate, pH 5.1-5.2, 2.4-2.5 M sodium chloride, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 3.30 Å R-free 0.267
3JW0 E2~Ubiquitin-HECT Deposited 2009-09-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 2–147（146 aa）	Mutation：L3S, C85S, T98K	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.1；277 K；0.1 M sodium citrate, 2.4M sodium chloride, pH 5.1, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 3.10 Å R-free 0.287
3JW0 E2~Ubiquitin-HECT Deposited 2009-09-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 2–147（146 aa）	Mutation：L3S, C85S, T98K	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.1；277 K；0.1 M sodium citrate, 2.4M sodium chloride, pH 5.1, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 3.10 Å R-free 0.287
3L1Y Crystal structure of human UBC4 E2 conjugating enzyme Deposited 2009-12-14	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–147（147 aa） Fragment：residues 1-147	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；295 K；2M sodium formate, 0.1M sodium acetate trihydrate, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 1.60 Å R-free 0.229
3TGD Crystal structure of the human ubiquitin-conjugating enzyme (E2) UbcH5b Deposited 2011-08-17	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–147（147 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；0.8M potassium phosphate, 0.8M sodium phosphate, 0.1M HEPES, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.80 Å R-free 0.203
3ZNI Structure of phosphoTyr363-Cbl-b - UbcH5B-Ub - ZAP-70 peptide complex Deposited 2013-02-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 2–147（146 aa） Fragment：RESIDUES 2-147	Mutation：YES	ZN ZINC ION × 2 CA CALCIUM ION × 1 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions 0.1 M BICINE, PH 9.0, 8-11% (W/V) PEG 3350 AND 0.1 M SODIUM FORMATE	Resolution 2.21 Å R-free 0.211
3ZNI Structure of phosphoTyr363-Cbl-b - UbcH5B-Ub - ZAP-70 peptide complex Deposited 2013-02-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain G 2–147（146 aa） Fragment：RESIDUES 2-147	Mutation：YES	ZN ZINC ION × 2 CA CALCIUM ION × 1 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions 0.1 M BICINE, PH 9.0, 8-11% (W/V) PEG 3350 AND 0.1 M SODIUM FORMATE	Resolution 2.21 Å R-free 0.211
3ZNI Structure of phosphoTyr363-Cbl-b - UbcH5B-Ub - ZAP-70 peptide complex Deposited 2013-02-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain K 2–147（146 aa） Fragment：RESIDUES 2-147	Mutation：YES	ZN ZINC ION × 2 CA CALCIUM ION × 1 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions 0.1 M BICINE, PH 9.0, 8-11% (W/V) PEG 3350 AND 0.1 M SODIUM FORMATE	Resolution 2.21 Å R-free 0.211
3ZNI Structure of phosphoTyr363-Cbl-b - UbcH5B-Ub - ZAP-70 peptide complex Deposited 2013-02-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain O 2–147（146 aa） Fragment：RESIDUES 2-147	Mutation：YES	ZN ZINC ION × 2 CA CALCIUM ION × 1 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions 0.1 M BICINE, PH 9.0, 8-11% (W/V) PEG 3350 AND 0.1 M SODIUM FORMATE	Resolution 2.21 Å R-free 0.211
4A49 Structure of phosphoTyr371-c-Cbl-UbcH5B complex Deposited 2011-10-07	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–147（147 aa）	Not recorded	ZN ZINC ION × 2 K POTASSIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions 291 K；20% (W/V) PEG 3350 AND 0.2 M POTASSIUM THIOCYANATE AT 18 DEGREES CELSIUS.	Resolution 2.21 Å R-free 0.205
4A4B Structure of modified phosphoTyr371-c-Cbl-UbcH5B-ZAP-70 complex Deposited 2011-10-08	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–147（147 aa）	Not recorded	ZN ZINC ION × 2 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；31-35% PENTAERYTHRITOL PROPOXYLATE (5/4 PO/OH), 0.2 M KCL, 50 MM HEPES, PH 7.5	Resolution 2.79 Å R-free 0.267
4A4C Structure of phosphoTyr371-c-Cbl-UbcH5B-ZAP-70 complex Deposited 2011-10-08	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–147（147 aa）	Not recorded	ZN ZINC ION × 2 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions 277 K；50 MM HEPES, PH 7.5, 0.2 M KCL AND 31-35% (V/V) PENTAERYTHRITOL PROPOXYLATE (5/4 PO/OH) AT 4 DEGREES CELSIUS.	Resolution 2.70 Å R-free 0.268
4AUQ Structure of BIRC7-UbcH5b-Ub complex. Deposited 2012-05-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–147（147 aa） Fragment：UBCH5B, RESIDUES 1-147 Chain D 1–147（147 aa） Fragment：UBCH5B, RESIDUES 1-147	Mutation：YES Mutation：YES	ZN ZINC ION × 4	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.18 Å R-free 0.249
4DDG Crystal structure of human OTUB1/UbcH5b~Ub/Ub Deposited 2012-01-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 9 PDB declaration: nonameric	Chain A 1–147（147 aa） Chain B 1–147（147 aa） Chain C 1–147（147 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；25% PEG1500, 0.1 M SPG, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 3.30 Å R-free 0.280
4DDG Crystal structure of human OTUB1/UbcH5b~Ub/Ub Deposited 2012-01-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 9 PDB declaration: nonameric	Chain J 1–147（147 aa） Chain K 1–147（147 aa） Chain L 1–147（147 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；25% PEG1500, 0.1 M SPG, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 3.30 Å R-free 0.280
4DDI Crystal structure of human OTUB1/UbcH5b~Ub/Ub Deposited 2012-01-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 9 PDB declaration: nonameric	Chain A 1–147（147 aa） Chain B 1–147（147 aa） Chain C 1–147（147 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8；293 K；25% PEG1500, 0.1 M SPG, pH 8.0, VAPOR DIFFUSION, temperature 293K	Resolution 3.80 Å R-free 0.273
4LDT The structure of h/ceOTUB1-ubiquitin aldehyde-UBCH5B~Ub Deposited 2013-06-25	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–147（147 aa）	Mutation：C85S	EDO 1,2-ETHANEDIOL × 4 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293.15 K；1:1 mix of 12 mg/mL purified complex and well solution (100 mM Bis-Tris, pH 6.0, 200 mM magnesium chloride, 22% PEG3350), crystals appeared in about 2 to 3 days, cryoprotection with well solution + 10% ethylene glycol, flash frozen in liquid nitrogen, VAPOR DIFFUSION, HANGING DROP, temperature 293.15K	Resolution 1.90 Å R-free 0.223
4V3K RNF38-UbcH5B-UB complex Deposited 2014-10-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 2–147（146 aa） Fragment：RESIDUES 2-147	Mutation：YES	CL CHLORIDE ION × 3 EDO 1,2-ETHANEDIOL × 2 ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions 50 MM TRIS-HCL, PH 8.5 AND 2.3 M AMMONIUM SULFATE	Resolution 2.04 Å R-free 0.223
4V3K RNF38-UbcH5B-UB complex Deposited 2014-10-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 2–147（146 aa） Fragment：RESIDUES 2-147	Mutation：YES	CL CHLORIDE ION × 3 EDO 1,2-ETHANEDIOL × 3 ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions 50 MM TRIS-HCL, PH 8.5 AND 2.3 M AMMONIUM SULFATE	Resolution 2.04 Å R-free 0.223
4V3L RNF38-UB-UbcH5B-Ub complex Deposited 2014-10-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 2–147（146 aa） Fragment：RESIDUES 2-147	Mutation：YES	EDO 1,2-ETHANEDIOL × 2 ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions 50 MM HEPES, PH 7.5, 0.2 M MAGNESIUM ACETATE AND 13% (W/V) PEG 8K	Resolution 1.53 Å R-free 0.193
4WZ3 Crystal structure of the complex between LubX/LegU2/Lpp2887 U-box 1 and Homo sapiens UBE2D2 Deposited 2014-11-18	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–147（147 aa）	Mutation：C85S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；298 K；15 mg/ml of E2D2.(C85S)-Ub conjugate and an equimolar concentration of LubX (1-186), 0.2 M sodium tartrate, 0.1 M Tris-Cl (pH 8.5) and 25% PEG3350	Resolution 2.70 Å R-free 0.223
5D0K Structure of UbE2D2:RNF165:Ub complex Deposited 2015-08-03	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–147（147 aa）	Mutation：C21S, C85K, C107S, C111S	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291.15 K；MES, sodium chloride, PEG 6000	Resolution 2.65 Å R-free 0.238
5D0K Structure of UbE2D2:RNF165:Ub complex Deposited 2015-08-03	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 1–147（147 aa）	Mutation：C21S, C85K, C107S, C111S	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291.15 K；MES, sodium chloride, PEG 6000	Resolution 2.65 Å R-free 0.238
5D0K Structure of UbE2D2:RNF165:Ub complex Deposited 2015-08-03	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain G 1–147（147 aa）	Mutation：C21S, C85K, C107S, C111S	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291.15 K；MES, sodium chloride, PEG 6000	Resolution 2.65 Å R-free 0.238
5D0K Structure of UbE2D2:RNF165:Ub complex Deposited 2015-08-03	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain J 1–147（147 aa）	Mutation：C21S, C85K, C107S, C111S	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291.15 K；MES, sodium chloride, PEG 6000	Resolution 2.65 Å R-free 0.238
5D0M Structure of UbE2D2:RNF165:Ub complex Deposited 2015-08-03	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–147（147 aa）	Mutation：C21S, S22R, C85K, C107S, C111S	PO4 PHOSPHATE ION × 1 ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291.15 K；SPG buffer, PEG 1500	Resolution 1.91 Å R-free 0.213
5D1K Crystal Structure of UbcH5B in Complex with the RING-U5BR Fragment of AO7 Deposited 2015-08-04	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–147（147 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 3 PEG DI(HYDROXYETHYL)ETHER × 1 OXL OXALATE ION × 1 ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；292 K；20% PEG-10000, 8% ethylene glycol, 0.1M HEPES, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 1.78 Å R-free 0.202
5D1L Crystal Structure of UbcH5B in Complex with the RING-U5BR Fragment of AO7 (Y165A) Deposited 2015-08-04	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–147（147 aa）	Not recorded	PEG DI(HYDROXYETHYL)ETHER × 1 OXL OXALATE ION × 1 ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；292 K；15% PEG 20000, 0.1M MES, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 1.62 Å R-free 0.200
5D1M Crystal Structure of UbcH5B in Complex with the RING-U5BR Fragment of AO7 (P199A) Deposited 2015-08-04	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–147（147 aa）	Not recorded	OXL OXALATE ION × 1 PEG DI(HYDROXYETHYL)ETHER × 1 ZN ZINC ION × 2 EDO 1,2-ETHANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；292 K；20% PEG 10000, 8% Ethylene glycol, 0.1M HEPS, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 1.58 Å R-free 0.223
5EDV Structure of the HOIP-RBR/UbcH5B~ubiquitin transfer complex Deposited 2015-10-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 2–147（146 aa）	Mutation：S22R, C85K	ZN ZINC ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；285 K；0.06M Tris, 0.04M Bicine, 0.02 M 1,6-Hexanediol, 0.02 M 1-Butanol, 0.02 M 1,2- Propanediol (racemic), 0.02 M 2-Propanol, 0.02 M 1,4-Butanediol, 0.02 M 1,3-Propanediol, 20% PEG550MME, 10% PEG20K, 8% glycerol	Resolution 3.48 Å R-free 0.303
5EDV Structure of the HOIP-RBR/UbcH5B~ubiquitin transfer complex Deposited 2015-10-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain C 2–147（146 aa） Chain D 2–147（146 aa）	Mutation：S22R, C85K Mutation：S22R, C85K	ZN ZINC ION × 16	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；285 K；0.06M Tris, 0.04M Bicine, 0.02 M 1,6-Hexanediol, 0.02 M 1-Butanol, 0.02 M 1,2- Propanediol (racemic), 0.02 M 2-Propanol, 0.02 M 1,4-Butanediol, 0.02 M 1,3-Propanediol, 20% PEG550MME, 10% PEG20K, 8% glycerol	Resolution 3.48 Å R-free 0.303
5EDV Structure of the HOIP-RBR/UbcH5B~ubiquitin transfer complex Deposited 2015-10-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain D 2–147（146 aa）	Mutation：S22R, C85K	ZN ZINC ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；285 K；0.06M Tris, 0.04M Bicine, 0.02 M 1,6-Hexanediol, 0.02 M 1-Butanol, 0.02 M 1,2- Propanediol (racemic), 0.02 M 2-Propanol, 0.02 M 1,4-Butanediol, 0.02 M 1,3-Propanediol, 20% PEG550MME, 10% PEG20K, 8% glycerol	Resolution 3.48 Å R-free 0.303
5EDV Structure of the HOIP-RBR/UbcH5B~ubiquitin transfer complex Deposited 2015-10-22	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain I 2–147（146 aa）	Mutation：S22R, C85K	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；285 K；0.06M Tris, 0.04M Bicine, 0.02 M 1,6-Hexanediol, 0.02 M 1-Butanol, 0.02 M 1,2- Propanediol (racemic), 0.02 M 2-Propanol, 0.02 M 1,4-Butanediol, 0.02 M 1,3-Propanediol, 20% PEG550MME, 10% PEG20K, 8% glycerol	Resolution 3.48 Å R-free 0.303
5MNJ Structure of MDM2-MDMX-UbcH5B-ubiquitin complex Deposited 2016-12-13	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–147（147 aa）	Mutation：S22R, C85K	ZN ZINC ION × 4 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；292 K；0.1 M Tris-HCl, pH 8.5, 0.175 M Li2SO4 and 16-20 %(v/v) PEG 3350	Resolution 2.16 Å R-free 0.231
5MNJ Structure of MDM2-MDMX-UbcH5B-ubiquitin complex Deposited 2016-12-13	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain E 1–147（147 aa）	Mutation：S22R, C85K	ZN ZINC ION × 4 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；292 K；0.1 M Tris-HCl, pH 8.5, 0.175 M Li2SO4 and 16-20 %(v/v) PEG 3350	Resolution 2.16 Å R-free 0.231
5ULF Crystal Structure of a UbcH5b~Ub conjugate Deposited 2017-01-24	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–147（147 aa）	Mutation：C21S, S22R, C85K, C107S, C111S	GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；289 K；100 mM bis-Tris pH 5.5, 150 mM ammonium sulfate, 20% PEG 3350	Resolution 1.80 Å R-free 0.261
5ULF Crystal Structure of a UbcH5b~Ub conjugate Deposited 2017-01-24	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–147（147 aa）	Mutation：C21S, S22R, C85K, C107S, C111S	GOL GLYCEROL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；289 K；100 mM bis-Tris pH 5.5, 150 mM ammonium sulfate, 20% PEG 3350	Resolution 1.80 Å R-free 0.261
5ULH Structure of RNF165 in complex with a UbcH5b~Ub conjugate Deposited 2017-01-24	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–147（147 aa）	Mutation：C21S, C85K, C107S, C111S	GOL GLYCEROL × 2 SCN THIOCYANATE ION × 2 ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；200 mM potassium thiocyanate, 20% PEG 3350	Resolution 1.95 Å R-free 0.217
5ULK Crystal Structure of RNF165 in complex with a UbcH5b~Ub conjugate Deposited 2017-01-24	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–147（147 aa）	Mutation：C21S, C85K, C107S, C111S	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；200 mM ammonium nitrate, 20% PEG 3350	Resolution 2.38 Å R-free 0.267
5VZW TRIM23 RING domain in complex with UbcH5-Ub Deposited 2017-05-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–147（147 aa） Chain B 1–147（147 aa）	Mutation：S22R,C85K Mutation：S22R,C85K	ZN ZINC ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；290 K；0.1 M Bis-Tris, pH 5.5, 0.2 M calcium chloride, 17% w/v PEG3350	Resolution 2.28 Å R-free 0.237
5ZBU Crystal Structure of PA-TM-RING E3 ligase RNF13 RING domain in complex with E2~Ub Deposited 2018-02-12	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–147（147 aa）	Mutation：C85K	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；0.1M MES monohydrate, 14% PEG 4000	Resolution 3.20 Å R-free 0.262
5ZBU Crystal Structure of PA-TM-RING E3 ligase RNF13 RING domain in complex with E2~Ub Deposited 2018-02-12	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–147（147 aa）	Mutation：C85K	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；0.1M MES monohydrate, 14% PEG 4000	Resolution 3.20 Å R-free 0.262
6HPR Crystal structure of cIAP1 RING domain bound to UbcH5B-Ub and a non-covalent Ub Deposited 2018-09-21	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–147（147 aa）	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；292 K；0.2 M ammonium fluoride and 15% (w/v) PEG 3350	Resolution 1.70 Å R-free 0.197
6M2C Distinct mechanism of MUL1-RING domain simultaneously recruiting E2 enzyme and the substrate p53-TAD domain Deposited 2020-02-27	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–147（147 aa）	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；291 K；4% v/v Tacsimate pH 6.0, 12% w/v Polyethylene glycol 3350	Resolution 2.70 Å R-free 0.258
6M2C Distinct mechanism of MUL1-RING domain simultaneously recruiting E2 enzyme and the substrate p53-TAD domain Deposited 2020-02-27	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–147（147 aa）	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；291 K；4% v/v Tacsimate pH 6.0, 12% w/v Polyethylene glycol 3350	Resolution 2.70 Å R-free 0.258
6M2C Distinct mechanism of MUL1-RING domain simultaneously recruiting E2 enzyme and the substrate p53-TAD domain Deposited 2020-02-27	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–147（147 aa）	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；291 K；4% v/v Tacsimate pH 6.0, 12% w/v Polyethylene glycol 3350	Resolution 2.70 Å R-free 0.258
6M2C Distinct mechanism of MUL1-RING domain simultaneously recruiting E2 enzyme and the substrate p53-TAD domain Deposited 2020-02-27	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 1–147（147 aa）	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；291 K；4% v/v Tacsimate pH 6.0, 12% w/v Polyethylene glycol 3350	Resolution 2.70 Å R-free 0.258
6SQO Crystal structure of human MDM2 RING domain homodimer bound to UbcH5B-Ub Deposited 2019-09-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain B 2–147（146 aa） Chain E 2–147（146 aa）	Mutation：S22R, C85K Mutation：S22R, C85K	ZN ZINC ION × 4 CL CHLORIDE ION × 4 NO3 NITRATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；292 K；0.1 M SPG, pH 7.0, 10% (w/v) PEG Smear Broad, 0.15 M NH4NO3	Resolution 1.41 Å R-free 0.173
6SQR Crystal structure of Cat MDM2-S429E RING domain bound to UbcH5B-Ub Deposited 2019-09-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain B 2–147（146 aa） Chain E 2–147（146 aa） Chain H 2–147（146 aa） Chain K 2–147（146 aa）	Mutation：S22R, C85K Mutation：S22R, C85K Mutation：S22R, C85K Mutation：S22R, C85K	EDO 1,2-ETHANEDIOL × 12 ZN ZINC ION × 8 NO3 NITRATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；292 K；0.1 M Tris-HCl, pH 8.5, 20% (v/v) PEG Smear High	Resolution 2.18 Å R-free 0.227
6SQS Crystal structure of cat phospho-Ser429 MDM2 RING domain bound to UbcH5B-Ub Deposited 2019-09-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain B 2–147（146 aa） Chain E 2–147（146 aa）	Mutation：S22R, C85K Mutation：S22R, C85K	ZN ZINC ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；292 K；0.1 M Tris-HCl, pH 8.0, 15% (w/v) PEG 2000 MME and 0.1 M KCl	Resolution 1.83 Å R-free 0.242
6TTU Ubiquitin Ligation to substrate by a cullin-RING E3 ligase at 3.7A resolution: NEDD8-CUL1-RBX1 N98R-SKP1-monomeric b-TRCP1dD-IkBa-UB~UBE2D2 Deposited 2019-12-30	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain D 1–147（147 aa）	Not recorded	ZN ZINC ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.70 Å
6W7Z RNF12 RING domain in complex with Ube2d2 Deposited 2020-03-19	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–147（147 aa）	Not recorded	GOL GLYCEROL × 1 ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；15-20% PEG 3350, 100-200 mM ammonium formate	Resolution 1.80 Å R-free 0.211
6W9D RNF12 RING domain in complex with a Ube2d2~Ub conjugate Deposited 2020-03-22	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–147（147 aa）	Mutation：C21S, S22R, C85K, C107S, C111S	ZN ZINC ION × 2 IOD IODIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；289 K；15-20% PEG 3350, 200-400 mM NaI	Resolution 3.19 Å R-free 0.281
6W9D RNF12 RING domain in complex with a Ube2d2~Ub conjugate Deposited 2020-03-22	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 1–147（147 aa）	Mutation：C21S, S22R, C85K, C107S, C111S	ZN ZINC ION × 2 IOD IODIDE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；289 K；15-20% PEG 3350, 200-400 mM NaI	Resolution 3.19 Å R-free 0.281
6W9D RNF12 RING domain in complex with a Ube2d2~Ub conjugate Deposited 2020-03-22	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain G 1–147（147 aa）	Mutation：C21S, S22R, C85K, C107S, C111S	ZN ZINC ION × 2 IOD IODIDE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；289 K；15-20% PEG 3350, 200-400 mM NaI	Resolution 3.19 Å R-free 0.281
7AI0 Crystal structure of human MDM2-G443T RING domain homodimer bound to UbcH5B-Ub (Crystal form 1) Deposited 2020-09-25	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain BBB 1–147（147 aa）	Mutation：S22R, C85K	CL CHLORIDE ION × 4 ZN ZINC ION × 2 EDO 1,2-ETHANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；292 K；0.1 M Tris, 0.075 M NaOAc, 0.1 M NaCl, 15 % w/v PEG Smear Medium	Resolution 1.56 Å R-free 0.185
7AI0 Crystal structure of human MDM2-G443T RING domain homodimer bound to UbcH5B-Ub (Crystal form 1) Deposited 2020-09-25	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain EEE 1–147（147 aa）	Mutation：S22R, C85K	CL CHLORIDE ION × 1 ZN ZINC ION × 2 EDO 1,2-ETHANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；292 K；0.1 M Tris, 0.075 M NaOAc, 0.1 M NaCl, 15 % w/v PEG Smear Medium	Resolution 1.56 Å R-free 0.185
7AI1 Crystal structure of human MDM2-G443T RING domain homodimer bound to UbcH5B-Ub (Crystal form 2) Deposited 2020-09-25	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain BBB 1–147（147 aa）	Mutation：S22R, C85K	CL CHLORIDE ION × 1 ZN ZINC ION × 2 EDO 1,2-ETHANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；292 K；0.1 M HEPES, 0.2 M NH4NO3, 20 % w/v PEG Smear Broad	Resolution 2.07 Å R-free 0.266
7AI1 Crystal structure of human MDM2-G443T RING domain homodimer bound to UbcH5B-Ub (Crystal form 2) Deposited 2020-09-25	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain EEE 1–147（147 aa）	Mutation：S22R, C85K	CL CHLORIDE ION × 1 ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；292 K；0.1 M HEPES, 0.2 M NH4NO3, 20 % w/v PEG Smear Broad	Resolution 2.07 Å R-free 0.266
7BOL ubiquitin-conjugating enzyme, Ube2D2 Deposited 2020-03-19	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–147（147 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.5 M Ammonium sulfate 0.1 M Sodium citrate pH 5.6 1.0 M Lithium sulfate	Resolution 1.80 Å R-free 0.219
7R71 Crystal Structure of the UbArk2C-UbcH5b~Ub complex Deposited 2021-06-24	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–147（147 aa）	Mutation：C21S, S22R, C85K, C107S, C111S	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289.15 K；0.1 M MMT pH 6.0, 25% w/v PEG 1500	Resolution 2.80 Å R-free 0.271
8B3I CRL4CSA-E2-Ub (state 2) Deposited 2022-09-16	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain D 1–147（147 aa）	Not recorded	ZN ZINC ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
8GBQ Structure of RNF125 in complex with UbcH5b Deposited 2023-02-27	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–147（147 aa）	Not recorded	GOL GLYCEROL × 1 ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 9.5；289 K；0.1 M CHES 9.5 20% PEG 8000	Resolution 1.74 Å R-free 0.201
8GCB Structure of RNF125 in complex with a UbcH5b~Ub conjugate Deposited 2023-03-01	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–147（147 aa）	Not recorded	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions MICROBATCH；pH 9；289 K；0.1 M BICINE pH 9.0, 20% PEG 6000	Resolution 2.39 Å R-free 0.271
8JWJ PHD Finger Protein 7 (PHF7) in complex with UBE2D2 Deposited 2023-06-29	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–147（147 aa）	Mutation：S22R, C85K	ZN ZINC ION × 7 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.3；277 K；MPD, Tris	Resolution 2.96 Å R-free 0.222
8JWJ PHD Finger Protein 7 (PHF7) in complex with UBE2D2 Deposited 2023-06-29	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 1–147（147 aa）	Mutation：S22R, C85K	ZN ZINC ION × 7 SO4 SULFATE ION × 1 GOL GLYCEROL × 4 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.3；277 K；MPD, Tris	Resolution 2.96 Å R-free 0.222
8JWU PHD Finger Protein 7 (PHF7) fused to UBE2D2 via a (GSGG)3 linker Deposited 2023-06-29	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–147（147 aa）	Mutation：S346R,C409K	ZN ZINC ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；PEG8000, DMSO, MOPS	Resolution 3.58 Å R-free 0.265
8JWU PHD Finger Protein 7 (PHF7) fused to UBE2D2 via a (GSGG)3 linker Deposited 2023-06-29	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–147（147 aa）	Mutation：S346R,C409K	ZN ZINC ION × 7	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；PEG8000, DMSO, MOPS	Resolution 3.58 Å R-free 0.265
8JWU PHD Finger Protein 7 (PHF7) fused to UBE2D2 via a (GSGG)3 linker Deposited 2023-06-29	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain C 1–147（147 aa）	Mutation：S346R,C409K	ZN ZINC ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；PEG8000, DMSO, MOPS	Resolution 3.58 Å R-free 0.265
8V0D Ubch5B-RING3 of MIB1 fusion structure Deposited 2023-11-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–147（147 aa） Chain B 1–147（147 aa）	Not recorded	ZN ZINC ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；291 K；4% v/v TacsimateTM pH 6.0, 12% w/v Polyethylene glycol 3,350	Resolution 2.40 Å R-free 0.243
8VK8 Structure of UbV.d2.1 in complex with Ube2d2 Deposited 2024-01-08	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–147（147 aa）	Mutation：C21S, C107S, and C111S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；289 K；0.1 M Sodium citrate pH 5.6, 20% w/v PEG 4000, 20% v/v 2-Propanol	Resolution 2.99 Å R-free 0.295
8VK8 Structure of UbV.d2.1 in complex with Ube2d2 Deposited 2024-01-08	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 1–147（147 aa）	Mutation：C21S, C107S, and C111S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；289 K；0.1 M Sodium citrate pH 5.6, 20% w/v PEG 4000, 20% v/v 2-Propanol	Resolution 2.99 Å R-free 0.295
8VK8 Structure of UbV.d2.1 in complex with Ube2d2 Deposited 2024-01-08	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 1–147（147 aa）	Mutation：C21S, C107S, and C111S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；289 K；0.1 M Sodium citrate pH 5.6, 20% w/v PEG 4000, 20% v/v 2-Propanol	Resolution 2.99 Å R-free 0.295
8VK9 Structure of UbV.d2.3 in complex with Ube2d2-S22R Deposited 2024-01-08	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–147（147 aa）	Mutation：C21S, S22R, C107S, C111S	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；289 K；0.1 M Sodium HEPES pH 7.0, 15% w/v PEG 20,000	Resolution 2.00 Å R-free 0.224
8VK9 Structure of UbV.d2.3 in complex with Ube2d2-S22R Deposited 2024-01-08	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–147（147 aa）	Mutation：C21S, S22R, C107S, C111S	GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；289 K；0.1 M Sodium HEPES pH 7.0, 15% w/v PEG 20,000	Resolution 2.00 Å R-free 0.224
8VK9 Structure of UbV.d2.3 in complex with Ube2d2-S22R Deposited 2024-01-08	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 1–147（147 aa）	Mutation：C21S, S22R, C107S, C111S	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；289 K；0.1 M Sodium HEPES pH 7.0, 15% w/v PEG 20,000	Resolution 2.00 Å R-free 0.224
8VK9 Structure of UbV.d2.3 in complex with Ube2d2-S22R Deposited 2024-01-08	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 1–147（147 aa）	Mutation：C21S, S22R, C107S, C111S	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；289 K；0.1 M Sodium HEPES pH 7.0, 15% w/v PEG 20,000	Resolution 2.00 Å R-free 0.224
9DNS Cryo-EM structure of Tom1-UBE2D2-ubiquitin complex Deposited 2024-09-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain D 1–147（147 aa） Chain E 1–147（147 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2；30 mM HEPES pH 7.2, 200 mM NaCl, 0.5 mM TCEP, 0.2 mM CHAPSO cryo-EM vitrification conditions Cryogen ETHANE；CHAPSO detergent added to final conc. of 0.2 mM. Sample applied twice.	Resolution 2.80 Å
9GLS Crystal Structure of Human UBCH5B C85E Deposited 2024-08-28	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain AAA 1–147（147 aa）	Mutation：C85E	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9；293 K；10% PEG 200, 0.1 M Bis-Tris propane, pH 9, 15% PEG 8000	Resolution 1.25 Å R-free 0.211
9Q8Y Structure of RNF38 RING with linchpin mutant R454Y in complex with Ubch5B-Ub Deposited 2025-02-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 2–147（146 aa）	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.6；293 K；0.2 M Sodium acetate trihydrate, 0.1 M Imidazole pH 8.0, 10% PEG 8000	Resolution 2.63 Å R-free 0.275
9Q8Y Structure of RNF38 RING with linchpin mutant R454Y in complex with Ubch5B-Ub Deposited 2025-02-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 2–147（146 aa）	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.6；293 K；0.2 M Sodium acetate trihydrate, 0.1 M Imidazole pH 8.0, 10% PEG 8000	Resolution 2.63 Å R-free 0.275
9YE9 Structure of UbcH5b in complex with the U-box domain of the E3 ubiquitin ligase CHIP Deposited 2025-09-23	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–147（147 aa）	Mutation：M1K, C85K	BME BETA-MERCAPTOETHANOL × 5 CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；298 K；0.1 M Magnesium chloride hexahydrate, 0.1 M Potassium chloride, 0.1 M PIPES, 20 % v/v PEG Smear Medium	Resolution 2.01 Å R-free 0.288
9YEA Structure of the isopeptide bond-linked UbcH5b~Ubiquitin conjugate complex for an M1K/C85K UbcH5b mutant Deposited 2025-09-23	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–147（147 aa）	Mutation：M1K, C85K	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；0.1 M Sodium Citrate, 20 % (w/v) PEG 3000	Resolution 1.83 Å R-free 0.239

57 other PDB entries and 92 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	UB2D2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–149； UniProt 1–147

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

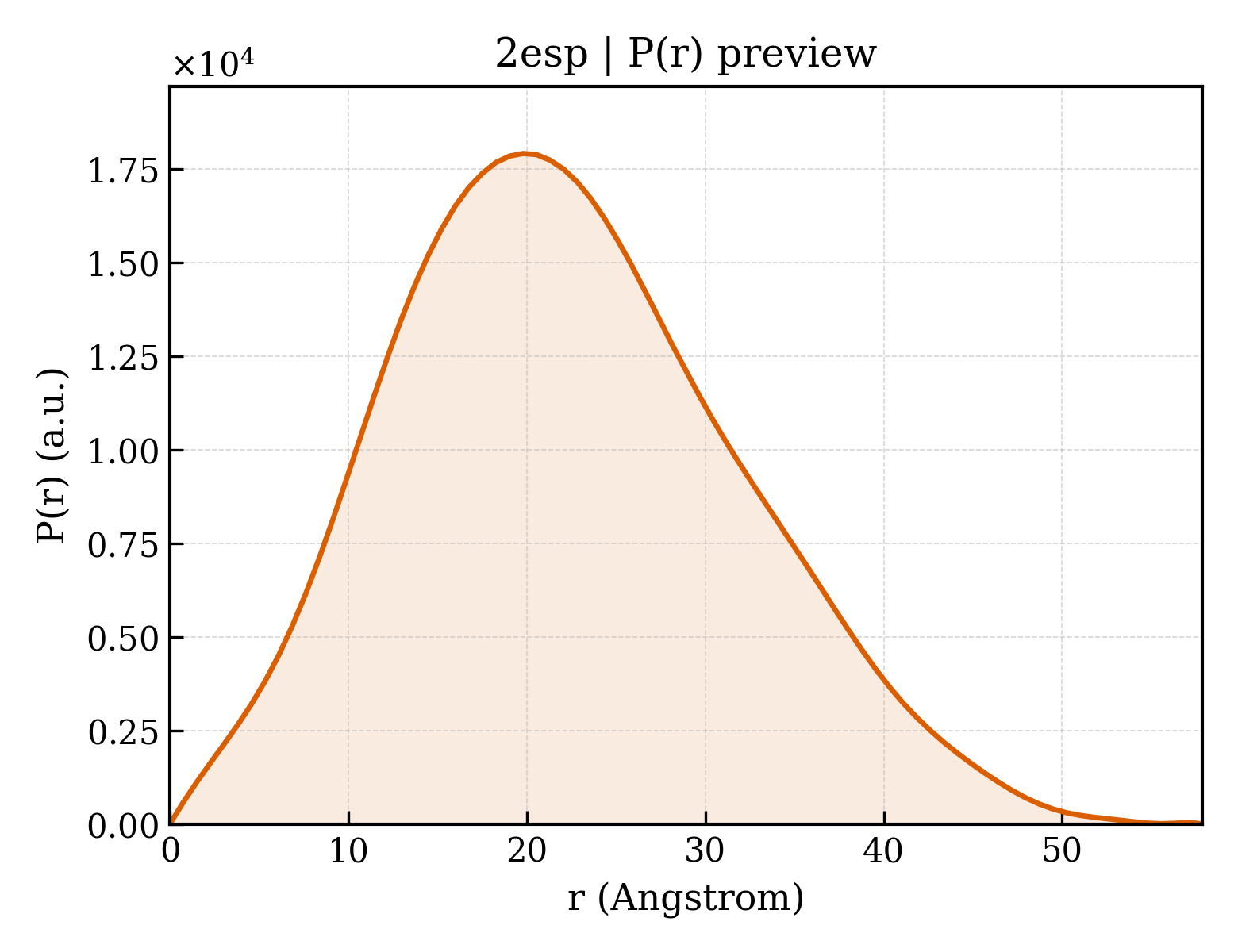

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2esp
Deposition date deposition_date	2005-10-26
Structure title title	Human ubiquitin-conjugating enzyme (E2) UbcH5b mutant Ile88Ala
Keywords keywords	ligase; LIGASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	17.14 Å
Radius of gyration Rg (electron density) rg_electron	16.04 Å
Forward intensity I(0) i0	5457640.00
Molecular weight molecular_weight	16976.0 kDa
Excluded volume excluded_volume	21308 Å³
Envelope volume envelope_volume	24148 Å³
Hydration-shell volume shell_volume	13251 Å³
Envelope diameter envelope_diameter	56.5 Å
Shell Rg shell_rg	21.20 Å
Envelope Rg envelope_rg	16.23 Å
Shape Rg shape_rg	16.01 Å
Total Rg total_rg	17.09 Å
Total atoms total_atoms	1193
Residues n_residues	148
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	57.9 Å
Rg (real space) rg_real	17.12 Å
Rg uncertainty (real space) rg_real_error	0.36 Å
I(0) (real space) i0_real	5.4580e+06
I(0) uncertainty (real space) i0_real_error	6.4510e+04
Rg (reciprocal space) rg_reciprocal	17.13 Å
I(0) (reciprocal space) i0_reciprocal	5458000.0000
Solution quality estimate total_estimate	0.8748
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	19.8 Å
Skewness Skewness skewness	0.323
Kurtosis Kurtosis kurtosis	-0.284
Angular range angular_range	— – 0.4650 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	894200.0000
Real-space data points n_real_points	77
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.806; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.985; Smooth: 0.967

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Ubiquitin-conjugating enzyme E2 D2
Molecular weight formula_weight	16841.3 kDa
EC 编号 ec_number	6.3.2.19
Mutation mutation	I88A
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1357

GAMALKRIHKELNDLARDPPAQCSAGPVGDDMFHWQATIMGPNDSPYQGGVFFLTIHFPTDYPFKPPKVAFTTRIYHPNINSNGSICLDALRSQWSPALTISKVLLSICSLLCDPNPDDPLVPEIARIYKTDREKYNRIAREWTQKYAM

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	(4S)-2-METHYL-2,4-PENTANEDIOL
Molecular weight formula_weight	118.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	136

▼

7. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d2espa1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.20 — UBC-like
Superfamily Superfamily superfamily	d.20.1 — UBC-like
Family Family family	d.20.1.1 — UBC-related

Domain ID domain_id	d2espa2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (1 domains)

Domain ID domain_id	2espA00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	110 — Ubiquitin Conjugating Enzyme
Homologous superfamily homologous superfamily	10 — Ubiquitin Conjugating Enzyme

▶

8. Citations (1)

▶

Unit-cell length a length_a	47.877 Å
Unit-cell length b length_b	49.224 Å
Unit-cell length c length_c	62.128 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.520 Å
Low-resolution limit resolution_low	38.580 Å
R factor r_factor	0.1866
R_work r_work	0.1842
R_free r_free	0.2334

fit	/app/data/saxs_computation/es/2esp/2esp.fit
pddf	/app/data/pr_computation/es/2esp/2esp.pr.out
profile	/app/data/saxs_computation/es/2esp/2esp.dat
