2ey4

Crystal Structure of a Cbf5-Nop10-Gar1 Complex

Method: X-RAY DIFFRACTION D_max: 136.6 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

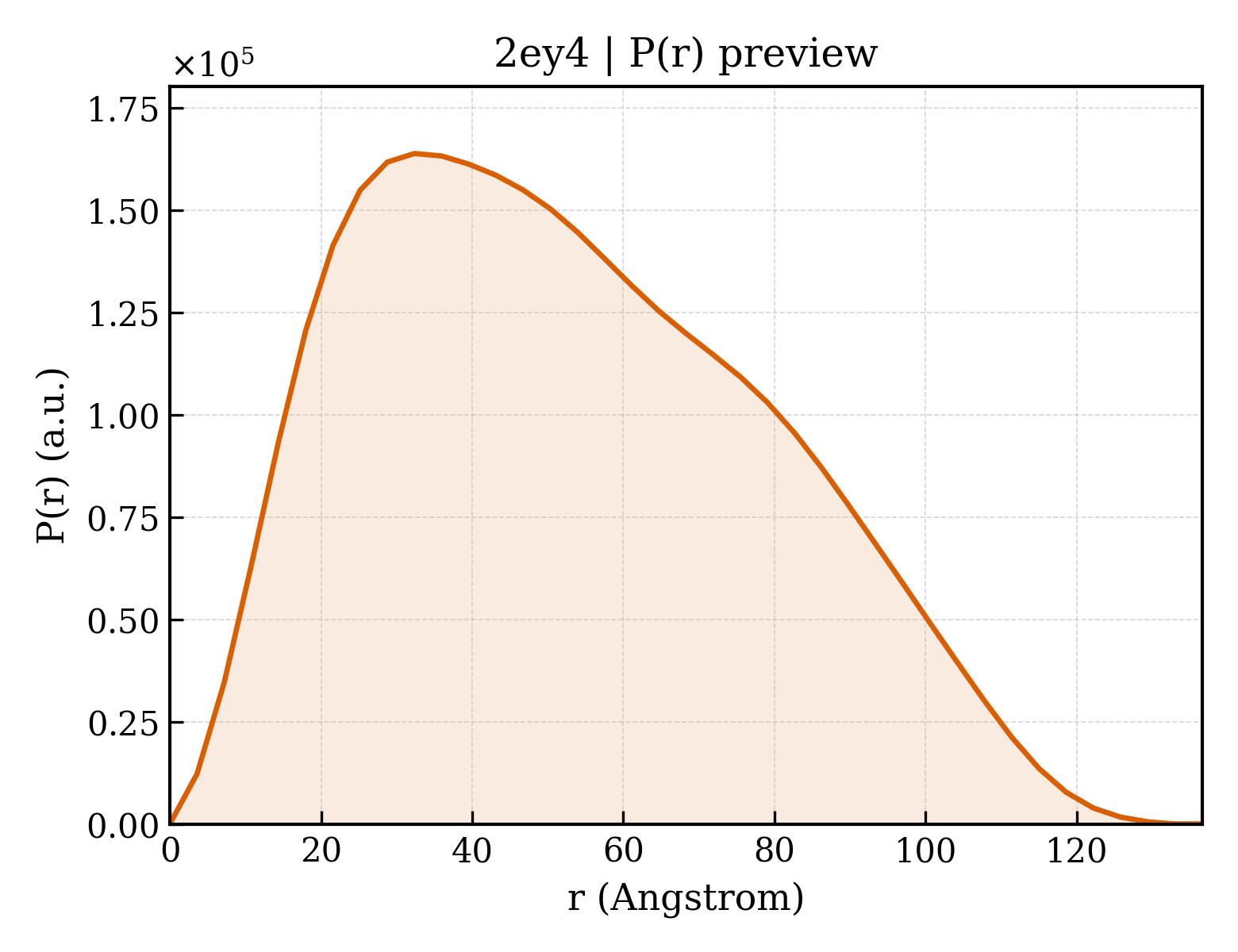

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2ey4
沉积日期 deposition_date	2005-11-09
结构标题 title	Crystal Structure of a Cbf5-Nop10-Gar1 Complex
关键词 keywords	;Trimeric complex, Structural Genomics, PSI, Protein Structure Initiative, Southeast Collaboratory for Structural Genomics, SECSG, ISOMERASE-BIOSYNTHETIC PROTEIN COMPLEX ;; ISOMERASE/BIOSYNTHETIC PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	41.35 Å
回转半径 Rg (电子) rg_electron	41.41 Å
零角强度 I(0) i0	147971000.00
分子量 molecular_weight	103430.0 kDa
排除体积 excluded_volume	131670 Å³
包络体积 envelope_volume	180900 Å³
水化壳体积 shell_volume	39074 Å³
包络直径 envelope_diameter	140.4 Å
壳层 Rg shell_rg	43.10 Å
包络 Rg envelope_rg	40.49 Å
形状 Rg shape_rg	41.41 Å
总 Rg total_rg	41.52 Å
总原子数 total_atoms	7280
残基数 n_residues	907
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	136.6 Å
Rg (实空间) rg_real	41.57 Å
Rg 误差 (实空间) rg_real_error	1.33 Å
I(0) (实空间) i0_real	1.4800e+08
I(0) 误差 (实空间) i0_real_error	2.5820e+06
Rg (倒空间) rg_reciprocal	41.35 Å
I(0) (倒空间) i0_reciprocal	147900000.0000
解质量估计 total_estimate	0.8448
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	32.4 Å
偏度 Skewness skewness	0.349
峰度 Kurtosis kurtosis	-0.710
角度范围 angular_range	— – 0.1900 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	10470000.0000
实空间数据点数 n_real_points	39
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.860; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.809; Smooth: 0.590

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	Probable tRNA pseudouridine synthase B
分子量 formula_weight	37664.0 kDa
EC 编号 ec_number	5.4.99.-
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	7456

MARDEVRRILPADIKREVLIKDENAETNPDWGFPPEKRPIEMHIQFGVINLDKPPGPTSHEVVAWIKKILNLEKAGHGGTLDPKVSGVLPVALEKATRVVQALLPAGKEYVALMHLHGDVPEDKIIQVMKEFEGEIIQRPPLRSAVKRRLRTRKVYYIEVLEIEGRDVLFRVGVEAGTYIRSLIHHIGLALGVGAHMSELRRTRSGPFKEDETLITLHDLVDYYYFWKEDGIEEYFRKAIQPMEKAVEHLPKVWIKDSAVAAVTHGADLAVPGIAKLHAGIKRGDLVAIMTLKDELVALGKAMMTSQEMLEKTKGIAVDVEKVFMPRDWYPKL

来源 Source

来源生物 organism	Pyrococcus furiosus
NCBI 分类编号 ncbi_taxonomy_id	2261
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	small nucleolar rnp similar to gar1
分子量 formula_weight	9505.3 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,D

MEKQGEKMKRLGKVLHYAKQGFLIVRTNWVPSLNDRVVDKRLQFVGIVKDVFGPVKMPYVAIKPKVSNPEIYVGEVLYVDER

来源 Source

来源生物 organism	Pyrococcus furiosus
NCBI 分类编号 ncbi_taxonomy_id	186497
宿主生物 host_organism	Escherichia coli

Entity 3 polymer

描述 description	Ribosome biogenesis protein Nop10
分子量 formula_weight	6640.9 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E,F

MRFRIRKCPKCGRYTLKEVCPVCGEKTKVAHPPRFSPEDPYGEYRRRWKREVLGI

来源 Source

来源生物 organism	Pyrococcus furiosus
NCBI 分类编号 ncbi_taxonomy_id	2261
宿主生物 host_organism	Escherichia coli

Entity 4 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	176

▼

6. 折叠分类 (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

结构域编号 domain_id	d2ey4a1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.122 — PUA domain-like
超家族 Superfamily superfamily	b.122.1 — PUA domain-like
家族 Family family	b.122.1.1 — PUA domain

结构域编号 domain_id	d2ey4a2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.265 — Pseudouridine synthase
超家族 Superfamily superfamily	d.265.1 — Pseudouridine synthase
家族 Family family	d.265.1.2 — Pseudouridine synthase II TruB

结构域编号 domain_id	d2ey4b1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.122 — PUA domain-like
超家族 Superfamily superfamily	b.122.1 — PUA domain-like
家族 Family family	b.122.1.1 — PUA domain

结构域编号 domain_id	d2ey4b2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.265 — Pseudouridine synthase
超家族 Superfamily superfamily	d.265.1 — Pseudouridine synthase
家族 Family family	d.265.1.2 — Pseudouridine synthase II TruB

结构域编号 domain_id	d2ey4c1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.43 — Reductase/isomerase/elongation factor common domain
超家族 Superfamily superfamily	b.43.3 — Translation proteins
家族 Family family	b.43.3.5 — Gar1-like SnoRNP

结构域编号 domain_id	d2ey4d_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.43 — Reductase/isomerase/elongation factor common domain
超家族 Superfamily superfamily	b.43.3 — Translation proteins
家族 Family family	b.43.3.5 — Gar1-like SnoRNP

结构域编号 domain_id	d2ey4e1
类 Class class	g — Small proteins
折叠类型 Fold fold	g.41 — Rubredoxin-like
超家族 Superfamily superfamily	g.41.16 — Nop10-like SnoRNP
家族 Family family	g.41.16.1 — Nucleolar RNA-binding protein Nop10-like

结构域编号 domain_id	d2ey4f_
类 Class class	g — Small proteins
折叠类型 Fold fold	g.41 — Rubredoxin-like
超家族 Superfamily superfamily	g.41.16 — Nop10-like SnoRNP
家族 Family family	g.41.16.1 — Nucleolar RNA-binding protein Nop10-like

CATH v4.4 (8 domains)

结构域编号 domain_id	2ey4A01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	30 — Roll
拓扑 Topology topology	130 — Archaeosine Trna-guanine Transglycosylase; Chain: A, domain 4
同源超家族 H-superfamily homologous superfamily	10 — PUA domain

结构域编号 domain_id	2ey4A02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	2350 — Pseudouridine synthase
同源超家族 H-superfamily homologous superfamily	10 — Pseudouridine synthase

结构域编号 domain_id	2ey4B01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	30 — Roll
拓扑 Topology topology	130 — Archaeosine Trna-guanine Transglycosylase; Chain: A, domain 4
同源超家族 H-superfamily homologous superfamily	10 — PUA domain

结构域编号 domain_id	2ey4B02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	2350 — Pseudouridine synthase
同源超家族 H-superfamily homologous superfamily	10 — Pseudouridine synthase

结构域编号 domain_id	2ey4C00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	10 — Thrombin, subunit H
同源超家族 H-superfamily homologous superfamily	230 — Probable tRNA pseudouridine synthase domain

结构域编号 domain_id	2ey4D00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	10 — Thrombin, subunit H
同源超家族 H-superfamily homologous superfamily	230 — Probable tRNA pseudouridine synthase domain

结构域编号 domain_id	2ey4E00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	20 — Single Sheet
拓扑 Topology topology	28 — Rubrerythrin, domain 2
同源超家族 H-superfamily homologous superfamily	40 — H/ACA ribonucleoprotein complex, subunit Nop10

结构域编号 domain_id	2ey4F00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	20 — Single Sheet
拓扑 Topology topology	28 — Rubrerythrin, domain 2
同源超家族 H-superfamily homologous superfamily	40 — H/ACA ribonucleoprotein complex, subunit Nop10

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	36.087 Å
晶胞边长 b length_b	75.361 Å
晶胞边长 c length_c	103.240 Å
晶胞夹角 α angle_alpha	95.90 °
晶胞夹角 β angle_beta	96.90 °
晶胞夹角 γ angle_gamma	94.99 °
晶胞分子数 Z z_pdb	2

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.110 Å
最低分辨率 resolution_low	39.970 Å
R 因子 r_factor	0.2110
R_work r_work	0.2110
R_free r_free	0.2550

fit	/app/data/saxs_computation/ey/2ey4/2ey4.fit
pddf	/app/data/pr_computation/ey/2ey4/2ey4.pr.out
profile	/app/data/saxs_computation/ey/2ey4/2ey4.dat
